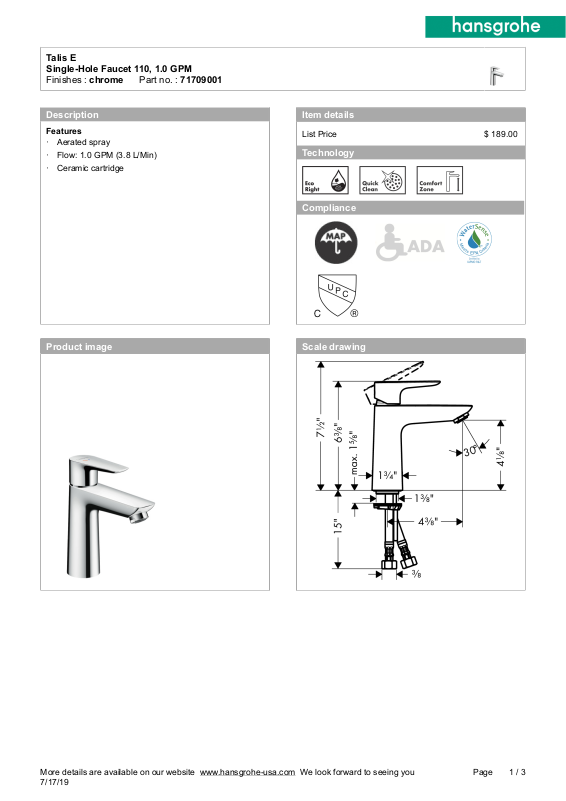

Page 1
Talis E
Single-Hole Faucet 110, 1.0 GPM
Finishes : chrome___Part no. : 71709001
Description
Features
· Aerated spray
· Flow: 1.0 GPM (3.8 L/Min)
· Ceramic cartridge
Item details
List Price $ 189.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Talis E
Single-Hole Faucet 110, 1.0 GPM
Finishes : chrome___Part no. : 71709001
Exploded drawing
Year of production: >09/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Talis E
Single-Hole Faucet 110, 1.0 GPM
Finishes : chrome___Part no. : 71709001
Spare parts list
Year of production: >09/16
Pos. Description Part no. Price PU
1 handle 92687000 - 1
2 screw cover 95704000 - 1
3 flange 92625000 - 1
4 nut 92689000 - 1
5 O-ring 25x1,5 98146000 - 1
6 O-ring 27x1,5 92527000 - 1
7 cartridge, assy 95973001 - 1
8 seal 98865000 - 1
9 adapter for cartridge 92628000 - 1
10 adapter for cartridge 98866000 - 1
11 O-ring 23x2 98398000 - 1
12 screw M8 x 68 97736000 - 1
13 seal Ø 42 98722000 - 1
14 fixing set 96016000 - 1
15 connection hose 18½" M8x0,75 3/8" 96321001 - 1
16 O-ring 7x1,5 98422000 - 1
17 aerator M24x1 (4,5 l/min) 92877000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
