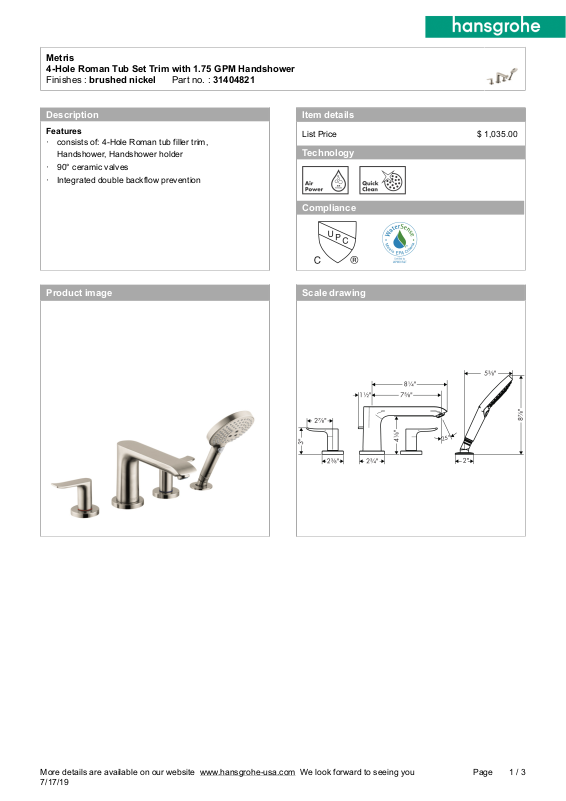

Page 1
Metris
4-Hole Roman Tub Set Trim with 1.75 GPM Handshower
Finishes : brushed nickel___Part no. : 31404821
Description
Features
· consists of: 4-Hole Roman tub filler trim,
Handshower, Handshower holder
· 90° ceramic valves
· Integrated double backflow prevention
Item details
List Price $ 1,035.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Metris
4-Hole Roman Tub Set Trim with 1.75 GPM Handshower
Finishes : brushed nickel___Part no. : 31404821

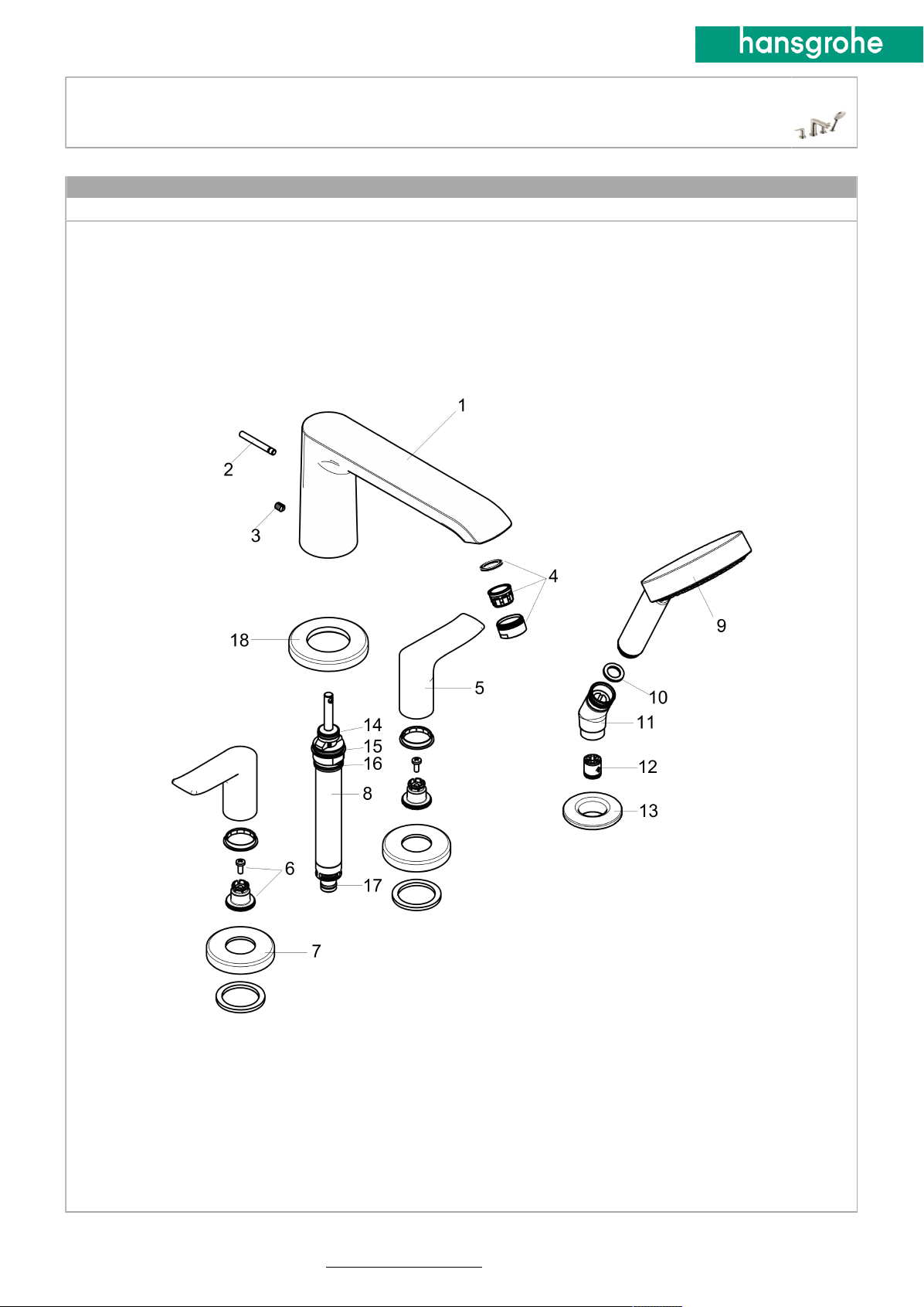

Exploded drawing
Year of production: >07/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Metris
4-Hole Roman Tub Set Trim with 1.75 GPM Handshower
Finishes : brushed nickel___Part no. : 31404821
Spare parts list
Year of production: >07/18
Pos. Description Part no. Price PU
1 spout cpl. 95799820 - 1
2 diverter knob 98607000 - 1
3 hollow set screw M6x6 97660000 - 1
4 aerator M24x1 (25 l/min) 13956820 - 1
5 handle 95846820 - 1
6 handle fixing set 94184000 - 1
7 escutcheon 31098820 - 1
8 selector assy 96775000 - 1
9 handshower 26036821 - 1
10 filter packing 94246000 - 1
11 shower holder 28071820 - 1
12 set of non return valves DW 15 94074000 - 1
13 escutcheon Ø 52 mm 97159820 - 1
14 O-Ring 14x2,5 98189000 - 1
15 O-Ring 23x2,5 98183000 - 1
16 O-Ring 22x2 98185000 - 1
17 O-ring 9x2,5 98217000 - 1
18 escutcheon Ø 70 mm 97779820 - 1
a base body 06646000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
