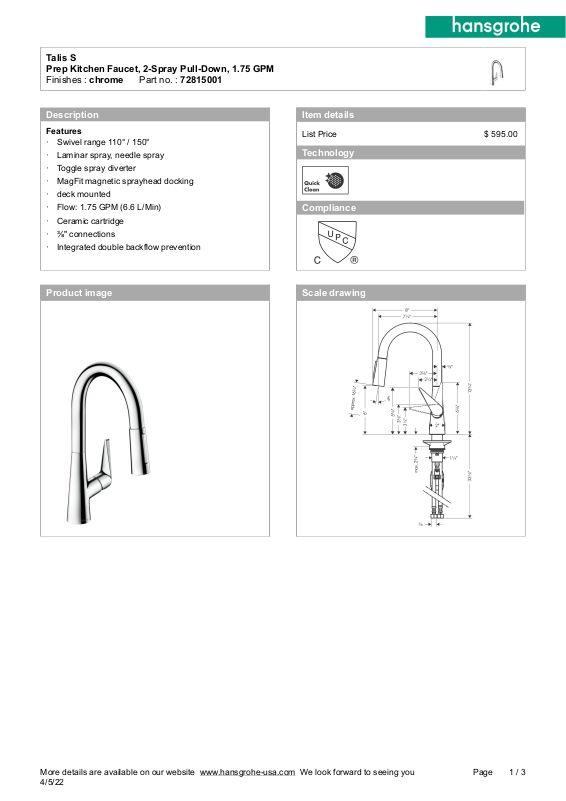

Page 1
Talis S
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 72815001
Description
Features
· Swivel range 110° / 150°
· Laminar spray, needle spray
· Toggle spray diverter
· MagFit magnetic sprayhead docking
· deck mounted
· Flow: 1.75 GPM (6.6 L/Min)
· Ceramic cartridge
· ⅜" connections
· Integrated double backflow prevention
Item details
List Price $ 595.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
1 / 3Page
Page 2
Talis S
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 72815001

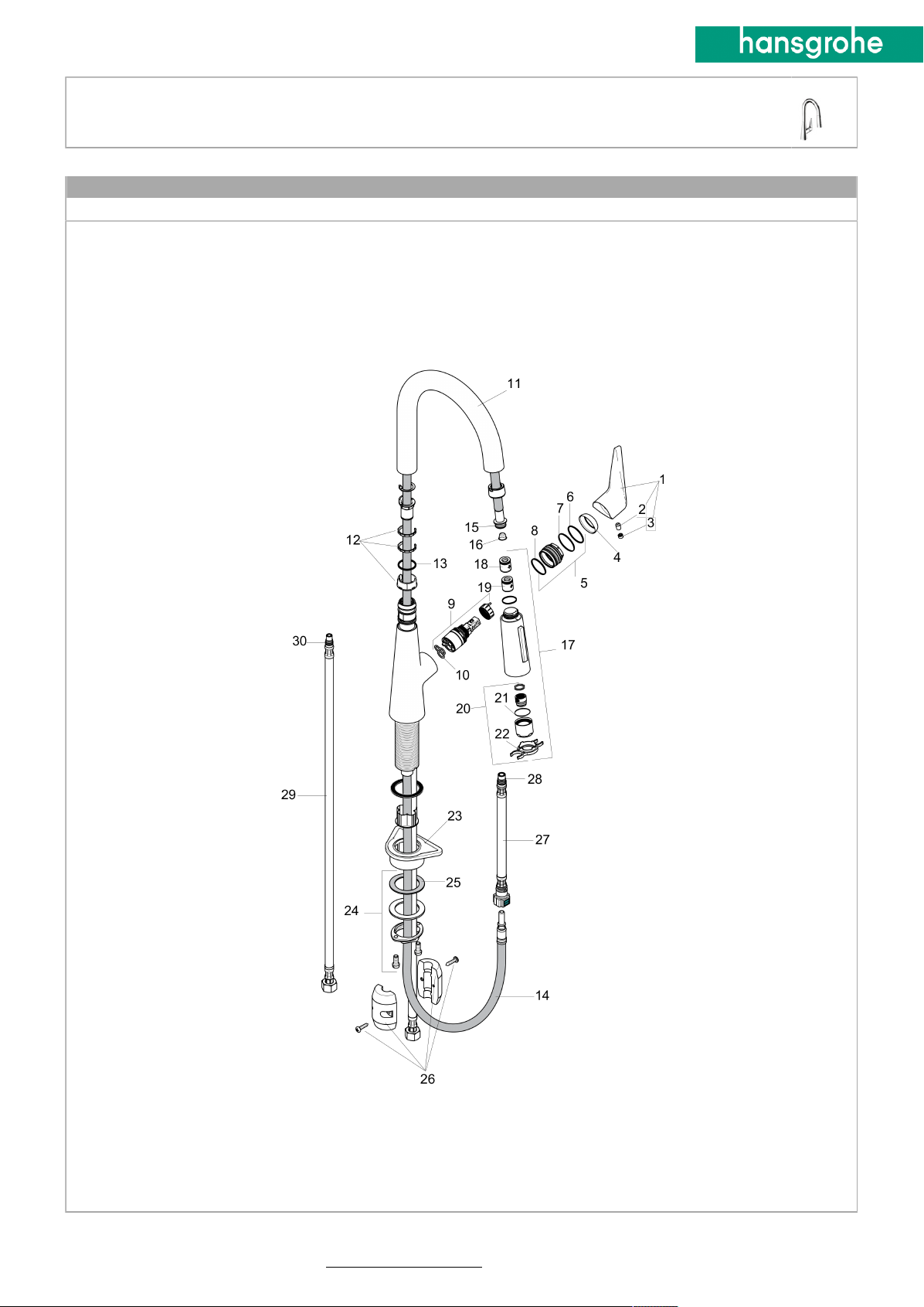

Exploded drawing
Year of production: >01/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
2 / 3Page
Page 3
Talis S
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 72815001
Spare parts list
Year of production: >01/18
Pos. Description Part no. Price PU
1 handle 93148000 - 1
2 hollow set screw M6x10 DIN 916 96029000 - 1
3 screw cover 95704000 - 1
4 flange 95493000 - 1
5 nut 98864000 - 1
6 O-ring 23x2 98398000 - 1
7 O-ring 27x1,5 92527000 - 1
8 O-ring 25x1,5 98146000 - 1
9 cartridge, assy 97685000 - 1
10 seal 98865000 - 1
11 spout cpl. 93159000 - 1
12 set of lever collars 98365000 - 1
13 O-ring 21x2,5 98211000 - 1
14 hose 1,25 m 95506000 - 1
15 O-ring 11x2 98127000 - 1
16 filter 97735000 - 1
17 handspray 92732000 - 1
18 non return valve 93218000 - 1
19 set of non return valves DW 15 94074000 - 1
20 aerator laminar M22x1 (15 l/min) 95909000 - 1
21 O-ring 20x1 98140000 - 1
22 service tool 95910000 - 1
23 support 97523000 - 1
24 fixing set (Ø 34) 95049000 - 1
25 lever collar 97548000 - 1
26 weight 98551000 - 1
27 connection hose 600 mm M10x1 95561000 - 1
28 O-ring 8x1,75 97827000 - 1
29 connection hose 35½" M8x0,75 3/8" 96316001 - 1
30 O-ring 7x1,5 98422000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
3 / 3Page
