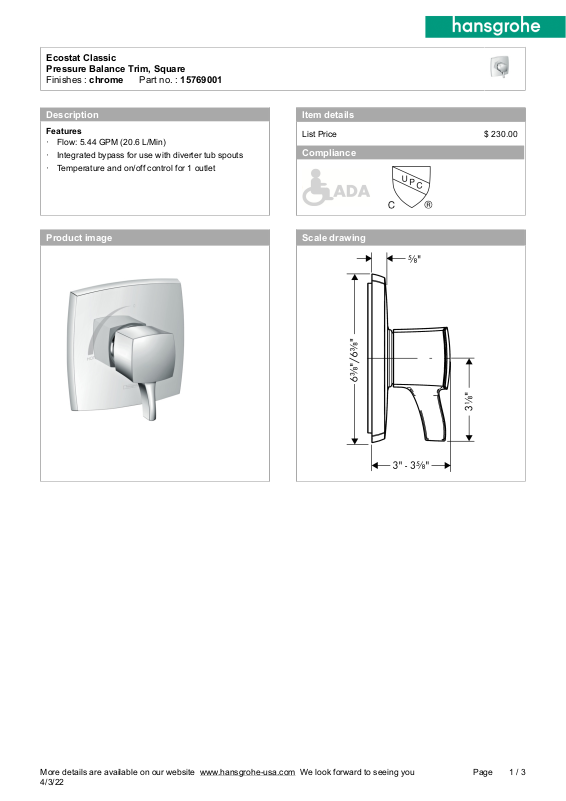

Page 1
Ecostat Classic
Pressure Balance Trim, Square
Finishes : chrome___Part no. : 15769001
Description
Features
· Flow: 5.44 GPM (20.6 L/Min)
· Integrated bypass for use with diverter tub spouts
· Temperature and on/off control for 1 outlet
Item details
List Price $ 230.00-
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/3/22
1 / 3Page
Page 2
Ecostat Classic
Pressure Balance Trim, Square
Finishes : chrome___Part no. : 15769001

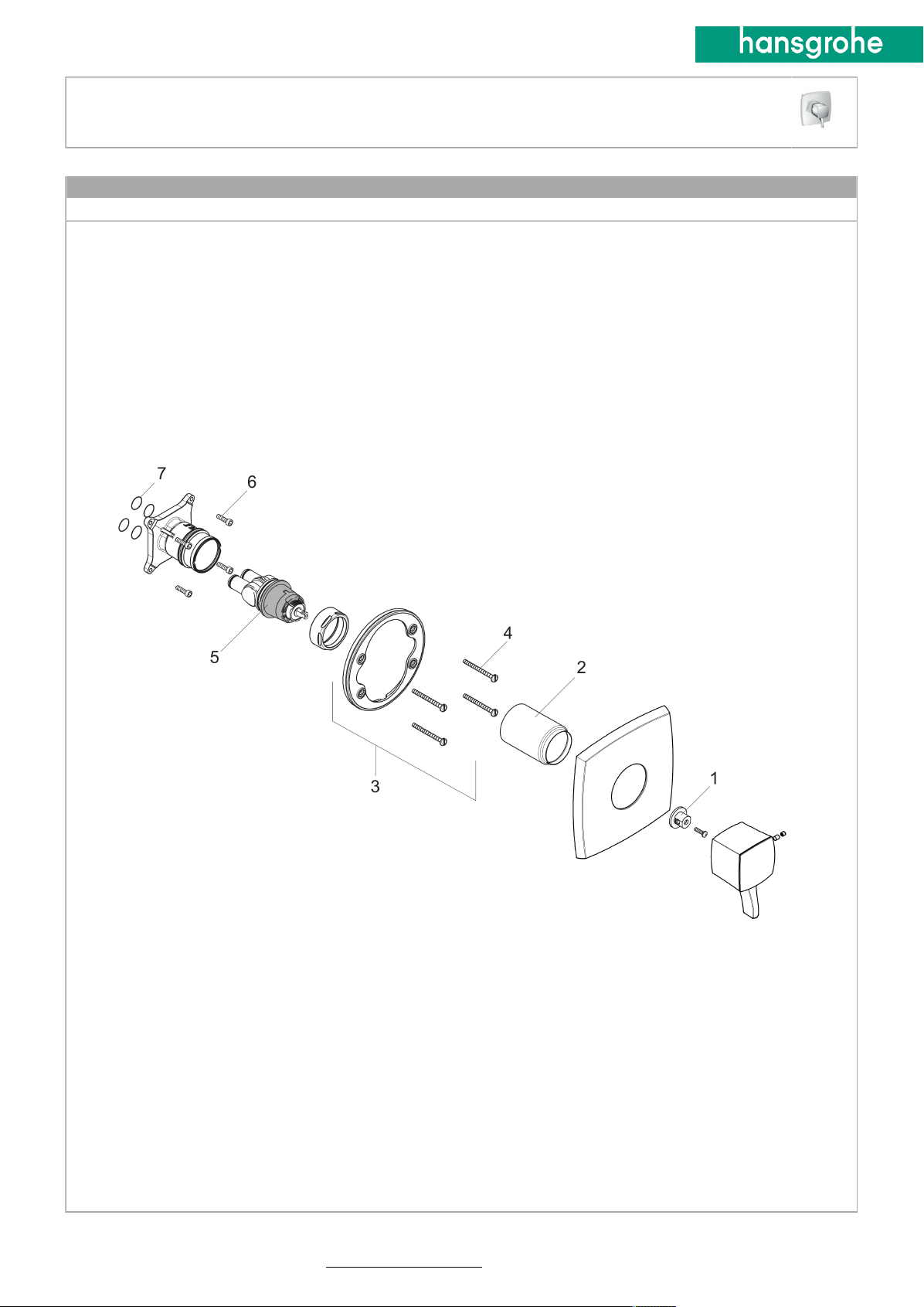

Exploded drawing
Year of production: >01/19
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/3/22
2 / 3Page
Page 3
Ecostat Classic
Pressure Balance Trim, Square
Finishes : chrome___Part no. : 15769001
Spare parts list
Year of production: >01/19
Pos. Description Part no. Price PU
1 adapter for handle 92756000 - 1
2 sleeve 88765000 - 1
3 holder for escutcheon 98793000 - 1
4 set of fixing screws 96454000 - 1
5 cartridge, assy 88727000 - 1
6 set of screws 96525000 - 1
7 O-ring 16x2 98133000 - 1
a extension 25 mm 13595000 - 1
b set of fixing screws 97747000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/3/22
3 / 3Page
