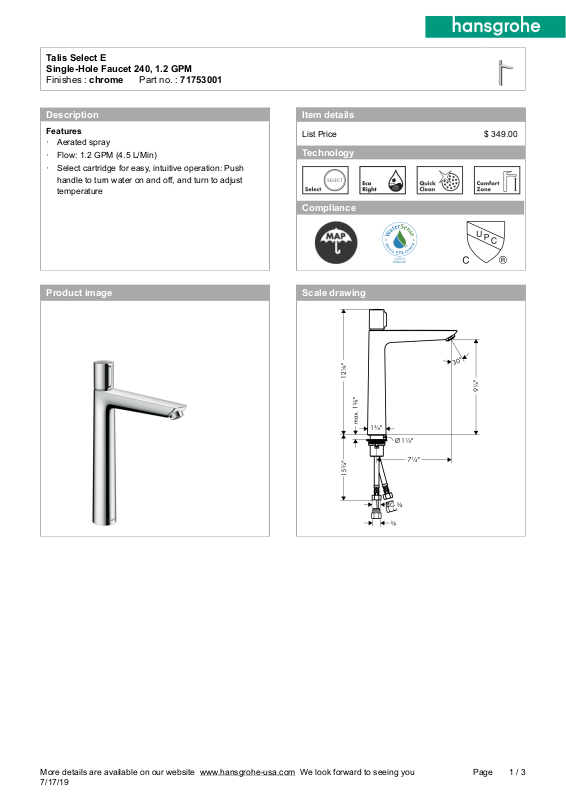

Page 1
Talis Select E
Single-Hole Faucet 240, 1.2 GPM
Finishes : chrome___Part no. : 71753001
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· Select cartridge for easy, intuitive operation: Push
handle to turn water on and off, and turn to adjust
temperature
Item details
List Price $ 349.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Talis Select E
Single-Hole Faucet 240, 1.2 GPM
Finishes : chrome___Part no. : 71753001
Exploded drawing
Year of production: >03/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Talis Select E
Single-Hole Faucet 240, 1.2 GPM
Finishes : chrome___Part no. : 71753001
Spare parts list
Year of production: >03/18
Pos. Description Part no. Price PU
1 handle 92525000 - 1
2 adapter for handle 92526000 - 1
3 nut 92528000 - 1
4 O-ring 27x1,5 92527000 - 1
5 cartridge, assy 92529000 - 1
6 O-Ring 28x2 98194000 - 1
7 adapter for cartridge 98866000 - 1
8 O-ring 23x2 98398000 - 1
9 aerator M24x1 (4,5 l/min) 92877000 - 1
10 flat seal 98749000 - 1
11 fixing set (Ø 32) 13961000 - 1
12 lever collar 97548000 - 1
13 connection hose 600 mm M8x0,75 G3/8 92629000 - 1
14 O-ring 7x1,5 98422000 - 1
15 non return valve DW 10 96456000 - 1
16 filter 92532000 - 1
17 sealing set 92533000 - 1
18 adapter for connection hose 88802000 - 1
a fixation extension 35 mm 13898000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
