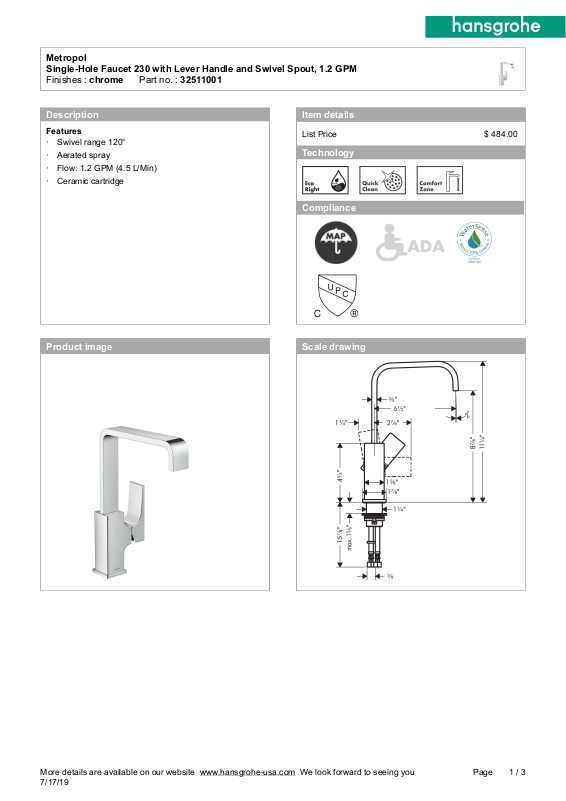

Page 1
Metropol
Single-Hole Faucet 230 with Lever Handle and Swivel Spout, 1.2 GPM
Finishes : chrome___Part no. : 32511001
Description
Features
· Swivel range 120°
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· Ceramic cartridge
Item details
List Price $ 484.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Metropol
Single-Hole Faucet 230 with Lever Handle and Swivel Spout, 1.2 GPM
Finishes : chrome___Part no. : 32511001

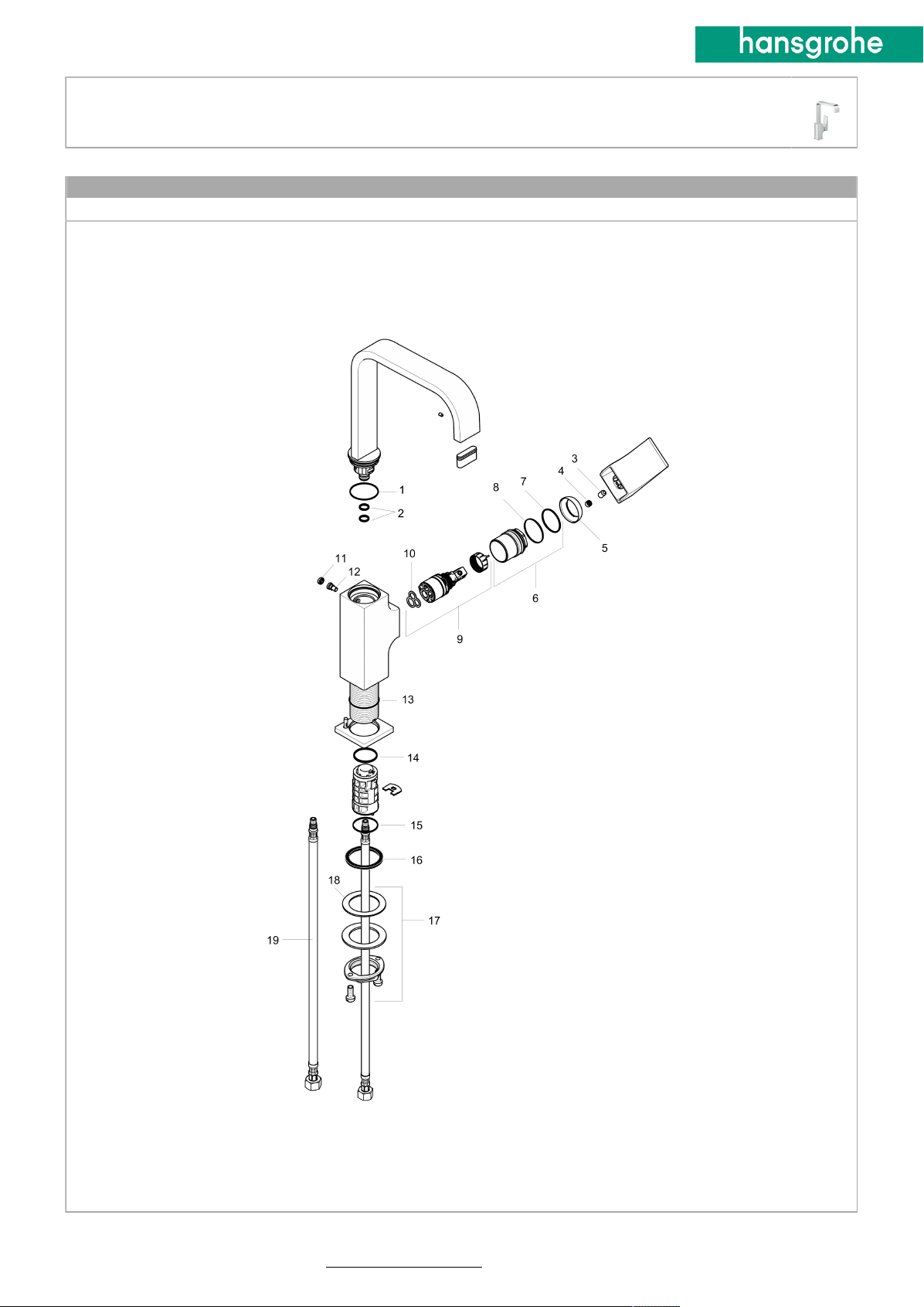

Exploded drawing
Year of production: >03/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Metropol
Single-Hole Faucet 230 with Lever Handle and Swivel Spout, 1.2 GPM
Finishes : chrome___Part no. : 32511001
Spare parts list
Year of production: >03/18
Pos. Description Part no. Price PU
1 O-ring 30x1,5 98433000 - 1
2 O-ring 8x2 98112000 - 1
3 hollow set screw M6x10 DIN 916 96029000 - 1
4 screw cover 95704000 - 1
5 flange 95493000 - 1
6 nut 93086000 - 1
7 O-Ring 22x2 98185000 - 1
8 O-ring 27x1,5 92527000 - 1
9 cartridge, assy 95973001 - 1
10 seal 98865000 - 1
11 plug 93087000 - 1
12 screw 93088000 - 1
13 O-ring 32x1,5 92936000 - 1
14 O-ring 24x2 98388000 - 1
15 O-ring 26x1,5 98390000 - 1
16 flat seal 98749000 - 1
17 fixing set (Ø 32) 13961000 - 1
18 lever collar 97548000 - 1
19 connection hose 23½" M8x0,75 3/8" 98600001 - 1
a spout 165 mm 93084000 - 1
b spray former 93085000 - 1
c handle 93082000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
