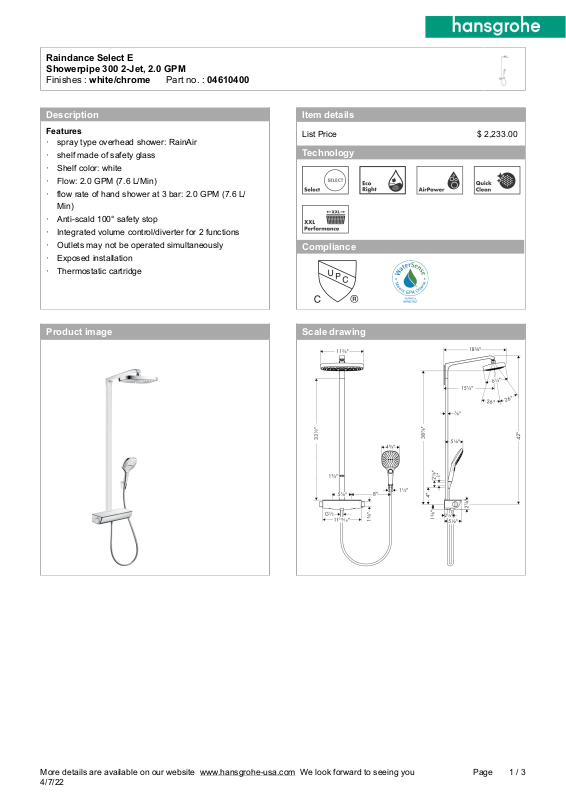

Page 1
Raindance Select E
Showerpipe 300 2-Jet, 2.0 GPM
Finishes : white/chrome___Part no. : 04610400
Description
Features
· spray type overhead shower: RainAir
· shelf made of safety glass
· Shelf color: white
· Flow: 2.0 GPM (7.6 L/Min)
· flow rate of hand shower at 3 bar: 2.0 GPM (7.6 L/
Min)
· Anti-scald 100° safety stop
· Integrated volume control/diverter for 2 functions
· Outlets may not be operated simultaneously
· Exposed installation
· Thermostatic cartridge
Item details
List Price $ 2,233.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
1 / 3Page
Page 2
Raindance Select E
Showerpipe 300 2-Jet, 2.0 GPM
Finishes : white/chrome___Part no. : 04610400

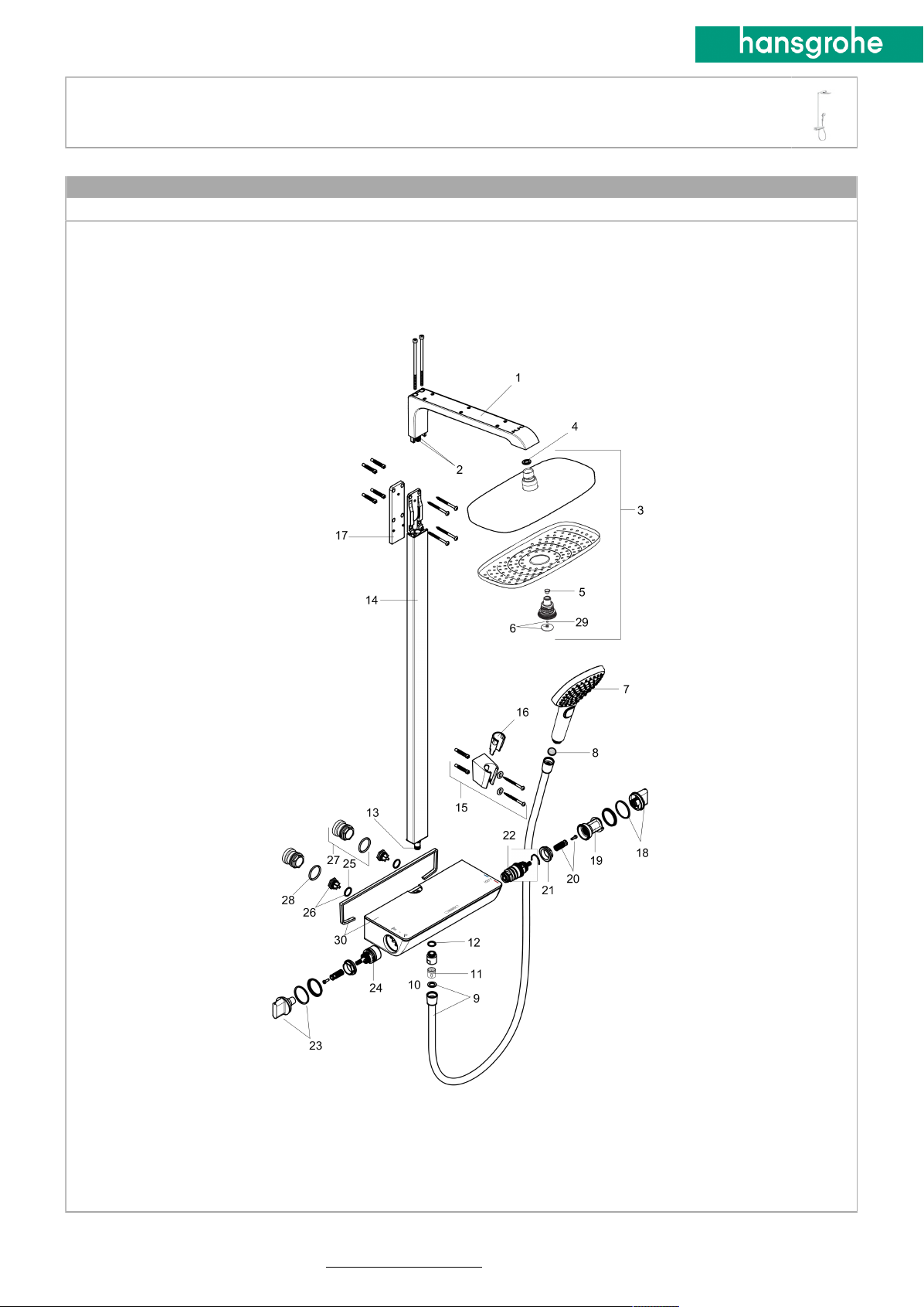

Exploded drawing
Year of production: >01/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
2 / 3Page
Page 3
Raindance Select E
Showerpipe 300 2-Jet, 2.0 GPM
Finishes : white/chrome___Part no. : 04610400
Spare parts list
Year of production: >01/16
Pos. Description Part no. Price PU
1 shower arm 92267000 - 1
2 O-ring 9x1,5 98117000 - 1
3 Overhead shower with female thread G½ 04534400 - 1
4 flat seal 97674000 - 1
5 filter 97735000 - 1
6 cover 98344000 - 1
7 handshower 04528400 - 1
8 filter packing 94246000 - 1
9 shower hose 1,60 m 28276003 - 1
10 seal 98058000 - 1
11 set of non return valves DW 15 94074000 - 1
12 O-ring 14x2 98129000 - 1
13 O-ring 9x1,8 98118000 - 1
14 pipe with cover (850 mm) 92265000 - 1
15 shower holder 28331000 - 1
16 guide 98918000 - 1
17 tile-matching-disk 7 mm 95960000 - 1
18 handle for thermostat 95770000 - 1
19 safety set 95771000 - 1
20 handle fixing set 92130000 - 1
21 nut 98913000 - 1
22 thermostat cartridge 98282000 - 1
23 handle 95957000 - 1
24 shut off unit with selector 98283000 - 1
25 O-ring 17x2 98199000 - 1
26 non return valve (pressure-resistant up to 2 MPa) 95773000 - 1
27 set of S-unions 95772001 - 1
28 O-ring 29x3 98371000 - 1
29 O-ring 3x1 98384000 - 1
30 escutcheon 98478401 - 1
a pipe with cover (1382 mm) 92358000 - 1
b pipe with cover (1282 mm) 92266000 - 1
c pipe with cover (950 mm) 92357000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
3 / 3Page
