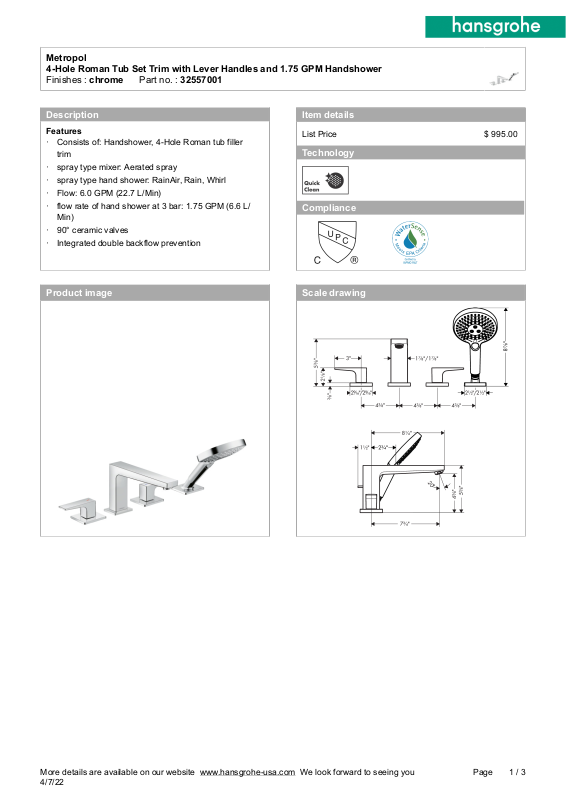

Page 1
Metropol
4-Hole Roman Tub Set Trim with Lever Handles and 1.75 GPM Handshower
Finishes : chrome___Part no. : 32557001
Description
Features
· Consists of: Handshower, 4-Hole Roman tub filler
trim
· spray type mixer: Aerated spray
· spray type hand shower: RainAir, Rain, Whirl
· Flow: 6.0 GPM (22.7 L/Min)
· flow rate of hand shower at 3 bar: 1.75 GPM (6.6 L/
Min)
· 90° ceramic valves
· Integrated double backflow prevention
Item details
List Price $ 995.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
1 / 3Page
Page 2
Metropol
4-Hole Roman Tub Set Trim with Lever Handles and 1.75 GPM Handshower
Finishes : chrome___Part no. : 32557001

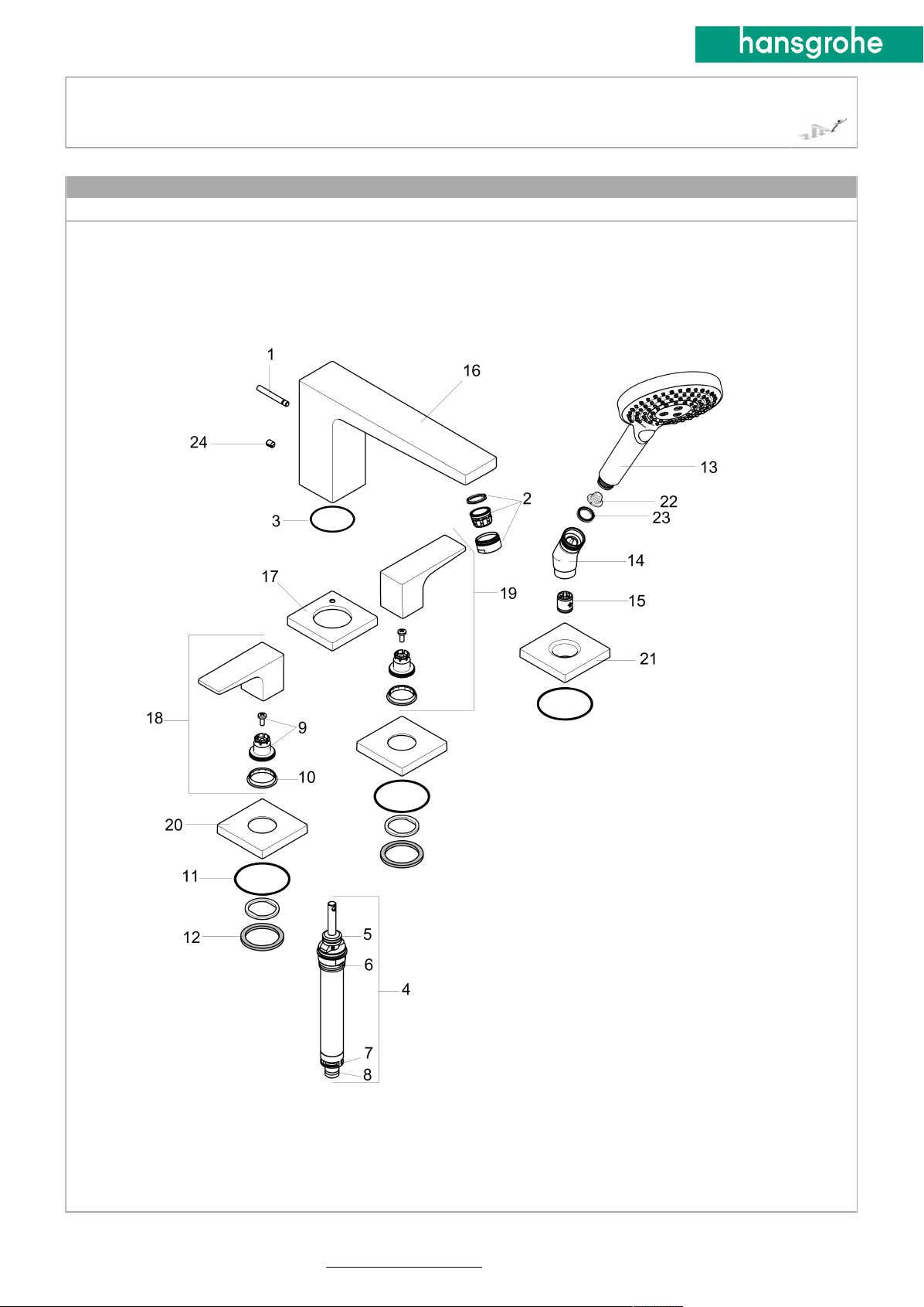

Exploded drawing
Year of production: >01/19
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
2 / 3Page
Page 3
Metropol
4-Hole Roman Tub Set Trim with Lever Handles and 1.75 GPM Handshower
Finishes : chrome___Part no. : 32557001
Spare parts list
Year of production: >01/19
Pos. Description Part no. Price PU
1 diverter knob 98707000 - 1
2 aerator M24x1 (30 l/min) 96512000 - 1
3 O-ring 41x1,5 98168000 - 1
4 selector assy 96775000 - 1
5 O-Ring 14x2,5 98189000 - 1
6 O-Ring 23x2,5 98183000 - 1
7 O-Ring 22x2 98185000 - 1
8 O-ring 9x2,5 98217000 - 1
9 handle fixing set 94184000 - 1
10 set of color-rings cold / hot water 95819000 - 1
11 O-ring 56x2 98468000 - 1
12 flat seal 98749000 - 1
13 handshower 26036001 - 1
14 shower holder 28071000 - 1
15 set of non return valves DW 15 94074000 - 1
16 spout cpl. 93151000 - 1
17 escutcheon for spout 93152000 - 1
18 handle for hot water 93167000 - 1
19 handle for cold water 93168000 - 1
20 escutcheon for handle 93169000 - 1
21 escutcheon for shower holder 93153000 - 1
22 filter 92672000 - 1
23 seal 98058000 - 1
24 hollow set screw M6x8 98444000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
3 / 3Page
