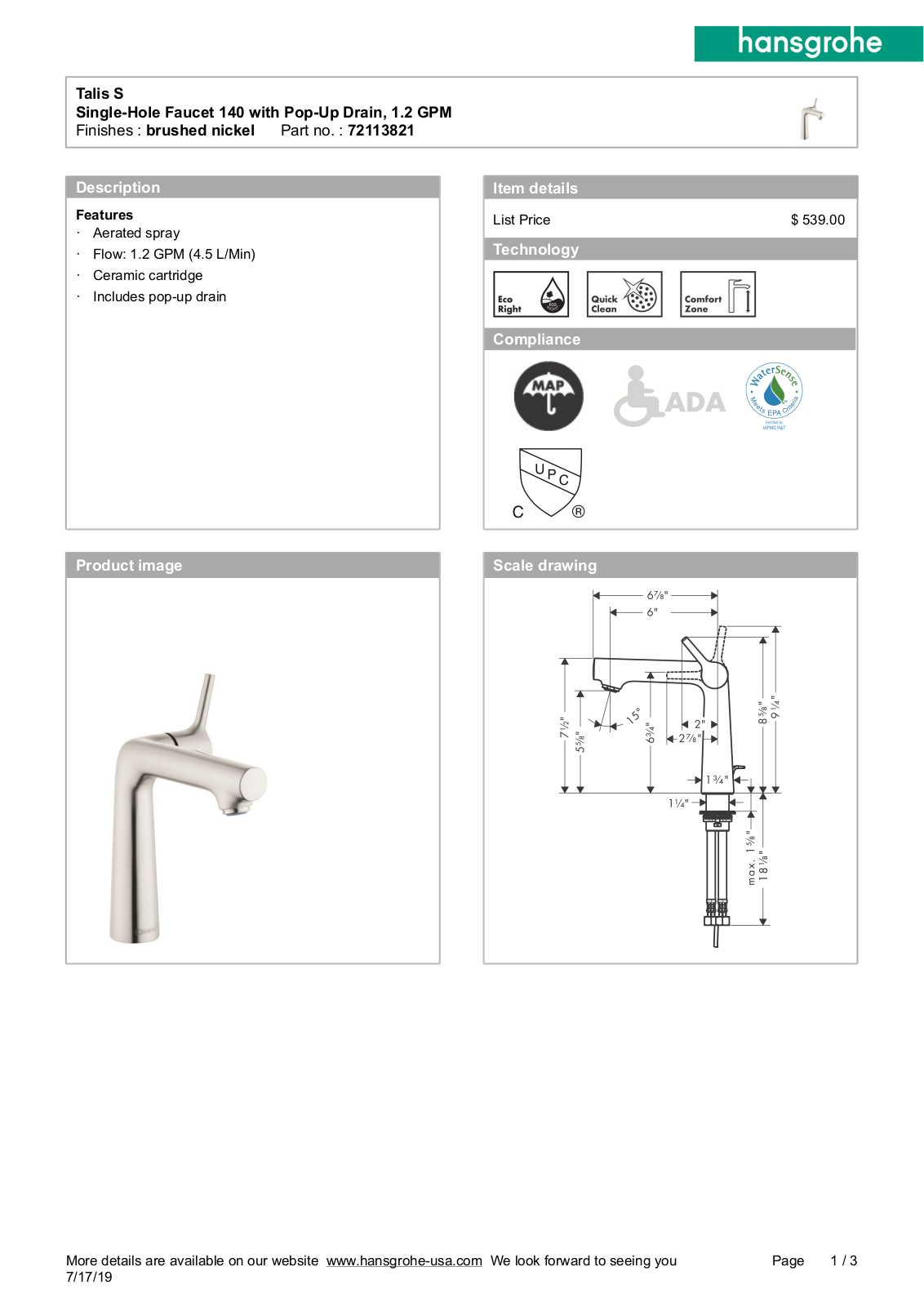

Page 1
Talis S
Single-Hole Faucet 140 with Pop-Up Drain, 1.2 GPM
Finishes : brushed nickel___Part no. : 72113821
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· Ceramic cartridge
· Includes pop-up drain
Item details
List Price $ 539.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Talis S
Single-Hole Faucet 140 with Pop-Up Drain, 1.2 GPM
Finishes : brushed nickel___Part no. : 72113821

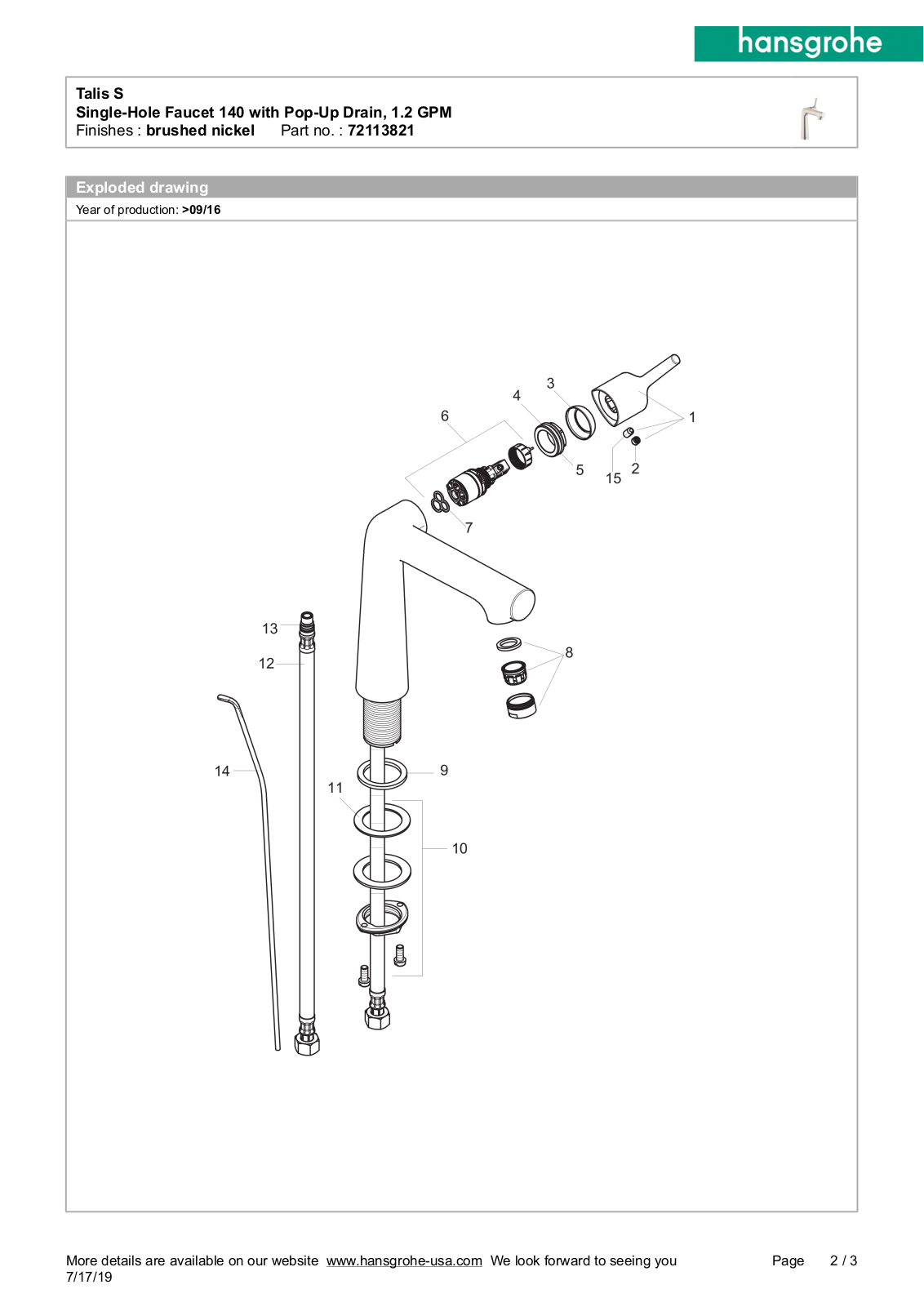

Exploded drawing
Year of production: >09/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Talis S
Single-Hole Faucet 140 with Pop-Up Drain, 1.2 GPM
Finishes : brushed nickel___Part no. : 72113821

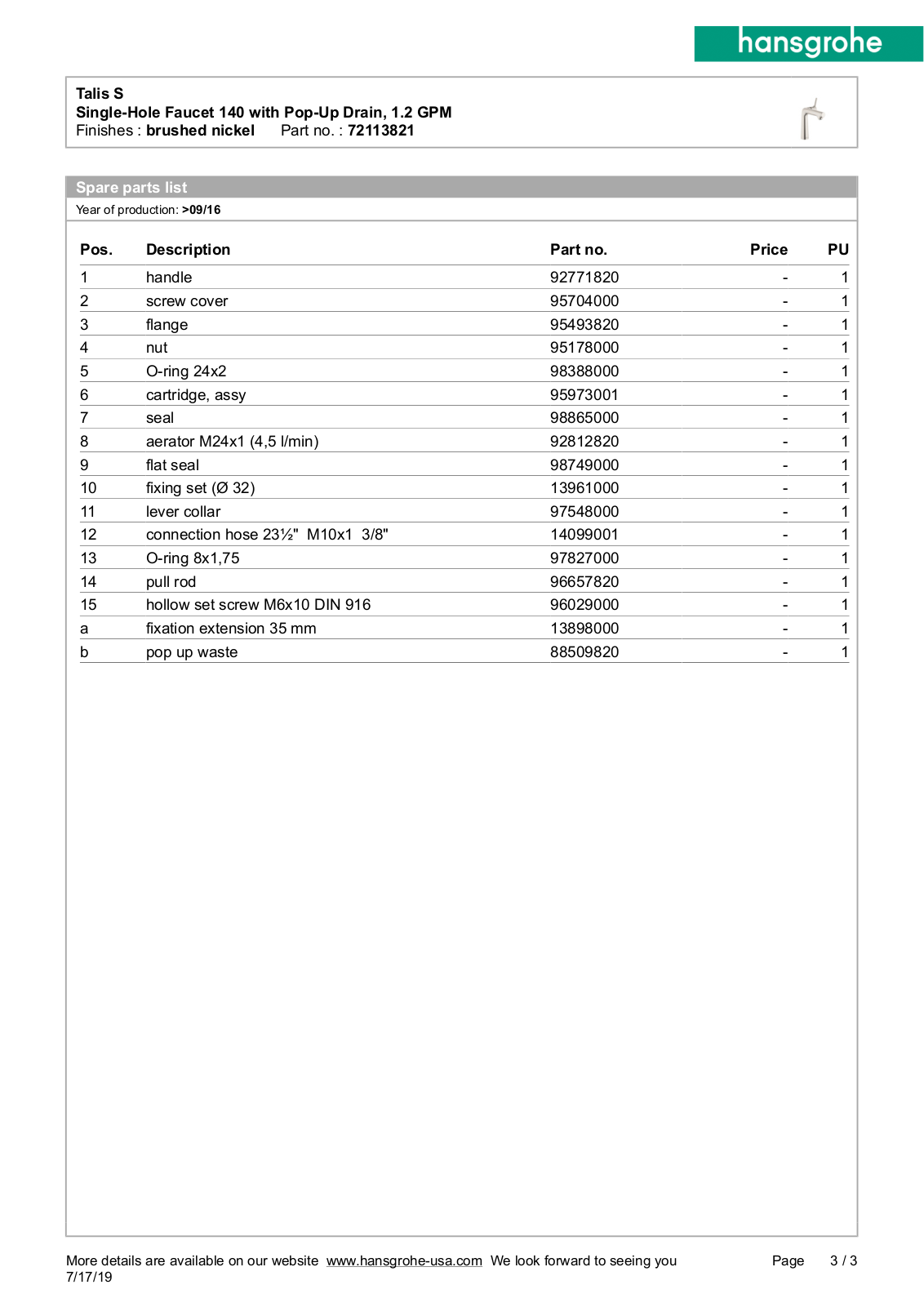

Spare parts list
Year of production: >09/16
Pos. Description Part no. Price PU
1 handle 92771820 - 1
2 screw cover 95704000 - 1
3 flange 95493820 - 1
4 nut 95178000 - 1
5 O-ring 24x2 98388000 - 1
6 cartridge, assy 95973001 - 1
7 seal 98865000 - 1
8 aerator M24x1 (4,5 l/min) 92812820 - 1
9 flat seal 98749000 - 1
10 fixing set (Ø 32) 13961000 - 1
11 lever collar 97548000 - 1
12 connection hose 23½" M10x1 3/8" 14099001 - 1
13 O-ring 8x1,75 97827000 - 1
14 pull rod 96657820 - 1
15 hollow set screw M6x10 DIN 916 96029000 - 1
a fixation extension 35 mm 13898000 - 1
b pop up waste 88509820 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
