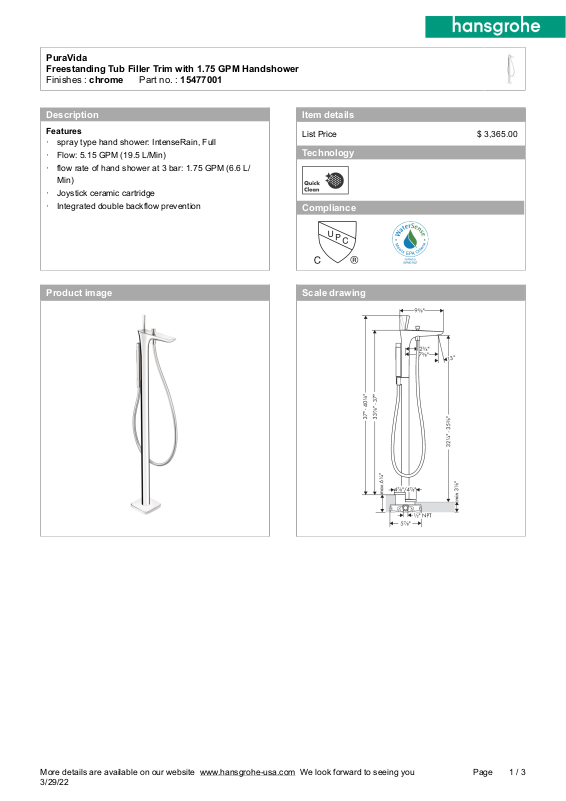

Page 1
PuraVida
Freestanding Tub Filler Trim with 1.75 GPM Handshower
Finishes : chrome___Part no. : 15477001
Description
Features
· spray type hand shower: IntenseRain, Full
· Flow: 5.15 GPM (19.5 L/Min)
· flow rate of hand shower at 3 bar: 1.75 GPM (6.6 L/
Min)
· Joystick ceramic cartridge
· Integrated double backflow prevention
Item details
List Price $ 3,365.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
3/29/22
1 / 3Page
Page 2
PuraVida
Freestanding Tub Filler Trim with 1.75 GPM Handshower
Finishes : chrome___Part no. : 15477001
Exploded drawing
Year of production: >01/19
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
3/29/22
2 / 3Page
Page 3
PuraVida
Freestanding Tub Filler Trim with 1.75 GPM Handshower
Finishes : chrome___Part no. : 15477001
Spare parts list
Year of production: >01/19
Pos. Description Part no. Price PU
1 escutcheon Ø 37 mm 95288000 - 1
2 handle 95287000 - 1
3 escutcheon 95157000 - 1
4 cartridge, assy 96339000 - 1
5 diverter knob 95284000 - 1
6 handshower 04486000 - 1
7 filter packing 94246000 - 1
8 shower hose 1,25 m 28282000 - 1
9 aerator M24x1 (30 l/min) 96512000 - 1
10 selector 97978000 - 1
11 non return valve 97980000 - 1
12 hexagon socket screw M10x35 97670000 - 1
13 shower holder, assy 96295000 - 1
14 sleeve 97738000 - 1
15 extension set 60 mm 97686000 - 1
16 hollow set screw M4x6 97767000 - 1
a service tool for disassembling the handle 92124000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
3/29/22
3 / 3Page
