Hans Grohe 28110XX1, 2810BXX1 User Manual

Installation Instructions / Warranty

Raindance Allrounder

28110XX1

Wall Outlet Adapter with Hose

Connection

28108XX1

2

Raindance Allrounder
28110XX1

Determining the mounting height (X)

Technical Data

Max. flow rate of showerhead 2.5 gpm

The Allrounder should be mounted according to the preferences of the users. It should be conve­nient for all adult users.

Install the Allrounder with the Optional Wall Outlet
Adapter with Hose Connection 28108XX1

If you are not using the 28108XX1 wall outlet adapter, go to page 9.

Roughing in

Install a properly anchored 1/2" NPT drop-eared ell, at
least 2" behind the surface of the finished wall. Install a
test nipple in the ell.

When the finished wall is complete, mark the test nipple at
the wall surface. Remove the test nipple.

Measure the test nipple to the mark.

Subtract 3/8" from this measurement. This is the length
of the brass nipple required to install the wall outlet
adapter.

3

4

Installation

Wrap both ends of the brass nipple with Teflon tape.
Screw it into the mounting piece.

Screw the test nipple / mounting piece assembly into the
drop-eared ell.

Tighten with a 12 mm Allen wrench (not included).

Do not overtighten, or damage will
result.

Seal the wall around the mounting piece with water­proof sealant.

Position the mounting plate over the mounting piece.
Use a grease pencil or similar tool to mark the position
of the screw holes.

Drill the holes with a 6 mm bit. Use extreme caution

- do not drill into the water line.

Install the anchors.

Seal the wall around the anchors
with waterproof sealant.

Failure to seal the wall can lead
to possible water damage.

Install the mounting plate, using the screws and offset
bushings provided.

Remove the long bottom mounting screw on the All­rounder. Replace with the shorter screw included with
the adapter.

5

6

Attach the Allrounder to the mounting plate. Tighten the
set screw.

Install the handshower

Place a black rubber washer in one end of the hose.
Screw this end to the wall outlet adapter.

Place the screen washer in the other end of the hose.
Screw this end to the handshower.

Slide the handshower into the handshower holder.

Guide the hose over the hose hook.

Replacement Parts
28108001

1 check valve 94074000
2 screw 97598000

Check Valve Maintenance: Backflow preven­tion is provided by a check valve, which is integral
to the wall outlet adapter. The check valve should be
removed and cleaned yearly.

1

2

7

8

Corner Mount Kit 28105XX0

Note: The corner mount kit is

not for use with the 28108XX1
wall outlet adapter.

Position the corner mount against the wall at the
desired location.

Mark the positions of the screw holes.

Put the mount aside.

Drill the holes using a 6 mm bit.

Seal the wall around the anchors
with waterproof sealant.

Failure to seal the wall can lead
to possible water damage.

Install the corner mount with the screws and offset
bushings.

Install the Allrounder (see page 10). Tighten the set
screw.

Install the 28110XX1 Allrounder

Do not drill through the mounting plate.

Place the mounting plate against the wall at the de­sired location. Mark the locations of the screw holes.

Put the mounting plate away in a safe location.

Drill the holes, using a 6 mm bit.

9

10

Install the anchors.

Seal the wall around the anchors
with waterproof sealant.

Failure to seal the wall can lead
to possible water damage.

Secure the mounting plate to the wall with the screws
and the offset bushings. The set screw should be on
top.

Place the Allrounder over the mounting bracket (1).
Tighten the set screw (2).

Install the handshower:

Place a black rubber washer in one end of the hose.
Connect this end of the hose to the wall outlet (not
included).

Place the screen washer in the other end of the hose.
Screw it to the handshower.

Slide the handshower into the holder, until the holder
grips it firmly.

Guide the hose over the hose hook.

Using the Allrounder

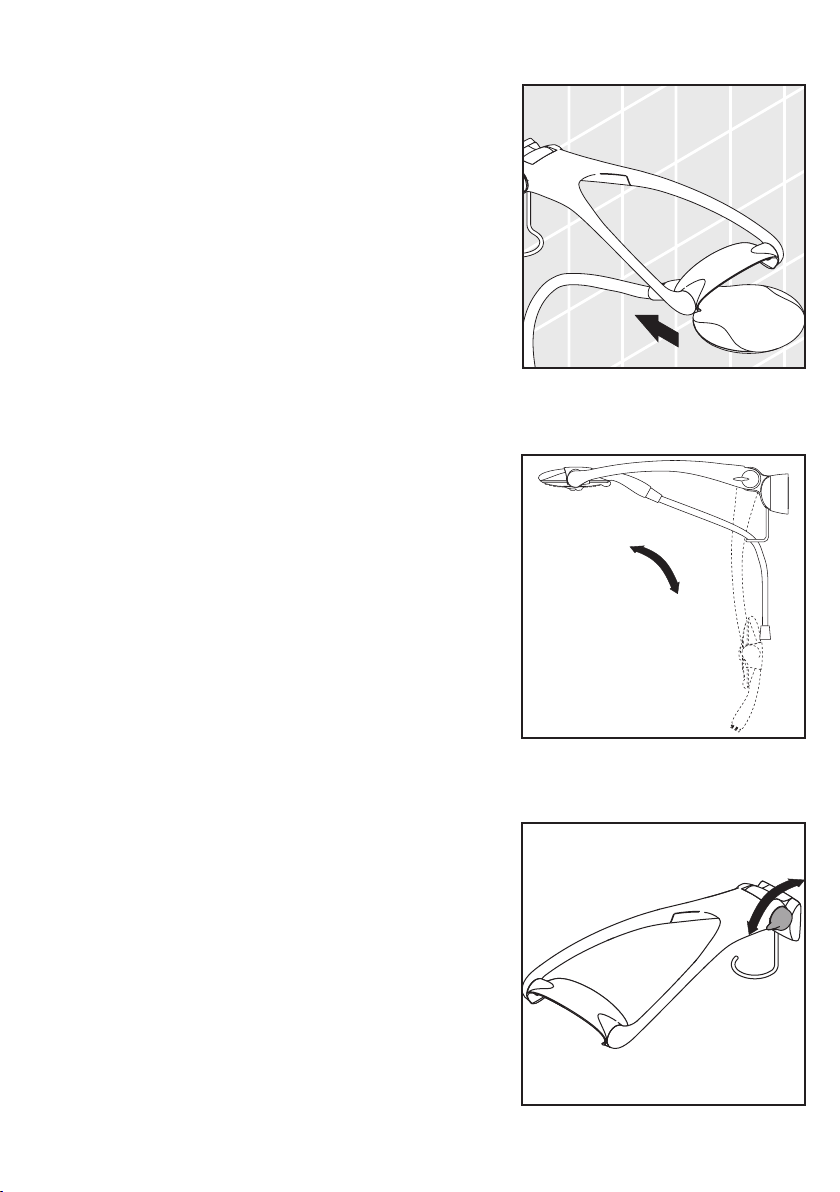

To adjust the handshower height:

Pull or push the Allrounder to the desired position.

Turn the knob to the front to make the Allrounder
easier to move.

Turn the knob to the rear to make it harder to move.

11

12

Raindance E 150 Air 3-Jet Handshower 28518XX1

Change the spray modes

Push the function lever until it is next to the name
of the desired function. The Raindance has 3
spray modes.

function lever

Limescale Removal

The spray channels on the Raindance are protected
by the Rubit!™ self-cleaning system. If scale deposits
are noticed, turn the water on lightly and rub across
the channels with a sponge or fingers

Rain AIR

Balance

AIR

Whirl AIR

Remove scale deposits on the spray face by using a
commercial limescale remover such as Lime-Away™
or CLR™. Follow the label instructions carefully. Soak
only the spray face.

Rinse the handshower thoroughly when finished.

Replacement parts 28110XX1

3

1

1 handshower 28518XX1
2 Techniflex hose 28276XX3
3 mounting plate 97609XX0
4 corner mount kit 28105000
(optional - not for use with wall outlet adapter)

XX = color
00 = chrome
82 = brushed nickel

2

4

13

14

Cleaning Recommendation for Hansgrohe Products

Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the
market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when
cleaning.

Cleaning Materials for Faucets and Showers

Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points
when cleaning faucets and showers:

Only use cleaning materials which are explicitly intended for this type of application.

•

Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable

•
damage.

Never mix one cleaning material with another.

•

Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads,

•
or micro fiber cloths.

Cleaning Instructions for Faucets and Showers

Please follow the cleaning material manufacturer’s instructions. In addition, pay attention to the following points:

Clean the faucets and showers as and when required

•

Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner

•
on the fixture longer than necessary.

Regular cleaning can prevent calcification.

•

When using spray cleaners, spray first onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can

•
enter openings and gaps and cause damage.

After cleaning, rinse thoroughly with clean water to remove any cleaner residue.

•

Important

Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.

Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.

Components with damaged surfaces must be replaced or injury could result.

Damage caused by improper treatment is not covered under the warranty.
