Hansgrohe 13284000, 13282000 Installation Instructions Manual

Installation Instructions

Ecostat 1001 SL Care

13282000

Ecostat 1001 SL Care

13284000

2

3

Contents

Safety and Important Information 3
Pack Contents 4
Dimensions 4
Technical Data 5
Supply Conditions TMV2 5
Supply Conditions TMV3 5
Installation Requirements 6-7

Installation

Thermostat 8-

Commissioning and in-service tests

Commissioning 9
In-service tests 10
Frequency of in-service tests 10

Thermostatic Adjustement

Temperature Limitation 11
Operating your Shower 12
Cleaning 13

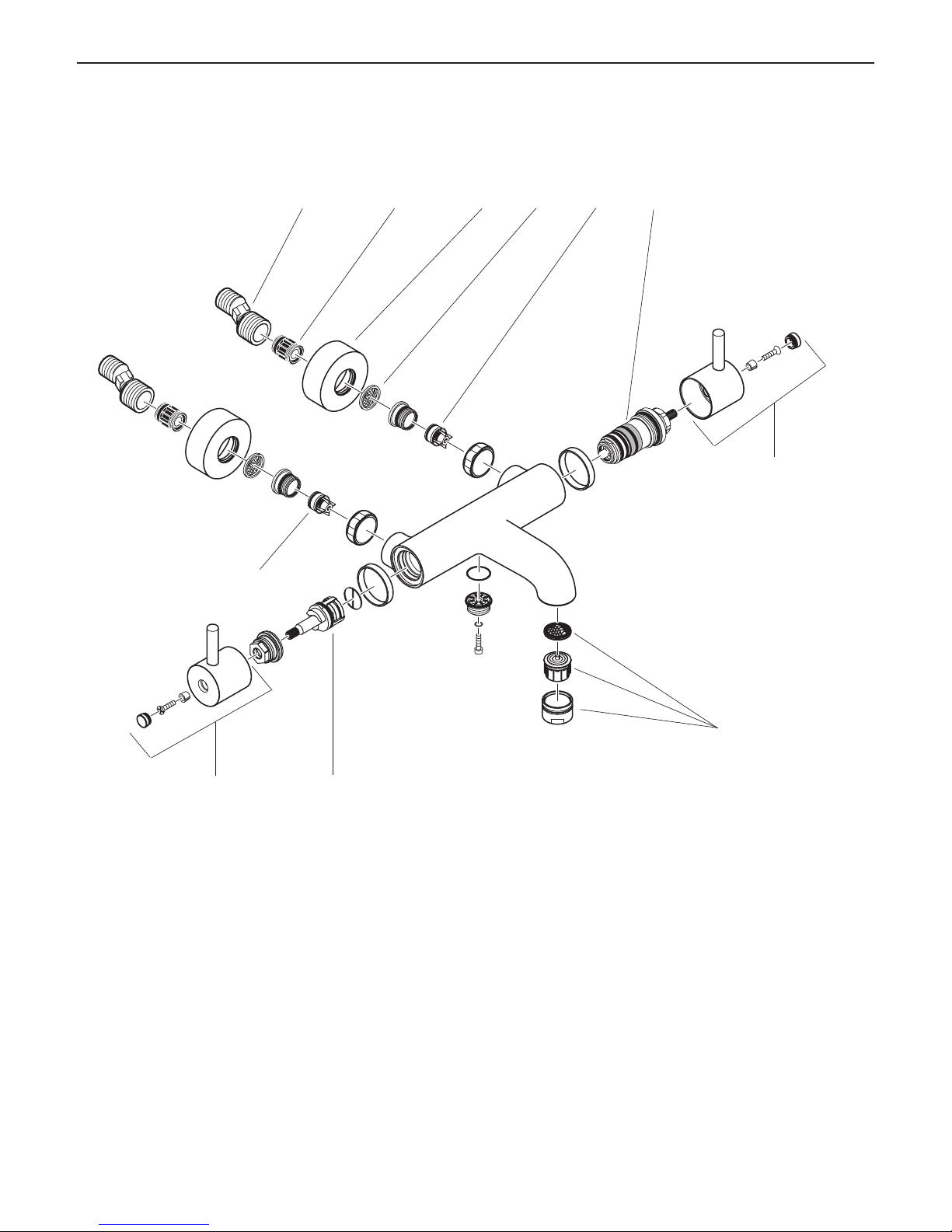

Spare Parts 14-15
Trouble Shooting 16

The Ecostat 1001 SL Care 13284000 meets
the requirements of the TMV2 Scheme.

The Ecostat 1001 SL Care 13282000 meets the
requirements of the TMV2 and TMV3 Scheme.

If there are any queries regarding this product or its
installation, please contact the Hansgrohe technical
hotline: [phone]

3

Safety and Important Information

Hansgrohe products are safe provided they are installed, used and maintained in accordance with these
instructions and recornrnendations.

Please read these instructions thoroughly and retain for future use.

The plumbing installation of this shower must comply with the requirements of UK
Water Regulations/Bylaws (Scotland), Building Regulations or any other regulations specified by the local
Water Authority and supplier.

We strongly recommend that you use a plumber registered with or a member of an Association:

Institute of Plumbing (IOP) - throughout the UK
National Association of Plumbing, Heating and Mechanical Services Contractors
(NAPH & MSC) - England & Wales
Water Industry Approved Plumber Scheme (WIAPS)

Dispose of plastic bags carefully

Keep children well away from the work area.

Check for hidden pipes and cables in the wall before drilling holes.

The unit must be mounted on a finished waterproofed wall surface (usually tiles).

If you are using power tools (e.g. to drill holes) wear safety glasses and always disconnect tools from the
power supply after use.

Do not operate the shower unit if the hand shower or spray hose has been damaged or is blocked.

Do not block the flow of water from the hand shower, by placing it on your hand or any other part of your
body or foreign object.

The thermostatic unit should be serviced annually by a qualified person to ensure maximum safety during
use.

The mixer incorporates check valves (page 14 pos. 4) and filters (page 14 pos 7).

The fitting of isolation valves is required (preferred location page 6 and 7 Installation Requirements)

4

5

Dimensions

Pack Contents

Please check that you have been supplied with the
following:

Ecostat 1001 SL Care 13282000
1 Ecostat 1001 SL 3 Escutcheons
2 Mesh washers 4 S-unions

1

2

3

4

Ecostat 1001 SL Care 13282000

Ecostat 1001 SL Care 13284000

1 Ecostat 1001 SL 3 Escutcheons
2 Mesh washers 4 S-unions

1

2

3

4

Ecostat 1001 SL Care 13284000

5

Technical Data

Ecostat 1001 SL Care

This thermostatic valve will suit supplies of:
HIGH PRESSURE (HP-S)

Operating pressure: max. 10 bar
Recommended operating pressure: 0.2 - 5 bar
Test pressure: 16 bar
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Rate of flow from bath spout: 20 l/min. @ 3 bar
Rate of flow from shower outlet:18 l/min. @ 3 bar
Maximum outlet temperature: 43°C +/-*
Safety check: 40°C
Hot water connection: Left hand
Cold water connection: Right hand
Minimum difference between hot
water and mixed water temperature: 6 K
Hot and cold supply pressure should be balanced

Operating pressure range High pressure Low pressure

Maximum static pressure - bar 10 10
Flow pressure, hot and cold - bar 1 to 5 0.2 to 1
Hot supply temperature - °C 52 to 65 52 to 65
Cold supply temperature - °C 5 to 20 5 to 20

Mixed water temperature

Application Mixed water temperature
(at point of discharge)
Bidet 38°C max.
Shower 41°C max.
Washbasin 41°C max.
Bath (44°C fill) 44°C max.
Bath (46°C fill) 46°C max.

* For preset outlet temperature adjustment – See
page 9 „Commisioning“.
NB. If a water supply is fed by gravity then the
supply pressure should be verified to ensure the
conditions of use are appropriate for the valve.
Valves operating outside of these supply conditions
cannot be guaranteed to operate as a TMV2 or
TMV3 valve.

Supply Conditions TMV2

Supply Conditions TMV3

Operating pressure range High pressure Low pressure

Maximum static pressure - bar 10 10
Flow pressure, hot and cold - bar 1 to 5 0.2 to 1
Hot supply temperature - °C 55 to 65 55 to 65
Cold supply temperature - °C 5 to 25 5 to 25

The following models are TMV3 approved for high
pressure shower (HP-S) application: 13282000
