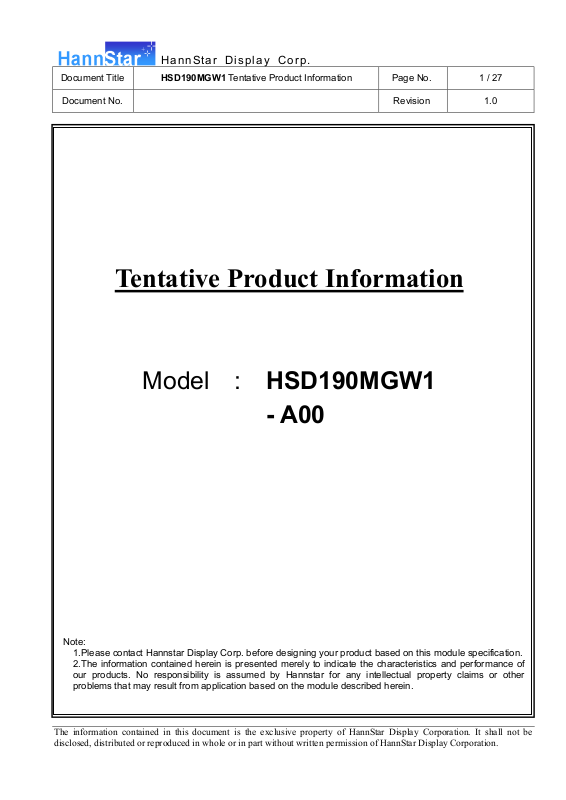

Document Title HSD190MGW1 Tentative Product Information Page No. 1 / 27

Document No. Revision 1.0

Tentative Product Information

Model : HSD190MGW1

- A00

Note:

1. Please contact Hannstar Display Corp. before designing your product based on this module specification.

2.The information contained herein is presented merely to indicate the characteristics and performance of
our products. No responsibility is assumed by Hannstar for any intellectual property claims or other
problems that may result from application based on the module described herein.

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 2 / 27

Document No. Revision 1.0

Record of Revisions

Rev. Updated No. Date Description of change

1.0

―

Dec.08.2005

Tentative Product Information for HSD190MGW1-A00 was first
issued.

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 3 / 27

Document No. Revision 1.0

Contents

1.0 General Descriptions ………………………………………..p.4

2.0 Absolute Maximum Ratings ………………………….. p.5

3.0 Optical Characteristics ……………………………….. p.7

4.0 Block Diagram ………………………………………………. p.11

5.0 I/O Connection Pin Assignment …………………………… p.14

6.0 Electrical Characteristics ………………….……………… p.15

7.0 Outline Dimension …………………………….……………. p.21

8.0 Lot Mark ……………………………………………………… p.24

9.0 Package Specification ……………………………...………. p.25

10.0 General Precaution …………………………………………. p.26

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 4 / 27

Document No. Revision 1.0

1.0 GENERAL DESCRIPTIONS

1.1 Introduction

HannStar Display model HSD190MGW1-A is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel, the voltage reference, common voltage,
DC-DC converter, column, and row driver circuit. This TFT LCD has a 19-inch diagonally
measured active display area with WXGA+ resolution (900 vertical by 1440 horizontal
pixel array).

1.2 Features

■ 19” WXGA+ TN(Twisted Nematic) mode TFT LCD panel

■ High speed response time

■ 4 CCFLs Backlight system

■ Supported WXGA+ (V:900 lines, H:1440 pixels) resolution

■ Supported to 75Hz refresh rate

■ LCD Timing Controller

■ RoHS compatible

1.3 General information

Item Specification Unit

Outline dimension 428×278×18.5 (typ.) mm

Display area 408.24 (H) x255.15 (V) mm

Number of Pixel 1440(H) x 900(V) Pixels

Pixel pitch 0.2835(H) x 0.2835(V) mm

Pixel arrangement RGB Vertical stripe

Display color 16.2M (6-bit+FRC)

Display mode Normally white

Surface treatment Antiglare, Hard-Coating (3H)

Weight 2200 G

Back-light 4-CCFLs, Top & bottom edge side

Input signal 2-ch LVDS

Logic system 2.7 W

Power consumption

B/L system 22 W

Optimum viewing direction 6 o’clock

1.4 Applications

■ Desktop and Multi-function monitors

■ Display terminals for AV applications

■ Monitors for industrial applications

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 5 / 27

Document No. Revision 1.0

1.5 Mechanical Information

Item Min. Typ. Max. Unit

Horizontal(H) -- 428.0 -- mm

Module Size

Vertical(V) -- 278.0 -- mm

Depth(D) -- 18.5 -- mm

Weight (without inverter) -- 2200 -- g

Torque of customer screw hole 3.0 Kgf*Cm

2.0 ABSOLUTE MAXIMUM RATINGS

2.1 Absolute Rating of Environment

Item Symbol Min. Max. Unit Note

Storage temperature T

Operating temperature T

Vibration(non-operating) V

Shock(non-operating) S

Storage humidity H

Operating humidity HOP 10 80 %RH (4)

Low pressure(operating) P

Low pressure(non-operating) P

Note (1)Storage /Operating temperature

Storage Range

-20-40

STG

OPR

NOP

NOP

STG

LOP

LNOP

Humidity (%)

100

90

80

60

40

20

10

0

0

Temperature (

-20 60 oC

0 50 oC (1)

-- 1.5 G (2)

-- 50 G (3)

10 90 %RH (3)

697 -- HPa (5)

116 -- HPa (6)

Operating Range

20 40 60

o

C)

50

65

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 6 / 27

Document No. Revision 1.0

(2) 10-300Hz sine wave, X,Y,Z each directions, 10min/cycle.

(3) 11ms, ±X, ±Y, ±Z direction, one time each. For this shock test,
It is necessary to fill the silicon rubber between the shock jigs as buffer.
(4) Max wet bulb temp. =39
(5) 2 hrs. (10000 feet)
(6) 24hrs. (50000 feet)

2.2 Electrical Absolute Rating:

2.2.1 TFT LCD Module:

o

C

Item Symbol Min. Max. Unit. Note

Power supply Voltage VDD -0.3 6.0

V(DC)

(1)(2)

2.2.2 Back Light Unit:

Item Symbol Min. Max. Unit Note

Lamp current

Lamp frequency

IL

fL

3.0 9.0 mA (1)(2)(3)

45 80 KHz (1)(2)(3)

Note: (1) Permanent damage may occur to the LCD module if beyond this specification.

Functional operation should be restricted to the conditions described under

Normal Operating Conditions.

(2) To exceed 7.5mA, life time accelerate drop down and if to exceed 9.0 mA has

safety problem. If current lower than 3.5 mA, CCFL would be unstable or

damaged.

(3) Within Ta=25±2°C

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 7 / 27

Document No. Revision 1.0

3.0 OPTICAL CHARACTERISTICS

3.1 Optical specification

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast CR 450 700 -- (1)(2)

Response time

Rising TR -- --

Falling TF --

5

(Tr+Tf)

--

msec (1)(3)

White luminance
(center of screen)

Red

Gree

Color

n

chromaticity
(CIE1931)

Blue

White

Hor.

Viewing angle

Ver.

Hor.

Viewing angle

Ver.

Brightness uniformity B

(1)(4)(7)

240 300 -- cd/m

Y

L

Rx

Ry

Gx

Gy

Bx

By

Wx

Wy

o

Θ=0

o

φ=0

Normal
viewing

angle

0.640 0.643 0.646

0.322 0.325 0.328

0.292 0.295 0.298

0.613 0.616 0.619

0.140 0.143 0.146

0.078 0.081 0.084

0.280 0.310 0.340

0.300 0.330 0.360

2

(IL=7.5mA)

(1)(5)

ΘL 65 75 --

65 75 --

Θ

R

CR>10

ΘH 60 70 -­Θ

L

55 65 --

ΘL -- 80 --

-- 80 --

Θ

R

CR>5

ΘH -- 80 -­Θ

UNI

L

o

Θ=0

φ=0

o

-- 70 --

-- 75 -- % (6)

3.2 Measuring Condition

■ Measuring surrounding: dark room

■ Lamp current I

■ V

=5.0V, fV=60Hz, f

DD1

■ Surrounding temperature : 25±2

■ 30min. Warm-up time.

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

: (7.5)±0.1mA, lamp freq. FL= 50KHz, Inverter: TDK TBD332LR

BL

=53.25MHz

DCLK

o

C

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 8 / 27

Document No. Revision 1.0

3.3 Measuring Equipment

■ FPM520 of Westar Display technologics, INC., which utilized SR-3 for Chromaticity and
BM-5A for other optical characteristics.

■ Measuring spot size : 20~21mm

Note (1) Definition of Viewing Angle:

ΦH

12’ o’clock

=90

H

o

Φ

ΘL

Θ

R

ΘL=90o

ΘR=90o

ΦL

6’ o’clock

=90

L

o

Φ

Note (2) Definition of Contrast Ratio(CR) :
measured at the center point of panel

Luminance with all pixels white (L255)
CR =
Luminance with all pixels black (L0)

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

HannStar Display Corp.

Document Title HSD190MGW1 Tentative Specification Page No. 9 / 27

Document No. Revision 1.0

Note (3) Definition of Response Time: Sum of T

and TF

R

white(TFT OFF) black (TFT ON) white(TFT OFF)

100%

90%

T

R

T

F

Optical

response

10%

0%

time

Note (4) Optical characteristic measurement setup

LCD Panel

Field = 1

o

120cm

Photo-detector (BM-5A)

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
