HannStar HSD170MGW1-A00 Specification

Download

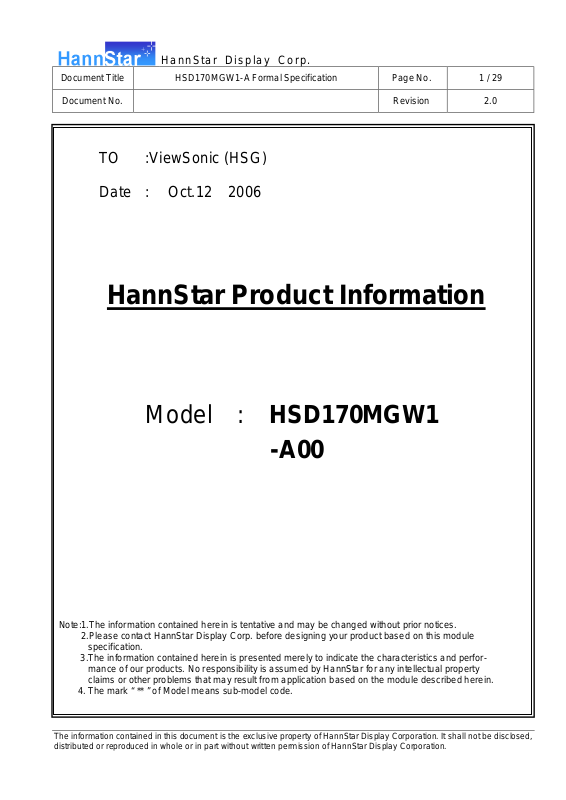

HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 1 / 29
Document No.
TO :ViewSonic (HSG)
Date : Oct.12 2006
HannStar Product Information
Revision 2.0
Model : HSD170MGW1
-A00
Note:1.The information contained herein is tentative and may be changed without prior notices.
2.Please contact HannStar Display Corp. before designing your product based on this module
specification.
3.The information contained herein is presented merely to indicate the characteristics and perfor­ mance of our products. No responsibility is assumed by HannStar for any intellectual property claims or other problems that may result from application based on the module described herein.
4. The mark “ ** ” of Model means sub-model code.
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 2 / 29
Document No.
Rev.
1.0
2.0
Sep.8, 2006
Oct.12, 2006
Date Sub-Model
A00 A00
Revision 2.0
Record of Revisions
Description of change HSD170MGW1-A Tentative specification was first issued. HSD170MGW1-A formal specification was first issued.
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 3 / 29
Document No.
Revision 2.0
Contents
1.0 General description ……………………………….… p.4
2.0 Absolute maximum ratings …………………………. p.6
3.0 Optical characteristics ………………………………. p.8
4.0 Block diagram …………………………….. ……….. p.12
5.0 Interface pin connection ……………………………. p.15
6.0 Electrical characteristics ……………………………. p.16
7.0 Outline dimension …………………………………… p.24
8.0 Lot mark …………………………….………………… p.26
9.0 Package specification ………………………………. p.27
10.0 General precaution ………………………………….. p.28
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 4 / 29
Document No.
1.0 GENERAL DESCRIPTION
1.1 Introduction
HannStar Display model HSD170MGW1-A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 17.0 inch diagonally measured active display area with XGA resolution (900 vertical by 1440 horizontal pixel array) and can display up to 262,144 colors.
1.2 Features
■ 17.0 WXGA+ for Monitor application
■ High Resolution: 1440*900
■ 2-ch LVDS interface system
■ Input timing: DE mode
■ Wide Viewing Angle
■ RoHS compliance
1.3 Applications
■ Notebook PC
■ Desktop Monitor
■ Display terminals for AV applications
■
Display terminals for industrial applications
1.4 General information
Item Specification Unit Outline Dimension 389.2 x 254.5 x 11.5 (Typ) mm Display area 367.2 (H) x 229.5 (V) mm Number of Pixel 1440(H) x 900(V) pixels Pixel pitch 0.255(H) x 0.255(V) mm Pixel arrangement RGB Vertical stripe Display color 6 Bits / 262,144 colors Display mode Normally white Surface treatment Antiglare (3H) Weight 1370 g Back-light 2-CCFLs, Top & bottom edge side Input signal 2-ch LVDS
Power Consumption
Logic System 2.4 W B/L System 9.8 W
Revision 2.0
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 5 / 29
Document No.
1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal (H) 388.7 389.2 389.7 mm
Module
Size
Vertical (V) 254.0 254.5 255.0 mm
Depth (D) Weight (Without inverter) Torque of customer screw hole
11.2 11.5
-
- - 3.0
Revision 2.0
11.8 mm
1370 1500 g
Kgf•Cm
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
40
0
20 40
Document Title HSD170MGW1-A Formal Specification Page No. 6 / 29
Document No.
2.0 ABSOLUTE MAXIMUM RATINGS
2.1 Absolute Rating of Environment
Item Symbol Min. Max. Unit Note Storage temperature T Operating temperature T Vibration (non-operating) V
Shock (non-operating) S Storage humidity H
Operating humidity HOP 10 80 %RH (4) Low pressure (operating) P
Low pressure (non-operating) P
Note (1) Storage / Operating temperature
(2) 5-500-5Hz sine wave, X, Y, Z each directions, 30min/cycle.
-40
Humidity (%)
-20
(3) 11ms, ±X, ±Y, ±Z direction, one time each. For this shock test, it is
necessary to fill the silicon rubber between the shock jig as buffer. (4) Max wet bulb temp.= 39oC (5) 2hrs. (10000 feet) (6) 24hrs. (50000 feet)
STG OPR NOP
NOP
STG
LOP
LNOP
100
90
80
60
Storage Range
20
10
0
Temperature (oC)
Revision 2.0
-20 60 0 50
－ －
1.5 G (2) 70 G (3)
o
C
o
C (1)
10 90 %RH (3)
697
116
Operating Range
－ －
50
hPa (5) hPa (6)
60
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 7 / 29
Document No.
2.2 Electrical Absolute Rating
Note (1) Permanent damage may occur to the LCD module if beyond this specification.
Revision 2.0
2.2.1 TFT LCD Module
Item Symbol Min. Max. Unit Note Power supply voltage VDD -0.3 6.0 V (1) (2) Logic input voltage VIN -0.3 VDD+0.3
V (1) (2)
2.2.2 Back-Light Unit
Item Symbol Min. Max. Unit Note Lamp current IL 3
9.0
mA (1) (2)
Lamp frequency fL 30 80 KHz (1) (2)
Functional operation should be restricted to the conditions described under normal operating conditions.
(2) Ta =25±2℃
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 8 / 29
Document No.
3.0 OPTICAL CHARACTERISTICS
3.1 Optical specification
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast CR Response
time
White luminance (Center)
Color chromaticity
(CIE1931)
Rising TR -
Falling TF -
YL 200 250 YL (180) (230)
Rx
Red
Ry Gx
Green
Gy Bx
Blue
By
Wx 0.280
White
Wy
Θ=0
viewing
angle
400 500
0.595
0.315
0.295
0.525
0.125
0.115
0.625 0.655
0.345 0.375
0.325 0.355
0.555 0.585
0.155 0.185
0.145 0.175
0.310 0.340
0.300
0.330 0.360
8
Revision 2.0
- (1)(2)
­msec (1)(3)
-
-
-
cd/m cd/m
(IL=8.0mA)
2
(IL=7.5mA)
(1)(4)(5)
2
(1)(4)
Hor.
Viewing angle
Ver.
Brightness uniformity B
3.2 Measuring Condition
■ Measuring surrounding: dark room
■ Lamp current IBL: (8.0)±0.1mA, lamp freq. FL=55 KHz, Inverter: TDK TBD315NR
■ VDD=5.0V, fV=60Hz
■ Ambient temperature: 25±2oC
■ 30min. Warm-up time.
Θ Θ Θ Θ
L
R
U
D
UNI
CR>10
Θ
=0
65 65 60 60
70 ­70 ­65 65
-
-
75 - - % (6)
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
o
Document Title HSD170MGW1-A Formal Specification Page No. 9 / 29
Document No.
Revision 2.0
3.3 Measuring Equipment
■ FPM520 of Westar Electric Corp., which utilized SR-3 for Chromaticity and BM-5A for other optical characteristics.
■
Measuring spot size: 20~21mm
Note (1) Definition of Viewing Angle:
Θ
U
12’ o’clock Φ=90
o
Φ=180
Θ
L
Θ
R
Φ=0o
Θ
D
6’ o’clock Φ=270
o
Note (2) Definition of Contrast Ratio (CR): measured at the center point of panel
Luminance with all pixels white (L63) CR = Luminance with all pixels black (L0)
Note (3) Definition of Response Time: Sum of TR and TF
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 10 / 29
Document No.
Optical response
white(TFT OFF) black (TFT ON) white(TFT OFF)
T
R
100%
90%
10%
0%
Note (4) Optical characteristic measurement setup
LCD Panel
o
120cm
Field = 1
Revision 2.0
T
F
Photo-detector (BM-5A)
time
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Y1
Document Title HSD170MGW1-A Formal Specification Page No. 11 / 29
Document No.
Note (5) Definition of Average Luminance of White
Center Luminance =
Y
1
1/10V
1/10 H
1/2H
1/10V
Note (6) Definition of brightness uniformity
Revision 2.0
1/10H
1/2V
Luminance uniformity = ×100%
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
(Min Luminance of 9 points) (Max Luminance of 9 points)
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 12 / 29
Document No.
4.0 BLOCK DIAGRAM
4.1 TFT LCD Module
Connector CN1
DC/DC
Converter
TCON with
LVDS receiver
Gamma
Reference
Voltage
Generator
Revision 2.0
X-driver IC
Liquid Crystal Panel
1440×900 pixels
Y-driver IC
4.2 Back Light Unit
CN3
CN4
2 Cold1 1 Hot 1
1 Hot 2 2 Cold 2
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
B G
Document Title HSD170MGW1-A Formal Specification Page No. 13 / 29
Document No.
4.3 Pixel Format
1,1
(odd)
2,1
(odd)
900,1
1,2
(even)
1,3
(odd)
1,4
(even)
LCD Display Area
1 Pixel
R
R
1440Pixels
Revision 2.0
1,1440
900 Lines
R
900, 1440
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
scale of
Document Title HSD170MGW1-A Formal Specification Page No. 14 / 29
Document No.
4.4 Relationship Between Displayed Color and Input
Basic color
Gray scale of Red
Gray scale of Green
Gray scale of Blue
Gray White &
Black
Light Blue L L L L L L H H H H H H H H H H H H
MSB LSB
Display
Black L L L L L L L L L L L L L L L L L L
Blue L L L L L L L L L L L L H H H H H H
Green L L L L L L H H H H H H L L L L L L
Red H H H H H H L L L L L L L L L L L L Purple H H H H H H L L L L L L H H H H H H Yellow H H H H H H H H H H H H L L L L L L
White H H H H H H H H H H H H H H H H H H
Black L L L L L L L L L L L L L L L L L L
Dark
Light
Red H H H H H H L L L L L L L L L L L L Red L63
Black L L L L L L L L L L L L L L L L L L
Dark
Light
Green L L L L L L H H H H H H L L L L L L Green L63
Black L L L L L L L L L L L L L L L L L L
Dark
Light
Blue L L L L L L L L L L L L H H H H H H Blue L63
Black L L L L L L L L L L L L L L L L L L
Dark
Light
White H H H H H H H H H H H H H H H H H H White L63
R5 R4 R3 R2 R1 R0
L L L L L H L L L L L L L L L L L L L L L L H L L L L L L L L L L L L L
↑ ↓
H H H H L H L L L L L L L L L L L L H H H H H L L L L L L L L L L L L L
L L L L L L L L L L L H L L L L L L L L L L L L L L L L H L L L L L L L
↑ ↓
L L L L L L H H H H L H L L L L L L L L L L L L H H H H H L L L L L L L
L L L L L L L L L L L L L L L L L H L L L L L L L L L L L L L L L L H L
↑ ↓
L L L L L L L L L L L L H H H H L H L L L L L L L L L L L L H H H H H L
L L L L L H L L L L L H L L L L L H L L L L H L L L L L H L L L L L H L
↑ ↓
H H H H L H H H H H L H H H H H L H H H H H H L H H H H H L H H H H H L
: :
: :
: :
: :
MSB LSB G5 G 4 G3 G2 G1 G 0
: :
: :
: :
: :
MSB LSB B5 B4 B3 B2 B1 B0
Revision 2.0
Gray scale
level
L0 L1 L2
: :
: :
: :
: :
L3…L60
L61 L62
L0 L1 L2
L3…L60
L61 L62
L0 L1 L2
L3…L60
L61 L62
L0 L1 L2
L3…L60
L61 L62
-
-
-
-
-
-
-
-
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 15 / 29
Document No.
5.0 INTERFACE PIN CONNECTION
5.1 TFT LCD Module
CN1 (INPUT SIGNAL): MATING CONNECTOR: FI-X30M or compatible
Terminal no. Symbol Function Note
1 GND Ground 2 VDD Power Supply : +5.0V 3 VDD Power Supply : +5.0V 4 NC Reserved for supplier test point 5 NC Reserved for supplier test point 6 NC Reserved for supplier test point 7 NC Reserved for supplier test point 8 Odd_Rin0- - LVDS differential data input (R0-R5, G0) (2) 9 Odd_Rin0+ + LVDS differential data input (R0-R5, G0) (2)
10 GND Ground
11 Odd_Rin1- - LVDS differential data input (G1-G5, B0-B1) (2) 12 Odd_Rin1+ + LVDS differential data input (G1-G5, B0-B1) (2) 13 GND Ground 14 Odd_Rin2- - LVDS differential data input (B2-B5,NC,NC,DE) (2) 15 Odd_Rin2+ + LVDS differential data input (B2-B5,NC,NC,DE) (2) 16 GND Ground 17 Odd_ClkIN- - LVDS differential clock input (2) 18 Odd_ClkIN+ + LVDS differential clock input (2) 19 GND Ground 20 Even_Rin0- - LVDS differential data input (R0-R5, G0) 21 Even_Rin0+ + LVDS differential data input (R0-R5, G0) 22 GND Ground 23 Even_Rin1- - LVDS differential data input (G1-G5, B0-B1) 24 Even_Rin1+ + LVDS differential data input (G1-G5, B0-B1) 25 GND Ground 26 Even_Rin2- - LVDS differential data input (B2-B5,NC,NC,DE) 27 Even_Rin2+ + LVDS differential data input (B2-B5, NC, NC, DE) 28 GND Ground 29 Even_ClkIN- - LVDS differential clock input 30 Even_ClkIN+ + LVDS differential clock input
Note (1) Please connects NC pin to nothing. Don’t connect it to ground nor to other signal input. (NC pin should be open.) Note (2) The module used a 100ohm resistor between positive and negative data lines of each
receiver input.
MDF76KBW-30S-1H (58)
5.2 Back-Light Unit
CN3, 4: CCFL Power Source (BHR-03VS-1/Japan Solderless Terminal MFG or equivalent) Mating connector: SM02 (8.0) B-BHS-1/ Japan Solderless Terminal MFG or equivalent
Terminal No.
1 VL CCFL power supply (high voltage) 2 NC No connection 3 GL CCFL power supply (low voltage)
Symbol Function
(HIROSE or equivalent)
Revision 2.0
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
L7
Document Title HSD170MGW1-A Formal Specification Page No. 16 / 29
Document No.
6.0 ELECTRICAL CHARACTERISTICS
6.1
TFT LCD Module
Item Symbol
Voltage of power supply VDD 4.5 5.0 5.5 V
Current of power supply
Vsync frequency fV Hsync frequency fH Frequency f Input rush current I
Note (1)
1). White & V- Color:
2). Mosaic: Dot checker image
White
White I V-Color I Mosaic I
DD0
DD1
DD2
DCLK
Rush
Min. Typ. Max. Unit Note
260 360 460 370 470 570 515 615 715
60
55.469
44.375 53.25 68.375
60
55.935
- -
White
Yellow
Purple Red
Revision 2.0
mA (1) mA (1) mA (1)
75
70.635
Hz ref 6.5 t1
KHz ref 6.5 t4
MHz ref 6.5 t7
1.5 A (2)
Cyan
Green Blue
Black
L0: Luminance with all pixels black. L63: Luminance with all pixels white.
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
Grey scale: L0～L63.
L0
HannStar Display Corp.
+12V
GND
5.0V
Document Title HSD170MGW1-A Formal Specification Page No. 17 / 29
Document No.
Note (2) Input Rush Current measurement condition
R1
0.1VDD
VR
0.9VDD
C2 C1
500us~10ms
Revision 2.0
5.0V
To LCD VDD Input
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
WHITE(Ground
RED
2
WHITE(Ground
RED
2
Document Title HSD170MGW1-A Formal Specification Page No. 18 / 29
Document No.
6.2 Back-Light Unit
Revision 2.0
The back- light system is an edge-lighting type with 2 CCFL.
The characteristic of the lamp is shown in the following tables.
Item Symbol Min. Typ. Lamp current IL 3.0 8.0 Lamp voltage VL - 610
Max. Unit Note
9.0 mA(rms)
- V(rms) (6) IL=8.0mA
(1)(6)
Frequency fL 30 - 80 KHz (2) Operating lamp life time
Hr 30,000 Hr 40,000
Startup voltage Vs
1200 1400
- -
- -
- -
Hour (3) IL=8.0mA Hour (3) IL=7.5mA
(4)(5) at 25oC
V(rms)
(4)(5) at 0oC
Note (1) Lamp current is measured with current meter for high frequency as shown
below. Specified valued are for single lamp.
LCD MODULE
INVERTER
1
(TDK TBD315NR)
A
1
A
Note (2) Lamp frequency may produce interference with horizontal synchronous
frequency and this may cause ripple noise on the display. Therefore lamp frequency shall be kept away from the horizontal synchronous frequency and its harmonics as far as possible in order to avoid interference.
*
Suggest the inverter frequency avoid fL=51~59KHz
Note (3) Lamp life time (Hr) can be defined as the time in which it continues to
operate under the condition: Ta=25±3 oC, typical IL value indicated in the above table and fL=52kHz until the brightness becomes less than 50%.
Note (4) CCFL inverter should be able to provide a voltage over specified
value (Vs) in the above table. Lamp units need at least Vs value shown above to ignition.
Note (5) The voltage over specified value (Vs) should be applied to the lamp more
than 1 second after startup. Otherwise, the lamp may not be turned on. The used lamp current is the lamp typical current.
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 19 / 29
Document No.
Revision 2.0
Note (6) The output voltage waveform and current waveform of the inverter must be
symmetrical (Unsymmetrical ratio is less than 10%). Please do not use the inverter which has unsymmetrical voltage and current waveform, and spike waveform. The inverter design which can provide the best optical performance, power efficiency, and lamp life should under the following conditions.
a. The asymmetry rate of the inverter waveform should be less than 10%. b. The distortion tae of the waveform should be within √2±10%.
c. The inverter output waveform should be better similar to the ideal sine wave.
Ip
I-p
Asymmetry rate = |Ip-I-p| / Irms x 100% Distortion rate = Ip (or I-p) / Irms
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 20 / 29
Document No.
6.3
Switching Characteristics for LVDS Receiver
Item Symbol
Differential Input High Threshold Vth Differential Input Low Threshold Vtl
Input Current I
Input Voltage Range(Signal ended) Differential input Voltage |VID| Common Mode Voltage Offset V Clock Frequency fc LVDS Skew Margin t LVDS Input Clock Jitter Tolerance
IN
V
IN
CM
RSKM
－
Min. Typ.
100
－
－ －
1.1-(|VID|)/2 250
1.1
44.375 53.25 68.375
－ －
－ － － － － － －
－ －
Revision 2.0
Max. Unit
－
mV
-100
±10 uA VIN=1.75V,VDD=3.6V ±10 uA VIN=0.8V,VDD=3.6V
1.375+(|VID|)/2 V 450 mV
1.375 V
400 ±2.5 %
mV
MHz
pS At fc=44.375MHz
Conditions
VCM=1.2V
center spread
RCLK
Rin0
Rin1
Rin2
t
RSKM
t
RSKM
LVDS Receiver skew margin
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 21 / 29
Document No.
6.4 Bit Mapping & Interface Definition
7T
6.5/7T
5.5/7T
4.5/7T
3.5/7T
2.5/7T
1.5/7T
0.5/7T
RCLKP
Rin0
R[2]
R[1]
R[0]
G[0]
R[5]
R[4]
R[3]
Revision 2.0
R[2]
R[1]
R[0]
G[0]
Rin1
G[2]
G[1] B[1] B[0] G[5] G[4] G[3] G[2] G[1] B[1]G[3]
Rin2
B[4]
B[3] B[2] DE (VS) (HS) B[5] B[4] B[3] B[2] DE
Pervious Cycle Current Cycle
Next Cycle
Bit Mapping & Timing Definition
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
(2)Horizontal
X,898
X,900
Document Title HSD170MGW1-A Formal Specification Page No. 22 / 29
Document No.
6.5 Interface Timing ( DE mode)
Timing Diagram of Interface Signal (DE mode)
(1)Vertical
1)2)3)4)5)6)
Revision 2.0
Item Symbol Min. Typ. Max. Unit V-Total Time t1 926 934 942 line Vertical Display Time t2 900 900 900 line Vertical Blanking Time t3 26 34 42 line H-Total Time t4 800 952 968 CLK Horizontal Display Time t5 720 720 720 CLK Horizontal Blanking Time t6 80 232 248 CLK Clock Frequency t7 (CLK)
44.375 53.25 68.375 MHz
Frame Rate - 60 60 75 Hz
t2
t1
t3
NCLK
DE
0~5
R
0~5
G
0~5
B
NCLK
DE
0~5
R
0~5
G
0~5
B
t4
X,1 X,2 X,3 X,Y
t7
1234567891011
X,899
t4
t5 t6
1431
1433
1435
1437
12
1432
1434
1436
1438
1439 1440
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
(Recomm
e
nded)
Power On
90%
90%
Document Title HSD170MGW1-A Formal Specification Page No. 23 / 29
Document No.
6.6 Power ON/OFF Sequence
Power Supply
0V
10%
Signal
Backlight
T1
T2 T3
10%
90%
Valid Signal
T5
50%
T6
50%
Power Off
10%
90%
Revision 2.0
10% 10%
T4
Note (1) Apply the lamp volatge within the LCD operation range. When the back-light
Power ON/OFF Sequence
500 usec < T1 ≤ 10 msec 0 < T2 ≤ 50 msec 0 < T3 ≤ 50 msec:
Back-light:
200 ms ≤ T5 200 msec < T6
200 ms ≤ T4
turns on before the LCD operation or the LCD truns off before the back-light
turns off. the display may momentarily become white. (2) In case of VDD = off level, please keep the level of input signal on 0 voltage. (3) T4 should be measured after the module has been fully discharged between
power off and on period.
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 24 / 29
Document No.
7.0 OUTLINE DIMENSION
7.1 Front View Outline Dimension
Revision 2.0
nit : mm
BM Assembly Tolerance
| A-A’ | ≤ 1.0 (mm)
| B-B’ | ≤ 1.0 (mm)
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 25 / 29
Document No.
7.2 Back View Outline Dimension
Revision 2.0
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
２
３
４
５
６
７
８
９
10
11
12
13
14
15
Document Title HSD170MGW1-A Formal Specification Page No. 26 / 29
Document No.
8.0 LOT MARK
8.1 Lot Mark
１
code 1,2,3,4,5,6: HannStar internal flow control code. code 7: production location. code 8: production year. code 9: production month. code 10,11,12,13,14,15: serial number.
Note (1) Production Year
Year 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
Mark 9 0 1 2 3 4 5 6 7 8
Note (2) Production Month
Revision 2.0
Month Jan. Feb. Mar. Apr. May. Jun. Jul. Aug. Sep. Oct Nov. Dec.
Mark 1 2 3 4 5 6 7 8 9 A B C
8.2 Location of Lot Mark
(1) The label is attached to the backside of the LCD module. (2) This is subject to change without prior notice.
HSD170MGW1
-A00
Rev:
Lot mark
RoHS
Hannstar Display Corporation
MADE IN TAIWAN
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 27 / 29
Document No.
9.0 PACKAGE SPECIFICATION
9.1
packing form
(1) Package quantity in one carton: 10 pieces.
(2) Carton size: 470 x 374 x 370
9.2
packing assembly drawings
H
(mm)
Revision 2.0
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 28 / 29
Document No.
10.0 GENERAL PRECAUTION
10.1 Use Restriction
This product is not authorized for use in life supporting systems, aircraft navigation control systems, military systems and any other application where performance failure could be life-threatening or otherwise catastrophic.
10.2 Disassembling or Modification
Do not disassemble or modify the module. It may damage sensitive parts inside LCD module, and may cause scratches or dust on the display. HannStar does not warrant the module, if customers disassemble or modify the module.
10.3 Breakage of LCD Panel
10.3.1 If LCD panel is broken and liquid crystal spills out, do not ingest or inhale liquid crystal, and do not contact liquid crystal with skin.
10.3.2 If liquid crystal contacts mouth or eyes, rinse out with water immediately.
10.3.3 If liquid crystal contacts skin or cloths, wash it off immediately with alcohol and rinse thoroughly with water.
10.3.4 Handle carefully with chips of glass that may cause injury, when the glass is broken.
10.4 Electric Shock
10.4.1 Disconnect power supply before handling LCD module.
10.4.2 Do not pull or fold the CCFL cable.
10.4.3 Do not touch the parts inside LCD modules and the fluorescent lamp’s connector or cables in order to prevent electric shock.
10.5 Absolute Maximum Ratings and Power Protection Circuit
10.5.1 Do not exceed the absolute maximum rating values, such as the supply voltage variation, input voltage variation, variation in parts’ parameters, environmental temperature, etc., otherwise LCD module may be damaged.
10.5.2 Please do not leave LCD module in the environment of high humidity and high temperature for a long time.
10.5.3 It’s recommended to employ protection circuit for power supply.
10.6 Operation
10.6.1 Do not touch, push or rub the polarizer with anything harder than HB pencil lead.
10.6.2 Use fingerstalls of soft gloves in order to keep clean display quality, when persons handle the LCD module for incoming inspection or assembly.
10.6.3 When the surface is dusty, please wipe gently with absorbent cotton or other soft material.
Revision 2.0
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
HannStar Display Corp.
Document Title HSD170MGW1-A Formal Specification Page No. 29 / 29
Document No.
10.6.4 Wipe off saliva or water drops as soon as possible. If saliva or water drops contact with polarizer for a long time, they may causes deformation or color fading.
10.6.5 When cleaning the adhesives, please use absorbent cotton wetted with a little petroleum benzine or other adequate solvent.
10.7 Mechanism
Please mount LCD module by using mouting holes arranged in four corners tightly.
10.8 Static Electricity
10.8.1 Protection film must remove very slowly from the surface of LCD module to prevent from electrostatic occurrence.
10.8.2 Because LCD module use CMOS-IC on circuit board and TFT-LCD panel, it is very
weak to electrostatic discharge. Please be careful with electrostatic discharge.
Persons who handle the module should be grounded through adequate methods.
10.9 Strong Light Exposure
The module shall not be exposed under strong light such as direct sunlight. Otherwise,
display characteristics may be changed.
10.10 Disposal
When disposing LCD module, obey the local environmental regulations.
Revision 2.0
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
