HannStar HSD100IFW4-1, HSD100IFW4 Product Specification

splay Corporation. It shall not
A-PDF Watermark DEMO: Purchase from www.A-PDF.com to remove the watermark
HannStar Display Corp.

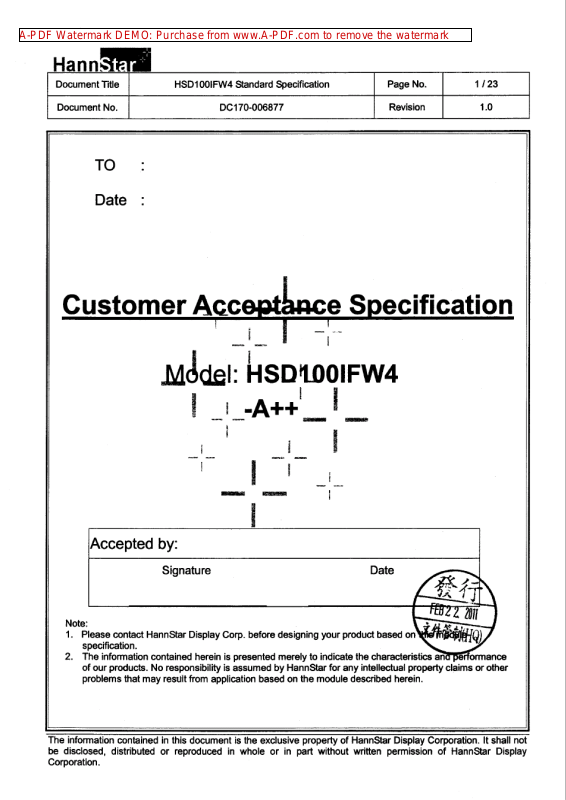

Document Title HSD100IFW4 Standard Specification Page No. 1/23
Document No. DC170-006877 Revision 1.0
TO :
Date :
Customer Acceptance Specification
Model: HSD100IFW4
-A++
www.jxlcd.com
www.jxlcd.com
Accepted by:
Signature Date
Note:
1. Please contact HannStar Display Corp. before designing your product based on this module specification.
2. The information contained herein is presented merely to indicate the characteristics and performance of our products. No responsibility is assumed by HannStar for any intellectual property claims or other problems that may result from application based on the module described herein.
The information contained in this document is the exclusive property of HannStar Di Corporation.
HannStar Display Corp.
splay Corporation. It shall not
Document Title HSD100IFW4 Standard Specification Page No. 2/23
Document No. DC170-006877 Revision 1.0
Record of Revisions
Rev.
1.0
Date Sub-Model
Feb, 22, 2011
www.jxlcd.com
www.jxlcd.com
A**
Formal Product Specification was first released.
Description of change
The information contained in this document is the exclusive property of HannStar Di Corporation.
HannStar Display Corp.
splay Corporation. It shall not
Document Title HSD100IFW4 Standard Specification Page No. 3/23
Document No. DC170-006877 Revision 1.0
Contents
1.0 General description ………………………………… p.4
2.0 Absolute maximum ratings……………………………. p.5
3.0 Optical characteristics.………………………………. p.6
4.0 Block diagram ……………………………………… p.10
5.0 Interface pin connection …………………………… p.12
6.0 Electrical characteristics …………………………… p.14
7.0 Reliability test items ………………………………… p.21
8.0 Outline dimension …………………………………… p.22
9.0 Lot mark ……………………………………………... p.24
10.0 Package specification ……………………………… p.25
11.0 General precaution …………………………………… p.26
www.jxlcd.com
www.jxlcd.com
The information contained in this document is the exclusive property of HannStar Di Corporation.
HannStar Display Corp.
splay Corporation. It shall not
Document Title HSD100IFW4 Standard Specification Page No. 4/23
Document No. DC170-006877 Revision 1.0
1.0 GENERAL DESCRIPTION
1.1 Introduction
HannStar Display model HSD100IFW4-A** is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 (17:10) inch diagonally measured active display area with WSVGA (1024 horizontal by 600 vertical pixel) resolution.
1.2 Features
■ 10 (17:10 diagonal) inch configuration
■ One channel LVDS interface
■ 262K color by 6 bit R.G.B signal input
■ RoHS Compliance
■ Halogen Free
1.3 Applications
Mobile NB Digital Photo frame Display terminal for AV application
www.jxlcd.com
1.4 General information
www.jxlcd.com
Item Specification Unit Outline Dimension 235 x 145.8 x 5.5 (Typ.) mm Display area 220.416(H) x 129.15(V) mm Number of Pixel 1024 RGB (H) x 600(V) pixels Pixel pitch 0.21525(H) x 0.21525(V) mm Pixel arrangement RGB Vertical stripe Display mode Normally white Surface treatment Antiglare, Hard-Coating (3H) with EWV film Weight 235 (Typ.) g Back-light Single LED (Side-Light type) Power
Consumption
Logic System 0.5W (Max.) L0 pattern W
The information contained in this document is the exclusive property of HannStar Di Corporation.
HannStar Display Corp.
splay Corporation. It shall not
Document Title HSD100IFW4 Standard Specification Page No. 5/23
Document No. DC170-006877 Revision 1.0
1.5 Mechanical Information
Module
Size
Weight
Item Min. Typ. Max. Unit Horizontal (H) 234.5 235 235.5 mm Vertical (V) 145.3 145.8 146.3 mm Depth (D)
－ －
5.5
235
5.8 mm
252 g
2.0 ABSOLUTE MAXIMUM RATINGS
2.1 Electrical Absolute Rating
2.1.1 TFT LCD Module
Item Symbol Min. Max. Unit Note
LED Power Supply voltage Logic Supply voltage
2.1.2 Environment Absolute Rating Item Symbol Min. Max. Unit Note
www.jxlcd.com
Operating Temperature T
www.jxlcd.com
Storage Temperature T
V
-0.3 6.0 V GND=0
LED
VDD -0.3 6.0 V
0 50 ℃
opa
-20 60 ℃
stg
The information contained in this document is the exclusive property of HannStar Di Corporation.
HannStar Display Corp.
splay Corporation. It shall not
Document Title HSD100IFW4 Standard Specification Page No. 6/23
Document No. DC170-006877 Revision 1.0
3.0 OPTICAL CHARACTERISTICS
3.1 Optical specification
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast CR
Response time
White luminance
(Center)
Rising TR
Falling T
Color chromaticity
(CIE1931)
Viewing angle
Brightness uniformity B
www.jxlcd.com
www.jxlcd.com
Optima View Direction
3.2 Measuring Condition
■ Measuring surrounding：dark room
■ LED current IL：160mA
■ Ambient temperature：25±2oC
■ 15min. warm-up time.
White
Hor.
Ver.
YL
Wx Wy
Θ
Θ
Θ
Θ
UNI
F
L
R
U
D
Θ=0
Normal viewing
angle
CR>10
Θ=0
400 500
－ －
160 200
0.260
0.280
0.310 0.360
0.330 0.380
60 70 60 70 50 60 40 50 70
12 O’clock
－ －
－
3 6 9 18
－
－ －
－
－
(1)(2)(4)
msec
2
cd/m
(1)(4)
(IL=160mA)
% (5)
(1)(3)
(1)(4)
(6)
The information contained in this document is the exclusive property of HannStar Di Corporation.
HannStar Display Corp.
splay Corporation. It shall not
o
Document Title HSD100IFW4 Standard Specification Page No. 7/23
Document No. DC170-006877 Revision 1.0
3.3 Measuring Equipment
■ FPM520 of Westar Display technologies, INC., which utilized SR-3 for Chromaticity and BM-5A for other optical characteristics.
■ Measuring spot size：20 ~ 21 mm
Note (1) Definition of Viewing Angle:
Note (2) Definition of Contrast Ratio (CR) : measured at the center point of panel
Luminance with all pixels white CR = Luminance with all pixels black
www.jxlcd.com
www.jxlcd.com
Φ=180
Θ
L
6’ o’clock
Φ=270
Θ
D
Θ
U
12’ o’clock
Φ=90
Θ
o
o
R
Φ=0o
The information contained in this document is the exclusive property of HannStar Di Corporation.
