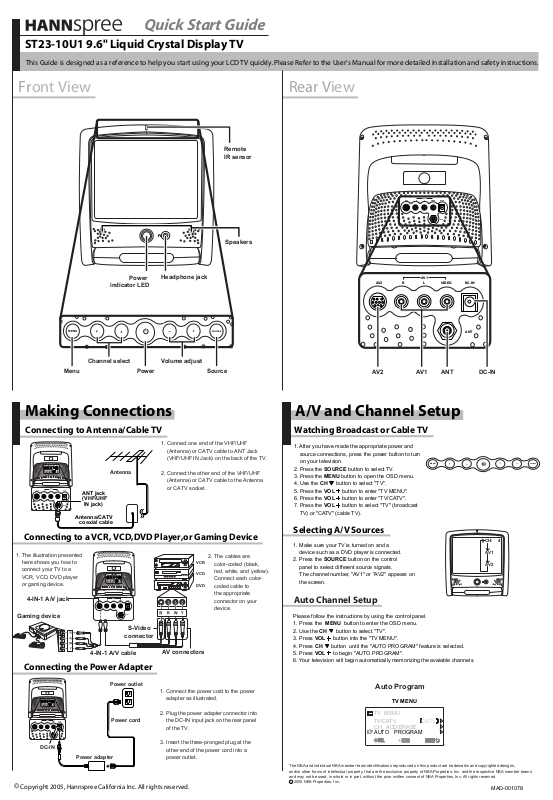

HANNSpree ST23-10U1 Quick Start Guide
Quick Start Guide
ST23-10U1 9.6" Liquid Crystal Display TV
This Guide is designed as a reference to help you start using your LCD TV quickly. Please Refer to the User's Manual for more detailed installation and safety instructions.
Front View
Power
indicator LED
Headphone jack
Remote
IR sensor
Speakers
Rear View
AV2 R L
AV2 R L
AV1
AV1
VIDEO DC-IN
ANT
VIDEO DC-IN
MENU
SOURCE
Volume adjustChannel select
Menu Power
Source
Making Connections
Connecting to Antenna/Cable TV
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
AV1
AV2 R L
VIDEO DC-IN
AV2 R L
ANT
AV1
VIDEO DC-IN
ANT jack
Antenna
(VHF/UHF
IN jack)
ANT
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD,DVD Player,or Gaming Device
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or gaming device.
4-IN-1 A/V jack
Gaming device
AV2 R L
AV2 R L
AV1
VIDEO DC-IN
ANT
AV1
VIDEO DC-IN
ANT
S-Video
connector
4-IN-1 A/V cable
Connecting the Power Adapter
(VHF/UHF IN Jack) on the back of the TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
2. The cables are
VCR
color-coded (black,
red, white, and yellow).
VCD
Connect each color-
DVD
coded cable to
the appropriate
connector on your
device.
AV connectors
ANT
AV2 ANT DC-INAV1
A/V and Channel Setup
Watching Broadcast or Cable TV
1. After you have made the appropriate power and
source connections, press the power button to turn
on your television.
2. Press the SOURCE button to select TV.
3. Press the MENU button to open the OSD menu.
4. Use the CH button to select "TV".
5. Press the VOL button to enter "TV MENU".
6. Press the VOL button to enter "TV/CATV".
7. Press the VOL button to select "TV" (broadcast
TV) or "CATV" (cable TV).
Selecting A/V Sources
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the control
panel to select different source signals.
The channel number, "AV1" or "AV2" appears on
the screen.
Auto Channel Setup
Please follow the instructions by using the control panel.
1. Press the MENU button to enter the OSD menu.
2. Use the CH button to select "TV".
3. Press VOL button into the "TV MENU".
4. Press CH button until the "AUTO PROGRAM" feature is selected.
5. Press VOL to begin "AUTO PROGRAM".
6. Your television will begin automatically memorizing the avaiable channels.
MENU
SOURCE
CH: 4
AV1
AV2
Power outlet
1. Connect the power cord to the power
AV1
AV2 R L
VIDEO DC-IN
ANT
adapter as illustrated.
2. Plug the power adapter connector into
AV1
AV2 R L
VIDEO DC-IN
Power cord
the DC-IN input jack on the rear panel
of the TV.
ANT
DC-IN
Power adapter
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
Copyright 2005, Hannspree California Inc. All rights reserved.
Auto Program
TV MENU
TV
MENU
ENTERENTERENTERENTER
CATV
MENUMENU
MAD-001078
TV/CATV
CH
ADD/ERASE
AUTO PROGRAM
SELSEL
