HANNspree MAK-000022 User Manual

Building
Jiading
02
02
Yunbei
Shanghai China
999
7
69
8
8
7
GGG
AAA
Nanxiang Town
Road
20 802
AAA
CCC
9.6"/12.1" Liquid Crystal Display

Television
MAK-000022
User's Manual
Table of Contents
1. Regulatory Information .............................................. ..... 3
2. Description of Warning Symbols..................................... 5
3. Safety Notices ............... ................................................ 6
4. Preface .................................................................... ... 13
5. Introducing the TV ....................................................... 15
Features ...... ............................................................ 15
6. Checking Package Contents ......................................... 16
7. Getting Started ............................ ................................ 17
Control Panel ....................................................... ... 17
Input and Output Jacks ............................................ 18
Remote Control ....................................................... 19
Inserting the Remote Control Battery/Batteries .......... 21
8. Making Connections .................................................... 23
Connecting to an Antenna or Cable TV ..................... 23
Connecting to AV Devices........ ................................ 24
Connecting to a VCR/VCD/DVD Player ................ 24
Connecting to a Video Camera ............................ 25
Connecting to a Video Game Console.................. 26
Connecting External Speakers or Headphones .......... 27

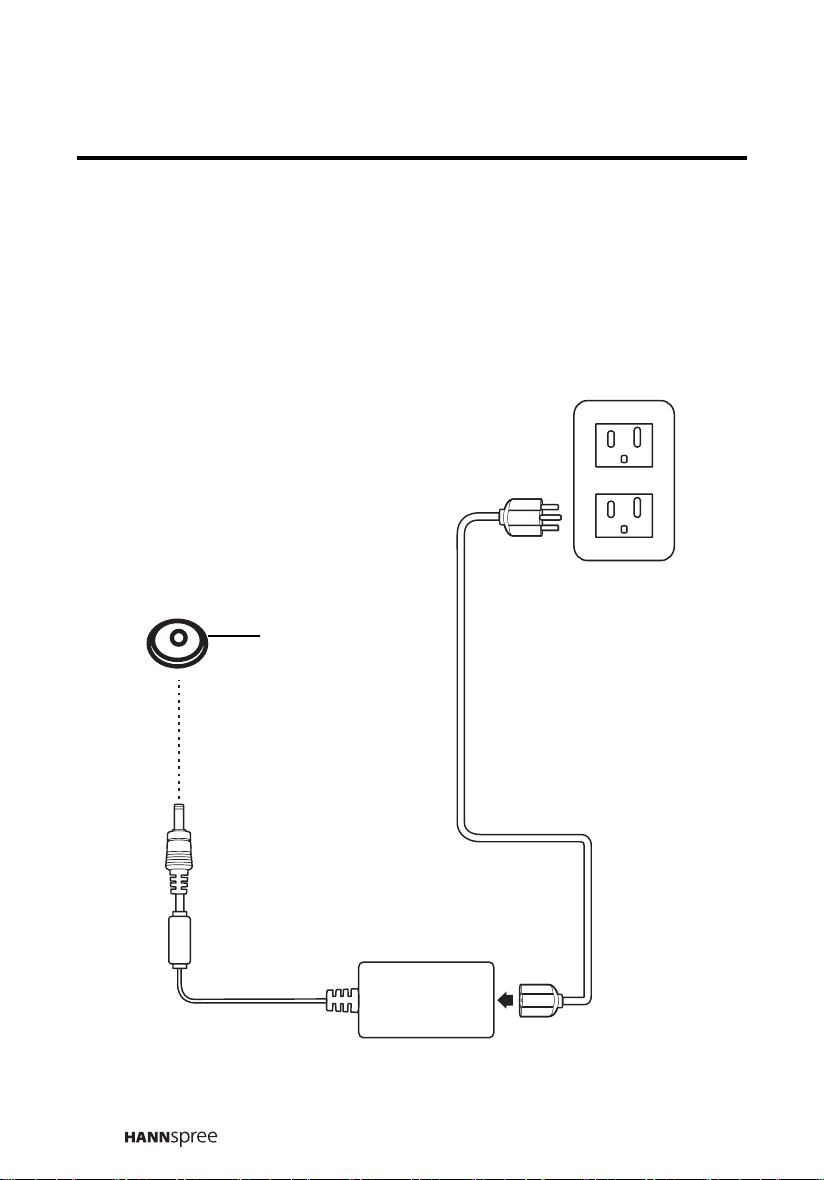

Connecting the Power Adapter ................................. 28
9. Using the TV ............................................................... 29
Using the Remote Control ........................................ 29
Turning the TV On and Off ....................................... 29
Selecting Channels.................................................. 29
Switching Source Signals......................................... 29
Adjusting the Volume ............................................... 29
10.Adjusting On-Screen Display (OSD) Settings ................ 30
TV & Remote Control Buttons.............................. 30
OSD Function Menu ............................................ 31
Picture Setting...................................................... ... 32
Video Mode ........................................................ 33
Color Temperature .............. ................................ 34
Noise Reduction .................................................. 34
Preset ................................ ................................ 35
1
Table of Contents
Audio Setting........................................................ ... 36
Equalizer ............................................................ 37
Balance .............................................................. 38
Surround ............................................................ 38
Preset ................................ ................................ 39
TV Setting ............................................................... 40
System ............................................................... 41
Channel Skip ...................................................... 42
Auto Program ...................................................... 43
Fine Tune ........................................................... 44
Favorite Channel ................................................. 45
Customize Setting .................................................... 46
Sleep Timer ........................................................ 47
OSD Timeout ...................................................... 47
Language ........................................................... 48
11.Taking Care of Your TV & Remote Control.................... 49
12.Troubleshooting........................................................... 50
13.Warranty and Service .................. ................................ 52
14.Specifications.............................................................. 53
15.Glossary ..................................................................... 54
2
1
Regulatory Inf ormation
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
1
Additional Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
WARNING: The Federal Communications Commission warns that changes or modifications of the TV not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
1. applies only to products purchased in the United States of America
3
DOC Compliance Notice
1
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.This device complies with Canada ICES-003 Class B.
CE Conformity Statement
2
This device complies with the requirements set out in the Council Directive on the approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC) and the Amendment Directive (92/31/EEC), Low-Voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC).
1. applies only to products purchased in Canada
2. applies only to products purchased in the European Union
4
2
Description of Warning Symbols
Before You Proceed
1. Read all Safety Notices in Section 3 of this manual and instructions in the User’s Manual carefully before either plugging in or turning the TV on.
2. Keep this User’s Manual in a safe place for future reference. Keep the box and packaging in case the TV nee ds to be shipped in the future.
3. Follow the TV and warning label instructions.
4. Any uses, operations, changes, alterations or modifications of the TV that do not follow the instructions in this manual will void this TV’s warranty.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
This symbol is used to alert users to pay attention to important descriptions regarding usage, maintenance (repair), and additional important information related to this TV.
CAUTION
This symbol is used to alert users to the risk of electric shocks due to dangerous and uninsulated components.
5
3
Safety Notices
Electric Power Notice
Electric power may cause personal injury and mechanical damage if misused. Although safety has been taken into consideration during the design and production of this TV, electric shock or fire can result if the TV is misused. To prevent potential danger, read and follow the instructions and warnings contained in this manual when setting up, operating or cleaning the TV. In addition, please read all “Safety Notices” contained in this manual carefully before using the TV.
Power Supply Safety Notes
1. To avoid electric shocks, do not use an extended power cord or an outlet that does not match this TV's plug or leaves the plug exposed.
2. This TV has a 3-pin grounded plug. The third pin connects to ground; do not remove it or alter it in anyway.
3. If the power cord or plug is damaged or worn, unplug it immediately and contact an authorized service technician for maintenance.
4. To avoid fire or electric shocks, do not overload electric power outlets.
6
Installation Safety Notes
Antenna
We suggest that you use an outdoor ante nna to get the best signal possible unless you have cable TV or a centralized indoor antenna system. You may, however, use an antenna indoors if it is placed in a location free from interference.
Location
Avoid prolonged exposure to sunlight or other str ong sources of heat. Leave sufficient distance between the TV and the wall to provide enough space for the emission of heat.
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Power
To avoid danger of fires or electric shock, only use those adapters listed below, which are compatible with this TV.
EDAC POWER ELECTRONICS CO., LTD.: EA1050E-120
LI SHIN INTERNATIONAL ENTERPRISE CORP.: 0217B1240
7
IMPORT ANT SAFETY INSTRUCTIONS
1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install
in accordance with manufacturer’s instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Note: Images are for illustration only and may vary by model or region.
8
9 Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on
or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified
by the manufacturer.
12 Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning
storms or when unused for long periods of time.
14 Refer all servicing to qualified service
personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
CAUTION
These servicing instructions are for use by qualified service personnel only.To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
9
Personal Safety
To avoid overloading the power supply, never plug too many electrical devices into an outlet, power strip, or extension cable.
Dangerous high-voltage electric power components are located inside the TV. To avoid electric shock, do not disassemble the TV in any way.
Do not place or drop metals, small objects, or flammable materials into the vent of the TV.
If the TV is dropped, falls down, or is otherwise damaged, unplug the power cord immediately and contact an authorized service technician.
If any fluid is sprayed or dropped into the TV, contact an authorized service technician.
10
The screen of the TV is made of glass. Avoid hitting or scraping it. If the screen is broken, do not touch the broken glass.
Do not allow children to use the TV unattended.
Installation
Do not place the TV in locations where there is excessive steam or dust.
Avoid blocking the TV's vents, do not place the TV on a bed, sofa, carpet, or in a sealed cabinet.
Install the outdoor antenna (not included) away from power transmission lines to avoid possible danger.
Unplug the power cord and antenna connector when there is a storm or when the TV is not in use for long periods to avoid electric shock from lightning.
11
Operation
V
Note: Images are for illustration only and may vary by model or region.
Maintenance
This TV is designed for home power sources as labeled on the casing. Avoid using any other power accessories to avoid electric shock or other damage.
The plug can be inserted into an outlet in only one direction as shown to the left. Do not alter the plug. Contact an authorized service technician if you cannot plug it in correctly.
If there is any problem that cannot be resolved according to the instructions given in this manual, contact an authorized service technician immediately. Do not attempt any methods not covered in this manual.
Do not attempt to repair the TV by yourself. Contact an authorized service technician. Ask the service technician to complete a safety inspection before switching the power on after completing any maintenance.
12
4
Preface
Thank you for purchasing a Hannspree Liquid Crystal Display Television (LCD TV). Your new TV will allow you to enjoy superior audio and video while enriching your lifestyle with advanced technology.
Please carefully read this manual in its entirety before setting up, using or operating your TV. To ensure the safe and correct installation and operations of the TV, it is important that the safety and operation instructions in this manual are followed.
This instruction manual is designed to assist you in setting up and using the TV. The information in this manual has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this manual is subject to change without notice.
To the extent allowed by applicable law, Hannspree, Inc. (“Hannspree”) shall not be liable for direct, indirect, special, exemplary, incidental or consequential damages arising from any defect or omission in this manual, even if advised of the possibility of such damages in advance.
13
Copyright
© Copyright 2005 Hannspree, Inc. All rights reserved. This manual is protected by copyright and
distributed under licenses restricting its use, copying and distribution. No part of this manual may be reproduced in any form by any means without the prior written authorization of Hannspree. The TV described in this manual may include copyrighted software of Hannspree (or other third parties). Hannspree (or other third parties) preserves the exclusive rights for copyrighted software, such as the right to distribute or reproduce the copyrighted software. Accordingly, and to the extent allowed by applicable law, any copyrighted software contained in the product described herein shall not be distributed, modified, reverse engineered, or reproduced in any manner without the prior written authorization of Hannspree (or of other third parties).
The Hannspree logos presented herein are trademarks of Hannspree. All other product names, trademarks or logos mentioned herein are used for identification purpose only, and may be the trademarks or registered trademarks of their respective owners.
The purchase of the product described herein shall not be deemed to grant, either directly or by implication, estoppel or otherwise, any license under the copyrights, patents, patent applications or trademarks of Hannspree, except for the normal, non-exclusive use that arises by operation of law in the sale of a product.
14
5
Introducing the TV
Thank you for purchasing this LCD TV. Your LCD TV is designed to be safe, versatile, and easy to use. The design makes it a fun addition to any room.
You can watch broadcast or cable television channels, and easily connect a VCR, VCD, DVD player or a game device to the stand ard RCA and S-V ideo input jacks that are included in the 4-IN-1 A/V cable.
Convenient control buttons located on the TV and a handy remote control let you change channels, adjust the volume, and change display settings through an easy-to-use on-scree n dis pla y me nu s yste m . The bu ilt- i n ste reo speakers provide full rich sound and a convenient audio outp ut port let s you connect to an external audio system or headphones.
Features
Built-in TV tuner
4-IN-1 A/V cable
On-Screen Display (OSD) menu system
Built-in stereo speakers
15
6
Checking Package Contents
Make sure the following components are includ ed in the box. Please cont act Hannspree Customer Service immediately if anything is missing or damaged.
•TV
User’s manual
Quick start guide
Warranty and service manual
Power cord
Power adapter
4-IN-1 A/V cable
Remote control and battery/batteries
RCA jack x 3 (selected models only)
Antenna cable (Hong Kong only)
16
7
R
Getting Started
Control Panel
Description Icon Function
Power Turns the TV on and off.
Power LED Indicates power status.
Source
Menu
/ / / + / / )
Select channel
Adjust volume
(
/ / / – / / )
(
/POWE
SOURCE
MENU
channel up
channel down
volume up
( + / / / )
volume down
( – /  /  / )
Selects the input source to be displayed:
(TV, AV1, AV2 or AV2s) / (TV, AV or AV s)
Note: If S-Video is connected, the TV autodetects it and AV and AV2 display as AVs and AV2s.
Turns the On-Screen Display (OSD) menu on and off.
Changes channels. Press channel up to increase the
channel number. Press channel
down to decrease the channel number.
Press volume up to increase the audio volume. Press volume down to decrease the audio volume.
17
Input and Output Jacks
Description Connector Function
Use the included 4-IN-1 A/V cable to connect external devices, such as a VCR, VCD,
DVD player
4-IN-1 (AV / AV2)
R / L / VIDEO (A V1) (selected models only)
cables or a game device. Audio Input: AV connector
audio (white and red) cables. Video Input: AV connector
video (yellow) or S-Video cable.
Use the AV1 input to connect an external device, such as a VCR, VCD, or DVD player.
Audio Input: AV connector audio (white and red) cables.
Video Input: AV connector video (yellow) cable.
, CVBS RCA
ANT
DC-IN (DC-12V)
Headphone / Speakers jack
18
Connects to an antenna or CATV cable television line.
Connects to the included power adapter.
Connects to headphones or external speakers with built-in amplifier.
Remote Control
T
Description Icon Function
Press this button to activate the OSD
Menu
MENU ENTER
MENU
/
menu system and to adjust various
M
/
settings and personal preferences.
Press / / and to scroll through the on-screen display
Arrow
/ / / /
< / >
menus. Favorite channels can be selected using the
and buttons on the
remote control.
Number
Recall/Last
123
456
789
0
RECALL / LAS
Use to select a channel directly. Press 0-9 to enter the channel number (press 1 and 0 for channel
10).
Press this button to return to the last channel selected.
Press this button to enable the bilingual function when the program
MPX
MTS
has stereo
/ I/II / MONO capabilities. This option may not be available in your local area.
Power Turns the TV power on or off.
Adjust volume
Mute
-VOL VOL+ VOL VOL
MUTE
Press volume up to increase the audio volume. Press volume down to decrease the audio volume.
Press this button to eliminate sound. Press mute again or press the volume adjust buttons to restore sound.
19
Description Icon Function
T
Changes channels. Press channel up to increase the channel number.
Select channel
Press channel down to decrease the channel number. In AV mode, press either button to return to TV mode.
Source
Auto (selected models only)
Display (selected models only)
Reset (selected models only)
Sleep (selected models only)
SOURCE
AUTO
DISPLAY
RESE
Sleep
Press this button to cycle the video input sources. The source is displayed on the screen.
Press this button to automatically adjust the screen parameters in PC mode. Only available with 15-inch TVs.
Press this button to show messages on the screen, such as the channel number. Press this button again to close the displayed message.
Press this button to reset the TV.
Press this button repeatedly to set the TV timer (30, 60, 90, or 120 minutes). A timer appears on the top right corner of the screen to show the time remaining.
Cancel the timer by pressing the button until the displayed time disappears.
20
Inserting the Remote Control Batter y/Batteries
1
Open the battery compartment cover at the back of the remote control (A).
2 For AAA batteries: Insert the batteries paying attention to the
polarity markings inside the battery compartment (B). For lithium batteries: Insert the battery / batteries with the positive side (+) facing up (B). Remember to slide the battery / batteries underneath the metal contacts. Press downward to set the battery / batteries in place .
3 Replace the battery compartment cover (C) / (D).
A
A
A
B
B
B
C
C
C
D
AAA batteries Lithium batteries 1 Lithium batteries 2
Note Your remote control may have either AAA type batteries or CR2032 / CR2025 lithium battery/batteries.
21
CAUTION
If the remote control is not used for a long period, remove the batteries and store them separately.
Handle damaged or leaking batteries carefully, and wash hands after such handling.
If your remote control has two batteries, do not mix new and old batteries because the life of the new batteries will be shortened. Chemical fluids may leak from the old batteries.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer’s instructions.
Refer to your local recycling or waste disposal rules and contact a local waste disposal vendor to dispose of used batteries.
The remote control may have a magnet in it, so do not place magnetic sensitive items such as watches, credit cards, or flash media close to the cover .
Do not use force when pulling the re mote control cover open; you may damage the hinge.
22
8
Making Connections
Connecting to an Antenna or Cable TV
1
Connect one end of the VHF/UHF (Antenna) or CATV cable to ANT Jack (VHF/UHF IN Jack) on the back of the TV.
2 Connect the other end of the VHF/UHF (Antenna) or CATV cable to
the antenna socket or CATV cable.
Antenna
ANT
ANT jack (VHF/UHF IN jack)
Antenna/CATV socket
Antenna/CATV
coaxial cable
Note If you cannot receive channels after connecting to an antenna or cable TV line, try scanning for channels. See “Auto Program” on page 43.
23
Connecting to AV Devices
Connect external devices such as a VCR, VCD, DVD player, or video game console to the TV using the supplied 4-IN-1 A/V cable.
Connecting to a VCR/VCD/DVD Player
The illustration presented here shows how to connect the TV to a VCR, VCD or DVD player. Actual connections may vary according to the make and model of the device. Refer to the user’s manual included with the device for more detailed instructions.
VCR
DVD
VCD
4-IN-1
4-IN-1 A/V jack
BRWY
S-Video
connector
4-IN-1 A/V cable
Note
The cables are color-coded (black, red, white , yellow). Connect each color-coded cable to the appropriate connector on your device.
When connecting the S-Video connector and AV connector at the same time, the priority is given to the S-Video connector.
AV
connectors
24
Connecting to a Video Camera
The instructions presented here are a general guide to connecting the TV to a camcorder or other type of digital camera. Actual connections may vary according to the make and model of the device. Re fer to th e use r’s manual included with the camcorder or camera for more detailed instructions.
S
WB
4-IN-1
4-IN-1 A/V jack
S-Video connector
B
R
W
4-IN-1 A/V cable
AV connectors
Note The cables are color-coded (black, red, white, yellow). Connect each color­coded cable to the appropriate connector on your device.
Y
25
Connecting to a Video Game Console
The instructions presented here are a general guide to connecting the TV to a game console using the RCA Jacks (some game devices may require a unique adapter that is not provided). Actual connections may vary according to the make and model of the game device. Refer to the user’s manual included with the game console for more detailed instructions.
4-IN-1
4-IN-1 A/V jack
BRWY
S-Video connector
4-IN-1 A/V cable
AV
connectors
Notes
Connect the 4-IN-1 A/V cable connectors to the correspondin g connectors on your game device adapter.
If the 4-IN-1 A/V cable does not fit the game device, then insert RCA jack between the 4-IN-1 A/V cable and game device.
26
Connecting External Speakers or Headphones
External speakers or headphones may be used to listen to the TV rather than using the built-in speakers. Connect external speakers with built-in amplifier to the speaker line out port or headphones to the headphone port as illustrated.
Headphones
Headphone/
HEADPHONE
Speakers jack
Speakers
Notes
External speakers or headphones are not included with the TV.
The internal TV speakers will not outpu t sound when headphones are plugged in.
Use external speakers with built-in amplifiers only.
27
Connecting the Power Adapter
1
Connect the power cord to the power adapter as illustrated.
2 Plug the power adapter connector into the DC-IN input jack on the
rear panel of the TV.
3 Insert the three-pronged plug at the other end of the power cord into
a power outlet.
Three-pronged plug
DC-IN
DC-IN
DC-IN input jack
Power adapter
Note Images are for illustration only and may vary by model or region.
Power cord
Power outlet
28
9
Using the TV
Using the Remote Control
For best results, use the remote control within a distance of 16 feet (5 meters) from the front of the TV. Do not exceed an angle of 30 degrees when pointing at the TV.
Notes
The operationa l distance may be shortened when the signal sensor is directly exposed to strong light.
Aim the transmitter on the remote control at the signa l sensor and ensure that there are no obstacles between them.
Turning the TV On and Off
1
Press power on the remote control or control panel to turn on the TV.
2 Press power
Selecting Channels
Press channel up or channel down on the control panel to select the channel or enter the specific channel number by pressing the number buttons on the remote control.
again; the TV is in off mode.
Switching Source Signals
Press source to select the incoming source signal. The current source setting (TV, AV or AVs) or (TV, AV1, AV2 or AV2s)
appears on the upper left corner of the screen.
Adjusting the Volume
Press volume up to increase the volume. Press volume down to decrease the volume. The volume level is displayed on the screen.
29
10 Adjusting On-Screen Display (OSD)
Settings
The On-Screen Display (OSD) menu system provides a quick and simple method to adjust your TV’s settings. This chapter describes how to change each of the available settings.
TV & Remote Control Buttons
You may adjust the setting from your remote control or the buttons located on the TV's front control panel.
Control Panel Remote Control
– Menu
– M
CH UP
/ / / + / / )
(
CH DOWN
(
/ / / – / / )
VOL UP
( + / / / )
VOL DOWN
( – /  /  / )
Note Follow the instructions indicated on the bottom of the OSD Function Menu.
In the example shown here, press VOL UP or the setting, CH UP/DOWN or
or MENU to exit the OSD menu.
/ arrow keys to navigate through the items,
VOL
Adjust :
Menu/Enter
CH UP / Arrow
(
/ +) / / /
CH DOWN / Arrow
(
/ –) / / /
VOL UP / Arrow
) / / /
(+ /
VOL DOWN / Arrow
(– /
) / / /
arrow key to enter your
Select :
CH
Return :
MENU
30
OSD Function Menu
The following illustration helps you become acquainted with OSD menu items.
Current Menu: displays the title of the currently selected menu.
Adjustable Items: displays the setting or value of adjustable items.
Video Mode User
Main Menu: displays the available menus. The
Contrast
Brightness
Saturation
Hue
Sharpness
Color Temp Neutral
NR Off
Preset
40
47
40
25
04
selected menu is
Adjust :
VOL
Select :
CH
Return :
MENU
shown in a different color.
Instructions: displays instructions for adjusting settings.
The following menus can be set using different adjustment methods, which are described in the instructions.
31
Picture Setting
Press menu to enter the OSD menus.
1
Press
CH UP
or
CH DOWN
select Picture Setting.
2 Press VOL UP to enter the
Picture Setting menu.
to
Video Mode User
Contrast
Brightness
Saturation
Hue
Sharpness
Color Temp Neutral
NR Off
Preset
Adjust :
VOL
Select :
CH
Return :
MENU
40
47
40
25
04
32
Video Mode
Video Mode User
Contrast
Brightness
Saturation
Hue
Sharpness
Color Temp Neutral
NR Off
Preset
Adjust :
1
Press
VOL UP
40
47
40
25
04
switch between Video Mode options: User: Enables you to set user defined values.
or
VOL DOWN
to
Dynamic: Sets the display for
VOL
Select :
CH
MENU
Return :
enhanced picture contrast and sharpness (default). Standard: Sets the display for normal viewing (default). Movie: Sets the display to emulate a movie display (default).
2 In User mode, press CH UP or
CH
DOWN to select Contrast,
Brightness, Saturation, Hue (does not apply to PAL system), or Sharpness.
3 Press VOL UP
or
VOL DOWN
to change the values. A slide bar appears for each option.
4 Press VOL UP to increase the
chosen option’s value. Press
VOL DOWN
to decrease the value.
5 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
33
Color Temperature
Video Mode User
Contrast
Brightness
Saturation
Hue
Sharpness
Color Temp Neutral
NR Off
Preset
Adjust :
VOL
Select :
CH
Return :
40
47
40
25
04
Color Temp.
2 Press VOL UP
switch between Color Temp options: The following three color
MENU
temperatures are available.
Neutral: Warm: Cold:
CH UP
Gives white colors a reddish tint.
Gives white colors a bluish tint.
or
CH DOWN
or
VOL DOWN
to select
to
Gives white colors a neutral tint.
1
Press
3 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
Noise Reduction
Noise reduction enables you to reduce the amount of interferen ce in the signal.
1
Press
Video Mode User
Contrast
Brightness
Saturation
Hue
Sharpness
Color Temp Neutral
NR Off
Preset
Adjust :
VOL
Select :
CH
Return :
40
47
40
25
04
noise reduction (NR).
2 Press VOL UP
switch between NR options:
Off
MENU
Low High
CH UP
or
CH DOWN
or
VOL DOWN
to select
to
3 Press menu to confirm the setting.
34
Note The new setting is confirmed automatically when the OSD times out.
Preset
Preset erases all customized picture settings and returns all values to factory defaults.
1
Press
Video Mode User
Contrast
Brightness
Saturation
Hue
Sharpness
Color Temp Neutral
NR Off
Preset
Adjust :
VOL
Select :
CH
Return :
CH UP
40
47
40
25
04
Preset.
2 Press VOL UP to reset all picture
settings to factory defaults. “OK” appears on the screen.
MENU
3 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
or
CH DOWN
to select
35
Audio Setting
Press menu to enter the OSD menus.
1
Press
CH UP
or
CH DOWN
select Audio Setting.
2 Press VOL UP
to enter the
Audio Setting menu.
to
Audio
Equalizer User
100Hz
330Hz
1KHz
3.3KHz
6.6KHz
Balance 0
Surround Off
Preset
Adjust :
VOL
Select :
CH
Return :
MENU
+07
+07
+07
+07
+07
36
Equalizer
Audio
Equalizer User
100Hz
330Hz
3.3KHz
6.6KHz
Balance 0
Surround Off
Preset
Adjust :
1KHz
1
Press
VOL UP
+07
+07
+07
+07
+07
switch between Equalizer options: User: Enables you to set user defined values.
or
VOL DOWN
to
Movie: Sets the audio to
VOL
Select :
CH
MENU
Return :
accommodate movies (default). Music: Sets the audio to accommodate music (default). Hall: Sets the audio to accommodate a hall environment (default). Flat: Sets all frequency values to zero (default). Selecting User enables you to set the Equalizer manually (only User used).
2 In User mode, press CH UP or
CH
DOWN to select one of the
frequency bars shown.
3 Press VOL UP
to increase the
frequency for the chosen bar. Press
VOL DOWN
to decrease the
frequency.
4 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
37
Balance
Audio
Equalizer User
100Hz
330Hz
3.3KHz
6.6KHz
Balance 0
Surround Off
Preset
Adjust :
Surround
Audio
Equalizer User
100Hz
330Hz
3.3KHz
6.6KHz
Balance 0
Surround Off
Preset
Adjust :
1KHz
1KHz
1
Press
+07
+07
+07
+07
+07
Balance.
2 Press VOL UP
adjust the balance between left and
CH UP
or
CH DOWN
or
VOL DOWN
to select
to
right audio channels.
VOL
Select :
CH
MENU
Return :
3 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
1
Press
+07
+07
+07
+07
+07
Surround.
2 Press VOL UP
the surround sound feature on and
CH UP
or
CH DOWN
or
VOL DOWN
to select
to turn
off.
VOL
Select :
CH
MENU
Return :
3 Press menu to confirm the setting.
38
Note The new setting is confirmed automatically when the OSD times out.
Preset
Select this item to erase all customized audio settings and return all values to factory defaults.
1
Press
Audio
Equalizer User
100Hz
330Hz
1KHz
3.3KHz
6.6KHz
Balance 0
Surround Off
Preset
VOL
Adjust :
Select :
CH UP
+07
+07
+07
+07
+07
Preset.
2 Press VOL UP
settings to factory defaults. “OK” appears on the screen.
CH
MENU
Return :
3 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
or
CH DOWN
to reset all audio
to select
39
TV Setting
Press menu to enter the OSD menus.
1
Press
CH UP
or
CH DOWN
to
select TV Setting.
2 Press VOL UP to enter the TV
Setting menu.
TV
System B/G
CH Skip
Auto Program
Fine Tune
Fav. CH
Enter :
VOL
Select :
CH
Return :
MENU
40
System
TV
System B/G
CH Skip
Auto Program
Fine Tune
Fav. CH
Enter :
VOL
Select :
CH
Return :
Use the System function to determine the PAL signal type The signal type will be detected automatically: B/G, D/K, or I.
MENU
41
Channel Skip
TV
System B/G
CH Skip
Auto Program
Fine Tune
Fav. CH
VOL
Enter :
TV
CH Skip
Channel
Skip
VOL
Adjust :
Select :
Select :
1
Press
CH UP
or
CH DOWN
to select
CH Skip.
2 Press VOL UP
to enter the CH Skip
submenu.
3 Press CH UP or CH DOWN to select
CH
MENU
Return :
Channel.
4 Press VOL UP
or
VOL DOWN
to select the channel you want to
1
Off
modify.
5 Press CH UP or CH DOWN to select
Skip.
6 Press VOL UP
CH
MENU
Return :
channel skip on or off:
or
VOL DOWN
to turn
On: the channel is skipped when pressing CH UP or CH DOWN. Off: the channel is not skipped when pressing CH UP or CH DOWN.
7 Press menu to confirm the setting.
42
Note You can still access the erased channel by entering the channel number using the number keys on the remote control.
Auto Program
TV
System B/G
CH Skip
Auto Program
Fine Tune
Fav. CH
VOL
Enter :
TV
Auto-Programming
093.84 MHz
16%
Select :
1
Press
CH UP
or
CH DOWN
to select
Auto Program.
2 Press VOL UP
to begin auto
programming.
3 The TV will search for all available
CH
MENU
Return :
channels and add them to the channel list.
4 Press menu to confirm the setting.
MENU
Return :
Note The new setting is confirmed automatically when the OSD times out.
43
Fine Tune
TV
System B/G
CH Skip
Auto Program
Fine Tune
Fav. CH
Enter :
TV
Fine Tune
Channel
Frequency
Adjust :
1
Press
CH UP
or
CH DOWN
to select
Fine Tune.
2 Press VOL UP
to enter the Fine
Tune submenu.
3 Press CH UP or CH DOWN to select
VOL
Select :
CH
1
055.25 MHz
Return :
MENU
Channel.
4 Press VOL UP
select the channel you want to modify.
or
VOL DOWN
to
5 Press CH UP or CH DOWN to select
Frequency.
VOL
Select :
CH
MENU
Return :
adjust the frequency for the channel
6 Press VOL UP
or
VOL DOWN
to
until the picture is clear.
7 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
44
Favorite Channel
TV
System B/G
CH Skip
Auto Program
Fine Tune
Fav. CH
VOL
TV
Enter :
Fav. CH Setting
Favorite 1
Favorite 2
Favorite 3 1
Favorite 4 1
Select :
1
Press
CH UP
or
CH DOWN
to select
Fav. CH.
2 Press VOL UP
Setting
submenu.
to enter the Fav. CH
3 Press CH UP or CH DOWN to select
CH
MENU
Return :
the Favorite channel you want to modify (1 ~ 4).
4 Press VOL UP
1
1
select the channel you want to set as
or
VOL DOWN
to
the favorite channel for that number.
5 Press menu to confirm the setting.
Adjust :
VOL
Select :
CH
MENU
Return :
Note The new setting is confirmed automatically when the OSD times out.
45
Customize Setting
Press menu to enter the OSD menus.
1
Press
CH UP
or
CH DOWN
select Customize.
2 Press VOL UP to enter the
Customize Setting menu.
to
Customize
Sleep Timer Off
OSD Timeout
Language
Adjust :
VOL
Select :
10 sec
English
CH
Return :
MENU
46
Sleep Timer
Customize
Sleep Timer Off
OSD Timeout
Language
VOL
Adjust :
OSD Timeout
Customize
Sleep Timer 30min
OSD Timeout
Language
VOL
Adjust :
Select :
Select :
10 sec
English
10 sec
English
1
Press
CH UP
or
CH DOWN
to select
Sleep Timer.
2 Press
VOL UP
or
VOL DOWN
to
select a sleep timer value:
Off
CH
MENU
Return :
30/60/90/120 minutes
The TV will turn off after the specified number of minutes.
3 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
1
Press
CH UP
or
CH DOWN
to select
OSD Timeout.
2 Press VOL UP
or
VOL DOWN
to select an OSD timeout value:
10/20/30/40/60 seconds
CH
MENU
Return :
The OSD will time out after the specified number of seconds.
3 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
47
Language
Customize
Sleep Timer 30min
OSD Timeout
Language
Adjust :
1
Press
10 sec
English
CH UP
Language.
2 Press VOL UP
or
CH DOWN
or
VOL DOWN
to select
to select an OSD language:
English
VOL
Select :
CH
MENU
Return :
3 Press menu to confirm the setting.
Note The new setting is confirmed automatically when the OSD times out.
48
11 Taking Care of Y our TV & Remote
Control
Turn the power of f before you begin cleaning the TV.
For best results, use a clean lens cloth to remove dust and fingerprints from the screen.
Do not wipe the shell of the TV with alcohol,
GAS
OIL
methanol, gasoline or oil products to avoid damaging the finish. Wipe the shell with a dry soft cloth and use neutral cleaning fluids.
If your model has leather components, wipe the leather parts with a dry cloth and keep the area dry. Place the TV far from sources of steam to avoid making the leather wet.
Be careful to disconnect the power plug correctly. Hold the plug. Do not attempt to disconnect the plug by pulling on the power cord.
Arrange and store the power cord neatly as shown to the left to avoid knotting or bending which may cause fire due to damage or electric leakage.
Note Protect the remote control from shock or vibration to avoid damage. Do not place the remote control in hot or humid locatio ns.
49
12
Troubleshooting
Situation Solution
No picture and sound.
No picture, or poor picture, sound is OK.
Picture is not in color.
Picture is OK, no sound.
One of the speakers has no sound.
Cannot receive some TV channels using cable TV.
Want to reset TV settings.
Cannot operate menus.
Connect the power cord properly.
Check if the power LED is on or not.
Press power on the control panel or remote control.
Press source to cycle through connected video sources.
Press channel up or channel down to switch to other TV stations.
Make sure all cables are connected properly.
Check the antenna and cable connections.
Adjust the brightness in the OSD menus. See “Color Temperature” on page 34.
Adjust the saturation in the OSD menus. See “Color Temperature” on page 34.
Make sure all the cables are connected properly.
Make sure the source device is functioning
properly.
Make sure the audio cable is connected securely.
Turn the mute off.
Press volume up on the control panel or remote control.
Adjust the balance in the OSD menus. See “Balance” on page 38.
Make sure the audio cable is connected securely.
Try the Auto Program function in the OSD “TV Setting” menu. See “Auto Program” on page 43.
Use the Reset function in the OSD menu. See “Preset” on page 35.
If OSD items are colored in light blue, the system is in a state such that those settings are not available.
50
Situation Solution
Screen image turns over.
Snow appears on the screen.
Blurred or overlapped images.
Remote control doesn’t work.
Make sure the video signal cable is connected properly.
Adjust the location of the antenna, placing it far from roads or sources of interference.
Check the antenna and the video signal line connections.
Readjust the sharpness setting.
Choose programs with high quality signals.
Adjust the direction of the antenna or change the video signal cable.
Make sure the battery is inserted correctly.
Replace the battery with a new one.
Make sure the TV power cord is plugged in.
Make sure the path between the remote control and the sensor is clear.
Try operating the remote control at a closer distance to the TV. Refer to “Using the Remote Control” on page 29.
51
13
Warranty and Service
For complete warranty service information, please refer to the “Warranty and Service Manual” enclosed with your TV.
52
14
Specifications
9.6 / 12.1–inch LCD TV
LCD Panel Size 9.6 / 12.1–inch TFT Aspect Ratio 4:3
Display Resolution
TV System PAL
Video System
Audio System
Built-in Speakers 2W + 2W / 3W + 3W Power Supply 100-240V, 50/60 Hz, 12V DC Power Consumption 40 W Maximum Optional Accessories External Speakers
9.6-inch: 800 (horizontal) x 600 (vertical)
12.1-inch: 640 (horizontal) x 480 (vertical)
S-Video Input and Composite Video Input (through the 4-IN-1 A/V cable) / Composite Video Input (through the RCA jacks)
4-IN-1 A/V cable L/R RCA jacks
3.5 mm headphone port / L/R RCA jacks
53
15
Glossary
Aspect Ratio: The ratio of width to height of a film, image or display
screen.
Color Temperature: Adjusting the color temperature enables you to
set the intensity of white light. Color temperature is measured in Kelvin (K). Higher color temperatures result in a blue tint. Lower temperatures result in a red tint.
Hue: Colors in a color system are measured by hue, saturation and
luminance. Hue indicates the predominant color.
LCD (Liquid Crystal Display): A display technology that uses rod-
shaped molecules (liquid crystals) that flow like liquid and bend light.
OSD (On-Screen Display): A control panel on the television screen that
allows you to select viewing options.
Saturation: Chromatic purity indicating the amount of white contained
in a color. Fully saturated colors are pure colors; less saturated colors appear as pastel shades.
Stereo: is the default audio signal belonging to a particular channel. S-Video: Separate video, a video cabling standard used to transmit
video by keeping brightness (Y) and color information (C) on separate channels. Most often used with camcorders, VCRs, and quality receivers and amplifiers to provide sharper pictures.
54
MEMO
MEMO
Loading...
