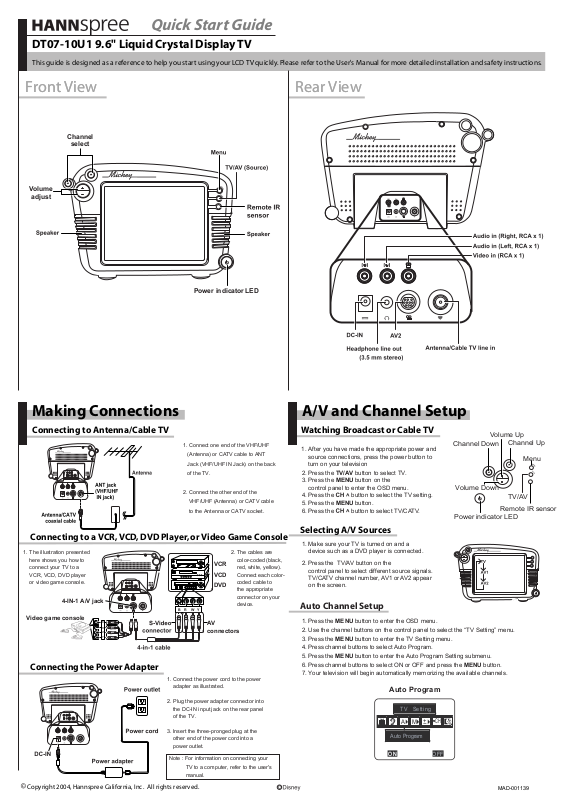

Quick Start Guide

DT07-10U1 9.6" Liquid Crystal Display TV

This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.

Front ViewFront View

Channel

select

Volume

adjust

Rear ViewRear View

Making Connections

Connecting to Antenna/Cable TV

Power indicator LED

1. Connect one end of the VHF/UHF

(Antenna) or CATV cable to ANT

Jack (VHF/UHF IN Jack) on the back

of the TV.

2. Connect the other end of the

VHF/UHF (Antenna) or CATV cable

to the Antenna or CATV socket.

A/V and Channel Setup

Watching Broadcast or Cable TV

1. After you have made the appropriate power and
source connections, press the power button to
turn on your television

2. Press the TV/AV button to select TV.

3. Press the MENU button on the
control panel to enter the OSD menu.

4. Press the button to select the TV setting.

5. Press the MENU button.

6. Press the button to select TV/CATV.

Channel Down

Volume Down

Power indicator LED

Volume Up

Channel Up

Menu

TV/AV

Remote IR sensor

Connecting to a VCR, VCD, DVD Player, or Video Game Console

1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.

4-IN-1 A/V jack

Video game console

B R W Y

B

R

W

Y

AV
connectors

2. The cables are
color-coded (black,

VCR

red, white, yellow).
Connect each color-

VCD

coded cable to

DVD

the appropriate
connector on your
device.

Connecting the Power Adapter

1. Connect the power cord to the power
adapter as illustrated.

2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.

3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.

Note : For information on connecting your

TV to a computer, refer to the user's

manual.

Selecting A/V Sources

1. Make sure your TV is turned on and a
device such as a DVD player is connected.

2. Press the TV/AV button on the
control panel to select different source signals.
TV/CATV channel number, AV1 or AV2 appear
on the screen.

Auto Channel Setup

1. Press the MENU button to enter the OSD menu.

2. Use the channel buttons on the control panel to select the “TV Setting” menu.

3. Press the MENU button to enter the TV Setting menu.

4. Press channel buttons to select Auto Program.

5. Press the MENU button to enter the Auto Program Setting submenu.

6. Press channel buttons to select ON or OFF and press the MENU button.

7. Your television will begin automatically memorizing the available channels.

Auto Program

TV

Setting

+

AM

Auto Program

ONON OFF

CH

-
