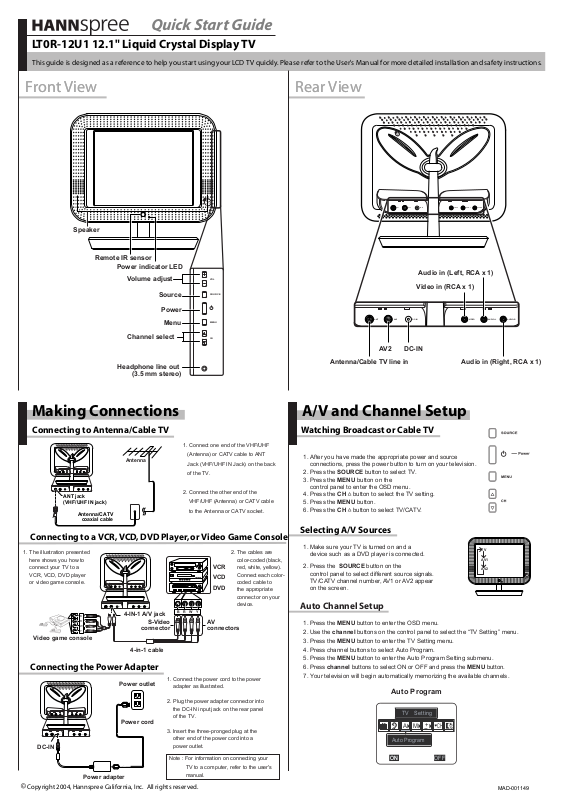

HANNSpree LT0R-12U1 Quick Start Guide

Quick Start Guide

LT0R-12U1 12.1" Liquid Crystal Display TV

This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.

Front ViewFront View

Speaker

Remote IR sensor

Power indicator LED

Volume adjust

Source

VOL

SOURCE

Rear ViewRear View

ANT AV2 DC-IN VIDEO AUDIO-L AUDIO-R

Audio in (Left, RCA x 1)

Video in (RCA x 1)

Power

Channel select

Headphone line out

(3.5 mm stereo)

Making Connections

Connecting to Antenna/Cable TV

Antenna

ANT AV2 DC-IN VIDEO AUDIO-L AUDIO-R

ANT jack (VHF/UHF IN jack)

Antenna/CATV

coaxial cable

1. Connect one end of the VHF/UHF

(Antenna) or CATV cable to ANT

Jack (VHF/UHF IN Jack) on the back

of the TV.

2. Connect the other end of the

VHF/UHF (Antenna) or CATV cable

to the Antenna or CATV socket.

ANT AV2 DC-IN VIDEO AUDIO-L AUDIO-R

AV2

DC-IN

Antenna/Cable TV line in Audio in (Right, RCA x 1)

A/V and Channel Setup

Watching Broadcast or Cable TV

1. After you have made the appropriate power and source connections, press the power button to turn on your television.

2. Press the SOURCE button to select TV.

3. Press the MENU button on the control panel to enter the OSD menu.

4. Press the CH button to select the TV setting.

5. Press the MENU button.

6. Press the CH button to select TV/CATV.

Connecting to a VCR, VCD, DVD Player, or Video Game Console

1. The illustration presented here shows you how to connect your TV to a VCR, VCD, DVD player or video game console.

Video game console

ANT AV2 DC-IN VIDEO AUDIO-L AUDIO-R

4-IN-1 A/V jack

connector

4-in-1 cable

S-Video

B R W Y

AV connectors

2. The cables are color-coded (black,

VCR

red, white, yellow). Connect each color-

VCD

coded cable to

DVD

the appropriate connector on your device.

Connecting the Power Adapter

Power outlet

ANT AV2 DC-IN VIDEO AUDIO-L AUDIO-R

Power cord

ANT AV2 DC-IN VIDEO AUDIO-L AUDIO-R

DC-IN

Power adapter

1. Connect the power cord to the power adapter as illustrated.

2. Plug the power adapter connector into the DC-IN input jack on the rear panel of the TV.

3. Insert the three-pronged plug at the other end of the power cord into a power outlet.

Note : For information on connecting your

TV to a computer, refer to the user's

manual.

Selecting A/V Sources

1. Make sure your TV is turned on and a device such as a DVD player is connected.

2. Press the SOURCE button on the control panel to select different source signals. TV/CATV channel number, AV1 or AV2 appear on the screen.

AV1

AV2

Auto Channel Setup

1. Press the MENU button to enter the OSD menu.

2. Use the channel buttons on the control panel to select the “TV Setting” menu.

3. Press the MENU button to enter the TV Setting menu.

4. Press channel buttons to select Auto Program.

5. Press the MENU button to enter the Auto Program Setting submenu.

6. Press channel buttons to select ON or OFF and press the MENU button.

7. Your television will begin automatically memorizing the available channels.

Auto Program

Setting

Auto Program

ONON OFF

MAD-001149
