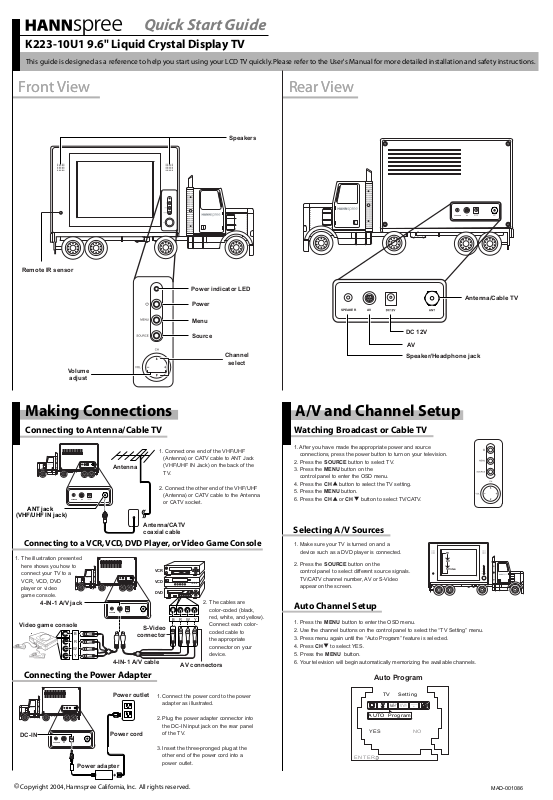

Quick Start Guide
K223-10U1 9.6" Liquid Crystal Display TV
This guide is designed as a reference to help you start using your LCD TV quickly.Please refer to the User's Manual for more detailed installation and safety instructions.
Front ViewFront View
Remote IR sensor
Speakers
Rear ViewRear View
SPEAKER
AV
Volume
adjust
Making Connections
Connecting to Antenna/Cable TV
ANT jack
(VHF/UHF IN jack)
SPEAKER
SPEAKER
AV
Antenna
Antenna/CATV
coaxial cable
Power indicator LED
Power
Menu
Source
Channel
select
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the
TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
SPEAKER AV
DC 12V
AV
Speaker/Headphone jack
A/V and Channel Setup
Watching Broadcast or Cable TV
1. After you have made the appropriate power and source
connections, press the power button to turn on your television.
2. Press the SOURCE button to select TV.
3. Press the MENU button on the
control panel to enter the OSD menu.
4. Press the CH button to select the TV setting.
5. Press the MENU button.
6. Press the CH or CH button to select TV/CATV.
Selecting A/V Sources
Antenna/Cable TV
Connecting to a VCR, VCD, DVD Player, or Video Game Console
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD
player or video
game console.
4-IN-1 A/V jack
Video game console
SPEAKER
SPEAKER
AV
B
R
W
Y
4-IN-1 A/V cable
VCR
VCD
DVD
S-Video
connector
B R W
Y
AV connectors
2. The cables are
color-coded (black,
red, white, and yellow).
Connect each color coded cable to
the appropriate
connector on your
device.
Connecting the Power Adapter
DC-IN
SPEAKER
Power outlet
SPEAKER
Power cord
AV
Power adapter
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the
control panel to select different source signals.
TV/CATV channel number, AV or S-Video
appear on the screen.
TV
AV
S-Video
Auto Channel Setup
1. Press the MENU button to enter the OSD menu.
2. Use the channel buttons on the control panel to select the “TV Setting” menu.
3. Press menu again until the “Auto Program” feature is selected.
4. Press CH to select YES.
5. Press the button.
6. Your television will begin automatically memorizing the available channels.
MENU
Auto Program
AUTO
YES
ENTER
TV
AUTO
SET
Program
Setting
MENU
Channel
SET
-
+
NO
Copyright 2004, Hannspree California, Inc. All rights reserved.
MAD-001086
