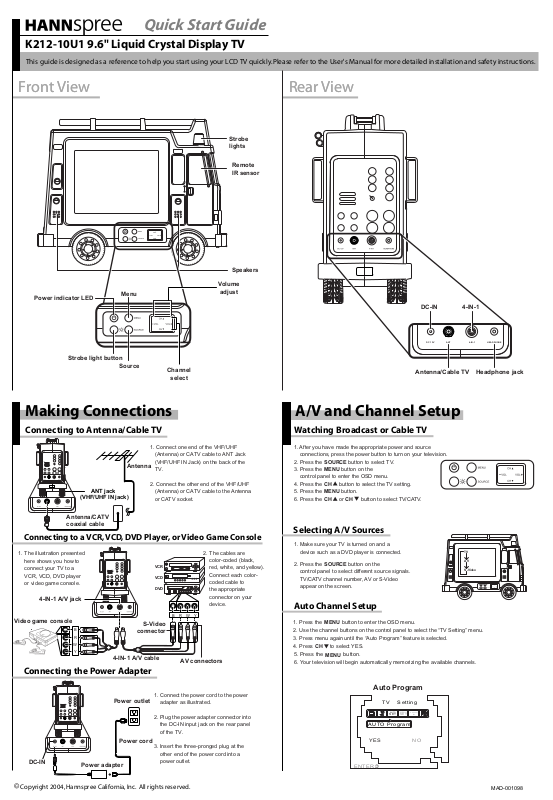

Quick Start Guide
K212-10U1 9.6" Liquid Crystal Display TV
This guide is designed as a reference to help you start using your LCD TV quickly.Please refer to the User's Manual for more detailed installation and safety instructions.
Front ViewFront View
Power indicator LED
Menu
MENU
SOURCE
Rear ViewRear View
Strobe
lights
Remote
IR sensor
CH
VOL
VOL
CH
Speakers
Volume
adjust
4-IN-1DC-IN
Strobe light button
Source
Channel
select
Making Connections
Connecting to Antenna/Cable TV
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
Antenna
ANT jack
(VHF/UHF IN jack)
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD, DVD Player, or Video Game Console
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.
4-IN-1 A/V jack
Video game console
B
R
W
Y
4-IN-1 A/V cable
Connecting the Power Adapter
(VHF/UHF IN Jack) on the back of the
TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
2. The cables are
VCR
VCD
DVD
B R W
color-coded (black,
red, white, and yellow).
Connect each color coded cable to
the appropriate
connector on your
device.
Y
S-Video
connector
AV connectors
Antenna/Cable TV
Headphone jack
A/V and Channel Setup
Watching Broadcast or Cable TV
1. After you have made the appropriate power and source
connections, press the power button to turn on your television.
2. Press the SOURCE button to select TV.
3. Press the MENU button on the
control panel to enter the OSD menu.
4. Press the CH button to select the TV setting.
5. Press the MENU button.
6. Press the CH or CH button to select TV/CATV.
Selecting A/V Sources
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the
control panel to select different source signals.
TV/CATV channel number, AV or S-Video
appear on the screen.
Auto Channel Setup
1. Press the button to enter the OSD menu.
2. Use the channel buttons on the control panel to select the “TV Setting” menu.
3. Press menu again until the “Auto Program” feature is selected.
4. Press CH to select YES.
5. Press the button.
6. Your television will begin automatically memorizing the available channels.
MENU
MENU
TV
AV
S-Video
HEADPHONE4-IN-1DC 12V ANT
MENU
CH
VOL
VOL
CH
SOURCE
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
DC-IN
Power outlet
Power cord
Power adapter
