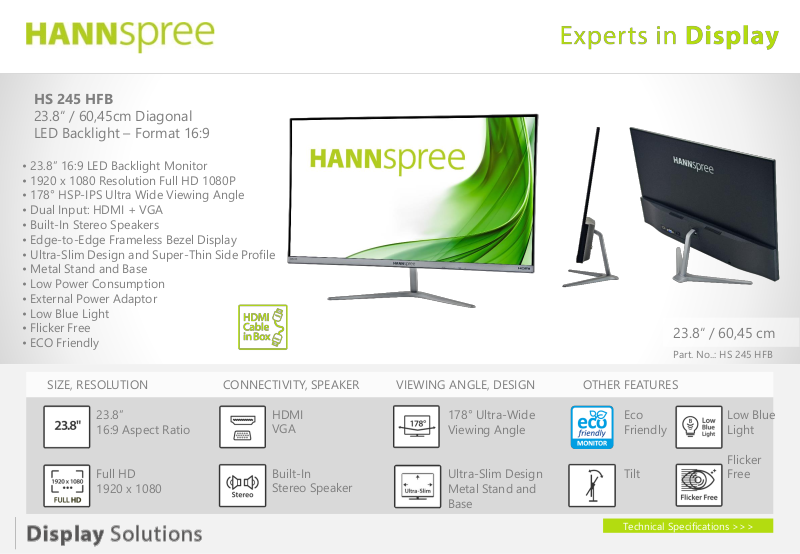

HANNS.G HS245HFB Product Data Sheet

HS 245 HFB

23.8“ / 60,45cm Diagonal
LED Backlight – Format 16:9

23.8“ / 60,45 cm

Part. No..: HS 245 HFB

CONNECTIVITY, SPEAKERSIZE, RESOLUTION OTHER FEATURES

Technical Specifications >>>

23.8”

16:9 Aspect Ratio

Full HD
1920 x 1080

• 23.8” 16:9 LED Backlight Monitor

• 1920 x 1080 Resolution Full HD 1080P

• 178° HSP-IPS Ultra Wide Viewing Angle

• Dual Input: HDMI + VGA

• Built-In Stereo Speakers

• Edge-to-Edge Frameless Bezel Display

• Ultra-Slim Design and Super-Thin Side Profile

• Metal Stand and Base

• Low Power Consumption

• External Power Adaptor

• Low Blue Light

• Flicker Free

• ECO Friendly

Eco
Friendly

Tilt

Low Blue
Light

Flicker
Free

HDMI
VGA

Built-In

Stereo Speaker

VIEWING ANGLE, DESIGN

178° Ultra-Wide
Viewing Angle

Ultra-Slim Design
Metal Stand and
Base

VESA Mounting

N/A

Monitor Stand Normal Stand

Tilt / Kensington Lock -5°~ 15°/ Yes

Pivot / Swivel - / -

Controls

Menu, (+), (-), AUTO, Power

Color Warm, Natural, Cool, User Mode

Preset Mode PC, Movie, Game, ECO Modes

On Screen Display 16 OSD Languages

Accessory

Power Adaptor with cable (1,5m);

HDMI Cable (1,5m); Warranty Card;

Quick Start Guide

Other Features

Low Blue Light Mode
Flicker Free

Display Size

60,45cm / 23.8“ Diagonal

Panel Type LED Backlight HSP-IPS Panel (AFFS*)

Aspect Ratio 16:9

Resolution (H x V) 1920 x 1080 Full HD

Brightness 250cd/m²

Contrast (Typ.) 1.000:1 (Typical)

Contrast (Active) 8.000.000:1 (Active)

Viewing Angle L/R; U/D 178°H – 178°V (CR >10)

Response Time 5 msec

Pixel Pitch 0,2745 (H) x 0,2745 (V) mm

Panel Surface Anti-Glare, Hard Coating 3H

Display Colors 16.7M Colors

Horizontal Frequency

30 ~ 83 kHz

Vertical Frequency 50 ~ 75 Hz

Max Display Frequency 1920 x 1080 @ 60Hz

Input 1 D-Sub (VGA)

Input 2 HDMI 1.4

Input 3 -

Buil-in Speakers Yes, 2W x 2; Earphone Jack

Power Consumption On: 17,2W; Stand-by: 0,19W; Off: ≤0,3W

AC Power Range

External PSU DC: 12V – 2.5A
Input: AC 100 ~ 240 Volt; 50 ~ 60 Hz

Product Dimensions 539 x 135 x 401,6 mm (W x D x H)

Packing Dimensions 630 x 103 x 440 mm (W x D x H)

Net / Gross Weight 2,95 Kg / 4,69 Kg

Bezel & Color Plan

Arm / Base / Decorative Strip: Titanium Gray
Rear Cover: Black texture

PART. NO.:

HS 245 HFB

* “AFFS" word mark /
trademark and related patents
on technologies belong to their
respective owners.

© 2019 HANNSpree, Inc. Specifications and design as well as accessor ies are subject to change without notice. Screen shots are simulated. Actual products may differ slightly from those
illustrated on this promotion material. Please refer to actual samples for final selection. The products displayed on this promotion material may not be available for purchase in your particular
country or locality. Please check with your local HANNspree authorized representatives for the availability of specific produ cts in your area. All brand, product, Service names and logos are
trademarks and/or registered trademarks of their res pective manufactures and Companies.

Supplier‘s Name

HANNspree
Model Name HS245HFB
Energy Efficiency Class A+
Screen Size (Centimetres) 60,5
Screen Size (Inches) 23,80
On mode power Consumption (W) 19
Annual Energy Consumption* (kWh) 28
Standby-mode Power Consumption (W) 0,19

Off-mode Power Consumption (W) ­Screen Resolution 1920 x 1080
