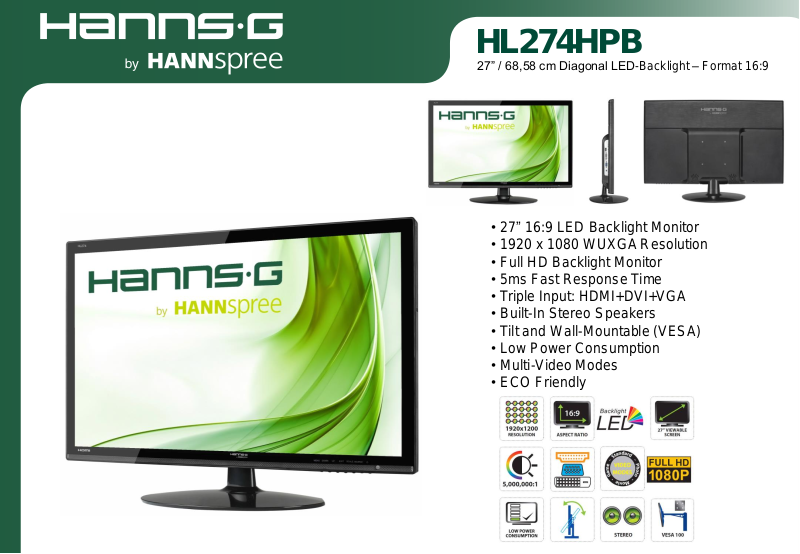

HANNS.G HL274HPB Datasheet

HL274HPB

27” / 68,58 cm Diagonal LED-Backlight – Format 16:9

• 27” 16:9 LED Backlight Monitor

• 1920 x 1080 WUXGA Resolution

• Full HD Backlight Monitor

• 5ms Fast Response Time

• Triple Input: HDMI+DVI+VGA

• Built-In Stereo Speakers

• Tilt and Wall-Mountable (VESA)

• Low Power Consumption

• Multi-Video Modes

• ECO Friendly

LCD Panel

PC Input Range

Display Size

Brightness
Contrast (Typical)

Pixel Pitch

Resolution (H x V)

Contrast (Active)

68,58cm / 27” Diagonal

Panel Type LED-Backlight

250 cd/m2

1000:1 (Typical)

5M:1 (Active)

0.311 (H) x 0.311 (V) mm

1920 x 1080

Aspect Ratio

16:9

Response Time

5 msec

View Angles LR, UD

H/V 170° / 160° (CR > 10)

Panel Surface

Anti-Glare

Display Colors

16.7M Colors

Horizontal Freq.

30 to 80 kHz

Vertical Freq.

60 to 75 Hz

Max. Display Freq.

1920 x 1080 @ 60Hz

Interface

Input 1 D-Sub (VGA) x 1
Input 2 DVI-D x 1

Input 3

HDMI

Output Terminal

Speakers Yes, 2W x 2

Power

Consumption On:29W;Standby:<= 0.5W;Off:<=0.5W

AC Power Range

AC 100 ~ 240V, 50 ~ 60Hz

Power Mode Indicator

Power On: Green (LED)

Power Saving: Green flicker (LED)

Operating
Condition

Temperature

5° ~ 35° C

Humidity

20% ~ 70%, non-condensing

Physical

Dimensions

650 x 55 x 453 mm (W x D x H) TBC
Packing Dimens. 707 x 117 x 500 mm (W x D x H)
Net Weight 4,7 Kg
Gross Weight

6,3 Kg

VESA Mounting

100 x 100 mm

Tilt

-5° ~ + 15°

Controls

Menu, Down, Up, Exit, Scale, Source, Power

Color

Warm, Cool, User Mode

Preset Mode

Movie, Photo, Game, Standard

On Screen Display

Languages: 9 OSD Languages

Carton Box

Brown Box

Accessory

Power Cable (1,5m), VGA Cable (1,5m)
Warranty Card, Quick Start Guide (paper)

Pivot

NA

Swivel

NA

Monitor stand

Regular Stand

HL274HPB

27” / 68,58 cm Diagonal LED-Backlight – Format 16:9
