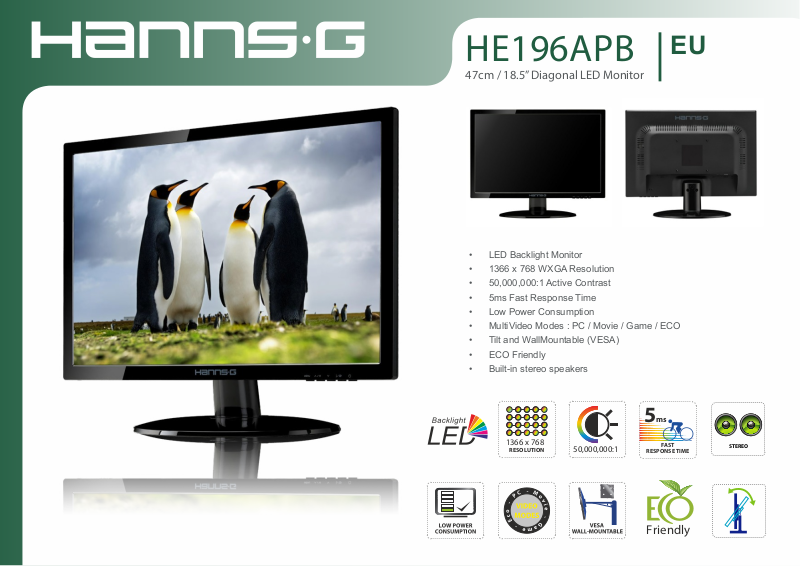

HANNS.G HE196APB Datasheet
HE196APB
47cm / 18.5” Diagonal LED Monitor
• LED Backlight Monitor
• 1366 x 768 WXGA Resolution
• 50,000,000:1 Active Contrast
• 5ms Fast Response Time
• Low Power Consumption
• MultiVideo Modes : PC / Movie / Game / ECO
• Tilt and WallMountable (VESA)
• ECO Friendly
• Built-in stereo speakers
EU
1366 x 768
RESOLUTION
50,000,000:1
5ms
FAST
RESPONSE TIME
Friendly
STEREO
HE196APB
47cm / 18.5” Diagonal LED Monitor
EU
LCD Panel Display size 47cm / 18.5” Diagonal White LED-Backlight
Brightness 200cd/m2
Contrast 600:1 (Typical)
50,000,000:1(Active contrast)
Pixel pitch 0.3(H) x 0.3(V) mm
Resolution (H x V) 1366 x 768
Aspect Ratio 16:9
Response time 5ms
View angles LR,UD H/V 90°/65°
Color WARM,NATURE,COOL, User Mode
Panel surface Anti-Glare
Display colors 16.7M Colors
PC Input Range Horizontal Freq. 24 to 61 kHz
Vertical Freq. 56Hz to 75Hz
Max. display frequency
(Resolution H*V/Fv)
Interface Input D-Sub x 1, PC Audio
Output Terminal Eaphone NA
Speaker 1.5w*2
Power Consumption On: 20 W;
AC Power Range AC 100~240V, 50~60Hz
Power Mode Indicator Light Power on : Green (LED)
Operating Condition Temperature 5°C ~ 35°C
Humidity 20% ~ 85%, non-condensing
Physical Dimension (W*D*H) 446 X 147.6 X 345 mm
Packing Dimension (W*D*H) 492 X 98 X 340 mm
1366 x 768 /60Hz
Standby<=0.5W, Off<=0.5W
Power saving : Green Flicker (LED)
Controls Front control Menu, (+), (-) A U T O Power
On Screen Display 11 language : EN, FR, DE, FR, ES, IT, PT, RU, TC,
SC, JP, KO
Preset Mode PC, Movie, Game, ECO Modes
Container Loading 40’ HQ TBC
40' Standard 3024
20' Standard 1440
Accessories Power Cable(1.5m),VGA Cable(1.5m), Audio Cable, Quick Start Guide (Paper)
& Warranty
Color Plan Black texture: front bezel, arm, base, back cover
Carton box Brown
Green product
(Jan. 2009)
Window 7 NA
HDMI Logo NA
Certification CE
Yes
Contact Information
Net weight TBC
Gross weight 3.00 Kg
Tilt -3°~ +15°
Kensington Lock Yes
VESA mounting 75 x 75mm
Actual products may differ slightly from those illustrated on this promotion material. Please refer to actual samples for final selection. The products
displayed on this promotion material may not be available for purchase in your particular country or locality. Please check with your local Hannspree
authorized representatives for the availability of specific products in your area. Hannspree reserves the right to alter design and specifications as well as
to change the accessories with equivalents without notice.
