Hanna Instruments HI 98710 User Manual

Instruction Manual
HI 98710 - HI 98810 HI 98740 - HI 98840
Portable Microprocessor
Printing and Logging
Thermometers
http://www.hannainst.com
These Instruments are in Compliance with the CE
Dear Customer, Thank you for choosing a Hanna Instruments Product. Please read this instruction manual carefully before using the in-
strument. This manual will provide you with all the necessary information for
the correct use of the instrument, as well as a precise idea of its versatility in a wide range of applications.
These instruments are in compliance with directives.
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTSTABLE OF CONTENTS
PRELIMINARY EXAMINATION .............................................................. 3
GENERAL DESCRIPTION ...................................................................... 3
FUNCTIONAL DESCRIPTION .................................................................5
SPECIFICATIONS ............................................................................. 6
INITIAL PREPARATION........................................................................ 7
SETUP MODE ............................................................................. 8
TAKING TEMPERATURE MEASUREMENTS ............................................ 14
HI98810 / HI98840 PRINTING / LOGGING FUNCTIONS ....................... 15
HI98710 / HI98740 PRINTING FUNCTIONS ....................................... 18
GOOD LABORATORY PRACTICE (GLP) .................................................. 20
OTHER FEATURES ........................................................................... 20
DATA TRANSFER TO PC .................................................................... 21
MEMORY ORGANIZATION ................................................................. 22
PRINTER MAINTENANCE ................................................................... 23
FAULT CONDITIONS ......................................................................... 23
BATTERY REPLACEMENT ................................................................... 24
TEMPERATURE PROBES ................................................................... 25
UN-HOUSED NTC SENSORS .............................................................. 26
ACCESSORIES ................................................................................. 27
WARRANTY ..................................................................................... 28
CE DECLARATION OF CONFORMITY .................................................... 28
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., 584 Park East Drive, Woonsocket, Rhode Island, 02895 , USA.
PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION
PRELIMINARY EXAMINATION
PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION
Remove the instrument from the packing material and examine it carefully to make sure that no damage has occurred during shipping. If there is any damage, notify your Dealer.
Each thermometer is supplied complete with:
HI762BL Temperature Probe (one channel version only)
AA size Alkaline Batteries (4 pcs)
Instruction Manual
• Paper rolls (5 pcs)
Rugged Carrying Case.
Note: Save all packing material until you are sure that the instrument
functions correctly. All defective items must be returned in their original packaging together with the supplied accessories.
GENERAL DESCRIPTIONGENERAL DESCRIPTION
GENERAL DESCRIPTION
GENERAL DESCRIPTIONGENERAL DESCRIPTION
The Hanna Instruments portable NTC thermometers with built-in print­ers are microprocessor-based and enable you to accurately measure temperature and record data.
The instruments housing is made of rugged and lightweight material making it truly portable.
The meters come equipped with an easy-to-read LCD with backlight feature for comfortable reading even in dark environments.
A user friendly interface provides clear messages regarding errors, functions and more.
The GLP features provide a guarantee of data consistency. Measurements can be performed with lab-grade precision in the field as
well as in the laboratory. An alarm time-out is available to alert the user if too much time has
elapsed since the last calibration and that re-calibration may be required.
The meters provide a GLP settings through a password protection method.
The Battery Error Preventing System (BEPS) recognizes batteries levels as they become weaker.
32
To prolong battery life, the backlight and printing features are dis­abled when the batteries are getting low; "LOBAT" indication is displayed on LCD to warn the user of this condition. However, the meter contin­ues to measure correctly even when the low battery indication is displayed. The meter automatically switches itself off when the batter­ies are too weak to support proper function.
The meters are equipped with an internal lithium battery that powers the clock circuit even in the absence of power supplies.
For long term field and lab applications, these meters can be connected to a 12VDC adapter.
HI98810 HI98810
HI98810 and
HI98810 HI98810 in memory at a user selectable interval from 1 to 180 minutes. This information can be retrieved at a later time and also printed.
HI98810 HI98810
HI98810 and
HI98810 HI98810 computer via the HI9200 infrared transmitter connected to the com­puter RS232 port.
Each meter can also be uniquely identified by the user by assigning an ID code.
HI98840 HI98840
HI98840 have the capability to store the measurements
HI98840 HI98840
HI98840 HI98840
HI98840 also allow the transfer of stored data to a
HI98840 HI98840
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
1) Power adapter plug
2) Temperature Probe Connectors (1 or 4 according to model)
3) LCD Display
4) PAPER key, to move the paper up
5) ON/OFF key, to turn the meter on or off
6) ALT key, to alternate key function
7) CH/TIME key (HI98740 and HI98840 only) to select input chan­nels, to view date and time, and to enable backlight (with ALT)
TEMP/TIME key (HI 98710, HI 98810 only) to select temperature reading, to view date and time, and to
enable backlight (with ALT) LOG LOG
8)
LOG key, to store and/or print measurements
LOG LOG
9) ÈLOT INFO key (HI 98810 and HI 98840 only) to move down or view logging information (with ALT) È key (HI 98710 and HI 98740 only) to move down
10) ÆCFM key, to move right or confirm values (with ALT)
11) ÇFNC key, to move up or select function codes (with ALT)
54
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
Range -50.0 to 150.0 C ; -55.0 to 300.0 F
Resolution 0.1 C (-30 C to +130 C); 0.2 C outside
0.1 F (-18 F to 225 F);
0.2 F (225F to 260 F); 0.3 F outside Accuracy ±0.4 C (-20 C to +120C); ±0.7 C outside (@20C/68F) ±0.8 F (-4 to +248 F); ±1.3 F outside
for one year (excluding probe error)
Typical EMC Dev. ±0.4 C; ±0.8 F Channels HI98710/HI98810: 1 channel
HI98740/HI98840: 4 channels
Probe HI 762 series Printer Low power impact type-belt, 14 characters
per line; 38 mm plain paper (HI 710034)
Printing/Logging 1, 2, 5,10, 15, 30, 60, 120 and 180 minutes Interval Auto shut-off Selectable at 5, 10, 15, 30, 45 or 60 minutes Power supply 4x1.5V AA alkaline type/350 hours typical life
(with 2700mA/h batteries, without printing and backlight).
12 VDC adapter (HI710005 or HI710006)
Environment 0 to 50C (32 to 122F);
0-95% RH non-condensing
Dimensions 220 x 82 x 66 mm (8.7 x 3.2 x 2.6") Weight 500 g (18 oz)
INITIAL PREPARATIONINITIAL PREPARATION
INITIAL PREPARATION
INITIAL PREPARATIONINITIAL PREPARATION
Each meter is supplied complete with batteries. Remove the back cover, unwrap the batteries and install them while paying attention to the polarity. Alternatively, connect the HI 710005 or HI 710006 voltage adapter to the power adapter plug.
To prepare the instrument for use, choose the most appropriate tem­perature probe(s) for your application (see accessories) and connect it (them) to the connector(s) located on the top of the instrument.
All the probes have been precalibrated at the factory and no calibra­tion is needed.
With the meter facing you, channel #1 is the first connector on the top left hand side.
To switch the meter on, press the ON/OFF key. The batteries charge status or "LINE" message (if external power adapter is connected) will be displayed on the LCD for a few seconds.
ON/OFF
The meter is now ready to operate.
To maximize battery life, the meter is automatically switched off after a user selectable period of non-use (this feature is enabled and set to 5 minutes by default; it can be disabled or changed through setup code
40). If in logging mode, after the period of non-use, the meter will continue to monitor the temperature periodically at the end of every logging interval. Only the "LOG" indication will be visible on LCD. While storing data in memory, during the sleep mode, the reading will appear briefly on the LCD.
To reactivate the display press the ON/OFF key.
Note: When the use of an alternate function (FNC, CFM and LOT
INFO) is requested, press and hold the ALT key first and then the second listed key.
76
SETUP MODESETUP MODE
SETUP MODE
SETUP MODESETUP MODE
Setup can be used to view data regarding instrument status (e.g. battery charge) or GLP data (e.g. calibration date) or to view or print the logged data. It also allows the user to change the meter param­eters (e.g. time) and to gain access to stored data.
• To enter this mode ensure the meter is
not logging and then press the ALT and FNC keys.
PASSWORD PROTECTION
Setting of the GLP parameters (calibration alarm time-out, instrument ID code, time and date) can be password protected. If password is set to a value different from 0000 (factory setting), the user will be asked to enter the password.
• Select the desired GLP parameter code.
• Enter the password by the arrow keys.
• The scrolling message "Insert the function code or press "ALT" -
"FNC" to escape" in the upper LCD and the indication "F 00" with the first digit blinking in the lower LCD will be displayed.
• Enter the first digit of the code of the parameter you want to set
using the Ç or È key and pass to the next digit with Æ. The second digit will start blinking.
• Enter the second digit using the Ç or
È key.
• Press ALT and CFM to confirm the code.
• If the entered code doesn't exist the "Err"
message will be displayed for a few sec­onds and then the message "Insert the function code or press ALT - FNC to es­cape" will recommence scrolling in the upper LCD.
• Press the ALT and CFM keys to confirm.
• If password is wrong the meter will return to the function selection mode without any warning message.
• If password is correct, the meter provides access to the parameter.
PARAMETERS SETTING
• Once the parameter code has been entered, the appropriate mes­sage will scroll across the LCD for a few seconds.
• The current value of the selected parameter on the upper LCD and the parameter code on the lower LCD will be displayed. The first digit will blink if the parameter can assume continuous values. All the digits will blink if the parameter can assume only a fixed set of values.
• Enter the new value using the arrow keys.
• Press ALT and CFM to confirm the value.
The following table lists the setup codes along with the description of the specific setup items, their valid values and the factory settings (default):
Code Valid values Default
00 Lot data printing/scrolling10016 00 01 Logging interval 1,2,5,10,15,30,60,120,180 1 02 Print lots data summary 03 Printer enable 04 Reset sample number 05 Log on demand delete
1
1
2
On(enabled); Off(disabled) On
1
98
Code Valid values Default
06 Timed data delete
1
10 Show GLP data 11 Calibration alarm time-out On(enabled); Off(disabled) On 20 Instrument ID code 00009999 0000 30 Current time 31 Current day 32 Current month 33 Current year
3
3
3
3
hh:mm 00:00 dd 01 MM 01
YYYY 1998 40 Auto-Off/Power down time-out Off,5,10,15,30,45,60 5 41 Battery level test 50 RS232 baud rate
1
1200, 2400, 4800 4800 60 Firmware version 70 Celsius/Fahrenheit selection C ; F C 99 Password
4
00009999 0000 Note: If a wrong code is entered the "Err" message is displayed on
LCD for a few seconds.
1
In HI 98810 and HI 98840 only.
2
In HI 98710 and HI 98740 only.
3
The meter automatically checks for entered time/date accuracy as follows:
0hh23; 0mm59; 01dd28/29/30/31; 1MM12; 1998YYYY2097.
4
To change the password, the correct code must be entered first. If the password has been forgotten, the password protected features are no longer accessible; in this case contact your nearest Hanna Service Center.
SETUP MESSAGES LIST
cod. 00: Lot data Printing cod. 01: Log Interval cod. 02: Lot table Printing cod. 03: Printer enable cod. 04: Press "ALT CFM" to reset the sample number or "ALT FNC" to escape cod. 05: Press "ALT CFM" to delete Lot00 or "ALT FNC" to escape cod. 06: Press "ALT CFM" to delete Lot 01-16 or "ALT FNC" to escape cod. 10: GLP cod. 11: Calibration alarm time-out cod. 20: Instrument ID Code cod. 30: Hour - Minute cod. 31: Day cod. 32: Month cod. 33: Year cod. 40: Auto OFF
cod. 41: Battery test cod. 50: Baud rate cod. 60: Release code cod. 70: Celsius or Fahrenheit cod. 99: Pass Code
Some of the most important functions are explained below in a step by step sequence.
TO SCAN LOGGED DATA (HI98810 and HI98840 only)

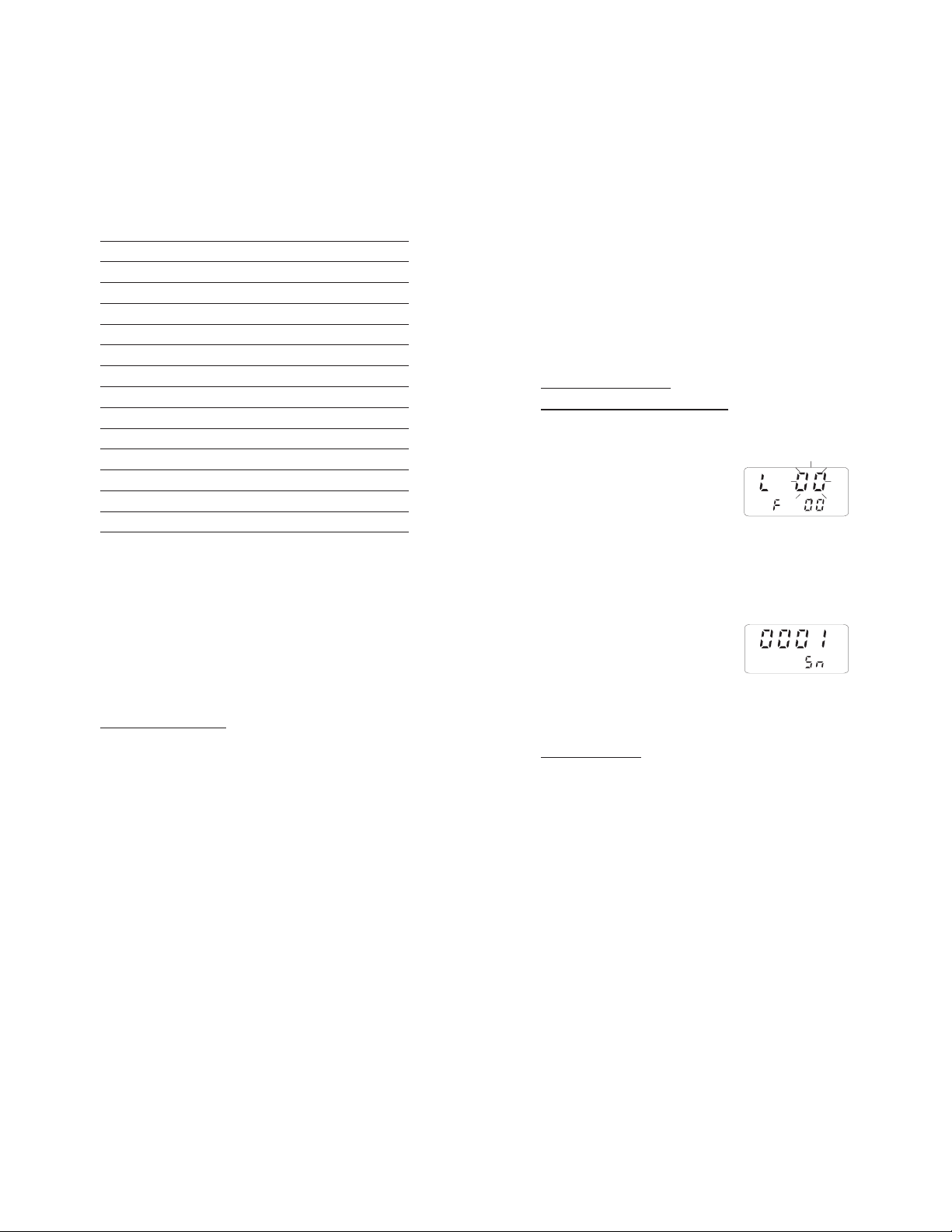

COD. 00 - Lot data Printing / Scrolling
• Select the code 00.
• The message "Lot data Printing" will scroll twice across LCD.
• The upper LCD will then display L 00 with the 00 blinking.
• Set the desired lot by the arrow keys. L00 is the lot of data of the "log on demand" and L 01 to L 16 are the lots of the "timed log".
• Press the ALT and CFM keys to confirm the lot number.
• If the lot doesn't contain data, the "no data" message will scroll across the LCD twice and the meter will return to setup mode.
• If the lot contains one or more data the LCD will display the sample number in its upper part and Sn in the lower part.
Note: In the L 00 lot (log on demand) the sample number will be
displayed with 3 digits (001).
• Select the sample number to scan by the arrow keys.
Printing logged data
• Press ALT and CFM to print logged data.
• If the selected sample number is invalid (equal to 0 or bigger than the number of samples), the "Err" message will be displayed for a few seconds.
• If the sample number is correct, the samples starting from the selected one to the last sample of the lot will be printed. To stop printing before the last sample is reached, press and hold the ALT and PAPER keys until the printer stops.
• During printout the LCD will display the sample number being printed at that moment. If printout is stopped the LCD will show the last printed sample number. It is then possible to select another sample.
• Press the ALT and FNC keys to return to setup mode.
1110
Viewing logged data
• Press CH/TIME (HI98840 only) or TEMP/TIME (HI98810 only) to view data of the selected sample. Data will be displayed in the following order:
channel 1 temperature reading channel 2 temperature reading (HI 98840 only) channel 3 temperature reading (HI 98840 only) channel 4 temperature reading (HI 98840 only) date time
• If CH/TIME or TEMP/TIME is pressed when the time is displayed, the LCD will pass to the next Sample number.
• It is then possible to scroll the data of the next sample by pressing CH/TIME or TEMP/TIME or select a different sample by the arrow keys.
• to return to setup mode, press ALT and FNC when the meter displays the sample number.

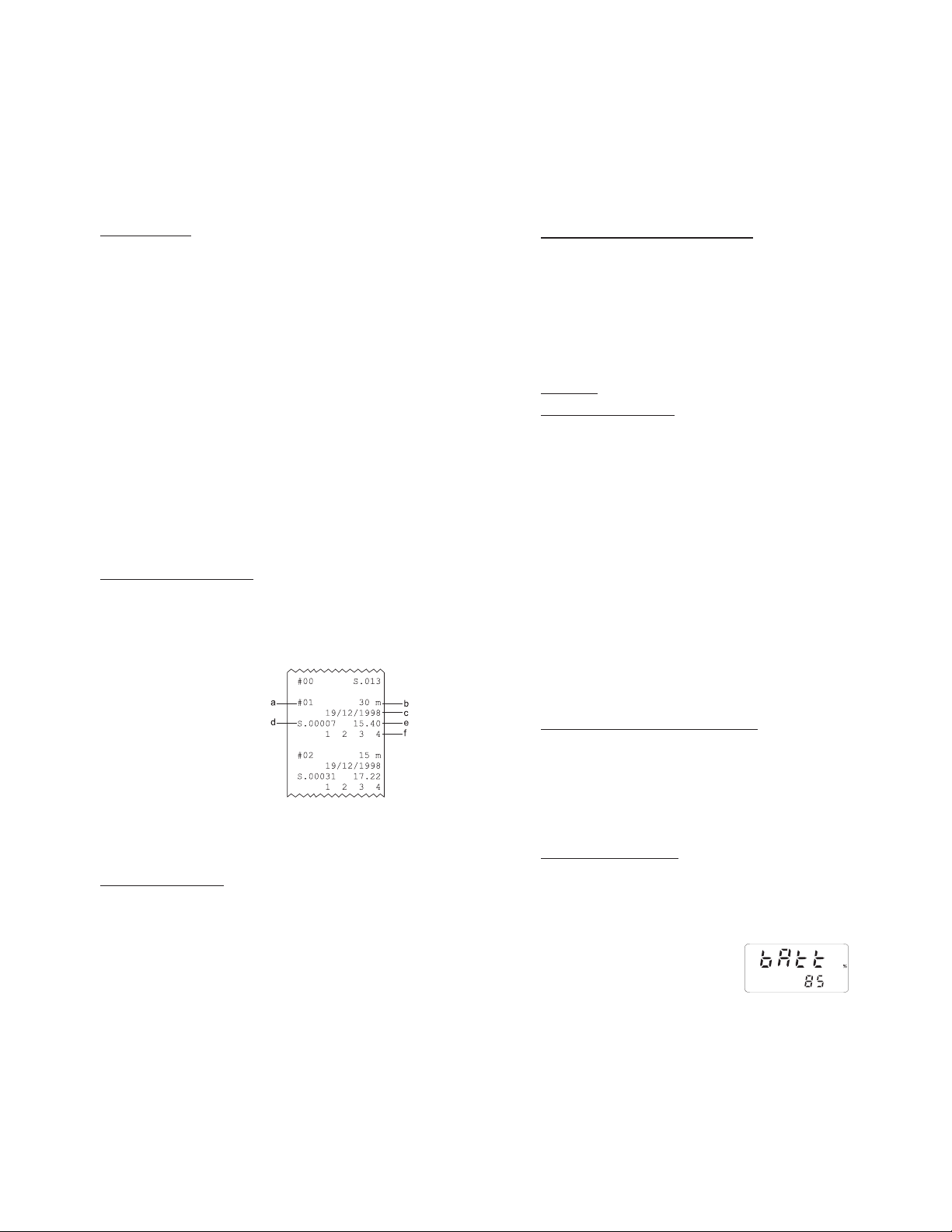

Cod. 02 - Lot summary printout
• Select the code 02.
• The message "Lot table Printing" will scroll twice across LCD.
• The meter will then print a complete set of information based on the data stored in memory:
a - lot number b - logging interval c - starting date d - number of samples e - starting time f - logged channels numbers.
Note For lot 00 the number of samples only will be printed.
TO RESET PRINTING SAMPLE NUMBER
(HI98710 and HI98740 only)
This feature resets the print on demand sample number to 001.
• Select the code 04
• A scrolling message will be displayed.
• Press the ALT and CFM keys to confirm reset or ALT and FNC to escape.
GLP DATA
Cod. 10 - viewing GLP data
• Select the code 10
• A message will scroll twice across LCD.
• The LCD will then display the instrument identification (ID) code.
• Press Ç to scan remaining data, in the following order:
channel 1 last calibration date (DD.MM) channel 1 last calibration year channel 2 last calibration date (DD.MM) channel 2 last calibration year channel 3 last calibration date (DD.MM) channel 3 last calibration year channel 4 last calibration date (DD.MM) channel 4 last calibration year
Note: Data can be viewed in reverse order pressing the È key.
• Press ALT and FNC to return to function selection mode.
Code 20 - setting the identification (ID) code
When using several identical meters it may be useful to uniquely identify them by assigning an ID code to each meter.
• Select code 20. A message will scroll across LCD.
• Enter a 4-digit value using the arrow keys.
• Press ALT and CFM to confirm the value.
DELETE LOGGED DATA (HI98810 and HI98840 only)
• Select code 05 to delete the Log on Demand data or code 06 to delete the Timed Log Data.
• A scrolling message will be displayed.
• Press the ALT and CFM keys to confirm deletion.
• It is also possible to escape without data deletion pressing the ALT and FNC keys.
TESTING BATTERY LEVEL
• Select code 41. The message "Battery test" will scroll across LCD.
• If the meter is connected to an external power adapter, the LCD will display "LINE" otherwise it will display bAtt on the upper display, and the remaining percentage of battery charge (100% means fully charged battery and 0% cor­responds to the minimum battery voltage that allows the meter to operate).
1312
TAKING TEMPERATURE MEASUREMENTSTAKING TEMPERATURE MEASUREMENTS
TAKING TEMPERATURE MEASUREMENTS
TAKING TEMPERATURE MEASUREMENTSTAKING TEMPERATURE MEASUREMENTS
To prepare the instrument for use, choose the most appropriate tem­perature probe(s) for your application (see accessories) and connect it (them) to the connector(s) located on the top of the instrument.
All the probes have been precalibrated at the factory and no calibra­tion is needed.
With the meter facing you, channel #1 is the first connector on the top left hand side.
Press the ON/OFF key to power on the instrument. To take temperature measurements, simply
insert the probe in the sample to be tested and allow the reading to stabilize. The tem­perature is displayed on the upper LCD. The lower LCD displays the selected channel num­ber (multi-channel versions only).
The meter selects channel 1 as default. Press CH/ TIME (HI98740 and HI98840 only) or TEMP/TIME (HI98710, HI98810 only) to view the reading of the other channels, date and time in the following order:
• channel 2 temperature reading (HI98740, HI98840 only)
• channel 3 temperature reading (HI98740, HI98840 only)
• channel 4 temperature reading (HI98740, HI98840 only)
• date
• time Pressing CH/TIME or TEMP/TIME again, the meter returns to channel 1
temperature reading. If the reading is out of range or the probe is
not connected to a channel, the LCD will display a dashed line in place of the reading.
Note: To choose between "C " and "F" unit, enter the setup code 70. Note: The meter is factory calibrated. After 1
year since last calibration the "DATE" symbol starts blinking on the LCD to warn the user that a recalibration is suggested to maintain the greatest accuracy of the meter. It is recommended that recali­bration is performed by authorized technical personnel only. Contact your nearest HANNA service center.
HI 98810 - HI 98840HI 98810 - HI 98840
HI 98810 - HI 98840
HI 98810 - HI 98840HI 98810 - HI 98840
PRINTING / LOGGING FUNCTIONSPRINTING / LOGGING FUNCTIONS
PRINTING / LOGGING FUNCTIONS
PRINTING / LOGGING FUNCTIONSPRINTING / LOGGING FUNCTIONS
Two different modes to print / log data are available:
1. Timed logging; samples are stored and printed (if print function is active) at fixed time intervals. Data are stored in the lots 01 to 16.
2. Log on demand; samples are stored and printed (if print function is active) when the LOG key is pressed. Data are stored in the lot
00. It's possible to perform the Log on demand either in normal mode or in Timed logging mode.
It is possible to switch from logging without printing to logging with printing in two ways:
• set the function code 03 to "On" to enable printing, to "Off" to disable printing
• press ALT and PAPER to toggle between printer enabled and printer disabled while in Timed logging.
TIMED LOGGING MODE
To start Timed logging, press ALT and LOG. The lot number will be displayed for a few seconds then the LOG symbol will appear on LCD and if printer is enabled a first set of data will be printed. The "LOG" symbol will be fixed if printer is enabled and will blink if printer is disabled.
The printout provides the following information:
a - Lot number b - Logging interval c - Date (only for the first printed
sample of the lot or of the day) d - Sample number e - Time f - Readings ("----" means out of range).
Note: channels with no probe connected are not logged nor printed. If no keys are pressed, the meter enters standby mode to prolong the
battery life and only the "LOG" indication will be visible on LCD. While logging, during the sleep mode, the last logged reading will appear briefly on the LCD. To reactivate the LCD press ON/OFF.
1514
TO STOP LOGGING
In order to stop the recording mode, press ALT and LOG keys (press ON/OFF first, if meter is in sleep mode).
A last printout reporting the number of logged samples (e.g. S.00009) will be produced if printer is enabled.
Notes:
• It is recommended to use the adapter during logging in printing mode, especially when many printouts are going to be taken.
• Before proceeding with logging with printing, make sure there is enough paper for your measurements. When the paper is finished the meter will not advise the operator and the printouts could be lost. If this happens, data will continue to be stored in memory, and it is always possible to print the data at a later time through setup code 00.
• It is possible to insert a new paper roll during logging session.
• Once in the logging mode, the interval cannot be changed. Exit the logging mode first (pressing the ALT and LOG keys) to set a new interval.
• If the LOG key is pressed while in logging with printing mode, a printout is produced without affecting the running sample number and the value is stored in Log on demand area.
LOW BATTERY CONDITION
Printout is automatically disabled when batteries charge weakens. The last message "Stop log" will be printed and data will continue to be stored in memory with the LOG and LOBAT symbols blinking on LCD. If the user attempts to enable the printer while in low battery condition the message "bAtt" will appear for a few seconds on the LCD.
Note: When an external adapter or new batteries are connected, the
printing must be manually enabled in order to return to logging with printing mode.
LOG ON DEMAND
In measuring or Timed log mode, press LOG to store the current reading. The LCD will display "Stor" and the value will be stored in the lot 00 (log on de-
mand data area). If the print function is enabled, a printout is also produced providing the following information:
a - Date b - Sample number c - Time d - Readings ("----" means out of
range or probe not connected)
Note: When the Log on demand data area is full and the LOG key is
pressed, the sample will not be stored and the LCD will display "FULL". In this case it is necessary to delete the Log on demand data to proceed.
TO VIEW LOGGING INFORMATION
If the ALT and LOT INFO keys are pressed during logging, the meter displays for a few seconds the current lot and the number of logged samples. The meter then returns to normal operational mode auto­matically.
If ALT and LOT INFO are pressed while the meter is not logging, the last logged lot in the lower LCD and the number of logged samples in the upper LCD are displayed. It is then possible to scroll through the following lot information with the Æ key:
• lot starting date (dd.mm)
• lot starting year
• lot starting time (hh.mm)
• lot logging interval
• logged channels (HI 98840 only) By pressing the Æ key again, the meter displays the number of
logged samples again. When the number of logged samples is displayed, it possible to pass
to another lot with the Ç and È keys. Press È to view the older lots or Ç to view the more recent ones.
If Ç is pressed when the last lot is displayed, the meter displays the lot 00 (log on demand). By pressing the Ç key again, the meter will pass to the oldest lot.
Note For lot 00, only the number of samples will be displayed. To exit from the logging info viewing mode press ALT and LOT INFO
again or CH/TIME (HI98840 only) or TEMP/TIME (HI98810 only).
1716
TO RETRIEVE LOGGED DATA
Logged data can be viewed on LCD or printed. To view or print logged data see "TO SCAN LOGGED DATA" in the "SETUP MODE" paragraph.
The logging meters also allow the downloading of logged data to PC. To download data to PC see "DATA TRANSFER TO PC" paragraph.
HI 98710 - HI 98740HI 98710 - HI 98740
HI 98710 - HI 98740
HI 98710 - HI 98740HI 98710 - HI 98740
PRINTING FUNCTIONSPRINTING FUNCTIONS
PRINTING FUNCTIONS
PRINTING FUNCTIONSPRINTING FUNCTIONS
Two different modes to print data are available:
1. Timed printing; samples are printed at fixed time intervals. Data lots from 01 to 16 are available.
2. Print on demand; samples are printed when the LOG key is pressed. It's possible to perform the print on demand either in normal mode or in Timed printing mode.
TIMED PRINTING MODE
To start Timed printing, press ALT and LOG. The lot number will be displayed for a few seconds then the LOG symbol will appear on LCD and a first set of data will be printed.
The printout provides the following informa­tion:
a - Lot number b - Logging interval c - Date (only for the first printed
sample of the lot or of the day) d - Sample number e - Time f - Readings ("----" means out of range).
Note: channels with no probe connected are not printed. If no keys are pressed, the meter enters standby mode to prolong the
battery life and only the "LOG" indication will be visible on LCD. While timed printing during sleep mode, the last printed reading will appear briefly on the LCD. To reactivate the LCD press ON/OFF.
TO STOP PRINTING
In order to stop the recording mode, press ALT and LOG keys (press ON/OFF first, if meter is in sleep mode).
A last printout reporting the number of printed samples (e.g. S.00009) will be produced.
Notes:
• It is recommended to use the adapter during printing mode, especially when many printouts are going to be taken.
• Before proceeding with printing, make sure there is enough paper for your measurements. When the paper is finished the meter will not advise the operator and the printouts could be lost.
• It is possible to insert a new paper roll during printing session.
• Once in the timed printing mode, the interval cannot be changed. Exit the timed printing mode first (pressing the ALT and LOG keys) to set a new interval.
• If the LOG key is pressed while in timed printing mode, a printout is produced without affecting the running sample number.
LOW BATTERY CONDITION
Printing is automatically interrupted when batteries charge weakens. The last message "Stop log" will be printed and the LOBAT symbol will blink on LCD.
Note: When an external adapter or new batteries are connected, a
new printing session must be manually restarted.
LOG ON DEMAND
In measuring or timed printing mode, press LOG to print the current readings. The printout provides the following information:
a - Date b - Sample number c - Time d - Readings ("----" means out of
range or probe not connected)
Note: If the user attempts to print while in low battery condition the
message "bAtt" will appear for a few seconds on the LCD.
Note: It is possible to reset the sample number of the print on
demand to 001 (see "TO RESET PRINTING SAMPLE NUMBER" in "SETUP MODE" paragraph).
1918
GOOD LABORATORY PRACTICE (GLP)GOOD LABORATORY PRACTICE (GLP)
GOOD LABORATORY PRACTICE (GLP)
GOOD LABORATORY PRACTICE (GLP)GOOD LABORATORY PRACTICE (GLP)
GLP is a set of functions that allows the storage or retrieval (when necessary) of data regarding the maintenance and status of the meter.
LAST CALIBRATION DATE
Last calibration date is stored automatically after a successful calibra­tion. The last calibration date can be displayed through setup code 10 (see "SETUP MODE" paragraph).
CALIBRATION ALARM TIME-OUT
The meter checks if the time-out time, fixed at 1 year, has expired every time it is turned on. It is possible to enable/disable this feature through setup code 11. The default value is "0n".
If the time has expired, the message "Cal date" scrolls across the LCD. The "DATE" sym­bol will blink to remind to the user to perform a new calibration soon.
GLP AND RS232 (HI98810 and HI98840 only)
GLP data (ID code and last calibration date) can be retrieved from a PC through the RS232 communication feature (see "Data transfer to PC").

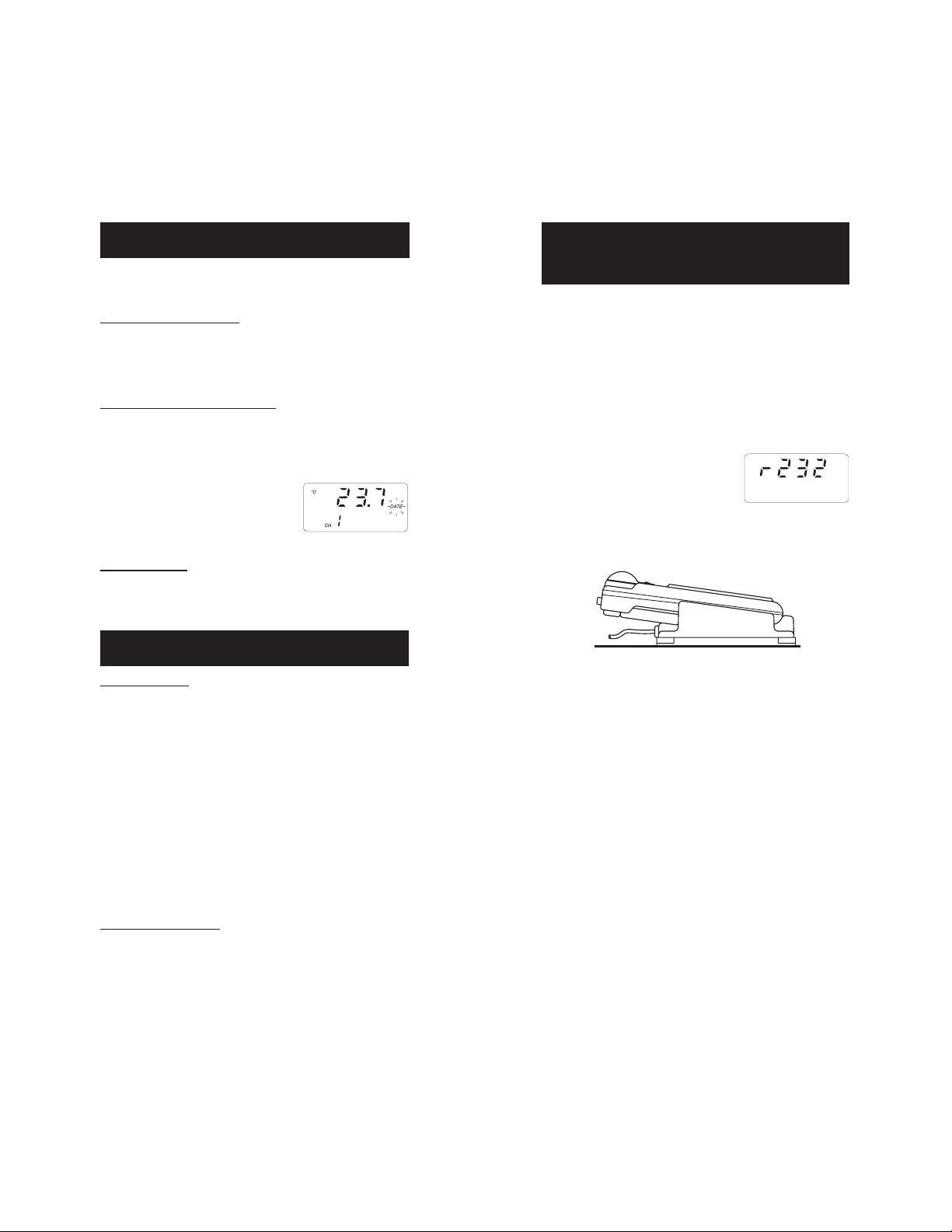

OTHER FEATURESOTHER FEATURES
OTHER FEATURES
OTHER FEATURESOTHER FEATURES
LCD BACKLIGHT
The LCD can be illuminated to allow the user to see the readings even in dark environments. This feature can be enabled/disabled pressing the ALT and LIGHT keys. If the LCD backlight feature is enabled, the LCD remains illuminated until the feature is disabled pressing the ALT and LIGHT keys. The LCD backlight can be disabled in order to save power and it is automatically disabled when battery charge weakens.
Note: When an external power supply is connected to the instrument,
the backlight is not automatically enabled.
Note: When LOBAT appears on LCD it is not possible to enable
backlight. If the user attempts to enable the LCD backlight in low battery condition, the meter will show "batt" on LCD.
Real Time Clock (RTC)
The instrument has an internal Real Time Clock (RTC) circuit with a backup lithium battery. This allows the meter to update time and date even when both batteries and external power adapter are discon­nected.
DATA TRANSFER TO PCDATA TRANSFER TO PC
DATA TRANSFER TO PC
DATA TRANSFER TO PCDATA TRANSFER TO PC
HIHI
9881098810
- -
HI HI
HI
98810
HIHI
9881098810
HI98810 and HI98840 contain infrared transmitting circuitry. Ensure there isn't any logging process active. Press CH/TIME or TEMP/TIME to set the meter to time or date mode
and simply place your data-logger on a HI9200 Infrared Transmitter (ensuring that the two infrared LEDs are placed on top of each other) and the memory content can then be downloaded to your PC through the HI9200's RS232 port. Just ensure that baud rate on instrument (setup code 50) and on PC downloading program are set to the same value.
During the data transfer the instrument dis­plays the message "r 232".
To stop communication, press CH/TIME or TEMP/TIME to display the temperature reading or take the meter out of the transmitter when it's not displaying "r232".
Using the HI9200 Infrared Transmitter, all recorded data can be fed to your Personal Computer for easy reproduction, storage or elabora­tion without the need of cables between the meter and the transmitter.
Data transmission from the instrument to the PC is now much easier with new HI92000 Windows® compatible application software offered by Hanna Instruments.
HI92000 allows you to use the powerful capabilities of most spread sheet programs (e.g. Excel©, Lotus 1-2-3©). Simply open your file downloaded by HI92000 from your spread sheet program and then it is possible to make any elaboration available with your software (e.g. graphics, statistic analysis).
User friendly, HI92000 offers a variety of features and has an on line help to support you throughout any situation.
To install HI92000 you need a 3.5" drive and a few minutes to follow the instructions conveniently printed on the disk label.
Windows® is registered Trademark of "Microsoft Co." Excel© Copyright "Microsoft Co." Lotus 1-2-3© Copyright "Lotus Co."
98840 98840
-
HI
98840
- -
HI HI
98840 98840
onlyonly
only
onlyonly
2120
MEMORY ORGANIZATIONMEMORY ORGANIZATION
MEMORY ORGANIZATION
MEMORY ORGANIZATIONMEMORY ORGANIZATION
HIHI
9881098810
- -
HI HI
HI
98810
HIHI
9881098810
Logged data are stored in the internal EEPROM and are retained even if batteries and external power are disconnected.
98840 98840
-
HI
98840
- -
HI HI
98840 98840
onlyonly
only
onlyonly
MEMORY CAPACITY
• 14000 data samples divided into 16 lots (lots 01 to 16)
• 9999 data samples maximum for a single channel
• 300 data samples for the Log on demand (lot 00).
TIMED LOG (lots 01 to 16)
Each time a new logging period starts, it automatically starts from the next available lot. If the last lot was the 16th, the new logging period restarts from lot 01 overwriting previously logged data.
When Timed logging memory is full, the meter overwrites the oldest lot data progressively reducing the old lots. In this case the starting time, date and the dimension of the old lot are updated.
Note: The oldest lot data are erased without any warning message. Note: Timed logging memory can be entirely erased through the
setup code 06.
If the meter is powered only by the external power supply and there is a temporary power black out during logging, when power returns, the logging continues normally if no samples have been lost, otherwise the current lot is ended and a new lot starts. If printer is enabled, the "...Stop..." message will be printed. In any case, during scrolling the former lot will be preceded by the "Interrupted Lot" message and the latter by "Continuation Lot" to indicate the interruption.
LOG ON DEMAND (Lot 00)
When Log on demand data area is full the meter shows the "FULL" message to warn the user that the data are not stored in memory. Erase the memory area through setup code 05 to continue logging data on demand.
PRINTER MAINTENANCEPRINTER MAINTENANCE
PRINTER MAINTENANCE
PRINTER MAINTENANCEPRINTER MAINTENANCE
TO CHANGE THE INK CARTRIDGE
When printouts become faint, it might be necessary to change the ink cartridge. Contact your Hanna authorized center.
TO INSERT THE PAPER ROLL
The meters use plain paper rolls 38 mm width. To insert a new roll open the paper cover pulling it gently and take the cylinder away.
Insert the paper edge in the printer slot and feed the printer by pressing the PAPER key.
Allow about 5 cm (2") of paper to exit from the printer and replace the paper cover.
FAULT CONDITIONSFAULT CONDITIONS
FAULT CONDITIONS
FAULT CONDITIONSFAULT CONDITIONS
The printing/logging thermometers are factory programmed to auto­matically diagnose a fault and to display error codes on the LCD.
PRINTER ERROR
Whenever a printer fault condition is detected, the printer stops and the message "Printer error" scrolls across the upper LCD with the error code (see below) fixed on the secondary one.
1 = Motor locked 2 = Printer clutch jammed 3 = Selection lever fault
I2C BUS ERROR
In case of an I2C bus fatal error due for example to a defective EEPROM or RTC, the message "Serial bus error" keeps scrolling across LCD from right to left indefinitely. Meter should be returned for repair (see warranty section).
2322
+
-
BATTERY REPLACEMENTBATTERY REPLACEMENT
BATTERY REPLACEMENT
BATTERY REPLACEMENTBATTERY REPLACEMENT
TEMPERATURE PROBESTEMPERATURE PROBES
TEMPERATURE PROBES
TEMPERATURE PROBESTEMPERATURE PROBES
When the batteries are inserted and no power adapter is connected, the meter can recognize different batteries charge levels.
1. Fully charged batteries. The backlight and printer can be en­abled.
2. Weakening batteries - "LOBAT" symbol blinks on LCD. The back­light and printer are automatically disabled and it is not possible to enable them until new batteries are inserted or an external power adapter is connected.
3. Weak batteries - "LOBAT" symbol stays still on lower LCD. Back­light and printer are disabled and meter can work for about 20 hours. If in Timed logging mode with the power down function enabled this time can be longer.
4. Dead batteries - LCD shuts off. The instrument stops working to avoid erroneous readings.
Note It is not possible to activate backlight and printer when the
instrument is in a low battery condition. If the user attempts to enable these functions without replac­ing the batteries or connecting the external power adapter, the meter will show "batt" on LCD.
Battery replacement must only take place in a non hazardous area using 1.5V alkaline AA type batteries.
In order to replace run down batteries, sim­ply remove the two screws on the rear cover of the instrument and replace the four 1.5V AA batteries with new ones, paying atten­tion to the correct polarity.
A 12VDC power adapter can also be used to power the unit (see the accessories para­graph).
Note: The instrument uses the following configuration.
HI762A Air probe, 1 m (3.3') cable and white handle HI762A/10 Air probe, 10 m (33') cable and white handle HI762BL General purpose liquid probe, 1 m (3.3') cable, black
handle
HI762L General purpose liquid probe, 1 m (3.3') cable, white handle HI 762L/2 General purpose liquid probe, 2 m (6.6') cable, white handle HI 762L/10 General purpose liquid probe, 10 m (33') cable, white handle HI 762PBL Penetration probe, 1 m (3.3') cable, blue handle HI762PBL/10 Penetration probe, 10 m (33') cable, blue handle HI 762PG Penetration probe with 1 m (3.3') cable, green handle HI762PG/10 Penetration probe, 10 m (33') cable, green handle HI 762PR Penetration probe, 1 m (3.3') cable, red handle HI 762PR/10 Penetration probe, 10 m (33') cable, red handle HI 762PW Penetration probe, 1 m (3.3') cable, white handle HI 762PW/10 Penetration probe, 10 m (33') cable, white handle HI 762W Wire
probe, 1 m cable without handle (hard-to-reach places)
HI 762W/10 Wire probe, 10 m cablewithout handle (hard-to-reach places)
205mm
8.1"
HI 762P
HI 762A
205mm
8.1"
205mm
8.1"
100mm
100mm
3.9"
100mm
3.9"
3.9"
3mm
0.12"
3mm
0.12"
6mm
0.24"
3 mm
0.12"
It is recommendable to purchase the Hanna HI710005 and HI710006 voltage adapters that use the proper polarity configuration.
However, the meters can be used with other adapters. In this case, remember to check the correct polarity of your adapter before connect­ing it to the meter.
HI 762L
HI 762W
3mm
0.12"
2524
2.4mm
0.095"
LEAD DIA
0.2mm
0.008"
38mm
1.50"
UN-HOUSED NTC SENSORSUN-HOUSED NTC SENSORS
UN-HOUSED NTC SENSORS
UN-HOUSED NTC SENSORSUN-HOUSED NTC SENSORS
It is often necessary in the laboratory to "customize" testing to meet specific criteria. For this reason, Hanna offers a wide line of NTC Thermistor sensors that can be custom mounted in almost any situation. Select the sensor that matches your application, attach it to the RCA adaptor and plug it into the meter. You now have a temperature sensor that is custom fit to your requirements.
The following is a list of the NTC Thermistor sensors and plug available:
HI 76P2-1 RCA plug with 1 meter (3 .3') cord.
HI 76S2-1 NTC Thermistor sensor. Teflon® coated with hole for
mounting.
6.4mm
0.25"
25.4mm
1.0"
300mm
12"
TEFLON TUBING
ALUMINUM
HOUSING
19mm
0.75"
4.8mm
0.19"
7.1mm
0.28"
DIA 3.8mm
0.15"
HI 76S2-2 NTC Thermistor sensor. Self-adhesive, foam disk for
mounting.
6.4mm
0.25"
38mm
15"
RELEASE
LINER
38mm
1.5"
25.4mm
MYLAR
FOIL
1.00"
FOAM
DISK
3mm
0.12"
HI 76S2-3 NTC Thermistor sensor. Eye-connector for mounting.
6.4mm
0.25"
406mm
16"
EPOXY
TIN PLATED Cu
19mm
0.74"
9.6mm
0.38"
#6 STUD SIZE
1mm
0.04"
5.5mm
0.22"
HI 76S2-4 NTC Thermistor sensor. Molded tip with epoxy seal for
aggressive environments.
6.4mm
0.25"
406mm
16"
9.6mm
EPOXY FILLET
0.38"
2mm
0.08"
MOLDED TIP
HI 76S2-5 NTC Thermistor sensor. Aluminum tab with mounting
hole.
6.4mm
0.25"
300mm
12"
DIA 3mm
0.12" EPOXY
ALUMINUM
HOUSING
8mm
0.31"
12.7mm
0.50"
1.6mm
0.06"
4.7mm
0.19"
HI 76S2-6 NTC Thermistor sensor. PVC encapsulated tip for protection
in aggressive environments.
6.4mm
0.25"
25.4mm
1.0"
300mm
12"
15.8mm
0.625"
MOLDED
PVC TIP
7.1mm
0.28"
HI 76S2-7 NTC Thermistor sensor. Can be housed and used in any
custom application.
ACCESSORIESACCESSORIES
ACCESSORIES
ACCESSORIESACCESSORIES
HI710005 Voltage adapter from 115 VAC to 12 VDC HI710006 Voltage adapter from 230 VAC to 12 VDC
HI 710031 Rugged carrying case HI 710034 Plain Paper Spare Rolls (10 pcs) HI 710035 Spare Ink Cartridge (1 pc) HI 740027 1.5V AA batteries (4 pcs) HI 9200 Infrared Transmitter (HI98810,HI98840 only) HI 92000 Windows® compatible software for data transfer to PC
(HI98810,HI98840 only)
Teflon® is registered Trademark of "du Pont de Nemours & Co."
Windows® is registered Trademark of "Microsoft Co."
2726
WARRANTYWARRANTY
WARRANTY
WARRANTYWARRANTY
All Hanna Instruments meters are warranted for two years against defects in workmanship and materials when used for their intended purpose and main­tained according to instructions. The electrodes and the probes are warranted for a period of six months. This warranty is limited to repair or replacement free of charge. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered.
If service is required, contact the dealer from whom you purchased the instrument. If under warranty, report the model number, date of purchase, serial number and the nature of the failure. If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization number from the Customer Service department and then send it with shipping costs prepaid. When shipping any instrument, make sure it is properly packaged for complete protec­tion.
To validate your warranty, fill out and return the enclosed warranty card within 14 days from the date of purchase.
Hanna Instruments reserves the right to modify the design, construc­tion and appearance of its products without advance notice.
CE DECLARATION OF CONFORMITYCE DECLARATION OF CONFORMITY
CE DECLARATION OF CONFORMITY
CE DECLARATION OF CONFORMITYCE DECLARATION OF CONFORMITY
Recommendations for Users
Before using these products, make sure that they are entirely suitable for the environment in which they are used. Operation of these instruments in residential area could cause unacceptable interferences to radio and TV equipments,
requiring the operator to take all necessary steps to correct interferences. Any variation introduced by the user to the supplied equipment may degrade the instrument's EMC performance. To avoid electrical shock, do not use these instruments when voltages at the measurement surface exceed 24VAC or 60
VDC. To avoid damages or burns, do not perform any measurement in microwave ovens.
MAN98840R2 05/01
Loading...
