Instruction Manual
HI 93530 - HI 93531 HI 93532 - HI 93551
HI 935005 - HI 935006
HI 935007
Microprocessor-based
Thermocouple Thermometers
rum
K-THERMOCOUPLE THERMOMETER
ON
MR
OFF
M
EM
H
I
-
HO
LD
°C
L
O
°F
HI 93531
http://www.hannainst.com
n
s
°C
These Instruments are in
Compliance with the CE Directives
2
Dear Customer, Thank you for choosing a Hanna Instruments
Product. Please read this instruction manual carefully
before using the instrument. This manual will provide you with all the necessary informa­tion for the correct use of the instrument, as well as a precise idea of its versatility in a wide range of applications. These instruments are in compliance with the
directives.
TABLE OF CONTENTSTABLE OF CONTENTS
Preliminary Examination ........................... 3
General Description .................................. 3
Functional Description and
Specifications of HI 93530 ........................ 5
Functional Description and
Specifications of HI 93531 ........................ 6
Functional Description and
Specifications for HI 93532 ....................... 7
Functional Description and
Specifications of HI 93551 ........................ 8
Functional Description and
Specifications of HI 935005 ...................... 9
Functional Description and
Specifications of HI 935006 .................... 10
Functional Description and
Specifications of HI 935007 .................... 11
Operational Guide ................................... 12
Display Codes Guide............................... 19
Battery Replacement............................... 20
Calibration ............................................... 20
Shockproof Rubber Boots ....................... 21
Accessories ............................................. 22
Warranty.................................................. 26
CE Declaration of Conformity ................. 27
2
mank93r4.p65
3
PRELIMINARY EXAMINATION
Remove the instrument from the packing material and examine it carefully to make sure that no damage has occurred during shipment. If noticeable damage is evident, notify your Dealer.
Each thermometer comes supplied with a 9V battery and instruction manual.
Note: Save all packing material until you
are sure that the instrument functions correctly. All defective items must be returned in the original packing to­gether with the supplied accessories.
GENERAL DESCRIPTION
HI93530 , HI93531, HI93532, HI935005 and HI935007 allow temperature measurement
using interchangeable K-type thermocouple probes.
HI 93551 allows temperature measurements with different types of thermocouples (K - J- T). This meter is equipped with a key that switches range from K-type to J-type or T-type thermocouples.
HI935006 and HI935007 are specifically de­signed for the food industry. HI935006 al- lows temperature measurement using inter­changeable T-type thermocouple probes. HI935007 uses a fixed K-type penetration temperature probe (HI 766C) with 1 m (3.3') cable.
The non-linearity of the temperature probe is linearized by the built-in microprocessor, in order to achieve high degree accuracy and resolution. It also permits accurate com­pensation for drifts in the measurement cir­cuit and the reference junction.
4
HI 93532 has two built-in K-type probe con­nectors. By simply pressing a button, the meter switches between the two readings on the display. A "T" button will display the difference between the two probe readings.
Standard features include:
• Interchangeable probes (except HI935007)
• Clear Liquid Crystal Display
• Two year Warranty
• Possibility of switching between the Cen­tigrade and the Fahrenheit scale (for
HI 93530, HI 93531, HI 93551, HI 935005, HI935007 only)
• HOLD function that freezes the reading on the display (for HI93530, HI 93551 and HI 935005 only)
• HI-LO memory recall function (for HI 93531, HI 93551 and HI 935005 only)
• Low battery detection.
All these functions are easily accessible through the keypad.
Self-explanatory symbols are used to re­mind the user of the operating mode or condition.
Hanna manufactures several K-type ther­mocouple probes for different applications. See pages 22-25 for more details.
3
4
mank93r4.p65
5
FUNCTIONAL DESCRIPTION AND
SPECIFICATIONS OF HI 93530
ins
rum n
K
K-THERMOCOUPLE THERMOMETER
ON OFF
RANGE:
-200°C to 1370°C
-300°F to 2500°F
HOLD
°C °F
HI 93530
1. Liquid Crystal Display
2. ON/OFF Key
3. Reading Hold Key
4. Measuring Scale Key (°C or °F).
Range -200.0 to 1370°C
Resolution 0.1°C (-200.0 to 999.9°C)
Accuracy ±0.2% F.S.
Typical EMC ±3°C Deviation ±6°F
Probe K-thermocouple (optional)
Battery 9V/100 hours of continuous use
Environment 0 to 50°C (32 to 122°F); 95% RH
Dimensions 143x80x38mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)
1°C (1000 to 1370°C)
0.1°F (-300.0 to 999.9°F) 1°F (1000 to 2500°F)
for one year, excluding probe error
(see pages 22-25)
s
°C
Specifications
-300.0 to 2500°F
6
FUNCTIONAL DESCRIPTION AND
SPECIFICATIONS OF HI 93531
s
ins rum n
1
2
3
4
K
K-THERMOCOUPLE THERMOMETER
HI 93531
1. Liquid Crystal Display
2. ON/OFF Key
3. Reading Memory / Hold Key
4. Measuring Scale Key (°C or °F)
5. Minimum Temperature Recalling Key
6. Maximum Temperature Recalling Key
7. Memory Recalling Key.
Range -200.0 to 1370°C
Resolution 0.1°C (-200.0 to 999.9°C)
Accuracy ±0.2% F.S.
Typical EMC ±3°C Deviation ±6°F
Probe K-thermocouple (optional)
Battery 9V/100 hrs of continuous use Environment 0 to 50°C (32 to 122°F); 95% RH Dimensions 143x80x38mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)
for one year, excluding probe error
°C
1
ON
MR
OFF
MEM•
HI
HOLD
°C
LO
°F
27
36
45
Specifications
-300.0 to 2500°F
1°C (1000 to 1370°C)
0.1°F (-300.0 to 999.9°F) 1°F (1000 to 2500°F)
(see pages 22-25)
5
6
mank93r4.p65
7
FUNCTIONAL DESCRIPTION AND
SPECIFICATIONS FOR HI 93532
ins
rum n
K1
K-THERMOCOUPLE THERMOMETER
ON
MR
OFF
MEM•
T
HOLD
0.11T1
T2
HI 93532
1. Liquid Crystal Display
2. ON/OFF Key
3. Reading Memory/Hold Key
4. Measurement Resolution Key (0.1 or 1)
5. Input Probe Selection Key (T1 or T2)
6. Temperatures Difference Key
7. Memory Recalling Key.
Range -200.0 to 1370°C
Resolution 0.1°C (-200.0 to 999.9°C)
Accuracy ±0.2% F.S.
Typical EMC ±3°C Deviation ±6°F
Probe K-thermocouple (optional)
Battery 9V/100 hrs of continuous use
Environment 0 to 50°C (32 to 122°F); 95% RH
Dimensions 143x80x38mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)
Specifications
1°C (1000 to 1370°C)
for one year, excluding probe error
(see pages 22-25)
7
(DUAL INPUT)
8
FUNCTIONAL DESCRIPTION AND
SPECIFICATIONS OF HI 93551
J
°C °F
HI
LO
ins rum n
s
°C
ON OFF
HOLD
KJT
Specifications
8
1
27
36
45
s
°C
1
27
36
45
K-THERMOCOUPLE THERMOMETER
HI 93551
1. Liquid Crystal Display
2. ON/OFF Key
3. Reading Memory/Hold Key
4. Thermocouple Type Selection Key (K or J or T)
5. Minimum Temperature Recalling Key
6. Maximum Temperature Recalling Key
7. Measuring Scale key (°C or °F).
Range K -200.0 to 1370°C / -300.0 to 2500°F
Resolution 0.1°C (up to 999.9°C) 0.1°F(up to 999.9°F)
Accuracy K= ±0.2% F.S.
Typical EMC ±3°C Deviation ±6°F Probe K, J and T thermocouple(optional)
Battery 9V/100 hrs of continuous use Environment 0 to 50°C (32 to 122°F); 95% RH Dimensions 143x80x38mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)
J -200.0 to 900.0°C / -300.0 to 1650°F
T -200.0 to 400.0°C / -300.0 to 750.0°F
1°C (over 1000°C) 1°F (over 1000°F)
J = ±0.2% F.S. T = ±0.5% F.S.
for one year, excluding probe error
(for K-thermocouple see pages 22-25)
mank93r4.p65
9
FUNCTIONAL DESCRIPTION AND
SPECIFICATIONS OF HI 935005
ins rum n
°C
K-THERMOCOUPLE THERMOMETER
ON
CLEAR
OFF
HOLD
HI
LO
RANGE: -50°C to +950°C
HI 935005
1. Liquid Crystal Display
2. ON/OFF Key
3. Reading Hold Key
4. Measuring Scale Key (°C or °F)
5. Minimum Temperature Recalling Key
6. Maximum Temperature Recalling Key
7. HI/LO Temperature erasing key.
Low Range -50.0 to 150.0°C
High Range -50 to 950°C
Resolution 0.1°C (-50.0 to 150.0°C)
Accuracy ±0.4ºC (low range ºC)
Typical EMC Dev. ±3°C
Probe (optional) K-thermocouple (pag. 22-25)
Battery 9V/500 hrs of continuous use
Environment 0 to 50°C (32 to 122°F); 95% RH
Dimensions 143x80x38mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)
-58.0 to 199.9°F / 200 to 302ºF
1°C (-50 to 950°C)
0.2°F (-58.0 to 199.9°F) 1°F (-58 to 1742°F)
±0.8ºF (low range ºF)
±0.2% f.s. (high range ºC/ºF)
s
°C °F
Specifications
-58 to 1742°F
±6°F
10
FUNCTIONAL DESCRIPTION AND
SPECIFICATIONS OF HI 935006
s
ins rum n
1
27
36
45
1. Liquid Crystal Display
2. ON/OFF Key.
Range -80.0 to 120.0°C
Resolution 0.1°C (-50.0 to 120.0°C)
Accuracy ±0.3%
Typical EMC ±3°C Deviation
Probe T-thermocouple (optional)
Battery 9V/500 hrs of continuous use
Environment 0 to 50°C (32 to 122°F); 95% RH
Dimensions 143x80x38mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)
°C
RANGE:
-80.0°C to +400°C
HI 935006
ON
OFF
Foodcare
1
2
Specifications
121 to 400°C
1°C (120 to 400°C)
for one year, excluding probe error
9
10
mank93r4.p65
11
FUNCTIONAL DESCRIPTION AND
SPECIFICATIONS OF HI 935007
1. Liquid Crystal Display
2. ON/OFF Key
3. Measuring Scale Key (°C or °F).
Low Range -50.0 to 150.0°C
High Range -50 to 950°C
Resolution 0.1°C (-50.0 to 150.0°C)
Accuracy ±0.4ºC (low range ºC)
Typical EMC Dev. ±3°C
Probe (included) HI766C K-thermocouple Battery 9V/500 hrs of continuous use
Environment 0 to 50°C (32 to 122°F); 95% RH
Dimensions 143x80x38mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)
-58.0 to 199.9°F / 200 to 302ºF
1°C (-50 to 950°C)
0.2°F (-58.0 to 199.9°F) 1°F (-58 to 1742°F)
±0.8ºF (low range ºF)
±0.2% f.s. (high range ºC/ºF)
Specifications
-58 to 1742°F
±6°F
12
OPERATIONAL GUIDE
INITIAL PREPARATION
Remove the battery cover on the rear of your thermom­eter, unwrap the battery and connect it to the clip. Insert the battery in its compartment and replace the cover.
To switch on, press ON/OFF on the front of the unit.
Your thermometer will carry out a self diagnostic test. The LCD shows all the segments at once, to make sure none is missing.
After the test, the thermometer will switch to the measurement mode.
If a temperature probe is plugged in, the unit will display the temperature.
For HI93530, HI93531, HI 93532, HI93551 If the probe is not plugged in, the display will show "----".
For HI 935005 and HI 935006 If the probe is not plugged in, the display will show "Er".
To switch your thermometer off, press ON/OFF again.
ON
OFF
BAT HOLD K J T
ON
OFF
9 VOLT BATTERY
Battery
Compartment
SLIDE OFF
ºC ºF HI LO
11
12
mank93r4.p65
13
MEASURING SCALE (°C/°F)(for HI93530, HI93531, HI93551, HI935005, HI935007 only)
When the meter is turned on, it automati­cally defaults to the °C scale. Measurements can be performed on either the Centigrade or the Fahrenheit scale.
To change the scale, press °C/°F once.
°C °F

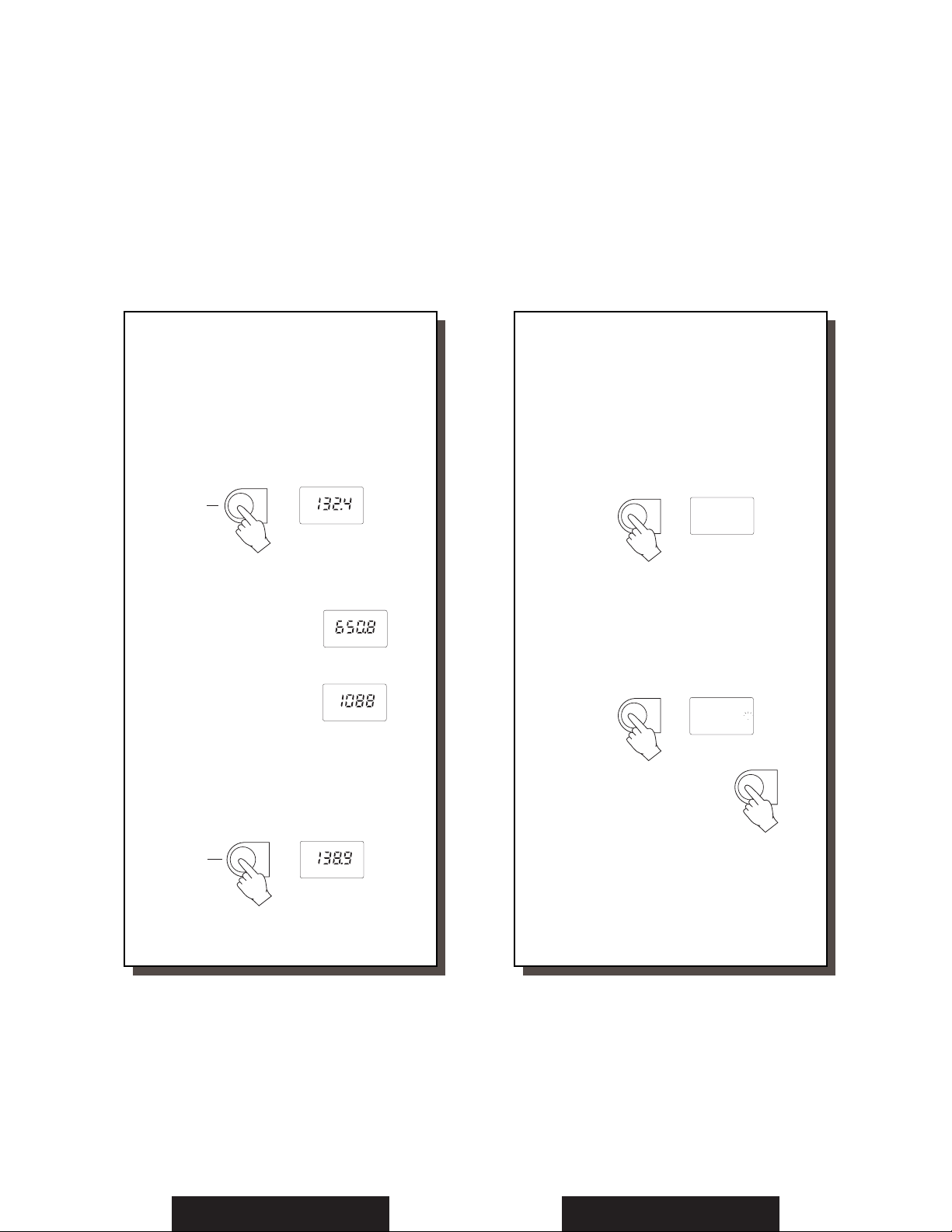

MEASUREMENT RESOLUTION
When switched on, HI93530, HI 93531, HI 93532 and HI 93551 default to a 0.1 digit
resolution (see specifica­tions).
These instruments automati­cally change the resolution to 1 degree when the mea­sured temperature is higher than 999.9°C (or 120°C for HI935006).
For HI 935005 and HI935007 only
When switched on, HI935005 and HI935007 default to 1 degree resolution. Press ON/OFF again to change the resolution to
0.1°C or 0.2°F.
ON
OFF
14
HOLD MODE (for HI93530, HI93551 and HI 935005 only)
The reading hold function is activated by the HOLD key.
For HI 93530 and HI 93551 only
To freeze the measured temperature on the display, press and hold the HOLD key.
°F
°C
°C
°C
"HOLD" is displayed when this key is pressed.
HOLD
HOLD
As soon as the HOLD key is released, the meter returns to the normal operational mode.
For HI 935005 only
The temperature is frozen on the display until the HOLD button is pressed a second time.
The blinking symbol "M" appears on the display when HOLD is activated.
HOLD
Press HOLD again to return to the normal operational
M
HOLD
mode.
HI-LO FUNCTION (HI93531, HI93551 and HI 935005 only)
Maximum and minimum temperatures are monitored throughout a continuous measur­ing process.
13
14
mank93r4.p65
15
The values may be recalled or cleared at any time during the measurement.
Check the highest or lowest measured tem­perature by pressing the respective HI or LO key.
The appropriate display indicator, "HI" or "LO", will light up together with the value retrieved from memory. Release the key to resume normal operation.
HI
LO
CLEAR HI-LO FUNCTION (HI 93531, HI 93551 and HI 935005 only)
By pressing HI and LO simultaneously (for
HI 93531 and HI93551) or CLEAR (for HI935005) the present measurement read-
ing is assigned to the highest and lowest temperature memories, i.e. both memories have equal temperature reading. The "HI" and "LO" display indicators (for HI935005 only) will blink twice to notify the user that the clearing process is in progress.
HI LO
+
CLEAR
16
MEMORY FUNCTION (HI93531 and HI 93532 only)
The memory & hold function is activated by MEM HOLD.
The measured temperature is stored in memory and frozen on the display when this function key is pressed.
The memory value will be overridden each time the memory & hold function is acti-
°C
°C
HI
LO
HI LO
vated. A blinking "MEM" on display indi­cates the operating mode.
MEM· HOLD
MEM
HOLD
Press MR to recall previously stored tem­perature reading.
In this mode of operation, the display indi­cator "MEM" is shown.
MR
MEM
If no data is found, "----" will be displayed.
THERMOCOUPLE TYPE SELECTION (HI 93551 only)
By pressing KJT the user is allowed to set the thermometer according to the connected thermocouple type, and the related symbol will be displayed, i.e.:
15
16
mank93r4.p65
9 VOLT BATTERY
BATTERY COVER
BATTERY
AUTO-OFF SWITCH
17
K for K-Type, J for J-Type, T for T-Type.
KJT
PROBE INPUT SELECTION (HI 93532 only)
When switched on, the instrument automati­cally shows the tempera­ture measured by Probe 1 and a "K1" appears on the LCD display.
To view the input temperature of Probe 2, press T1/T2 and "K2" will be displayed.
T1 T2
TEMPERATURE DIFFERENCE (for HI 93532 only)
The difference between the temperature measured by the two probes can be dis­played by simply pressing T. A "" will appear on the left-hand of the display to indicate this function.
KTJ
K 1
K 2
18
LOW BATTERY DETECTION
When the battery is low the user is prompted by the ap­pearance of the word "BAT" (for HI 93530, HI 93531, HI 93532, HI 93551) or "Eb" for HI 935005, HI935006 and HI 935007 to substitute the battery (see page 20).
AUTO-SHUT OFF
To save battery life, HI935006 will switch off after 5 minutes and HI93530, HI 93531, HI 93532, HI 93551, HI 935005 and HI935007 after 60 minutes.
The switch located in the battery compart­ment enables this feature (for all models except of HI 935006). Remove the battery cover and slide the switch to the right. The thermometer's auto-off feature will be dis­abled. If the switch is to the left, the meter will shut off automatically.
BAT
T
17
18
mank93r4.p65
19
DISPLAY CODES GUIDE
Display Description
HI 93530, HI93531, HI 93532, HI93551:
---- The probe is not connected to the instrument
or the reading is out of range
BAT Weak battery, needs to be replaced
HI 935005, HI935006 and HI935007:
Er The probe is not connected to the instrument
or the reading is out of range
Eb Weak battery, needs to be replaced
HI93530, HI93531, HI93551, HI935005, HI935007:
°C The instrument is reading in the Centigrade
scale
°F The instrument is reading in the Fahrenheit
scale
HI 93531, HI 93551 and HI 935005:
HI Displays the highest measured temperature
LO Displays the lowest measured temperature
HI 93530 and HI 93551:
HOLD Freezes current reading on display
HI935005:
M Indicates the value of the temperature frozen
on the display
HI 93531 and HI 93532:
HOLD Freezes current reading on display and stores MEM the reading into memory
MEM Indicates the value of the temperature stored
into memory
HI 93532:
K1 or K2 Temperature at probe 1 or 2 respectively
∆∆
Difference between temperatures at the two
∆∆
probes
HI 93551:
K,J or T Thermocouple probe type in use
19
20
CALIBRATION
All Hanna Instruments thermometers have been accurately pre-calibrated at the fac­tory.
It is generally recommended to have all thermometers recalibrated at least once a year.
For an accurate annual recalibration, con­tact your nearest Hanna Service Center.
BATTERY REPLACEMENT
When the battery is low the user is warned by the word "BAT" (for HI 93530, HI 93531, HI 93532, HI93551) or "Eb" (for HI 935005, HI 935006 and HI935007) on the instrument's display. Replace im­mediately the battery.
BAT
Battery replacement must only take place in a non hazardous area using a 9V battery.
Remove the battery com­partment cover on the rear of the meter and replace the 9V battery with a new one. Make sure the battery contact is tight before re­placing the cover.
The meter will turn on au­tomatically when a new bat­tery is connected. You can turn it off by pressing ON/OFF.
20
9 VOLT BATTERY
Battery
Compartment
SLIDE OFF
mank93r4.p65
21
SHOCKPROOF RUBBER BOOTS
These rubber boots are specially made to prolong the life of your instruments and to prevent damage due to accidental falls.
They measure 155 x 90 x 45 mm (6.1x3.5x1.8") and are available in two dif­ferent colors:
HI 710007 = blue colored
HI 710008 = orange colored.
Select the proper color according to your preference.
K
ON
MR
OFF
MEM•
HI
HOLD
°C
LO
°F
22

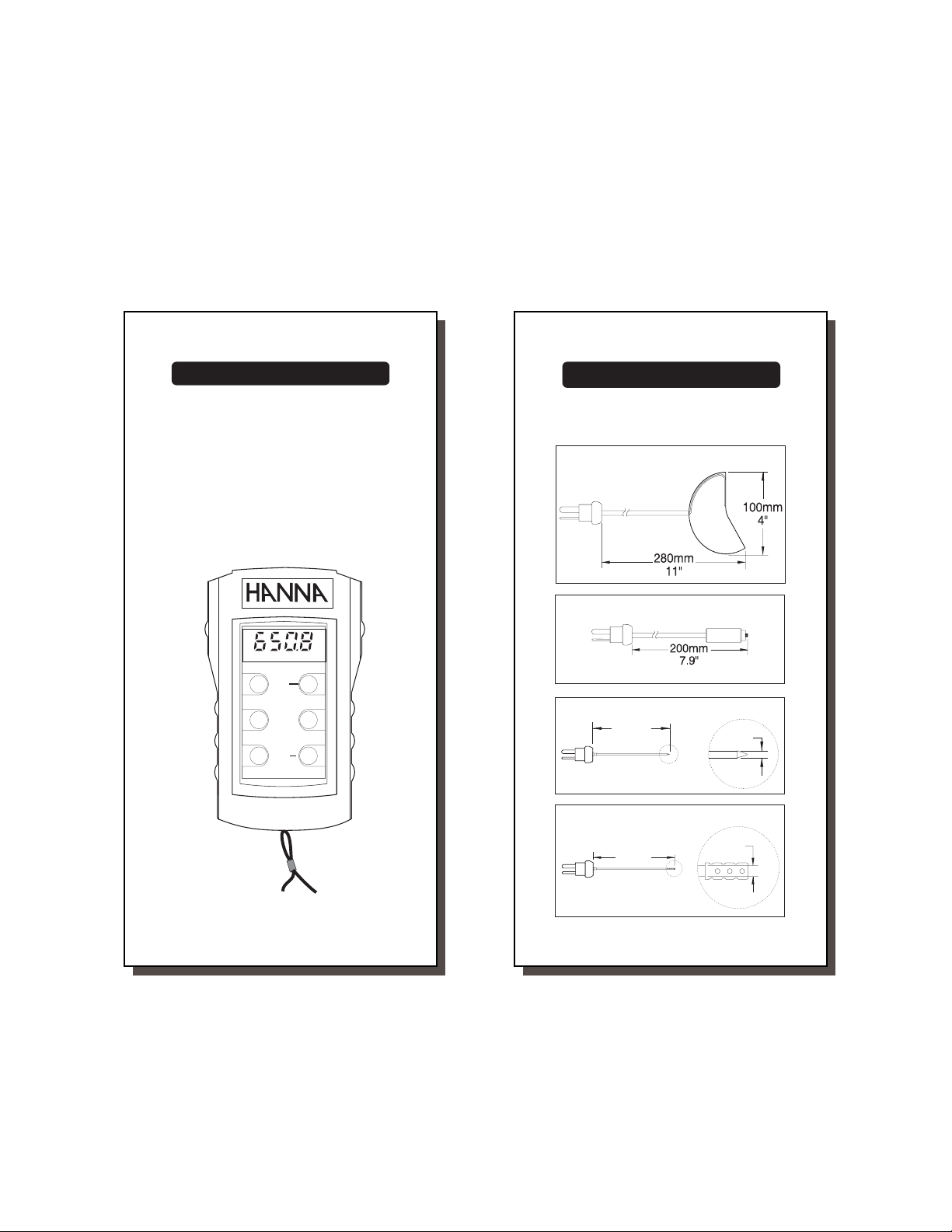

ACCESSORIES
K-Type Thermocouple Probes with detachable handle & mini-connec­tor
(to be plugged into HI 766HD probe handle):
HI 766PA Roller surface probe, max 320°C/600°F
HI 766PB Surface probe, max 650°C/1200°F
°C
HI 766PC Penetration probe, max 900°C/1650°F
155mm
6.1"
3mm
0.12"
HI 766PD Air probe, max 300°C/570°F
250mm
9.8"
21
22
3mm
0.12"
mank93r4.p65
23
HI 766PE1 General use probe, max 900°C/1650°F
HI 766PE2 General use probe, max 900°C/1650°F
HI 766HD Rugged thermocouple probe handle
with integral handle, 1 m cable & mini­connector:
HI 766A Roller surface probe, max 320°C/600°F
155mm
6.1"
200mm
7.8"
with 1 m (3.3' ) cable fitted with a mini­connector
3mm
0.12"
5mm
0.20"
24
HI 766B1 90° surface probe, max 450°C/840°F
HI 766B2 Surface probe, max 900°C/1650°F
130mm
HI 766B3 Small surface probe with insulated shaft,
max 200°C/390°F
130mm
HI 766C Penetration probe, max 900°C/1650°F
HI 766D Air probe, max 300°C/570°F
300mm
11.8"
5.1"
5.1"
30mm
1.2"
8mm
0.3"
5mm
0.2"
HI 766B Surface probe, max 650°C/1200°F
23
HI 766E1 General use probe, max 900°C/1650°F
24
mank93r4.p65
25
HI 766E2 General use probe, max 900°C/1650°F
HI 766F High temperature wire probe without
handle, max 1100°C/2000°F
HI 766F1 Flexible probe without handle, max
480°C/900°F
1m
3.3’
HI 766TV1 Pipe clamp probe, max 200°C/390°F
Other accessories:
HI 710004 Soft carrying case measuring
HI 710007 Blue rubber boot measuring
HI 710008 Orange rubber boot measuring
HI 710031 Rugged carrying case MANK93R4 Instruction manual
150x90x30mm
155 x 90 x 45 mm
155 x 90 x 45 mm
25
255mm
10"
35mm
1.4"
1.5mm
0.06"
Max.
2mm
0.08"
26
WARRANTY
All Hanna Instruments meters are warranted for two years against defects in workman-
ship and materials when used for their in­tended purpose and maintained according to instructions.
The probes are warranted for a period of six months.
This warranty is limited to repair or replace­ment free of charge.
Damages due to accident, misuse, tamper­ing or lack of prescribed maintenance are not covered.
If service is required, contact the dealer from whom you purchased the instrument. If under warranty, report the model number, date of purchase, serial number and the nature of the failure. If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Num­ber from the Customer Service department and then send it with shipment costs pre­paid. When shipping any instrument, make sure it is properly packaged for complete protection.
To validate your warranty, fill out and return the enclosed warranty card within 14 days from the date of purchase.
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner.
Hanna Instruments reserves the right to modify the design, construction and ap­pearance of its products without advance notice.
26
mank93r4.p65
27
CE DECLARATION OF CONFORMITY
28
MANK93R4
02/01
Recommendations for Users
Before using these products, make sure that they are entirely suitable for the environment in which they are used.
Operation of these instruments in residential area could cause unacceptable interferences to radio and TV equipments, requiring the operator to take all necessary steps to correct interferences.
Any variation introduced by the user to the supplied equipment may degrade the instruments' EMC performance.
In particular cases the instruments could turn off. In such cases they can be turned on by pressing the ON/OFF key.
To avoid electrical shock, do not use these instruments when voltages at the measurement surface exceed 24VAC or 60 VDC.
To avoid damages or burns, do not perform any measurement in microwave ovens.
27
http://www.hannainst.com
Loading...
