Hanna Instruments HI 935002 User Manual

Instruction Manual

HI 935005 - HI 935005N

HI 935002 - HI 935009

Portable K-Thermocouple

Thermometers

www.hannainst.com

Dear Customer,
Thank you for choosing a Hanna product.
Please read this instruction manual carefully before using the instru-

ment.
This manual will provide you with the necessary information for correct

use of the instrument, as well as a more precise idea of its versatility.
If you need additional technical information, do not hesitate to e-mail
us at [e-mail].

These instruments are in compliance with the directives.

WARRANTY

PRELIMINARY EXAMINATION

Remove the instrument from the packing material and examine it to
make sure that no damage has occurred during shipping. If there is
any damage, notify your dealer or the nearest Hanna Customer
Service Center.

Each meter is supplied complete with:

• 3 x 1.5V AA alkaline batteries;

• Instruction manual.

All Hanna Instruments meters are warranted for two years against defects
in workmanship and materials when used for their intended purpose and main­tained according to instructions. The probes are warranted for a period of
six months.

This warranty is limited to repair or replacement free of charge.
Damages due to accidents, misuse, tampering or lack of prescribed mainte-

nance are not covered.
If service is required, contact the dealer from whom you purchased the instru-

ment. If under warranty, report the model number, date of purchase, serial
number and the nature of the failure.

First obtain a Returned Goods Authorization number from the Customer Service
department, then return the instrument with the Authorization number included
along with shipment costs prepaid.

If the repair is not covered by the warranty, you will be notified of the charges.
When shipping any instrument, make sure it is properly packaged for complete

protection.

TABLE OF CONTENTS

PRELIMINARY EXAMINATION ........................................................ 3

GENERAL DESCRIPTION ................................................................3

SPECIFICATIONS OF HI 935005 AND HI 935005N .......................4

SPECIFICATIONS OF HI 935002 AND HI 935009 .........................6

OPERATIONAL GUIDE ...................................................................8

USER CALIBRATION.................................................................... 12

FACTORY RECALIBRATION ........................................................... 12

BATTERY REPLACEMENT .............................................................. 13

ACCESSORIES ............................................................................. 14

Note: Save all packing material until you are sure that the

instrument functions correctly. All defective items must be
returned in the original packing with the supplied accessories.

GENERAL DESCRIPTION

HI 935005, HI 935005N, HI 935002 and HI 935009 are powerful
and flexible K-type thermocouple thermometers, which have been
designed using the latest microprocessor technology to provide reliable
and accurate measurements in a wide temperature range.

Standard features include K-type probes, waterproof casing, dual­level LCD, low battery detection, long battery life and two-year
warranty.

HI 935005 has been designed for laboratory and field use, while HI
935005N is suitable for high accuracy (meter and probe can be

calibrated in an ice bath at 0°C) or dimly lit areas (the backlight
feature can be easily activated through the keyboard).

HI 935002 is a two-channel thermometer, ideal for monitoring two
samples at once, while HI 935009 offers all the features of HI
935002 and more: calibration of meter and probe at 0°C, backlight,
user-selectable auto-off time period, and capability to store and recall
a reading.

32

SPECIFICATIONS OF

HI 935005 & HI 935005N

SPECIFICATIONS

Range (*) -50.0 to 199.9°C / 200 to 1350°C

-58.0 to 399.9°F / 400 to 2462°F

Resolution 0.1°C (up to 199.9°C) / 1°C (outside)

0.1°F (up to 399.9°F) / 1°F (outside)

Accuracy ±0.2% full scale
(@20°C/68°F) for one year, excluding probe error
Typical EMC ± 3°C / ± 6°F
Deviation with HI 766 K-thermocouple probe

Battery 3x1.5V AA (IEC LR6) batteries,

approx. 1600 hours of continuous use (BL off)

Auto-off user selectable: 8 min, 60 min, disabled
(HI 935005 only)

Environment -10 to 50°C (14 to 122°F); RH 100%
Dimensions 150 x 80 x 36 mm (5.9 x 3.1 x 1.4")
Weight 235 g (8.3 oz.)

(*) Range may be limited by probe.

Main features:

• HI 766 K-thermocouple probes

• Display of temperature in degrees Celsius or Fahrenheit

• Range -50 to 1350°C or -58 to 2462°F

• HOLD function

• HI and LO (Max and Min) temperature values always displayed
on the LCD

• Remaining battery life indication / low battery detection

• Waterproof casing

• Auto-off capability (HI 935005 only)

• Backlight feature (HI 935005N only)

• User calibration at 0°C (HI 935005N only)

HI 935005 HI 935005N

Keyboard Functions:

ON/OFF : turn the meter ON and OFF.
HOLD : freeze the reading on display.
°C/°F : change reading unit (°C or °F).
CLR : clear the HI and LO values.
BL (HI 935005N only) : toggle the backlight ON and OFF.
CAL (HI 935005N only) : press and hold for 5 seconds to enter

the Calibration mode (with reading within ±3°C range);
press to abort the Calibration mode.

54

SPECIFICATIONS OF

HI 935002 & HI 935009

SPECIFICATIONS

Range (*) -50.0 to 199.9°C / 200 to 1350°C

-58.0 to 399.9°F / 400 to 2462°F

Resolution 0.1°C (up to 199.9°C) / 1°C (outside)

0.1°F (up to 399.9°F) / 1°F (outside)

Accuracy ±0.2% full scale
(@20°C/68°F) for one year, excluding probe error
Typical EMC ± 3°C / ± 6°F
Deviation with HI 766 K-thermocouple probe

Battery 3x1.5V AA (IEC LR6) batteries,

approx. 1600 hours of continuous use (BL off)

Auto-off user selectable: 8 min, 60 min, disabled
(HI 935009 only)

Environment -10 to 50°C (14 to 122°F); RH 100%
Dimensions 150 x 80 x 36 mm (5.9 x 3.1 x 1.4")
Weight 235 g (8.3 oz.)

(*) Range may be limited by probe.

Main features:

• Two independent measurement channels, T1 and T2

• HI 766 K-thermocouple probes

• Display of temperature in degrees Celsius or Fahrenheit

• Range -50 to 1350°C or -58 to 2462°F

• HOLD function

• HI and LO (Max and Min) temperature values always displayed
on the LCD

• DISP function to select the information to be displayed (Normal,
Relative or T1/T2)

• Remaining battery life indication / low battery detection

• Waterproof casing

• Auto-off capability (HI 935009 only)

• MR function for recalling memorized reading (HI 935009 only)

• Backlight feature (HI 935009 only)

• User calibration at 0°C (HI 935009 only)

HI 935002 HI 935009

Keyboard Functions:

ON/OFF : turn the meter ON and OFF.
T1/T2 : select the reading channel (T1, T2 or T1-T2).
HOLD : freeze the reading on display. In HI 935009, the frozen

value is also stored in non-volatile memory.

CLR : clear the HI and LO values, reset the relative measurement.
DISP : select Normal, Relative or T1/T2 measuring mode.
ALT (HI 935009 only) : enable the second function keys; the "ALT"

tag turns on to indicate that the second functions are enabled.

Note: The ALT key can be released before pressing the second

function key for 1-hand operation.

ALT/ CAL : press and hold for about 5 seconds to enter the

Calibration mode (with reading within ±3°C range).

(ALT +) AOFF : set auto power off delay (8min, 60min, disabled).
(ALT +) °C/°F : change reading units (°C or °F).
(ALT +) MR : recall memorized value.
(ALT +) BL : toggle the backlight ON and OFF.

76

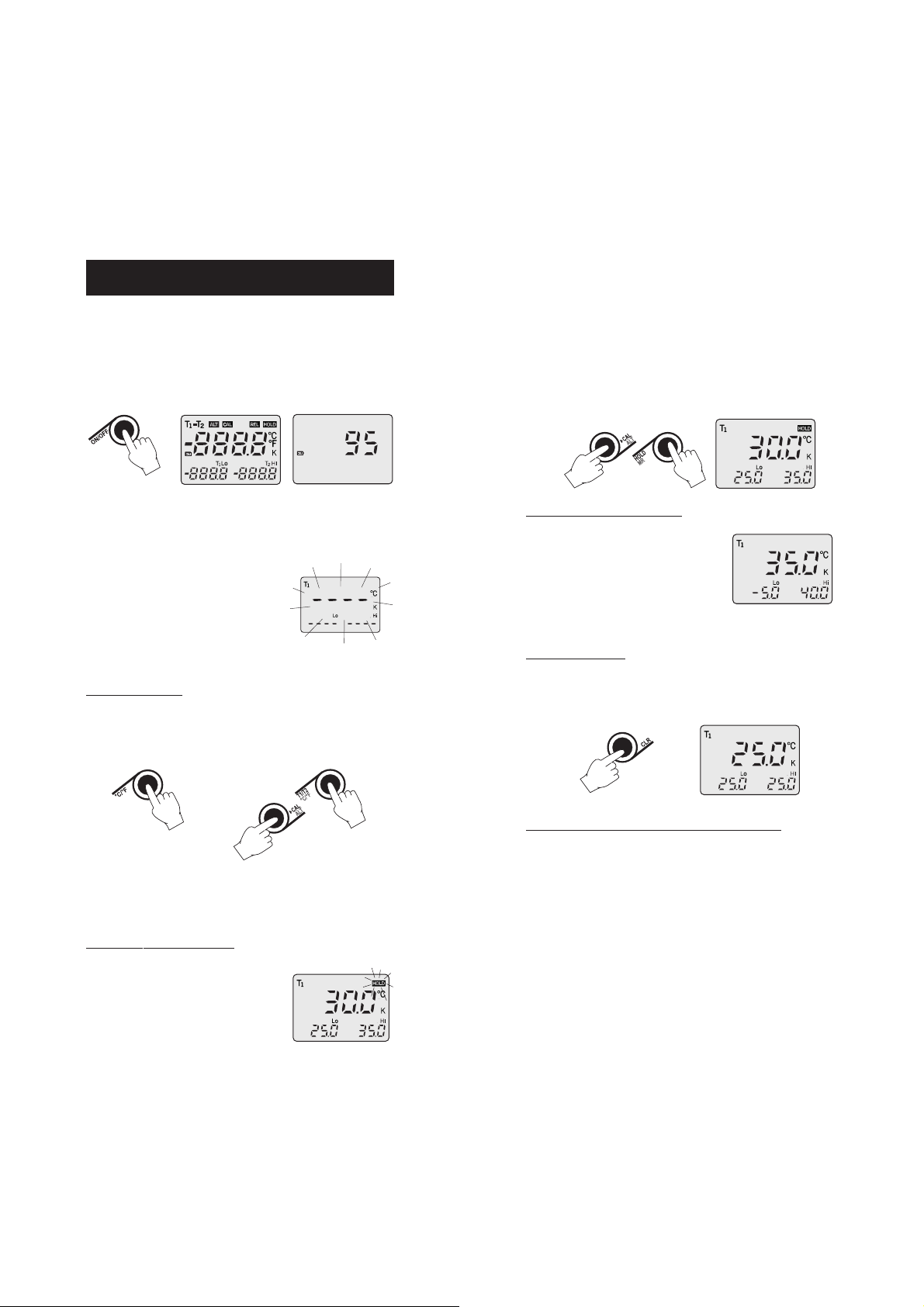

OPERATIONAL GUIDE

To switch the instrument ON, press the ON/OFF key.
The thermometer will carry out a self diagnostic test routine, the LCD
will show all segments for a few seconds (or as long as ON/OFF is
held), followed by the percentage indication of the remaining battery
life.

HOLD mode.
Note: Although the display is frozen, internally the meter continues

measuring and updating Hi/Lo and relative values.

In HI 935009 only, the held value is also stored in non-volatile
memory and can be recalled by pressing (ALT+) MR key. While the
MR key is held, the "HOLD" tag lights up and the meter displays the
stored value; when the MR key is released, after 1 second the meter
returns to normal measurement mode.

The thermometer then enters normal measurement mode.
If a temperature probe is plugged in, the meter displays the
measured temperature.
If no probe is plugged in, or if the reading is
over-range, the display shows flashing dashes.
If a measurement is slightly over the range
of the meter specifications, the display will
flash the closest full-scale value.
To switch the meter OFF, press the ON/OFF key.

°C/°F SELECTION

Measurements can be displayed in either degrees Celsius or Fahren­heit. The meter is factory set to °C scale; to change the scale, press
°C/°F key or (ALT+) °C/°F keys,

HI 935005 / 5005N

HI 935009

or set the switch located in the battery compartment (HI 935002 only,
see figure on page 10).

HOLD and MR FUNCTIONS

The HOLD function is activated by pressing
the HOLD key.
The measured temperature is held on the
display until HOLD is pressed again. The
"HOLD" tag blinks on the display while in

HIGH/LOW TEMPERATURES

The maximum and minimum tempera­tures are continuously monitored and
displayed on the lower portion of the LCD.

Note: When the reading goes over-range

or the probe is removed, the Hi and
Lo values display dashes until cleared.

CLEAR FUNCTION

Upon pressing the CLR key, the High/Low values may be cleared at
any time during measurement and the current reading is assigned to
the highest and lowest temperature values for the displayed channel
only.

AUTO SHUT-OFF (HI 935005 and HI 935009)

To save battery life, the HI 935005 and HI 935009 models are
provided with an auto-off feature, which switches the instrument off
after a certain period of nonuse.

The delay time can be changed by the user (8 minutes, 60 minutes,
or disabled).
To access this feature, the HI 935005 is provided with an internal
button located in the battery compartment (see figure on page 10).
Unscrew the 4 screws on the back of the meter and select the desired
auto-off time period by pressing the button and viewing the value on
the LCD. Re-attach the back making sure that the gasket is in place
and tighten the 4 screws to ensure a watertight seal.

98

HI 935009 allows the user to select the auto-off time period through
the front keyboard; press (ALT+) AOFF to enter the mode, then set
the desired auto shut-off interval (8 min, 60 min, or disabled) with
the ALT key; release all buttons, wait a few seconds and the meter
will return to normal measurement mode.

2-CHANNEL MODELS (HI 935002 and HI 935009)

HI 935002 and HI 935009 models can monitor two samples through
two independent temperature channels (probes).

The display will show the actual, Hi and Lo (or T1 and T2) values of
the selected channel (T1, T2 or T1-T2). The corresponding tags will
light up to inform the user.

To select the desired channel, use the T1/T2 key.

BACKLIGHT FEATURE (HI 935005N and HI 935009)

HI 935005N and HI 935009 models are provided with a Backlight
feature, which can be easily activated through the keyboard by
pressing the BL key or (ALT+) BL keys.

HI 935005N

HI 935009

Note: The backlight automatically shuts off after approximately 1

minute with no buttons pressed.

BATTERY COMPARTMENT

The 2-channel models are also provided with the DISP function, which
allows the user to select the information to be displayed.

• While in T1 or T2, pressing DISP will switch the display between
standard and relative measurement modes.
In the standard mode, the main body of the LCD shows the
current temperature while the lower portion displays the Hi/Lo
limits for that channel.
When the meter enters relative mode, the current temperature for
that channel is set as the reference temperature. Pressing CLR will
also set the reference to the current temperature.

In relative mode, the main body of the LCD shows the difference
from the reference temperature. The lower portion displays the
current temperature for the selected channel.

• While in T1-T2, pressing DISP will switch between 3 displays:

Note: Pressing T1/T2 to change the channel will not alter the

information chosen to be displayed for each channel (DISP).

Note: Relative mode can not be entered if dashes are shown in the

main portion of the LCD.

1110

BATTERY REPLACEMENTUSER CALIBRATION

The HI 935005N and HI 935009 models can be calibrated at 0°C by
using an ice bath.

• Prepare an ice bath with approximately equal volumes of distilled
water and chopped ice made from distilled water.

• Immerse the temperature probe in the center of the ice bath,
taking care not to touch the ice with the probe tip.

• Ensure that the meter is measuring a temperature within ±3°C.

• To enter the Calibration mode, press and hold the CAL button for
about 5 seconds.

• The CAL tag turns on to indicate that
the Calibration mode has been entered.

Note: If the measurement is outside the

±3°C window, the meter does not
enter Calibration mode.

• When the meter reaches the stability condition, which is detected
when the measurement remains within ±0.2°C for 5 seconds,
the calibration is accepted and the reading becomes 0°C (32°F).

• The meter then automatically returns to normal mode.

Note: To exit the Calibration mode at any time, press the CAL key.
Note: User calibration cannot be entered in relative or in T1-T2 mode.
Note: User calibration is only performed on the current channel

displayed (T1 or T2).

When the battery level is below 10%, a warning
symbol will blink on the LCD to indicate a low
battery condition.
If the battery level is low enough to cause erroneous readings, the
Battery Error Prevention System (BEPS) turns the meter off.
Immediately replace the batteries with new ones.
The batteries are accessed by separating the front and the back
halves of the meter: unscrew the 4 screws on the back of the meter
and carefully replace the three batteries located in the battery
compartment, while paying attention to their polarity. Reattach the
back making sure that the gasket is in place and tighten the 4
screws to ensure a watertight seal.
Battery replacement must only take place in a non-hazardous area
using 1.5V AA (IEC LR6) alkaline batteries.

FACTORY RECALIBRATION

All Hanna thermometers have been accurately pre-calibrated at the
factory.

It is generally recommended to have all thermometers recalibrated at
least once a year.

For an accurate recalibration, contact your nearest Hanna Customer
Service Center.

Recommendations for Users

Before using these products, make sure that they are entirely suitable for the
environment in which they are used.

Operation of these instruments in residential area could cause unacceptable inter­ferences to radio and TV equipments, requiring the operator to take all necessary
steps to correct interferences.

Any variation introduced by the user to the supplied equipment may degrade the
instruments' EMC performance.

To avoid electrical shock, do not use these instruments when voltages at the mea­surement surface exceed 24VAC or 60 VDC.

To avoid damages or burns, do not perform any measurement in microwave ovens.

Note: To clean the meters, do not use aggressive detergents. It is

recommended to use water.

1312

ACCESSORIES

K-TYPE THERMOCOUPLE PROBES

with integral handle, 1 m (3.3') cable & mini-connector:
HI 766A Roller surface probe, max 320°C/600°F
HI 766B Surface probe, max 650°C/1200°F
HI 766B1 90º Surface probe, max 450°C/840°F
HI 766B2 Spring-loaded, surface probe, max 900°C/1650°F
HI 766B3 Spring-loaded, small surface probe with

insulated shaft, max 200°C/390°F

HI 766C Penetration probe, max 900°C/1650°F
HI 766C1 Ultra-fast Penetration probe, max 300°C/570°F
HI 766D Air probe, max 300°C/570°F
HI 766E1 General purpose probe, max 900°C/1650°F
HI 766E2 General purpose probe, max 900°C/1650°F
HI 766F High temperature, flexible wire probe

without handle, max 1100°C/2000°F

HI 766F1 Flexible wire probe w/o handle, max 480°C/ 900°F
HI 766TR1 Penetration probe, max 250°C/482°F
HI 766TR2 Penetration long probe, max 250°C/482°F
HI 766TV1 Pipe clamp probe, max 200°C/390°F

with detachable handle & mini-connector (to be used in
conjunction with the HI 766HD probe handle):
HI 766PA Roller surface probe, max 320°C/600°F
HI 766PB Surface probe, max 650°C/1200°F
HI 766PC Penetration probe, max 900°C/1650°F
HI 766PD Air probe, max 300°C/570°F
HI 766PE1 General purpose probe, max 900°C/1650°F
HI 766PE2 General purpose probe, max 900°C/1650°F

grill surface probe:
HI 766B4 Grill surface probe with 70 cm (27.6’’)cable

(protected with stainless steel jacket),
max 250°C/482°F

HI 7664B4S Spare stainless steel sensor for HI766B4 probe

OTHER ACCESSORIES

HI 710002 Soft carrying case
HI 710009 Blue rubber boot
HI 710010 Orange rubber boot
HI 710031 Hard carrying case
HI 766EX Extension cable for K-type probes
HI 766HD Rugged thermocouple probe handle with

1m (3.3') cable fitted with mini-connector

All rights are reserved. Reproduction in whole or in part is prohibited without the
written consent of the copyright owner.

Hanna Instruments reserves the right to modify the design, con­struction and appearance of its products without advance notice.

1514

SALES AND TECHNICAL SERVICE CONTACTS

Australia:

Tel. [phone] • Fax [phone]

China:

Tel. [phone] • Fax [phone]

Egypt:

Tel. & Fax [phone]

Germany:

Tel. [phone] • Fax [phone]

Greece:

Tel. [phone] • Fax [phone]

Indonesia:

Tel. [phone] • Fax [phone]

Japan:

Tel. [phone] • Fax [phone]

Korea:

Tel. [phone] • Fax [phone]

Malaysia:

Tel. [phone] • Fax [phone]

Singapore:

Tel. [phone] • Fax [phone]

South Africa:

Tel. [phone] • Fax [phone]

Taiwan:

Tel. [phone] • Fax [phone]

Thailand:

Tel. [phone] • Fax [phone]

United Kingdom:

Tel. [phone] • Fax [phone]

USA:

Tel. [phone] • Fax [phone]

For e-mail contacts and complete list of Sales and
Technical offices, please see www.hannainst.com

16

MANK199 01/03
