HanleyLED HLED-RGBCNTRL Operating Instruction

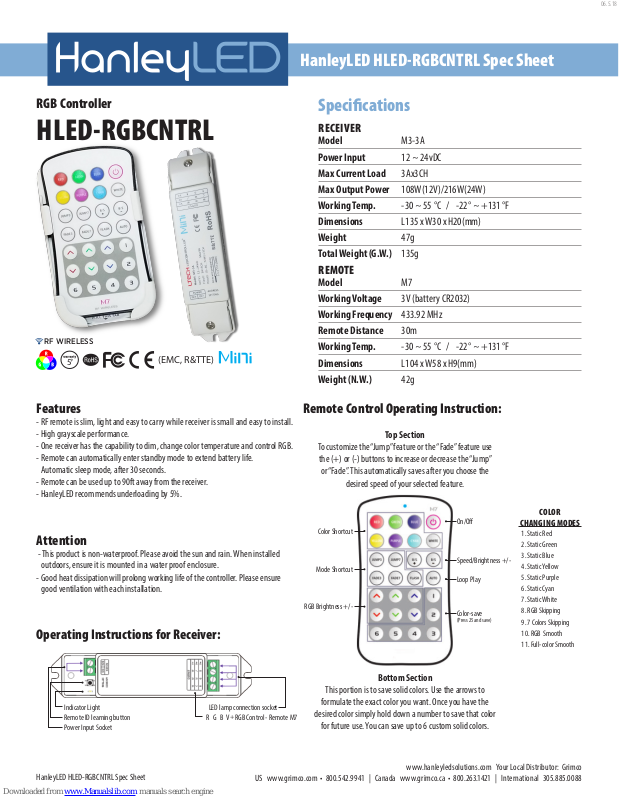

HanleyLED HLED-RGBCNTRL Spec Sheet
06.5.18
RGB Controller
HLED-RGBCNTRL
RF WIRELESS
5
(EMC, R&TTE)
Specications
RECEIVER
Model
Power Input
Max Current Load
Max Output Power
Working Temp.
Dimensions
Weight
Total Weight (G.W.)
REMOTE
Model
Working Voltage
Working Frequency
Remote Distance
Working Temp.
Dimensions
Weight (N.W.)
M3-3A
12 ~ 24vDC
3Ax3CH
108W(12V)/216W(24W)
-30 ~ 55 °C / -22° ~ +131 °F
L135 x W30 x H20(mm)
47g
135g
M7
3V (battery CR2032)
433.92 MHz
30m
-30 ~ 55 °C / -22° ~ +131 °F
L104 x W58 x H9(mm)
42g
Features
- RF remote is slim, light and easy to carry while receiver is small and easy to install.
- High grayscale performance.
- One receiver has the capability to dim, change color temperature and control RGB.
- Remote can automatically enter standby mode to extend battery life.
Automatic sleep mode, after 30 seconds.
- Remote can be used up to 90ft away from the receiver.
- HanleyLED recommends underloading by 5%.
Attention
- This product is non-waterproof. Please avoid the sun and rain. When installed
outdoors, ensure it is mounted in a water proof enclosure.
- Good heat dissipation will prolong working life of the controller. Please ensure
good ventilation with each installation.
Operating Instructions for Receiver:
Indicator Light LED lamp connection socket
Remote ID learning button
Power Input Socket
R RGB Control - Remote M7G B V
+
Remote Control Operating Instruction:
Top Section
To customize the “Jump” feature or the “Fade” feature use
the (+) or (-) buttons to increase or decrease the “Jump”
or “Fade”. This automatically saves after you choose the
desired speed of your selected feature.
Color Shortcut
Mode Shortcut
RGB Brightness +/-
Bottom Section
This portion is to save solid colors. Use the arrows to
formulate the exact color you want. Once you have the
desired color simply hold down a number to save that color
for future use. You can save up to 6 custom solid colors.
On/O
Speed/Brightness +/-
Loop Play
Color-save
(Press 25 and save)
COLOR
CHANGING MODES
1. Static Red
2. Static Green
3. Static Blue
4. Static Yellow
5. Static Purple
6. Static Cyan
7. Static White
8. RGB Skipping
9. 7 Colors Skipping
10. RGB Smooth
11. Full-color Smooth
HanleyLED HLED-RGBCNTRL Spec Sheet
www.hanleyledsolutions.com Your Local Dis tributor: Grimco
US www.grimco.com • 8 00.542.9941 | Canada www.grimco.ca • 800.263.1421 | International 305.885.0088
Product Drawings
HanleyLED HLED-RGBCNTRL Spec Sheet
RF Remote
Remote Holder
Receiver
Wiring Diagram
HanleyLED HLED-RGBCNTRL Spec Sheet
Application of RGB Modules
Click
to Play
www.hanleyledsolutions.com Your Local Dis tributor: Grimco
US www.grimco.com • 8 00.542.9941 | Canada www.grimco.ca • 800.263.1421 | International 305.885.0088
