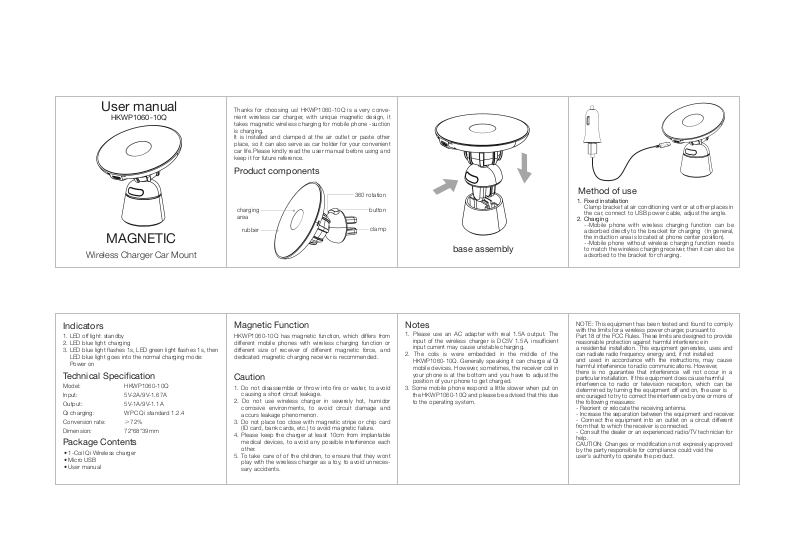

User manual
HKWP1060-10Q
MAGNETIC
Wireless Charger Car Mount
Indicators
1. LED off light: standby
2. LED blue light: charging
3. LED blue light flashes 1s, LED green light flashes 1s, then
LED blue light goes into the normal charging mode:
Power on
Technical Specification
Model:
Input:
Output:
Qi charging:
Conversion rate:
Dimension:
Package Contents
• 1-Coil Qi Wireless charger
• Micro USB
• User manual
HKWP1060-10Q
5V-2A/9V-1.67A
5V-1A/9V-1.1A
WPC Qi standard 1.2.4
≥72%
72*68*39mm
Thanks for choosing us! HKWP1060-10Q is a very convenient wireless car charger, with unique magnetic design, it
takes magnetic wireless charging for mobile phone -suction
is charging.
It is installed and clamped at the air outlet or paste other
place, so it can also serve as car holder for your convenient
car life.Please kindly read the user manual before using and
keep it for future reference.
Product components
360 rotation
charging
area
rubber
button
clamp
Magnetic Function
HKWP1060-10Q has magnetic function, which differs from
different mobile phones with wireless charging function or
different size of receiver of different magnetic force, and
dedicated magnetic charging receiver is recommended.
Caution
1. Do not disassemble or throw into fire or water, to avoid
causing a short circuit leakage.
2. Do not use wireless charger in severely hot, humidor
corrosive environments, to avoid circuit damage and
accurs leakage phenomenon.
3. Do not place too close with magnetic stripe or chip card
(ID card, bank cards, etc.) to avoid magnetic failure.
4. Please keep the charger at least 10cm from implantable
medical devices, to avoid any possible interference each
other.
5. To take care of of the children, to ensure that they wont
play with the wireless charger as a toy, to avoid unnecessary accidents.
base assembly
Notes
1. Please use an AC adapter with real 1.5A output. The
input of the wireless charger is DC5V 1.5A, insufficient
input current may cause unstable charging.
2. The colis is were embedded in the middle of the
HKWP1060-10Q. Generally speaking it can charge al QI
mobile devices. However, sometimes, the receiver coil in
your phone is at the bottom and you have to adjust the
position of your phone to get charged.
3. Some mobile phone respond a little slower when put on
the HKWP1060-10Q and please be advised that this due
to the operating system.
Method of use
1. Fixed installation
Clamp bracket at air conditioning vent or at other places in
the car, connect to USB power cable, adjust the angle.
2. Charging
--Mobile phone with wireless charging function can be
adsorbed directly to the bracket for charging（In general,
the induction area is located at phone center position).
--Mobile phone without wireless charging function needs
to match the wireless charging receiver, then it can also be
adsorbed to the bracket for charging.
NOTE: This equipment has been tested and found to comply
with the limits for a wireless power charger, pursuant to
Part 18 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
CAUTION: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the product.
