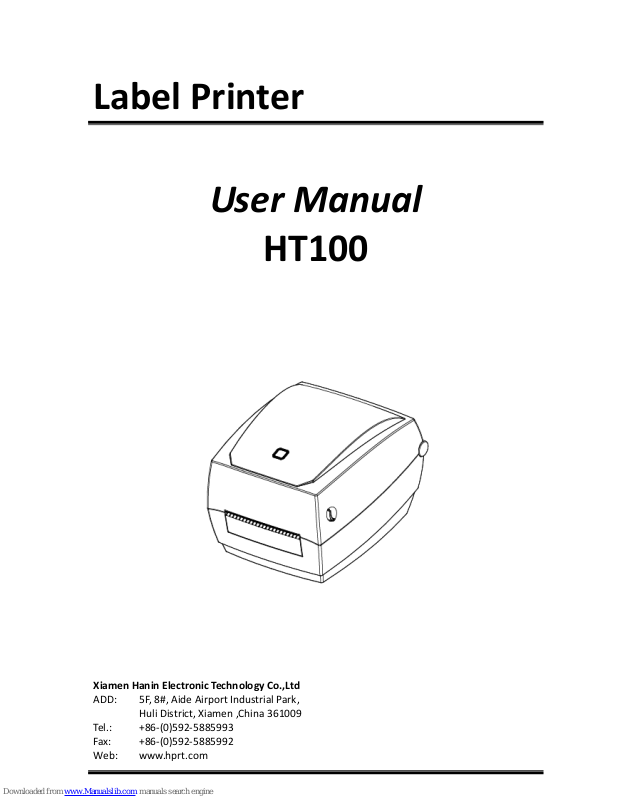

Hanin HT100 User Manual

Label Printer

User Manual

HT100

Xiamen Hanin Electronic Technology Co.,Ltd

ADD:

5F, 8#, Aide Airport Industrial Park,
Huli District, Xiamen ,China 361009

Tel.:

[phone]

Fax:

[phone]

Web:

www.hprt.com

HT100 User Manual

Contents

Manual Information ............................................................................................................................................... 2

Important Safety Instructions ................................................................................................................................. 2

Chapter 1 Introduction ........................................................................................................................................... 5

1.1 Packing List ......................................................................................................................................................... 5

1.2 Appearance and Components ............................................................................................................................ 6

1.3 Dimension........................................................................................................................................................... 7

Chapter 2 Specifications ......................................................................................................................................... 8

Chapter 3 Installation & Usage ............................................................................................................................. 10

3.1 Media Loading .................................................................................................................................................. 10

3.2 Power Connection ............................................................................................................................................ 16

3.3 Peripherals Connection ................................................................................................................................... 17

3.4 Detection .......................................................................................................................................................... 18

3.5 Control Panel .................................................................................................................................................... 19

3.6 Basic Function ................................................................................................................................................... 19

Chapter 4 Interface ............................................................................................................................................... 22

4.1 USB Interface .................................................................................................................................................... 22

4.2 Other Optional Interface .................................................................................................................................. 22

Chapter 5 Maintenance & Adjustment .................................................................................................................. 24

5.1 Cleaning Media Sensor ..................................................................................................................................... 24

5.2Cleaning Thermal Printing Head ........................................................................................................................ 24

5.3 Cleaning Roller and/or Paper Path ................................................................................................................... 24

Chapter 6 Label Printer Utility Instructions........................................................................................................... 25

6.1 Installation Preparation .................................................................................................................................... 25

6.2 Usage ................................................................................................................................................................ 25

Chapter 7 Seagull Windows Driver Installation..................................................................................................... 33

7.1 Introduction ...................................................................................................................................................... 33

7.2 Installation Preparation .................................................................................................................................... 33

7.3 Installation ........................................................................................................................................................ 34

Chapter 8 BarTender® Ultralite Installation .......................................................................................................... 39

8.1 Introduction ...................................................................................................................................................... 39

8.2 Installation Preparation .................................................................................................................................... 39

8.3 Installation ........................................................................................................................................................ 40

HT100 User Manual

Rev. 1.0

1

 Statement

This manual content may be altered without permission, and Xiamen Hanin Electronic
Technology Co., Ltd. reserves the rights to make changes without notice in technology, spare
parts, hardware and software of the products. If more information is needed about the
products, please contact Xiamen Hanin Electronic Technology Co., Ltd. Without any written
permission from the company, any section of this manual is prohibited to be copied or
transferred in any form.

 Copyright

This manual is printed in 2016, the copyright belongs to Xiamen Hanin Electronic Technology Co.
Ltd.
Printed in China

1.0 Version

 Warnings

This must be complied with in order to avoid any damage to the human body and the

equipment.

This is showing the important information and tips for the printer operation.

HT100 User Manual

Rev. 1.0

2

Manual Information

This User Manual contains basic information for product usage as well as for emergency
measures that may be required.
Provides information on utility usage for function selection, operating condition modification
etc.
Provides information on Seagull Windows Driver installation.
Provides information on BarTender® UltraLite installation.

※ Following separate manual provide more detailed content on various technological issues
and areas.

1.Programming Manual

This manual provides information on label printer commands.

HT100 User Manual

Rev. 1.0

2

Important Safety Instructions

Before using the appliance, please carefully read the following safety regulations in order to
prevent any hazard or material damage.

1. Safety warning

Warnings: The print head will become very hot during printing; avoid contact with the

print head after printing has finished.

Warnings: Do not touch the printer head and connector in case static damage the printer

head.

2. Instructions

Warnings: Violating following instructions can cause serious injury or death.

1) Do not plug several products in one multi-outlet.

• This can provoke over-heating and a fire.

• If the plug is wet or dirty, dry or wipe it before usage.

• If the plug does not fit perfectly with the outlet, do not plug in.

• Be sure to use only standardized multi-outlets.

2) You must use only the supplied adapter.

• It is dangerous to use other adapters.

3) Do not pull the cable to unplug.

• This can damage the cable, which is the origin of a fire or a breakdown of the printer.

4) Do not plug in or unplug with your wet hands .

• You can be electrocuted.

5) Do not bend the cable by force or leave it under any heavy object.

• A damaged cable can cause a fire.

HT100 User Manual

Rev. 1.0

3

Caution: Violating following instructions can cause slight wound or damage the appliance.

1) If you observe a strange smoke, odour or noise from the printer, unplug it before taking
following measures.

• Switch off the printer and unplug the set from the mains.

• After the disappearance of the smoke, call your dealer to repair it.

2) Install the printer on the stable surface.

• If the printer falls down, it can be broken and you can hurt yourself.

3) Use only approved accessories and do not try to disassemble, repair or remodel it for yourself.

• Call your dealer when you need these services.

• Do not touch the blade of auto cutter.

4) Do not let water or other foreign objects drop into the printer.

• If this happened, switch off and unplug the printer before calling your dealer.

5) Do not use the printer when it is out of order. This can cause a fire or an electrocution.

• Switch off and unplug the printer before calling your dealer.

6) Other considerations:

• Place the printer on a solid and even base so that it cannot fall.

• Leave enough space around printer for operation and maintenance.

• Keep all liquids away from the printer.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Switch off the printer POWER supply when it’s not in use for a long time.

• To ensure the printing quality and reliability, suggest use the same quality or recommend

paper supplier.

• Pls. switch off the POWER supply when connect/disconnect all the ports or it will cause
damage to the printer control circuit.

• Never carry out maintenance or repair work yourself. Always contact a qualified service
Technician.

• Keep this User Manual in a place which is easily accessible at all times.

3.Other Precautions

The copyright for this user manual and various other manuals is property of HPRT. Any copying
or conversion into electronic firm and saving of this material without the express written
permission is strictly prohibited. Use of the information contained in this manual is not subject
to any patent liability. This manual has been prepared with utmost care and attention to detail
but may contain certain errors and/or omissions. HPRT is not legally liable for any damages
resulting from the use of the information in this manual. Our company and its affiliates are not
legally liable (United States excluded) for any damages, loss, costs, and/or expenses that result
from the breakdown, malfunction, and/or misuse of the product due to violation or neglect of
the operation and maintenance information and instructions provided by our company, as well
as from the unauthorized alteration, repair, and/or modification of the product by the user
and/or third party. We are not legally liable for any damages and/or issues resulting from the
use of options and/or parts that are not authentic or authorized products.

Due to the continuous update of product specification, accessories and program,
please in kind prevail.

HT100 User Manual

Rev. 1.0

4

4.WEEE (Waste Electrical and Electric Equipment)

This mark shown on the product or its literature indicates that the corresponding
item should not be discarded at the end of its working life with other household
waste. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate marked items from other types of

waste and recycle them responsibly to promote the sustained reuse of material
resources. Household users should contact either the retailer where they purchased this
product, or their local government office for details of where and how they can conduct
environmentally safe recycling of such items. Commercial users should contact their suppliers
and check the terms and conditions of purchase contracts. This product should not be combined
with other commercial waste for disposal.

HT100 User Manual

Rev. 1.0

5

Chapter 1 Introduction

1.1 Packing List

Notes:

1. Unpack the printer and keep the packing material in case you need to ship the printer in

the future.

2. Make sure you own all parts as follows, if not, do contact the local dealer.

￭Standard accessories

Printer AC Adapter Power Cord

Quick Start Guide CD

￭Optional accessories.

USB Cable Serial Cable

Note： The AC adapter and power cord varies by local or region.

HT100 User Manual

Rev. 1.0

6

1.2 Appearance and Components

￭ Front

￭ Rear

￭ Inside

HT100 User Manual

Rev. 1.0

7

1.3 Dimension

HT100 User Manual

Rev. 1.0

8

Chapter 2 Specifications

(2/1)

Items

Parameter

Printing

Printing Method

Thermal Transfer/Direct Thermal Printing

Resolution

203dpi(8dots/mm)

Printing Speed

127mm/s Max.

Printing Width

108mm Max.

Printing Length

15mm - 1200mm

Processor

32 bit RISC CPU

Memory
RAM

32MB

Flash

16MB

Detection

Sensors

Adjustable reflective sensor, Fixed transmissive
sensor(Central aligned), Head-up sensor, Ribbon end
sensor

Media

Types

Roll-fed or Fan-fed, Die-cut or Continuous label, Tag stock,
Continuous receipt paper

Width

0.79’’(20mm) – 4.65’’(118mm)

Thickness

0.003’’(80um) – 0.007’’(180um)

Label Roll Diameter

5’’(127mm)

Core Diameter

0.5’’(25.4mm),1’’(25.4mm),1.5’’(38mm)

Ribbon

Types

Wax, Wax/Resin, Resin

Width

1.33’’(33.8mm) – 4.33’’(110mm)

Length

328’(100m)

Core Diameter

0.5’’(25.4mm)

Programming Language

TSPL Simulation

Software
Label Design

Bartender UltraLite

Seagull Driver

Windows 2000,XP,Vista7,8,10

Resident Fonts
Bitmap Fonts

8, 12, 16, 24, 32 and OCR A & B
90°, 180°, 270° rotatable. 10 times maximun expandable in
horizontal and vertical directions.

TTF Fonts

Monotype CG Triumvirate™ scalable true type font

Download Fonts

Bitmap Fonts

90°, 180°, 270° rotatable, single characters 90°, 180°, 270°
rotatable

TTF Fonts

90°, 180°, 270° rotatable

Asian Fonts

16x16, 24x24. Traditional Chinese, Simplified Chinese,
Japanese , Korean

Code Pages

DOS437,720,737,755,775,850,852,855,856,857,858,860,86
2,863,864,865,866,
Windows1250,1251,1252,1253,1254,1255,1256,1257,1258
ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15
DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)

Barcode
1D

Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C,
Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128,
UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI,
PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11

2D

PDF417, Maxicode, DataMatrix, QR Code, Aztec

Interfaces
Standard

USB,RS232C,Ethernet

Option

Bluetooth, WiFi

Control Panel

Feed button with tri-color LED

HT100 User Manual

Rev. 1.0

9

(2/2)

Items

Parameter

Power

AC/DC switching power adapter
I/P: AC100-240V, 50/60Hz, O/P: DC 24V/2A, peak 5A

Environment
Operation

41℉(5℃)-104℉(40℃)，30%-85%(non-condensing)

Storage

-4℉(-20℃)-122℉(50℃)，10%-90%(non-condensing)

Physical Characteristics
Dimension(L*H *W)

240*172.5*198mm

Weight

2.26kg(excluding consumables)

Options & Accessories

External label roll holder for 8’’ (203mm) OD label rolls

Agency Approvals

CCC,FCC,CE

HT100 User Manual

Rev. 1.0

10

Chapter 3 Installation & Usage

3.1 Media Loading

3.1.1 Paper Roll Loading

1. Pull forward the left and right cover open lever with both hands simultaneously and lift up

the printer cover.

2. Slide the paper holders to adjust the distance between them, place paper roll into the holders,

adjust paper roll holders according to paper roll’s width.(Make sure the locking tab is un-lock, so
that users can adjust the paper holders)

HT100 User Manual

Rev. 1.0

11

3. Make sure the holders are snug against the sides of the media roll, and then press the locking

tab down to lock the media holders in place.

4. Pull some paper out and pass it through paper guides, adjust paper guides according to the

paper width

Note: If your printer is under Thermal Line Printing Method, please close the printer cover, and
press the cover until you hear a sound. Otherwise, continue the procedure in chapter 3.1.4

HT100 User Manual

Rev. 1.0

12

5. Hold the printer cover while press the kick-stand cover lock in the direction of arrow.

6. Lower the printer cover, press down until the cover snap close, and tear the extra paper in

the direction of printer.
