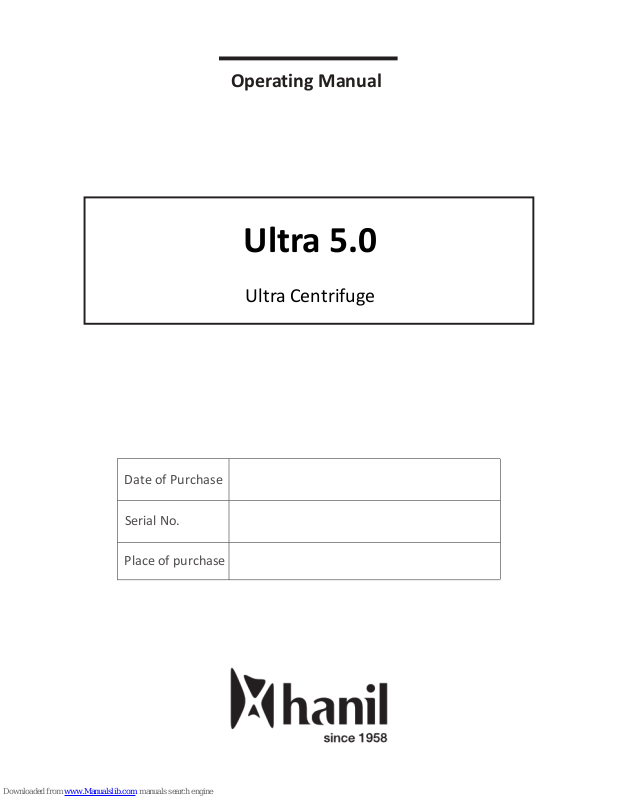

Hanil Ultra 5.0 Operating Manual

Operating Manual

Ultra 5.0

Ultra Centrifuge

Date of Purchase

Serial No.

Place of purchase

Copyright 2017 Hanil Scientific Inc. All rights reserved.

Contact Us

If you have and questions, contact Hanil Scientific Inc. or place of purchase.
[e-mail] / [e-mail]

CONTENTS

1. General Considerations-------------------------------------------------

1.1 Safety -3

1.2 Transport & Storage -4

1.3 Safety label -4

2. Product description-------------------------------------------------------

2.1 Structure -5

2.2 Delivery package -5

2.3 Technical specifications -6

3. Installation ----------------------------------------------------------------

3.1 Packing Inspection -7

3.2 Installation -7

3.2.1 Selecting the location -7

4. Operation ----------------------------------------------------------------

4.1 Operation panel -9

4.2 Opening and closing the lid -10

4.3 Loading and removal of the rotor -10

4.4 Loading tubes -11

4.5 Setting RPM/RCF -12

4.6 Setting run time -12

1.4 Electric safety information -4

5. Maintenance------------------------------------------------------------

6. Troubleshooting---------------------------------------------------------

6.1 General errors -15

7. Rotor ----------------------------------------------------------------------

3

5

7

9

3.2.2 Power connetion -8

4.8 Start the centrifugation run -12

4.9 End the centrifugation -12

4.10 Pulse function -13

4.10 Saving / Recall a program -13

14

5.1 Care instructions -14

5.2 Cleaning -14

15

16

4.7 Setting Accelation/Deceleration rate -12

Follow precautions and all the safety requirements described on this user manual
to prevent any damage and failure of equipment and loss of lives.

1. The centrifuge should be installed on flat surface to maintain level.

2. Check the voltage to be used, before connecting the centrifuge to the power source.

3. Only use rotors, parts, and accessories provided by Hanil Scientific Inc.

Hanil Scientific Inc. is not responsible for damages of the device and accidents caused by

using parts and accessories not recommended.

4. Do not exceed the maximum rated speed of the rotor or buckets in use.

5. Make sure to prepare necessary safety measures before using samples that are toxic or

radioactive samples or pathogenic or samples or infectious blood.

6. Substances that may generate volatile or explosive vapor can not be centrifuged.

7. The balancing work of samples should done in advance before operation.

8. If the centrifuge is contaminated by toxic or radioactive samples or infectious blood samples,

remove contaminants completely and take needful actions such as ventilation or isolation
of centrifuge.

9. Before operation, rotor and chamber should be dry.

10. Do not attempt to slow or stop the spinning rotor by hand.

11. Only centrifuge with rotor and rotor lid firmly tightened.

12. Do not block vents.

13. When serving the centrifuge, be sure to remove contaminants in advance.

14. Please contact the place of purchase or Hanil Scientific Inc. for product repairs.

15. According to IEC61010-2-020 maintain a 30cm “clearance envelope” around the

centrifuge while the rotor is spinning.

16. . Turn the power switch off after using the device.

17. Unplug the power plug before cleaning or left unused for a long period of time.

1. General Considerations

1.1 Safety

3 l

www.ihanil.com

1. General Considerations

1.2 Transport & Storage

• The device and the accessories

may only be stored in dry rooms

• Only lift and transport the
device with sufficient number of
helpers.

-Storage­Ambient temperature 5℃~35℃
Maximum relative humidity 30%~85%

Air pressure 500~1060hpa

-Transport­Ambient temperature -10℃~40℃
Maximum relative humidity 10%~90%
Air pressure 500~1060hpa

1.3 Safety label attached to a product

Insert tube
symmetrically.

Firmly tighten
the rotor lid.

Watch your figers
when close the lid.

Mark indicating danger
and warning.

Mark indicating a place in

danger of electric shock.

1.4 Electric safety information

1.Use a power cord only provided with equipment.

2.Use sockets with a protective earth conductor and suitable power cord.

3.Do not use an extension cord.

4.Do not place anything on the powercable

5.Do not block vents.

6.If you have the following emergencies, shut off the power supply and unplug the
powercord from outlet and contact your place of purchase.

-Unusual noises or smell from the equipment.

-Damage or wear of a power cord.

-Breakdown of circuit breaker, fuse or safety device.

-If you spill liquid on the equipment.

-If theequipment has been damaged.

[e-mail]/ [e-mail] l 4

2. Product description

2.1 Structure

2.2 Delivery package

① Ultra 5.0 Mainbody
② Power Cable
③ Operating manual

④ Optional items: Rotors

①

②

③

④

⑤

① Display: The display shows time, rpm,temperature
② Keypad : Time, and speed can be set.
③ Door: Door protects the inside of the chamber.
④ Power switch : On/off the centrifuge
⑤ RPM measuring window: Visual inspection for rotor stop or for a speed check using a tachometer.

5 l
