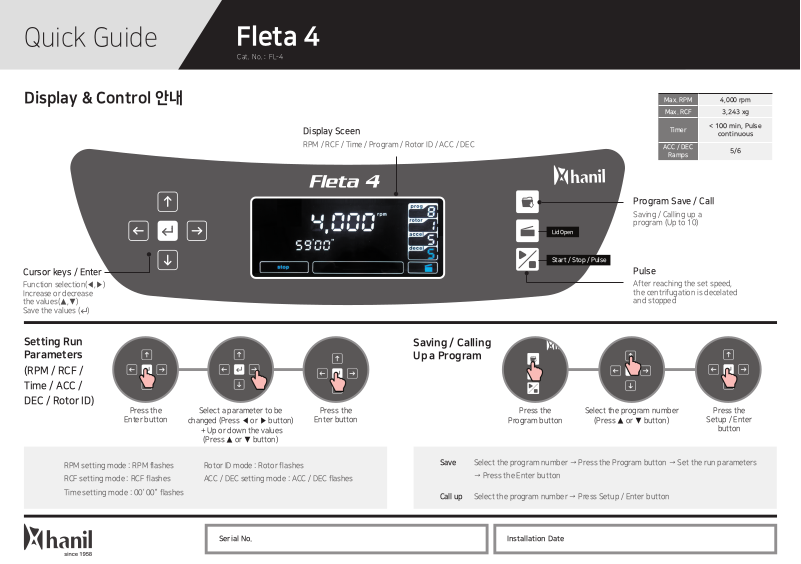

Hanil Fleta 4 Quick Manual

Quick Guide

Fleta 4

Cat. No. : FL-4

Display & Control 안내

Cursor keys / Enter

Function selection(◀,▶)
Increase or decrease
the values(▲,▼)
Save the values ( )

Setting Run
Parameters

(RPM / RCF /
Time / ACC /
DEC / Rotor ID)

RPM setting mode : RPM flashes

RCF setting mode : RCF flashes

Time setting mode : 00’ 00’’ flashes

Press the

Enter button

Display Sceen

RPM / RCF / Time / Program / Rotor ID / ACC / DEC

Select a parameter to be

changed (Press ◀ or ▶ button)

+ Up or down the values

(Press ▲ or ▼ button)

Rotor ID mode : Rotor flashes

ACC / DEC setting mode : ACC / DEC flashes

Press the

Enter button

Max. RPM 4,000 rpm

Max. RCF

Timer

ACC / DEC

Ramps

Program Save / Call

Saving / Calling up a

Lid Open

Start / Stop / Pulse

program (Up to 10)

Pulse

After reaching the set speed,
the centrifugation is decelated
and stopped

Saving / Calling
Up a Program

Press the

Program button

Save Select the program number → Press the Program button → Set the run parameters

→ Press the Enter button

Call up Select the program number → Press Setup / Enter button

Select the program number

(Press ▲ or ▼ button)

3,243 xg

< 100 min, Pulse

continuous

5/6

Press the

Setup / Enter

button

Serial No. Installation Date

Quick Guide

Fleta 4

Cat. No. : FL-4

Cautions For Use

Check the Accessories for Abnormalities

Check the rotor, buckets and tubes are free
of scratch and crack before operation.

Balancing the Centrifuge and Rotor

After relocating the device or loading the
rotor, balance them by using a leveler.
If necessary, level the device by adjusting the

veling foot’ on the bottom of the device.

‘Le

Cleaning

Clean the chamber and
rotor by wiping with a cloth
soaked in mild detergent
and dry completely.

Check the Cushion Rubbers

Check the cushion rubbers in
the sleeves (AL15-12, AL15-24)
before use. When reinserting,
must insert it in the correct
direction.

Before Operation

After Operation

Check the Rotor Locking

Check the rotor is firmly tightend onto
the motor shaft.

Load Tubes Symmetrically

Load tubes symmetrically into the rotor
with identical amount.

Care of Swing-Out Rotor

Spread the grease lightly on
the bucket where it contacts
the rotor and the pivot.

Maintenance

If the centrifuge lid cannot be opened, insert the provided
T-wrench into the emergency release hole on the right side
of the device and turn it clockwise.
(Before activating emergency open, switch off the device
and wait for the rotor to stop.)

Electrical Safety

500VA
220~240V

50/60Hz

Connect the device to voltage sources
which correspond to the power require­ments on the label attached to the device.

Check the wall outlet is
earth grounded, surge­protected andcan supply
enough power.

Rotor

AL15-12 12 x 15 ml / Max. 4k (Rotor ID : 3)
AL15-24 24 x 15 ml / Max. 4k (Rotor ID : 4)

30 cm

Allow a Safety Clearance of 30 cmEmergency Lid open

Allow a safety clearance of 30 cm around the
centrifuge during operation.

Switch Off the DeviceGrounded OutletCheck the Line Voltage

Switch off the device after use.
Unplug the power plug before
cleaning or unused for a long
period of time.

Swing-out RotorsFixed-angle Rotors

S50-6 6 x 50 ml Round / Max. 4k (Rotor ID : 2)
S85-4 4 x 85 ml Round / Max. 4k (Rotor ID : 1)

30 cm

30 cm
