Hangzhou Hikvision Digital Technology MP7608HN Users manual
Mobile NVR
User Manual
Mobile Network Video Recorder User Manual
TABLE OF CONTENTS
Chapter 1 Panel Introduction ............................................................................................................................................. 9
1.1 Front Panel ................................................................................................................................................................... 9
1.2 Rear Panel ................................................................................................................................................................... 10
Chapter 2 Installation and Connections ............................................................................................................................ 12
2.1 Environment ............................................................................................................................................................... 12
2.2 Install HDD .................................................................................................................................................................. 12
2.3 Install SIM Card ........................................................................................................................................................... 16
2.4 Install SD Card ............................................................................................................................................................. 16
2.5 Install Antenna ............................................................................................................................................................ 17
2.6 Power Cord Wiring ..................................................................................................................................................... 19
2.6.1 Shutdown Delay ............................................................................................................................................... 19
2.6.2 Scheduled Shutdown ....................................................................................................................................... 20
2.7 Alarm Input/Output Connection ................................................................................................................................ 21
2.7.1 Alarm Input Connection .................................................................................................................................. 21
2.7.2 Alarm Output Connection ................................................................................................................................ 22
2.8 Sensor-in Wiring ......................................................................................................................................................... 22
2.9 Power-on .................................................................................................................................................................... 22
Chapter 3 Start Up Device ................................................................................................................................................ 24
3.1 Startup ........................................................................................................................................................................ 24
3.2 Activation.................................................................................................................................................................... 24
Chapter 4 Network........................................................................................................................................................... 26
4.1 Set Local Network ....................................................................................................................................................... 26
4.2 Connect Wireless Network ......................................................................................................................................... 26
4.2.1 3G/4G Dialing ................................................................................................................................................... 26

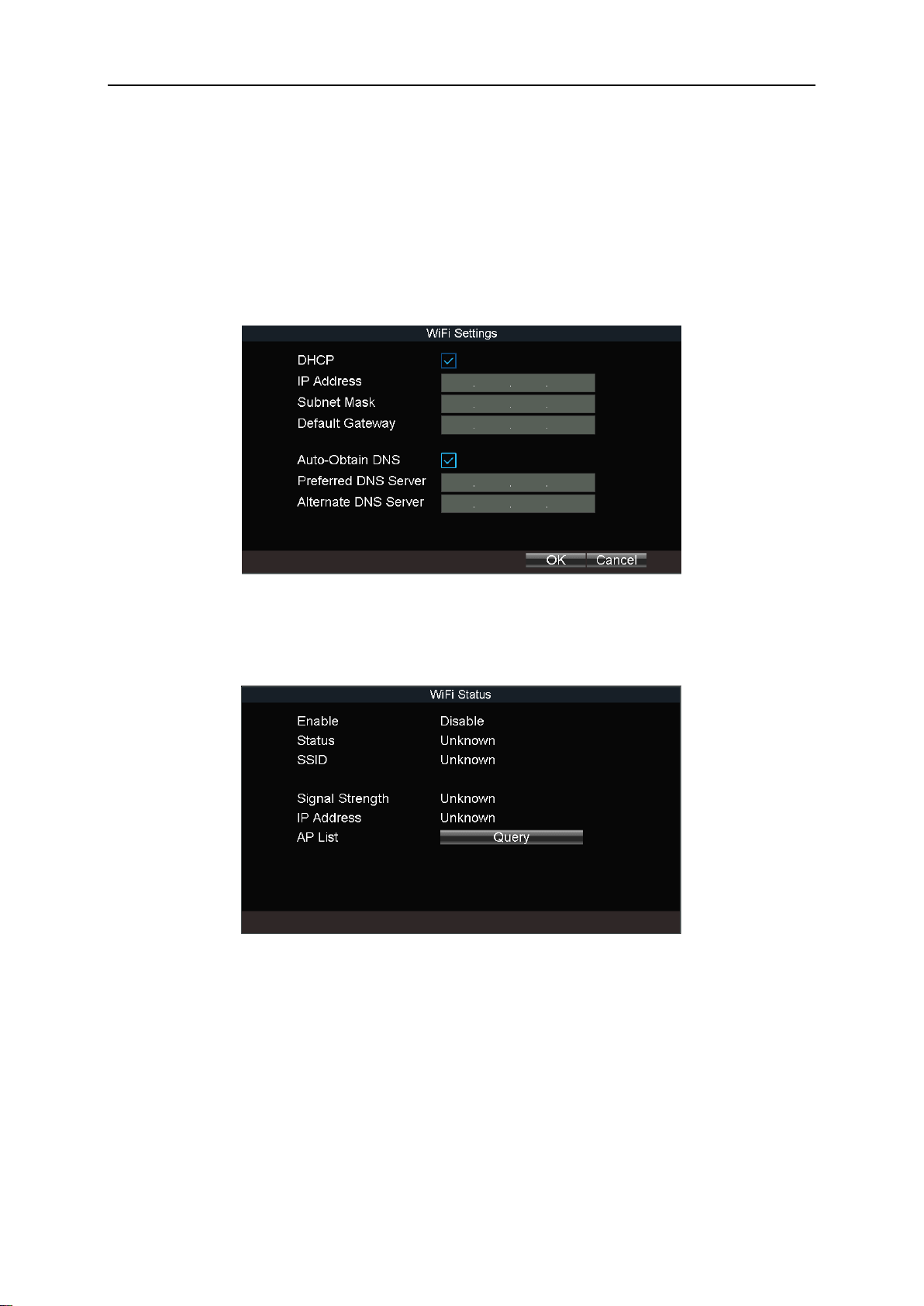

4.2.2 Set Wi-Fi .......................................................................................................................................................... 27

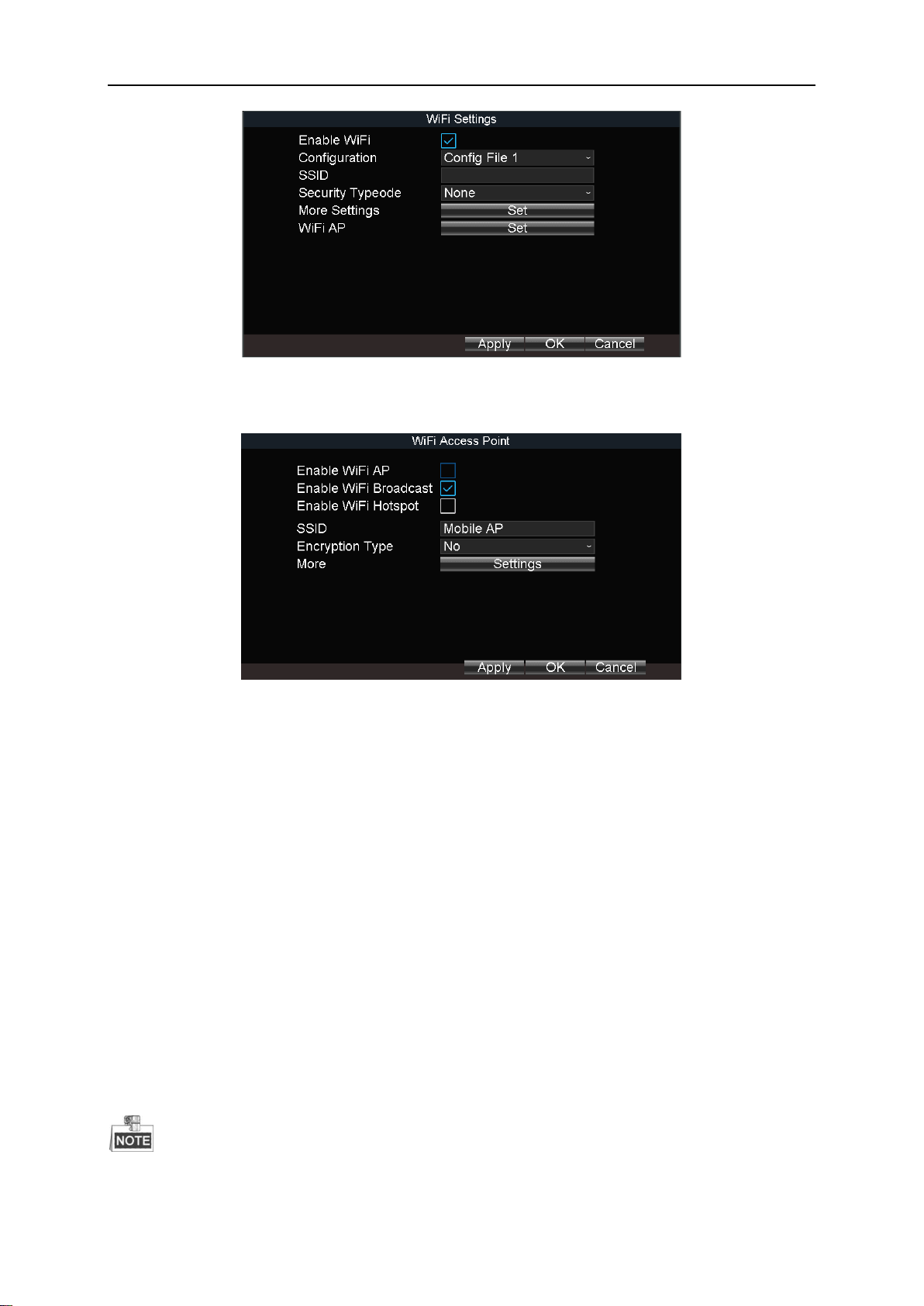

4.2.3 Set Wi-Fi AP ..................................................................................................................................................... 28

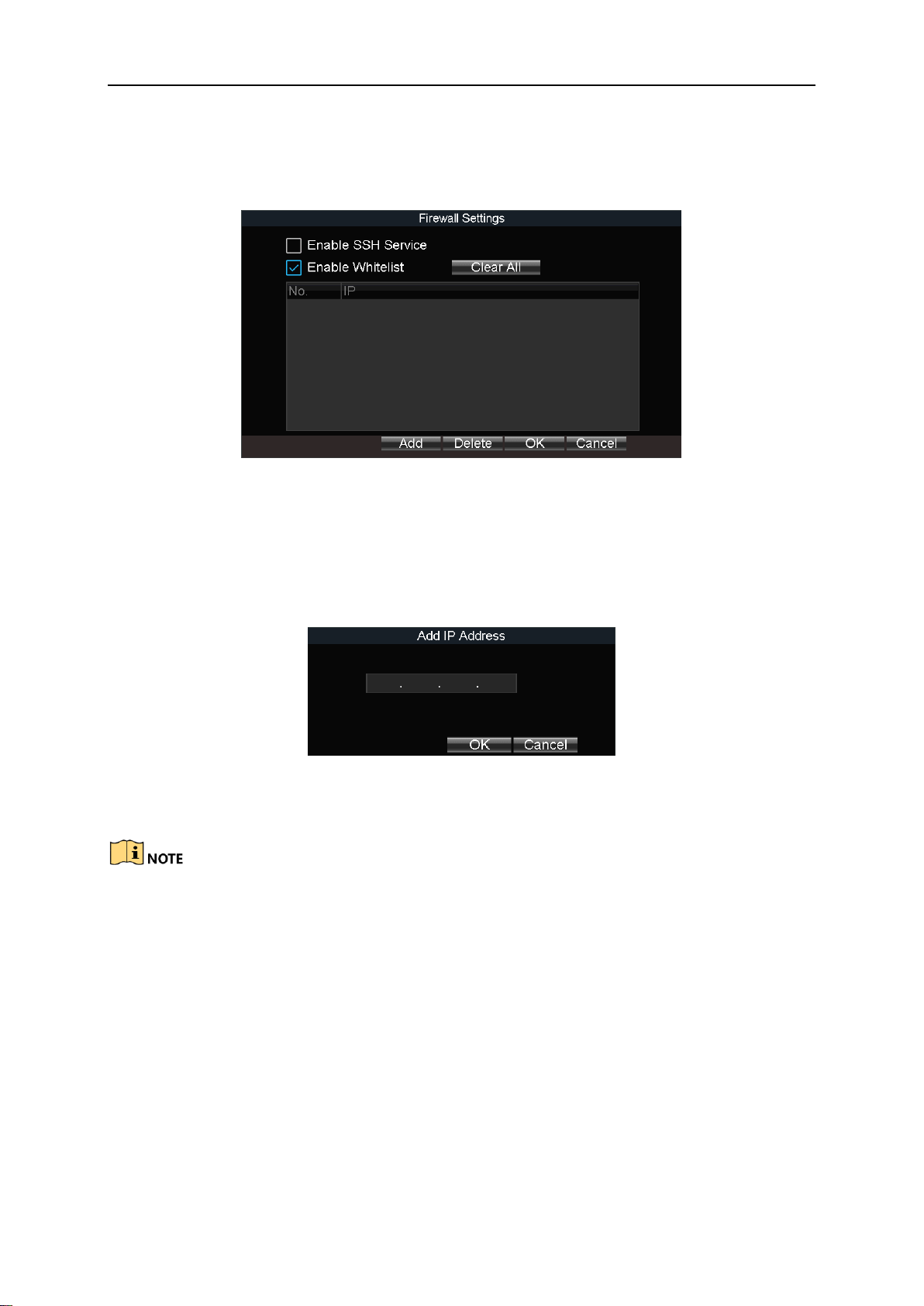

4.3 Firewall Settings ......................................................................................................................................................... 29
Chapter 5 IP Camera Management ................................................................................................................................... 31
5.1 Activate IP Camera ...................................................................................................................................................... 31
5.1.1 Auto Activation ................................................................................................................................................ 31
5.1.2 Manual Activation............................................................................................................................................ 31
5.2 Add IP Camera ............................................................................................................................................................ 33
5.2.1 Quick Add ........................................................................................................................................................ 33
5.2.2 Manual Add ..................................................................................................................................................... 33
5.2.3 Edit Protocol .................................................................................................................................................... 34
5.3 Edit IP Camera ............................................................................................................................................................ 34
5.4 Delete IP Camera ........................................................................................................................................................ 35
Chapter 6 Camera Management ...................................................................................................................................... 36
6.1 Basic Image Settings ................................................................................................................................................... 36
6.1.1 Set OSD Parameters ......................................................................................................................................... 36
6.1.2 Set Image Parameters ...................................................................................................................................... 36

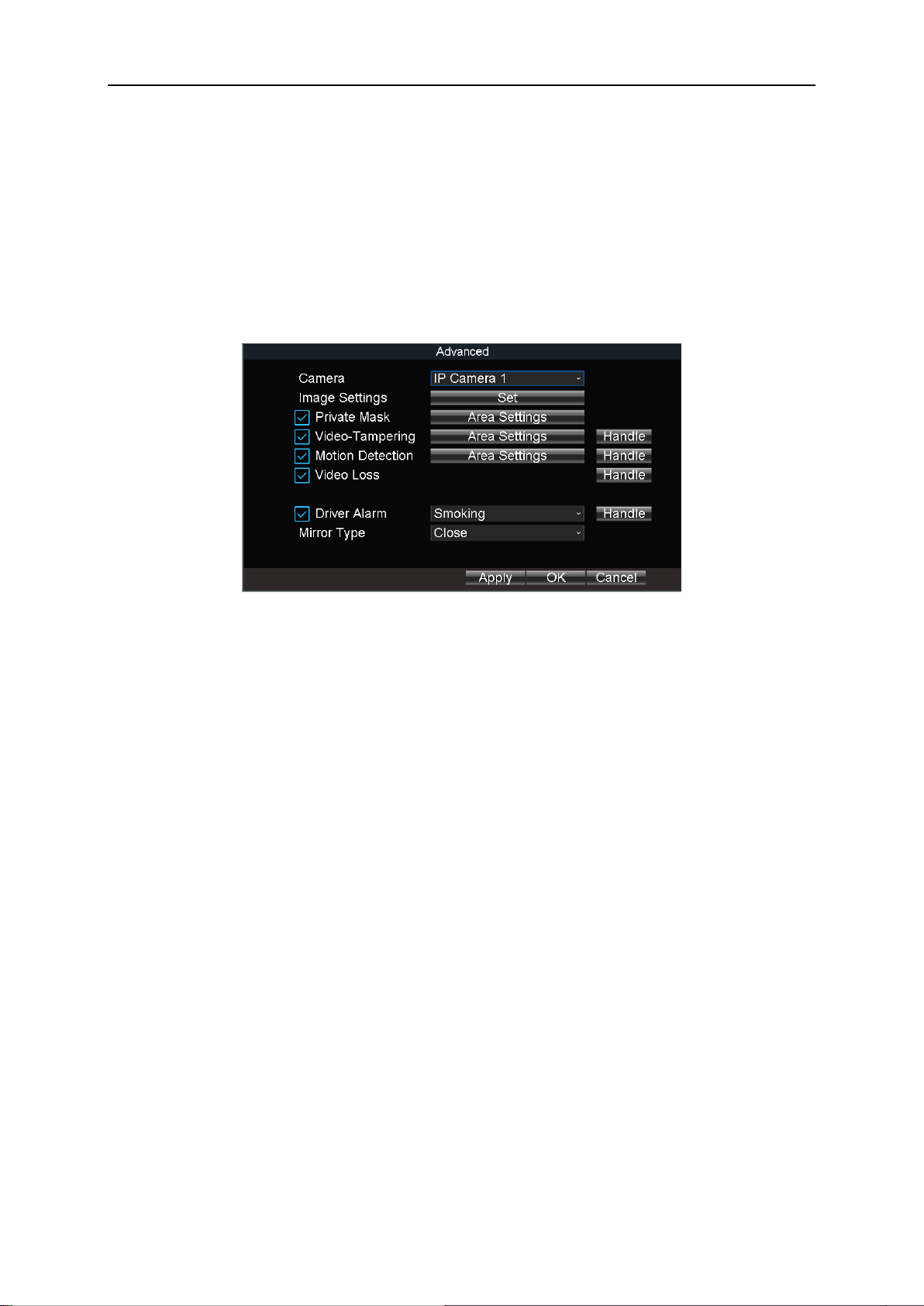

6.2 Set Privacy Mask ......................................................................................................................................................... 37
1
Mobile Network Video Recorder User Manual

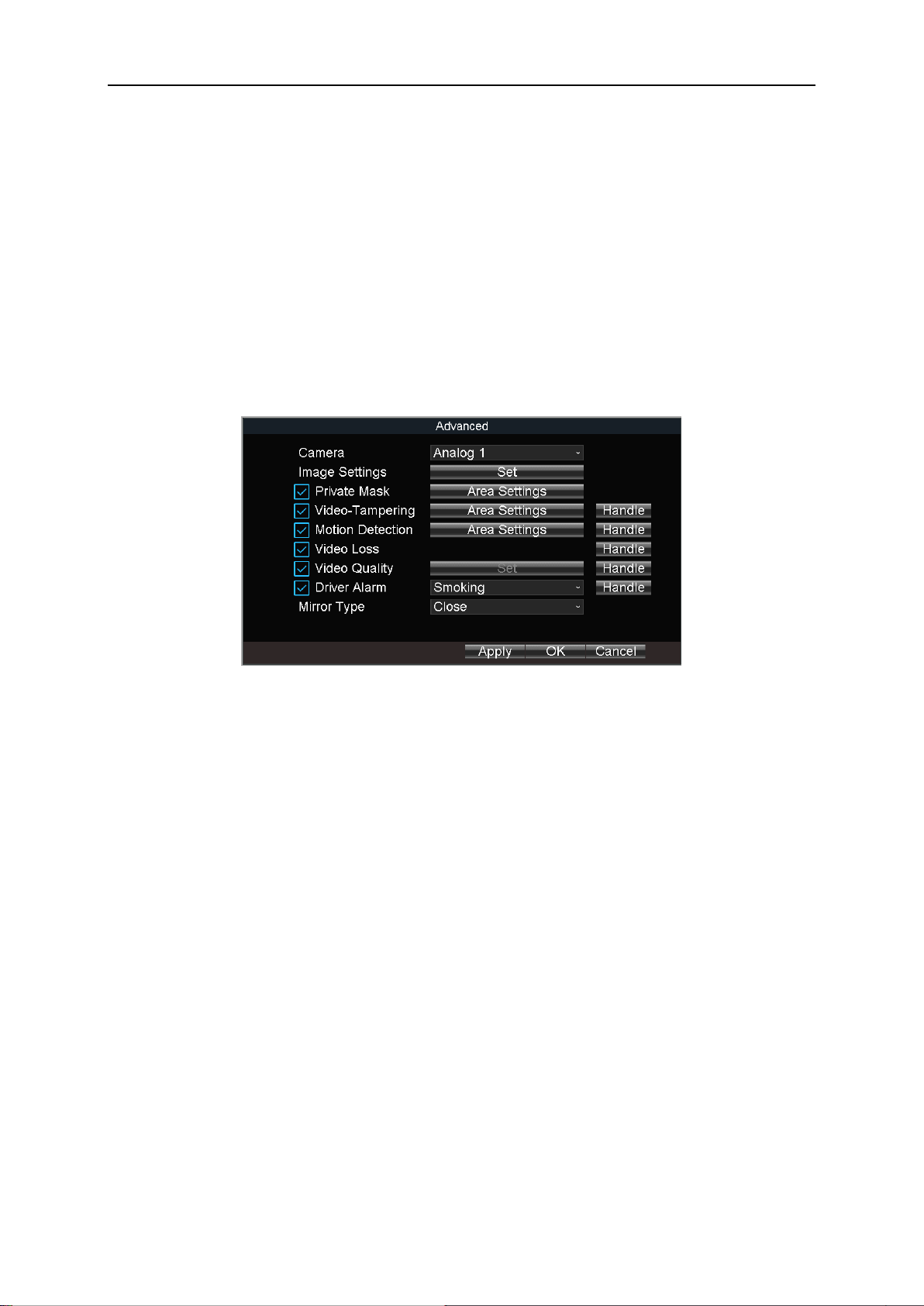

6.3 Set Mirror Type ........................................................................................................................................................... 38
Chapter 7 Live View ......................................................................................................................................................... 40

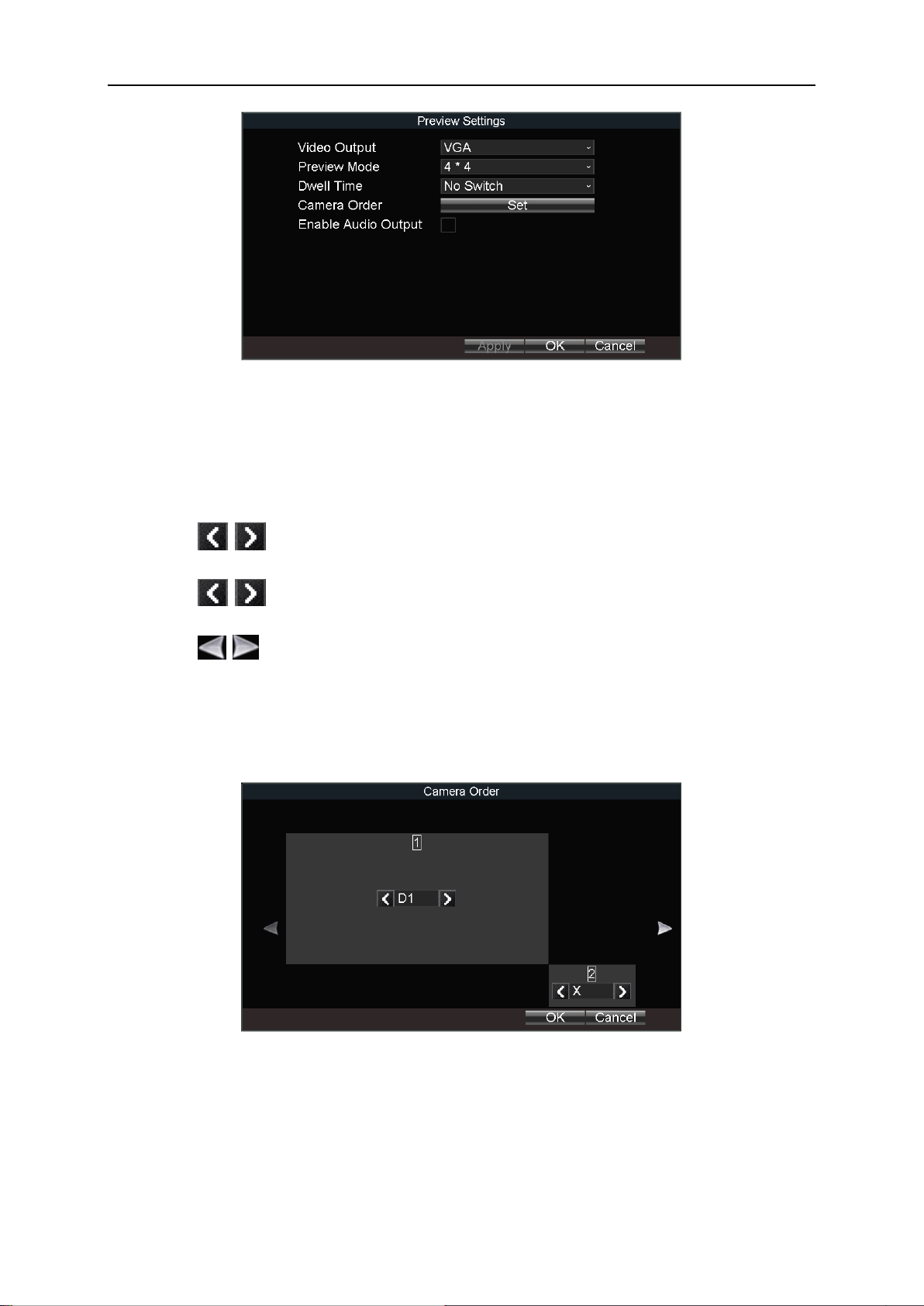

7.1 Preview Settings ......................................................................................................................................................... 40
7.2 Set Camera Order ....................................................................................................................................................... 40
7.3 Right-Click Menu......................................................................................................................................................... 42
7.4 PTZ Operation ............................................................................................................................................................. 42
7.4.1 Configure PTZ Settings ..................................................................................................................................... 42
7.4.2 PTZ Control Panel............................................................................................................................................. 43
Chapter 8 Storage ............................................................................................................................................................ 44
8.1 Storage Settings .......................................................................................................................................................... 44
8.1.1 Format HDD ..................................................................................................................................................... 44
8.1.2 Configure Overwrite ........................................................................................................................................ 44
8.1.3 Configure Picture Partition .............................................................................................................................. 45
8.1.4 View S.M.A.R.T. Information ............................................................................................................................ 45
8.2 Recording Settings ...................................................................................................................................................... 46
8.2.1 Configure Record Settings................................................................................................................................ 46
8.2.2 Configure Motion Detection Recording ........................................................................................................... 48
8.2.3 Configure Alarm Triggered Recording .............................................................................................................. 48
8.2.4 Configure Alarm Terminal ................................................................................................................................ 49
8.2.5 Configure Schedule .......................................................................................................................................... 50
8.3 Sensor-in Settings ....................................................................................................................................................... 50
Chapter 9 Playback .......................................................................................................................................................... 52
9.1 Instant Playback .......................................................................................................................................................... 52

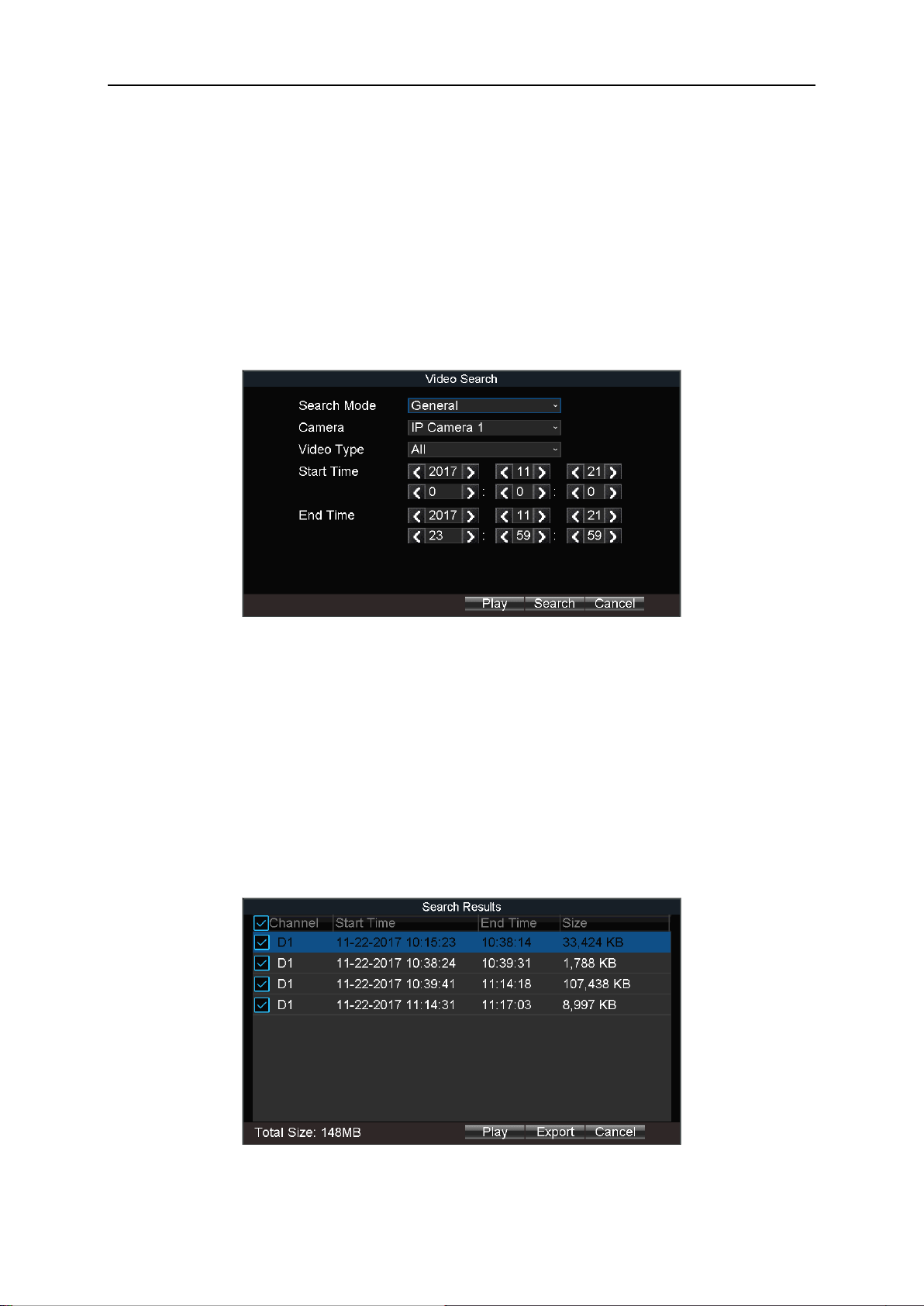

9.2 Play Video by File ....................................................................................................................................................... 52
Chapter 10 Platform ......................................................................................................................................................... 54
10.1 Mobile Surveillance Platform ................................................................................................................................... 54
10.2 Guarding Vision ........................................................................................................................................................ 55
10.3 Register Device in Guarding Vision platform ............................................................................................................ 56
Chapter 11 Backup ........................................................................................................................................................... 57
11.1 Manual Backup ......................................................................................................................................................... 57

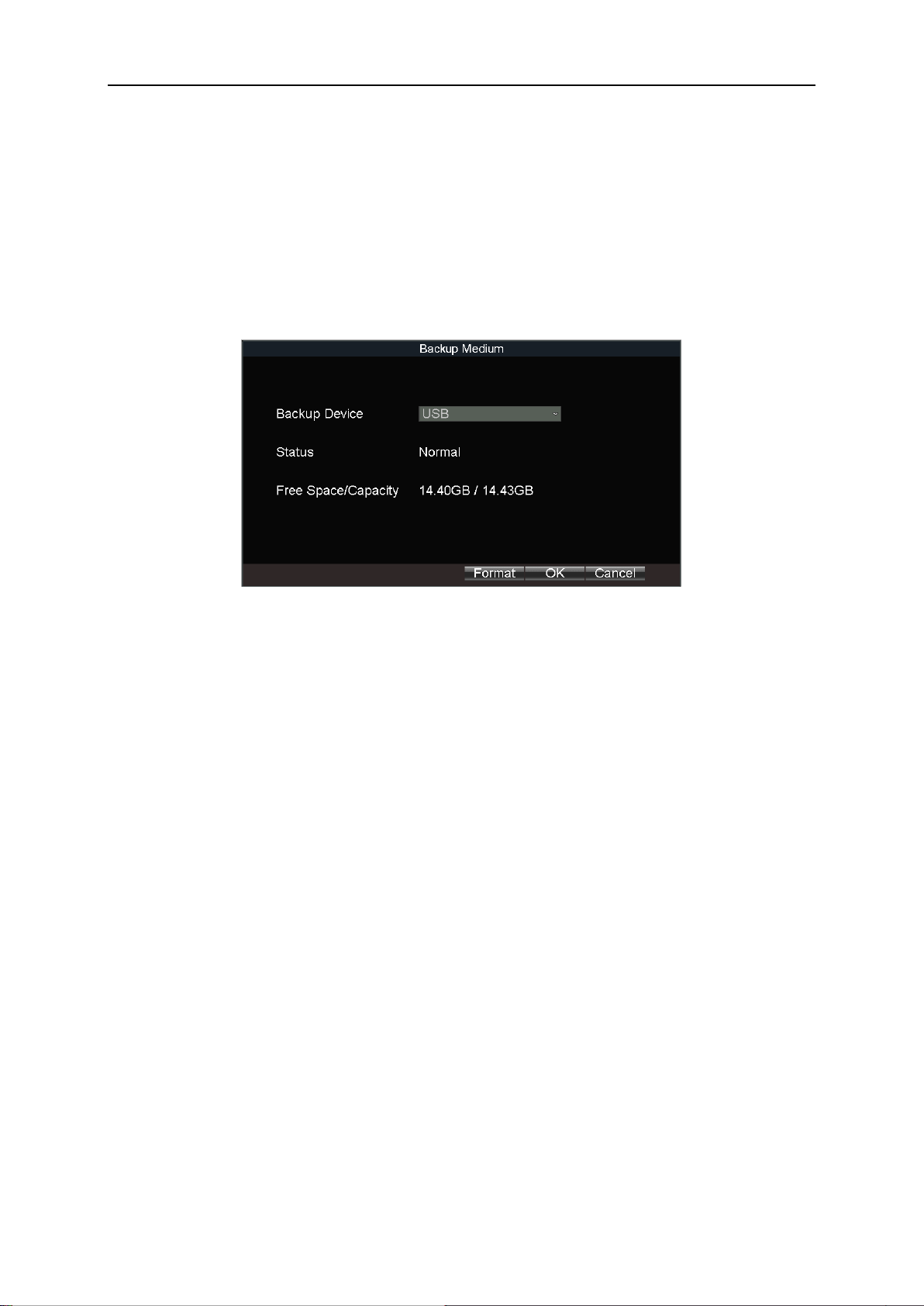

11.2 Format Backup Device .............................................................................................................................................. 58
Chapter 12 Events and Alarms .......................................................................................................................................... 59
12.1 Configure Motion Detection Alarm .......................................................................................................................... 59
12.2 Configure Alarm Input .............................................................................................................................................. 59

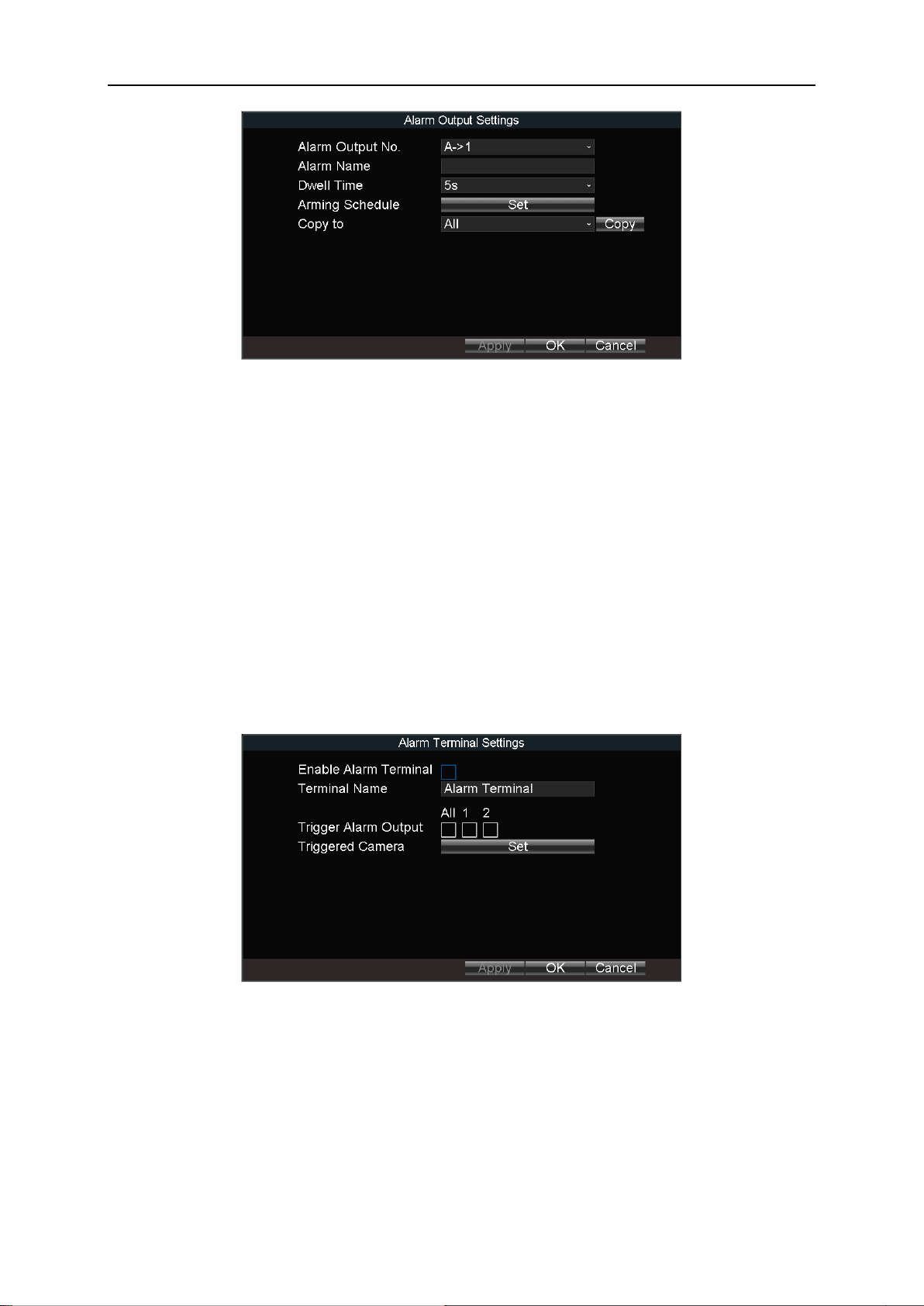

12.3 Configure Alarm Output ........................................................................................................................................... 60
12.4 Configure Alarm Terminal ......................................................................................................................................... 61
12.5 Configure Video Loss Alarm ..................................................................................................................................... 62
12.6 Configure Video Tampering Alarm ........................................................................................................................... 62
12.7 Configure Exception Alarm ....................................................................................................................................... 63
12.8 Configure Satellite Positioning .................................................................................................................................. 64
12.9 Configure G-Sensor Alarm ........................................................................................................................................ 65
12.10 Configure Arming Schedule and Linkage Actions .................................................................................................... 66
12.11 Configure Detection Area ....................................................................................................................................... 66
Chapter 13 User Account Management ............................................................................................................................ 67
2
Mobile Network Video Recorder User Manual
13.1 Add User ................................................................................................................................................................... 67
13.2 Delete User ............................................................................................................................................................... 68
13.3 Edit User ................................................................................................................................................................... 68
Chapter 14 General System Configuration ........................................................................................................................ 69
14.1 Configure Basic Display Settings ............................................................................................................................... 69
14.2 Configure DST Settings ............................................................................................................................................. 69
14.3 Configure NTP ........................................................................................................................................................... 70
14.4 Configure Advanced Display Settings........................................................................................................................ 71
Chapter 15 Maintenance .................................................................................................................................................. 72
15.1 Check Status ............................................................................................................................................................. 72
15.2 View System Information ......................................................................................................................................... 72

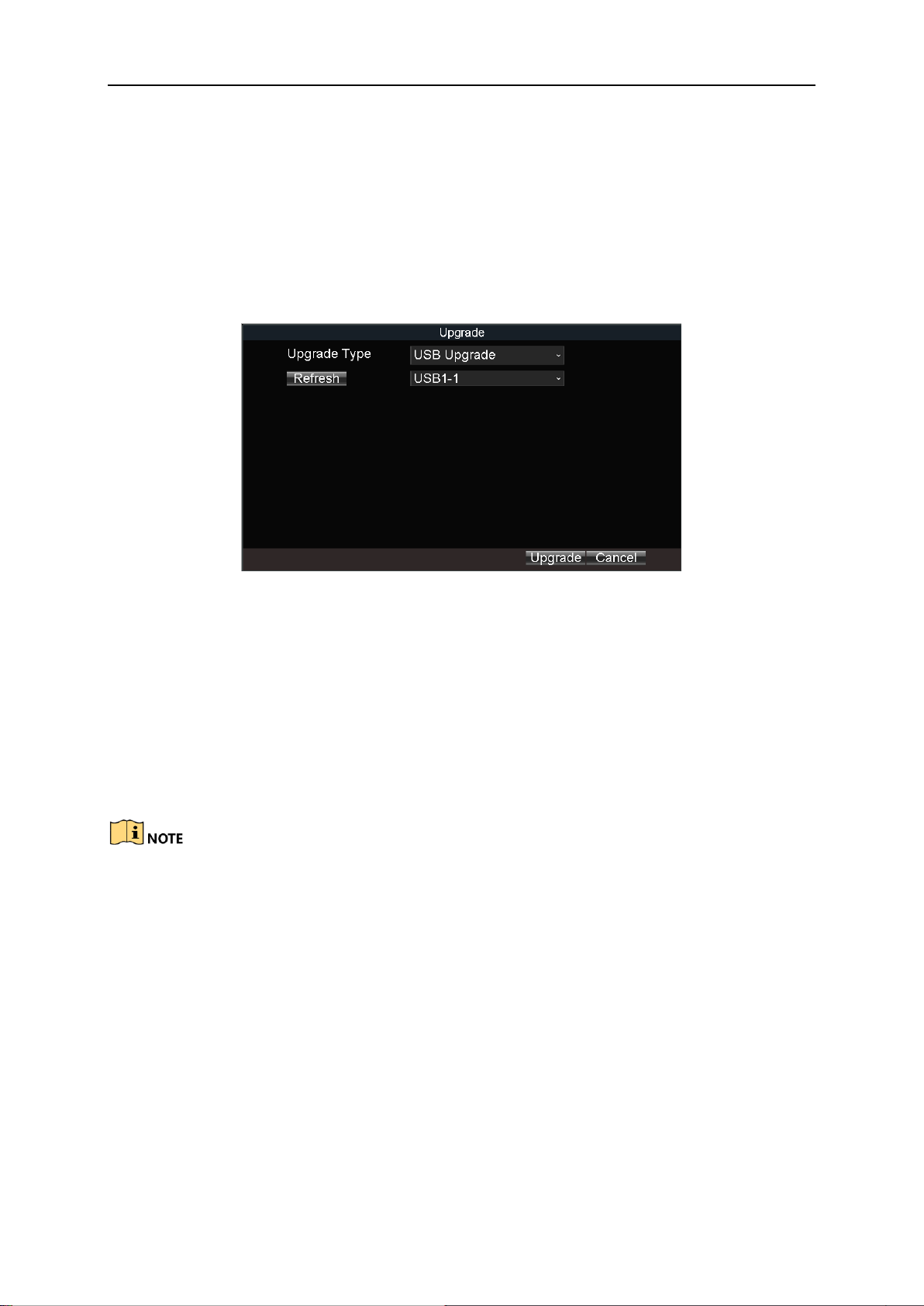

15.3 Upgrade the System .................................................................................................................................................. 72
15.3.1 Upgrade by Local USB Flash Disk ................................................................................................................... 73

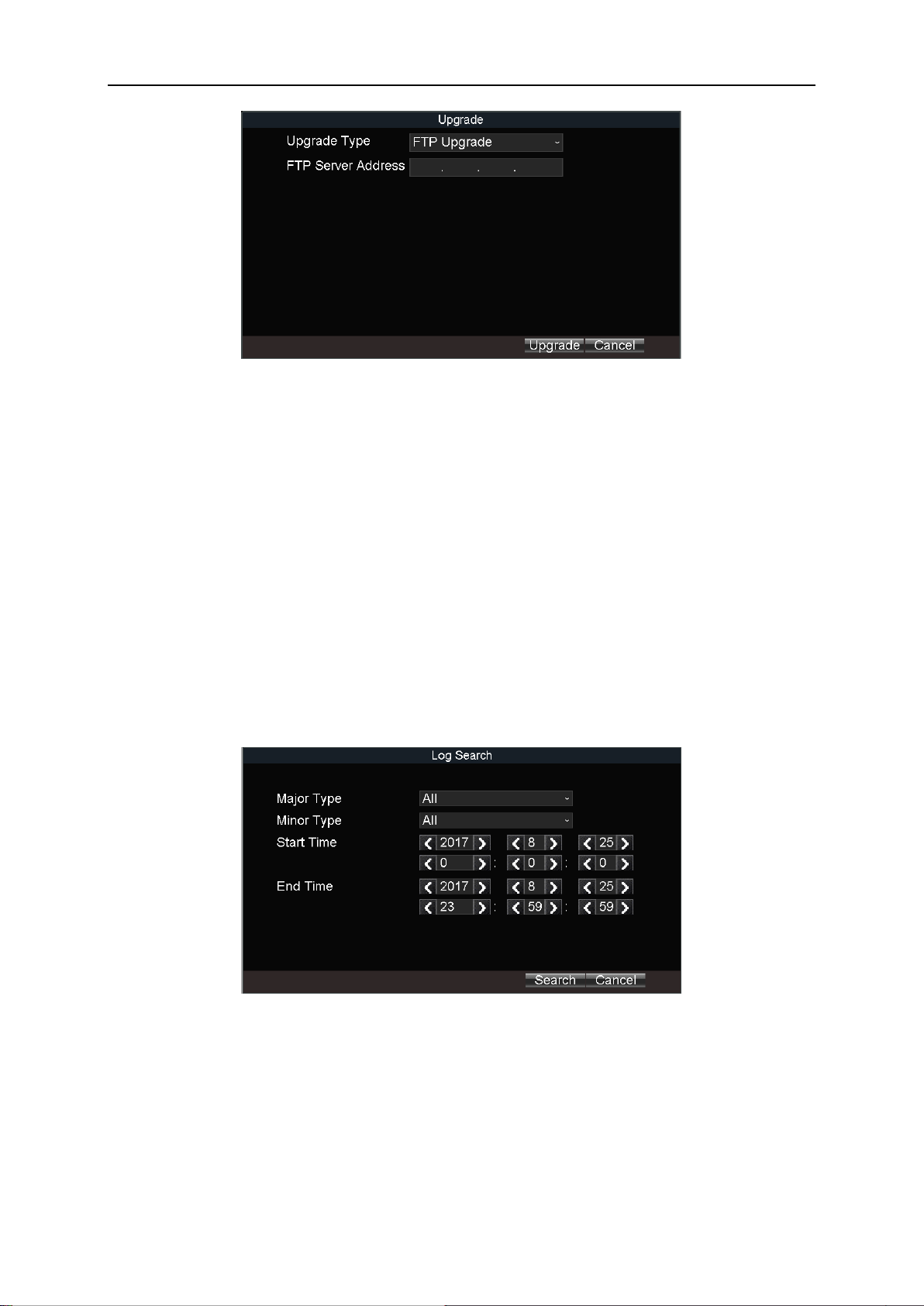

15.3.2 Upgrade by Remote FTP server ...................................................................................................................... 73
15.4 Log Operation ........................................................................................................................................................... 74
15.4.1 Search Log File ............................................................................................................................................... 74
15.4.2 Export Log File ............................................................................................................................................... 75
15.5 Restore Default Settings ........................................................................................................................................... 75

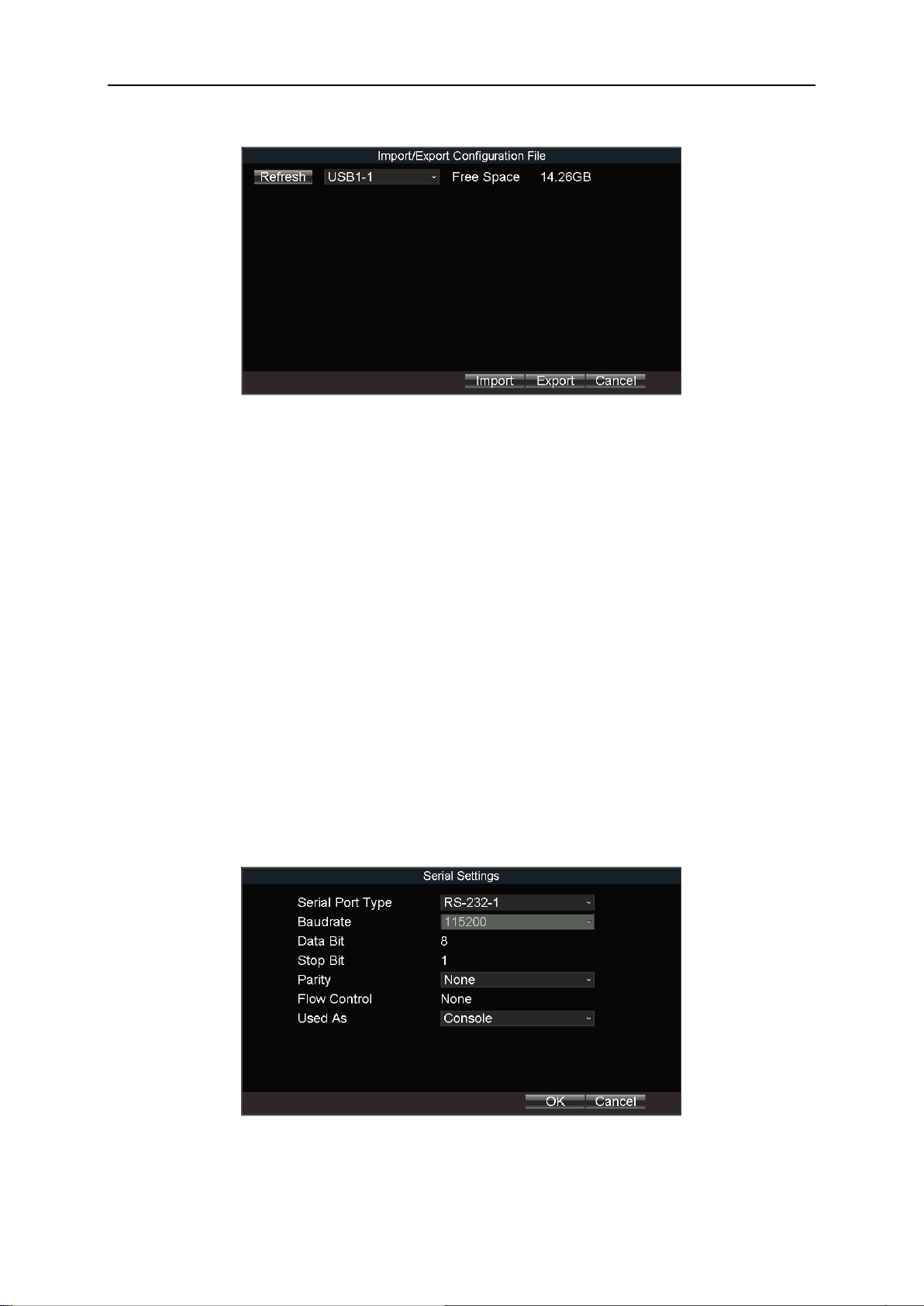

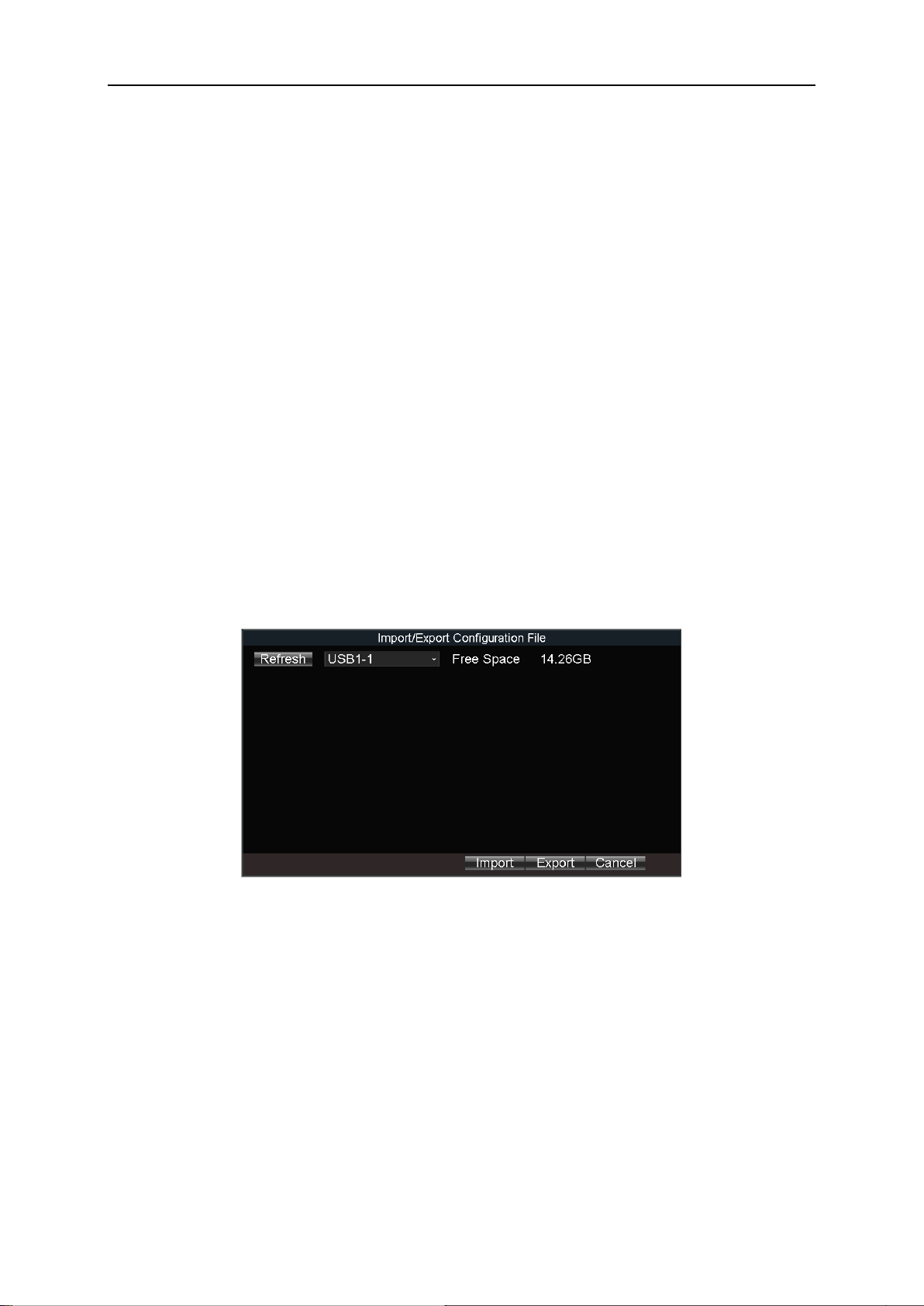

15.6 Import/Export Configuration File ............................................................................................................................. 76
15.6.1 Import Configuration File .............................................................................................................................. 76
15.6.2 Export Configuration File ............................................................................................................................... 76
15.7 Serial Port Settings.................................................................................................................................................... 77
Chapter 16 Shut Down Device .......................................................................................................................................... 79
16.1 Enable Scheduled Startup/Shutdown ....................................................................................................................... 79
16.2 Configure Delayed Shutdown ................................................................................................................................... 79
16.3 Reboot ...................................................................................................................................................................... 80
Chapter 17 Remote Control .............................................................................................................................................. 81

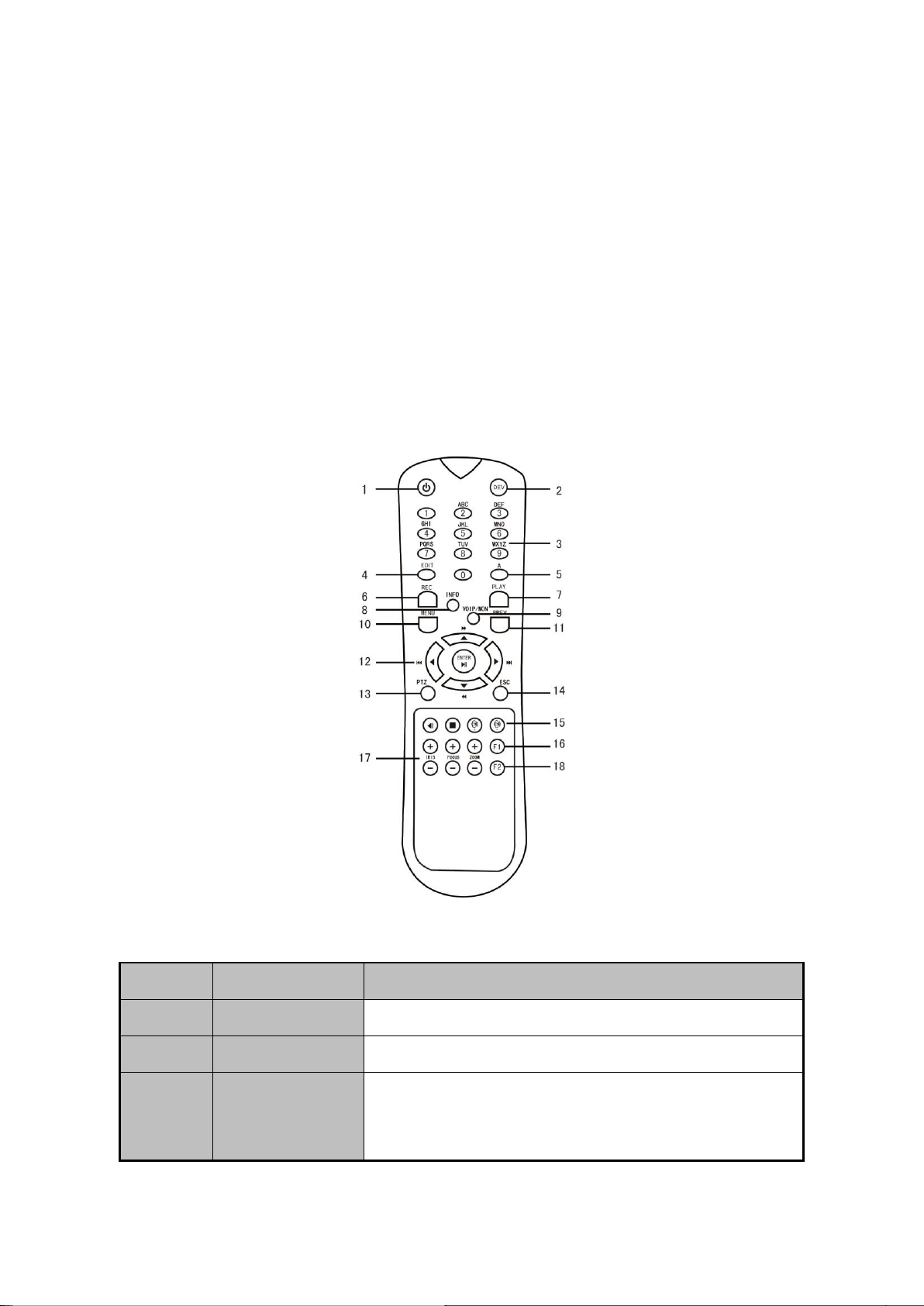

17.1 Buttons Description .................................................................................................................................................. 81
17.2 Operation Introduction ............................................................................................................................................. 82
17.2.1 Build Connection with Device (Device No.: 255) ........................................................................................... 83
17.2.2 Build Connection with Device (Device No. is not 255) ................................................................................... 83
17.2.3 Enter Contents in Text Field ........................................................................................................................... 83
17.2.4 Click a Button ................................................................................................................................................. 83
17.2.5 Check a Checkbox .......................................................................................................................................... 83
17.2.6 Select an Item from a Dropdown List ............................................................................................................ 83
17.3 Troubleshooting ........................................................................................................................................................ 84
17.4 Set Areas with Remote Control ................................................................................................................................. 84
Chapter 18 Appendix ....................................................................................................................................................... 85
18.1 Glossary .................................................................................................................................................................... 85
18.2 FAQ ........................................................................................................................................................................... 86
3
Mobile Network Video Recorder User Manual
User Manual
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the
properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter
referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”)
cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means,
without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision
does not make any warranties, guarantees or representations, express or implied, regarding
to the Manual.
About this Manual
This Manual is applicable to Mobile Network Video Recorder.
The Manual includes instructions for using and managing the product. Pictures, charts,
images and all other information hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without notice, due to firmware
updates or other reasons. Please find the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in
various jurisdictions. Other trademarks and logos mentioned below are the properties of
their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS
AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A
PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY
SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG
OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF
HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE
WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR
ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE
CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT
THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE
LATER PREVAILS.
4
Mobile Network Video Recorder User Manual
Regulatory Information
FCC Information
This device complies with Part 15 of the FCC Rules.
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Note: This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This product
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this product does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Operation is subject to the following two
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This eqipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
EU Conformity Statement
This product and
and comply therefore with the applicable harmonized European stan
if applicable
-
the supplied accessories too are marked with "CE"
-
dards listed
under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive
2011/65/EU.
5
2012/19/EU
Mobile Network Video Recorder User Manual
(WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For prope
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For more
information see:
2006/66/EC
www.recyclethis.info
(battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the battery to your supplier or to a designated collection point. For more
information see:
www.recyclethis.info
r
6
Mobile Network Video Recorder User Manual
Series
Model
DS-MP7608HN
DS-MP7608HN
DS-MP7608HN/GW
DS-MP7608HN/GW/WI
DS-MP7608HN/GW/WI58
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
Applicable Models
This manual is applicable to the models listed in the following table.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
7
Mobile Network Video Recorder User Manual
Safety Instructions
Proper configuration of all passwords and other security settings is the responsibility of
the installer and/or end-user.
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region. Please refer to technical specifications for detailed
information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited
Power Source with 9 to 32 VDC according to the IEC60950-1 standard. Please refer to
technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause
over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the
power cable, and then please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-free environment.
Keep all liquids away from the device.
Ensure environmental conditions meet factory specifications.
Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a
result of dropping it may cause damage to the sensitive electronics within the unit.
Use the device in conjunction with an UPS if possible.
Power down the unit before connecting and disconnecting accessories and peripherals.
A factory recommended HDD should be used for this device.
Improper use or replacement of the battery may result in hazard of explosion. Replace
with the same or equivalent type only. Dispose of used batteries according to the
instructions provided by the battery manufacturer.
8
Chapter 1 Panel Introduction
No.
Name
Description
1
Dummy HDD
Two HDDs can be installed.
2
Network interface
10M/100M/1000M RJ45 Ethernet interface.
3
USB 3.0
USB 3.0 interface.
4
PWR
Power indicator.
Solid green: Device is powered on.
Solid red: Device is standby.
RDY
Ready indicator.
Solid green: Device starts up normally.
REC
Recording indicator.
Solid green: Device is recording normally.
GNSS
GNSS indicator.
Unlit: Positioning module is abnormal.
Solid green: Device is positioning.
Flashing green: Positioning succeeded.
ANT ANT indicator.
1.1 Front Panel
Mobile Network Video Recorder User Manual
Figure 1-1 Front Panel
Table 1-1 Interface Description
9
1.2 Rear Panel
Unlit: Dialing module is abnormal.
Solid green: Device is dialing.
Flashing green: Dialing up succeeded.
ALM
Alarm indicator.
Red: Alarm occurs.
5
IR receiver
IR receiver for remote control.
6
Dummy HDD lock
Lock/unlock the dummy HDD.
7
SD card slot
Slot for SD card.
No.
Name
Description
1
CAN
2 × CAN interface.
2
RS-232
The left one is for debugging.
The right one is for connecting external devices.
3
RS-485
RS-485 interface for connecting devices like speed dome.
4
EXT.DEV
RS-422 communication interface, two-way audio interface,
and CVBS video output.
5
USB interface
USB interface of 5-pin aviation plug.
Mobile Network Video Recorder User Manual
Figure 1-2 Rear Panel
Table 1-2 Interface Description
10
Mobile Network Video Recorder User Manual
6
Power
6-pin aviation plug for power supply.
7
GNSS antenna
GNSS antenna interface.
8
PoE 1 to 8
8 × PoE interface.
9
Network
interface
1 × 10M/100M/1000M RJ45 Ethernet interface.
10
I/O
4-ch alarm input, 2-ch alarm output, 4-ch sensor in, 1-ch
pulse signal input.
11
VGA
VGA video output interface.
12
M-ANT
Main 3G/4G antenna interface.
13
AUX
Aux Wi-Fi antenna interface.
14
WIFI
Main Wi-Fi antenna interface.
11
Mobile Network Video Recorder User Manual
Chapter 2 Installation and Connections
2.1 Environment
To ensure the device can ventilate well, find a position with enough space. Recommended
installation space is shown in Figure 2-1.
Figure 2-1 Recommended Installation Space
2.2 Install HDD
Before You Start:
Prepare the tools and components for installation:
Factory recommended 2.5-inch HDD.
Antistatic gloves.
Key to dummy HDD (delivered with device).
Cross screwdriver.
Screws (delivered with device).
12
Mobile Network Video Recorder User Manual
Unfasten Screws
Dummy HDD
Figure 2-2 Tools
Purpose:
Perform the following steps to install the HDD on the device. Figures in following steps are
only for reference.
Step 1 Insert the key and turn counterclockwise to unlock dummy HDD.
Step 2 Unfasten the two screws of dummy HDD and pull dummy HDD out of device.
Figure 2-3 Pull Dummy HDD out
Step 3 Use cross screwdriver to loosen the two screws and remove them, and then take the
dummy HDD apart.
13
Mobile Network Video Recorder User Manual
Figure 2-4 Take Apart Dummy HDD
Step 4 Place the first HDD into the dummy HDD, with the PCB facing down.
Figure 2-5 Place HDD
Step 5 Push the HDD along the direction shown in Figure 2-6 to connect HDD with socket of
dummy HDD.
Figure 2-6 Push HDD
Step 6 Use four sunk screws to fix HDD with dummy HDD.
14
Mobile Network Video Recorder User Manual
Figure 2-7 Fix HDD
Step 7 Repeat step 4 to 6 to install the secondary HDD in the other socket of dummy HDD.
Figure 2-8 Install the Other HDD
Step 8 Reassemble the dummy HDD.
Figure 2-9 Reassemble Dummy HDD
15
Mobile Network Video Recorder User Manual
Step 9 Plug the dummy HDD back to the device and then tighten the screws clockwise.
Step 10 Turn the key clockwise to lock dummy HDD.
2.3 Install SIM Card
Purpose:
Pluggable 3G/4G wireless communication module is designed for the device and you should
install the SIM card to realize the wireless communication function.
Before You Start
Prepare the tools and components for installation:
SIM card
Wrench
Figure 2-10 Tools
Step 1 Use wrench to unfasten and remove the two screws fixing the 3G/4G and Wi-Fi
module.
Figure 2-11 Unfasten Screws
Step 2 Pull out the 3G/4G and Wi-Fi module.
Step 3 Press the yellow button on the 3G/4G slot and then pull the SIM card tray out.
Step 4 Place the SIM card on SIM card tray.
Step 5 Insert the SIM card tray back to SIM card slot.
Step 6 Install the 3G/4G module back to the device and tighten the set screw.
2.4 Install SD Card
Before You Start
Prepare the tools and components for installation:
Key to dummy HDD (delivered with device)
16
Mobile Network Video Recorder User Manual
Unfasten Screws
Dummy HDD
Interface
Corresponding Anntena
M-ANT
Main 3G/4G antenna
AUX
Aux Wi-Fi antenna
WIFI
Main Wi-Fi antenna
GNSS/
Positioning anntena
SD card
Figure 2-12 Tools
Step 1 Insert the key and turn counterclockwise to unlock dummy HDD.
Step 2 Unfasten the two screws of dummy HDD and pull dummy HDD out of device.
Figure 2-13 Unfasten Screws
Step 3 Open the cover of SD card slot.
Step 4 Insert SD card into SD card slot with gold contacts facing down till you hear a click.
Step 5 Plug the dummy HDD back to the device, close the cover of SD card slot, and then
tighten the screws clockwise.
Step 6 Turn the key clockwise to lock dummy HDD.
2.5 Install Antenna
Connect antennas to corresponding antenna interfaces.
Table 2-1 Antenna Interface
Connect antennas to corresponding antenna interfaces.
17
Mobile Network Video Recorder User Manual
Interface
Corresponding Anntena
M-ANT
Main 3G/4G antenna
AUX
Aux Wi-Fi antenna
WIFI
Main Wi-Fi antenna
GNSS/
Positioning anntena
Windshield
Antenna
Table 2-2 Antenna Interface
Place antenna vertically with its signal receiving end facing upward.
If the cable is too long, you can roll them up to prevent signal receiving from being
affected.
Install 3G/4G antenna in car windshield, seat backrest, or other non-metallic objects.
Keep away from metal objects for at least 50 cm.
Vertically install positioning antenna on the automobile roof with no shelter.
Follow the instructions below in case that you need to install positioning antenna inside
your automobile.
Install antenna on platform under the front windshield.
Figure 2-14 Install Positioning Antenna Inside Automobile
Fix antenna with neutral silica gel.
When adjusting the antenna position, ensure that at least 4 satellites have a signal
strength above 35 dB. You can go to Menu > Status > Position to view positioning
signal status.
Figure 2-15 Positioning Antenna Installation (on Automobile Roof)
18
Mobile Network Video Recorder User Manual
2.6 Power Cord Wiring
In order to ensure the safety of your automobile and device, a fuse is required for wiring of
automobile power and device power.
Do not connect the power cord to the device before all the cables are connected.
2.6.1 Shutdown Delay
Purpose:
The device starts up when your automobile ignites and shuts down after automobile is off.
Automobile ignition startup and shutdown are realized by automobile positive pole ignition
switch (providing high level signal when the switch closes). The wire connection of the device
varies with the automobile ignition models.
Ignition switch is connected to the positive pole of +12/24 VDC of automobile batteries. Make
sure that the connection is correct, and then perform the following steps:
Step 1 Connect the "DC IN +" of the device to the positive pole of automobile batteries,
jumping over the switch of normal automobile power.
Step 2 Connect the "DC IN -" of the device to the negative pole of automobile batteries.
Step 3 Connect the "ACC" of the device to the automobile ignition switch.
Step 4 Place the fuse into the fuse holder.
Figure 2-16 Install Fuse for Two Types of Power Supply
19
Mobile Network Video Recorder User Manual
ACC
DC IN
+
-
Automobile Ignition Switch
Device
Automobile
Battery
Automobile Power System
Wiring of Device
Point of Connection
Positive Pole
Negative Pole
Automobile Power Switch
Figure 2-17 Shutdown Delay
Please contact the automobile manufacturer for the connection information of
starting switch.
The automobile ignition switch, also called car key, controls the startup and
shutdown of your automobile. Most of automobiles adopt positive pole ignition
switch currently.
The normal automobile power refers to the main power of the automobile power
supply system. After the automobile is off, the normal automobile power still
provides direct-current source for the other devices inside and generally a main
switch is used to turn on/off it.
2.6.2 Scheduled Shutdown
Step 1 Connect the “DC IN +” and “KEY +” of the device to the positive pole of automobile
batteries.
Step 2 Connect the “DC IN -” and “KEY -” of the device to the negative pole of automobile
batteries.
Step 3 Place the fuse into the fuse holder.
What to do next: For detailed time settings of time-delay shutdown, see 16.1 Enable
Scheduled Startup/Shutdown.
20
Mobile Network Video Recorder User Manual
ACC
DC IN
+
-
Device
Automobile
Battery
Automobile Power Switch
Automobile Power System
Wiring of Device
Point of Connection
Negative Pole
Positive Pole
Alarm 1
IO
Alarm 2
Alarm 3
Alarm 4
1
2
15
16
Figure 2-18 Install Fuse for Two Types of Power Supply
2.7 Alarm Input/Output Connection
2.7.1 Alarm Input Connection
The device adopts the high/low-level electrical signals triggering (high level: 6 to 36 VDC; low
level: 0 to 5 VDC) to realize alarm input. And in order to avoid error report caused by voltage
fluctuation, no alarm will be triggered by voltage ranging of 5 to 6 VDC.
Figure 2-19 Scheduled Shutdown
Figure 2-20 Alarm Input Connection
21
Mobile Network Video Recorder User Manual
Relay
Output
n
n#
Load
GND
Power
Output
JQC-3FG
Relay
(10 A/250 VAC)
~ 220 VAC
NeutralLive
Relay
Output
n#
n
Alarm Powered by Direct Current Alarm Powered by Alternating Current
IO
Braking
Reversing
1
2
15
16
Left-turn
Right-turn
2.7.2 Alarm Output Connection
Follow the figure bellow to wire alarm output.
n and n# are a pair of alarm output. You can connect them with a relay alarm device. When
the voltage of connected alarm device exceeds the valid alarm output range, you need to
connect a relay to protect alarm output.
Figure 2-21 Alarm Output Connection
2.8 Sensor-in Wiring
Step 1 Connect the delivered extension cable to I/O interface.
Step 2 Connect the automobile braking, reversing, left-turn, and right-turn signals to sensor-in
interface.
Figure 2-22 Sensor-in Wiring
2.9 Power-on
Turn on the power supply after all the above installations are finished.
22
Mobile Network Video Recorder User Manual
You can view the indicators to get knowledge about the device status. For details, refer to
Table 1-1.
23
Mobile Network Video Recorder User Manual
Chapter 3 Start Up Device
3.1 Startup
Before you start:
Install the HDD. Refer to 2.1 Environment for details.
Connect the cables and modules correctly. Refer to Chapter 2 Installation and
Connections for details.
Step 1 Insert the key into the dummy HDD lock.
Step 2 Rotate it clockwise to ON status.
Do not perform any operations during the startup process.
The startup process takes about 1 minute. The system enters the live view interface
after startup.
3.2 Activation
Purpose:
For the first-time access, you need to activate the device by setting an admin password. No
operation is allowed before activation.
Step 1 Enter the same password in the text field of New Password and Confirm.
Figure 3-1 Set Admin Password
24
Mobile Network Video Recorder User Manual
STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password
of your own choosing (Using a minimum of 8 characters, including at least three of the
following categories: upper case letters, lower case letters, numbers, and special characters.)
in order to increase the security of your product. And we recommend you reset your
password regularly, especially in the high security system, resetting the password monthly or
weekly can better protect your product.
Step 2 Click OK to save the password and activate the device.
For the old version device, if you upgrade it to the new version, a dialog box will pop up
once the device starts up. You can click YES and follow the wizard to set a strong password.
25
Mobile Network Video Recorder User Manual
Chapter 4 Network
4.1 Set Local Network
Step 1 Go to Menu > Basic Settings > Network.
Figure 4-1 Local Network Settings
Step 2 Select Ethernet Port to configure.
Network Interface 1: The network interface in front panel.
Network Interface 2: The network interface in rear panel.
Step 3 Enter the device IP Address, Subnet Mask, Default Gateway, DNS Server Address, and
Download Server IP.
Step 4 Optionally, click Set of More Settings to enable/disable LAN Sharing.
LAN Sharing: Enable the function to share 3G/4G network to network interface.
The IP address of the device should be unique in the network and the default value is
192.168.1.64.
Step 5 Click OK.
4.2 Connect Wireless Network
4.2.1 3G/4G Dialing
Before you start:
Install a 3G/4G SIM card on the device. Refer to 2.3 Install SIM Card for details.
Step 1 Go to Menu > Basic Settings > Dial.
