Hangshi Technology HD192 1, HD192 User Manual

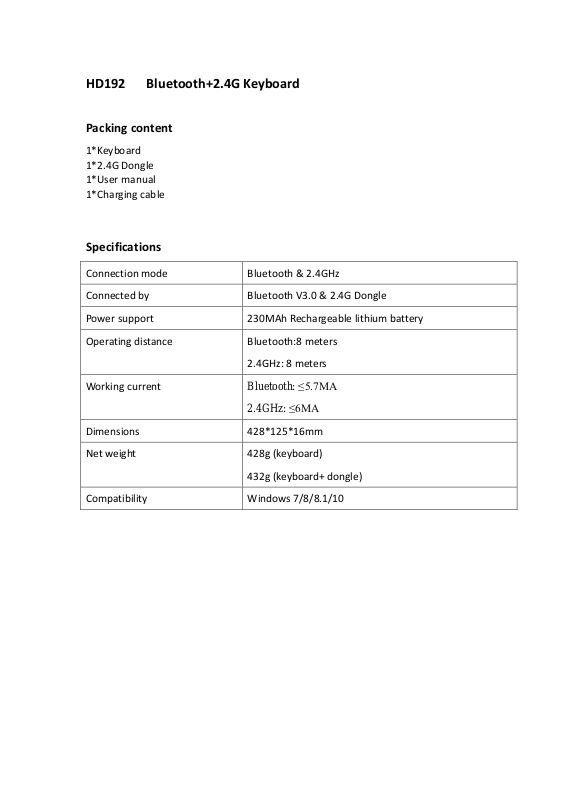

HD192 Bluetooth+2.4G Keyboard

Connection mode

Bluetooth & 2.4GHz

Connected by

Bluetooth V3.0 & 2.4G Dongle

Power support

230MAh Rechargeable lithium battery

Operating distance

Bluetooth:8 meters

2.4GHz: 8 meters

Working current

Bluetooth: ≤5.7MA

2.4GHz: ≤6MA

Dimensions

428*125*16mm

Net weight

428g (keyboard)

432g (keyboard+ dongle)

Compatibility

Windows 7/8/8.1/10

Packing content

1*Keyboard
1*2.4G Dongle
1*User manual
1*Charging cable

Specifications

Indicator

① Power button: Power on(Green)/Power off(Red)
② Power indicator(Blue)/Connection mode(blue)/Bluetooth pairing(blue)/2.4G pairing(blue)
③ Caps lock (green)
④ Numeric lock (green)
⑤ Fn lock (blue)
⑥ Charging(red)/Fully charged(green)/Low battery(red)

⑦ USB charging port

Pairing steps

2.4G mode pairing(First connection)

1.Power on& Enter 2.4G pairing mode: Slide power button rightward to show green, power
indicator flashes blue rapidly,2.4G mode enters pairing mode.

2.Finish pair: Plug 2.4G receiver into device USB port, take keyboard close to 2.4G
receiver as soon as possible. Indicator turns off, connecting successfully.

3.Choose operating language.
Windows: Win +Space / Shift + Alt

Note:
