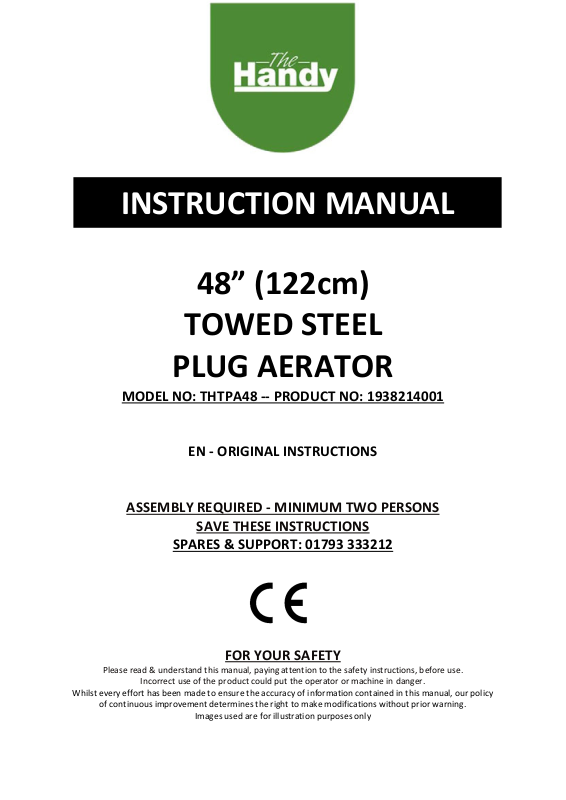

Page 1
INSTRUCTION MANUAL
48” (122cm)
TOWED STEEL
PLUG AERATOR
MODEL NO: THTPA48 -- PRODUCT NO: 1938214001
EN - ORIGINAL INSTRUCTIONS
ASSEMBLY REQUIRED - MINIMUM TWO PERSONS
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
FOR YOUR SAFETY
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our policy
of continuous improvement determines the right to make modifications without prior warning.
Images used are for illustration purposes only
Page 2
Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written
permission from Handy Distribution.
In all cases this copyright notice must remain intact.
Page 3
CONTENTS
SPECIFICATIONS
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
KNOW YOUR MACHINE
COMPONENTS
ASSEMBLY
OPERATION
MAINTENANCE
STORAGE
PARTS DIAGRAM & LIST
WARRANTY
CE DECLARATION OF CONFORMITY
ASSEMBLY IS REQUIRED - MINIMUM TWO PERSONS
This product requires assembly before use. See “Assembly” section for instructions. Because of the weight
and/or size of the aerator, it is recommended that another adult be present to assist with the assembly.
INSPECT ALL COMPONENTS closely upon receipt to make sure no components are missing or damaged.
TOOLS REQUIRED
• Rubber or Wooden Hammer
• 7 /16”, 1/2” & 3 /4” Wrenches
• Adjustable Wrench
• Pliers
If you require assistance with regards to the contents or operation of the machine, please contact us:
TEL: 01793 333212
EMAIL: [email protected]
(MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)
Page 4
SPECIFICATIONS
The manufacturer reserves the right to change the product specification and livery according to continued
product improvements.
Model THTPA48
Product Number 1938214001
Weight N.W 42kg
Working Width 48” (122cm)
Tray Load Capacity 63.5kg (140lb)
Box & Frame Steel
Max Aeration Depth 3” (7.6cm)
Plug Spike Diameter 5/8”
Tyre Pneumatic - 10.5x4” (26.6x10cm)
Recommended Tyre Pressure 25 PSI
Hitch Type Pin
Weight 42kg
IMPORTANT INFORMATION
INTENDED USE
The towed aerator is designed for use in private gardens and primarily used around GRASS OR LAWN AREAS,
but not in public facilities, parks or sports grounds and not for agricultural or forestry use. Never exceed the
rated load capacity of 63.5kg (140lb).
This is a garden aerator, therefore extended use over abrasive surfaces (e.g. concrete, tarmac etc.) could cause
premature wear on the tyres. Commercial or industrial environments are not recommended.
When operating with a tractor, do not exceed 5mph.
Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed.
Only perform work described in these instructions for use, any other use is incorrect. The manufacturer will
not assume responsibility for damage resulting from such use.
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are familiar with
the controls and properly operate the machine. Following these instructions can reduce the risk of personal
injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety instructions must be
followed to ensure reasonable safety and efficiency in using this product. The operator is responsible for
following the warning and safety instructions in this manual and on the machine. Never use the product unless
the components are correctly positioned and operational.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the equipment.
Never allow children or people unfamiliar with these instructions to use the product.
Local regulations can restrict the age of the operator.
Keep in mind that the operator or user is responsible for accidents or hazards involving the machine that occur
to other people or their property.
Page 5
GENERAL SAFETY INSTRUCTIONS
It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its
application and limitations as well as the specific potential hazards. Retain these instructions for future
reference. The operator is responsible for following the warnings & instructions in this manual and on the
product.

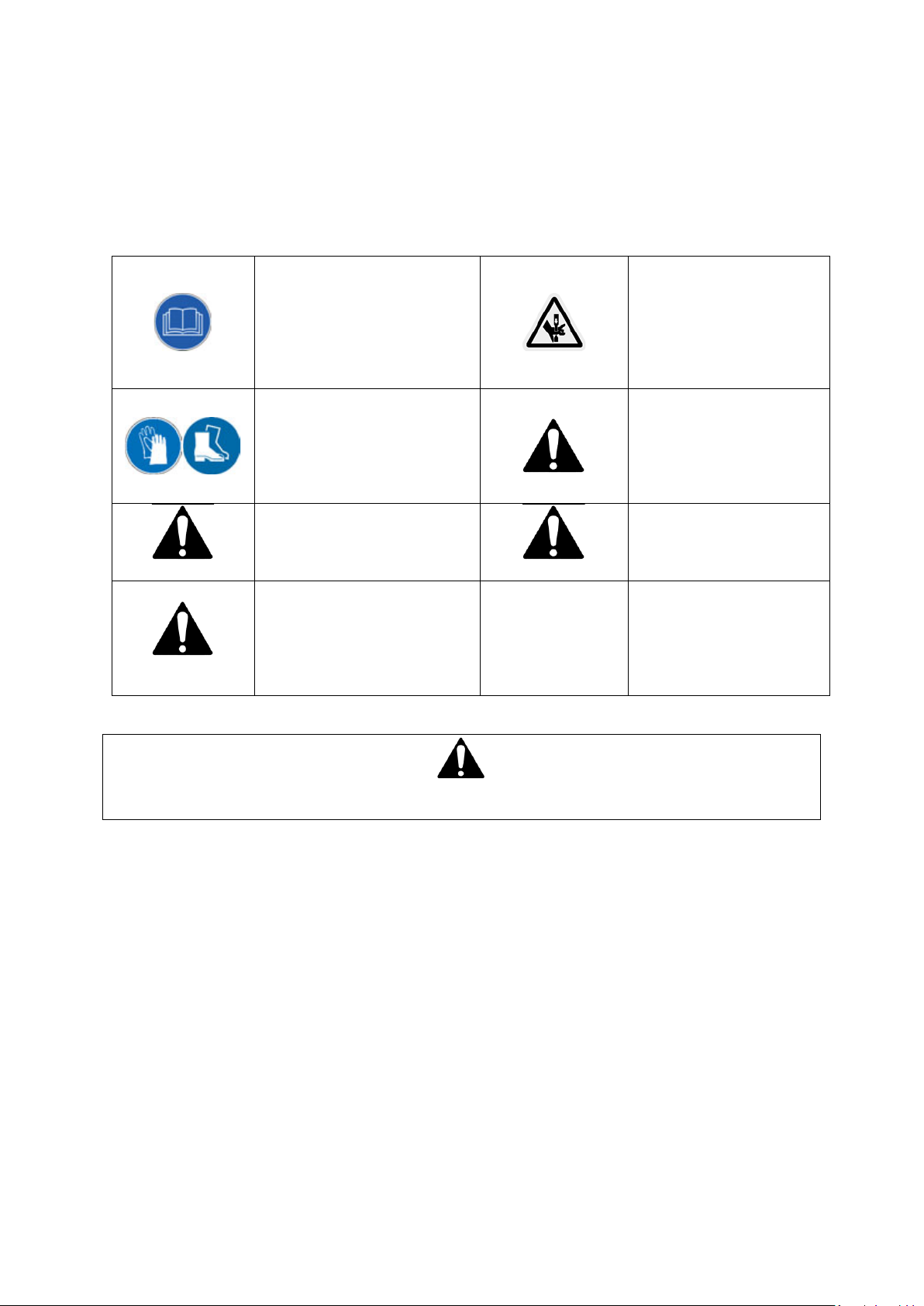

SAFETY SYMBOLS
Read & understand the
operator’s manual for the
aerator and the ride on product
used to pull the aerator before
DANGER
CAUTION
IMPORTANT SAFETY WARNINGS
using the machine. Failure to
follow instructions could result
in death or serious injury.
Wear gloves to protect your
Wear foot protection at all
Indicates an imminently
hazardous situation which, if not
avoided, will result in serious
Indicates a potentially hazardous
situation which, if not avoided,
may result in minor or moderate
hands.
times.
injury.
injury.
Keep hands out of the way of
WARNING
Used without the safety alert
CAUTION
Risk of Slicing.
all moving parts.
Safety alert symbol. Used to
alert you to potential
personal injury hazards.
Obey all safety messages
that follow this symbol to
avoid possible injury.
Indicates a potentially
hazardous situation which, if
not avoided, could result in
serious injury.
symbol indicates a
potentially hazardous
situation which, if not
avoided, may result in
property damage.
TO REDUCE RISK OF INJURY: Before any use be sure everyone using this product reads and understands all
safety instructions and other information contained in this manual.
GENERAL SAFETY
STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect
your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand.
Be aware of what you are doing at all times. Use common sense.
USERS
Do not at any time carry passengers sit or stand on the aerator. Do not allow children to play on, stand upon or
climb on the aerator. Never allow children or people unfamiliar with these instructions to use the machine.
Local regulations can restrict the age of the operator.
AVOID DANGEROUS CONDITIONS
Work in daylight or in good artificial light; always be sure of your footing on slopes; walk, never run with the
machine; exercise extreme caution when changing direction on slopes; do not work on excessively steep
slopes; use extreme caution when reversing or pulling the machine towards you; do not put hands or feet near
or under rotating or moving parts.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons a safe distance away from the machine. If approached, stop the machine
immediately. Do not allow children to handle, climb on or use the machine. Keep in mind the operator or user
is responsible for accidents or hazards occurring to other people or their property.
Page 6
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and drive
mechanisms. Vibration during use, may cause these to loosen.
Form a habit of checking to see that all other tools/equipment are removed from the working area before
turning it on. Replace damaged, missing or failed parts before using it. Warning labels carry important
information. Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches), which can be caught in
moving parts. Always wear long trousers. Always wear substantial non slip, substantial or heavy-duty safety
footwear are highly recommended when working. Never operate barefoot or when wearing sandals. Wear a
face or dust mask if the operation is dusty. Always wear safety glasses/goggles and/or face shields. Everyday
eyeglasses have only impact resistant lenses; they are not safety glasses/goggles. Wear protective hair
covering to contain long hair, preventing it from getting caught in machinery.
DO NOT OVERREACH
Always keep proper footing and balance when using the machine. Use on slopes with great care. Never stand
on the machine. Serious injury could occur if the machine is tipped or if the moving parts are unintentionally
contacted. Do not store anything above or near the machine, where anyone might stand on the machine to
reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands & feet out of the way of all moving parts. Do not place any part of your body or any tool e.g. in the
machine during operation.
DO NOT FORCE TOOL
Do not exceed equipment maximum load capacity of 63.5kg (140lb). Avoid large holes and ditches when
transporting loads. Always work within the rated capacity. Do not use machine for a purpose for which it was
not intended. Be careful when operating on steep grades (hill) the aerator may tip over. Always operate at
reduce speed in rough terrain, along creeks, ditches and on hillsides. Do not operate close to creeks, ditches
and public highways. To avoid personal injury and/or equipment damage DO NOT EXCEED 5 MPH. Always use
caution when loading and unloading the aerator. Only tow with recommended vehicles (Lawn/Garden Tractors
and ATVs). Always secure and lock aerator to the vehicle hitch before operating.
TYRE INFLATION
Only use HAND or FOOT manual operated tyre inflation machines, not mechanical and do not exceed
recommended PSI.
NEVER LEAVE MACHINE RUNNING UNATTENDED
Do not leave the machine unattended until it has come to a complete stop.
INSPECT
Before using, always visually inspect to see that the tools are not worn or damaged. Replace worn or damaged
elements and bolts in sets, to preserve balance.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use. Keep the machine clean to ensure it operates to it’s full and safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should be
used. The use of non-original manufacturer parts may invalidate your warranty.
PROTECT THE ENVIRONMENT
Take left over materials to an authorised collection point or follow the stipulations in the country where the
machine is used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry location. Keep the machine away from children and
others not qualified to use it. Keep away from direct sunlight.
WARNING
The warnings, cautions, and instructions outlined in this instruction manual cannot cover all possible
conditions or situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product and must be supplied by the operator.
Page 7

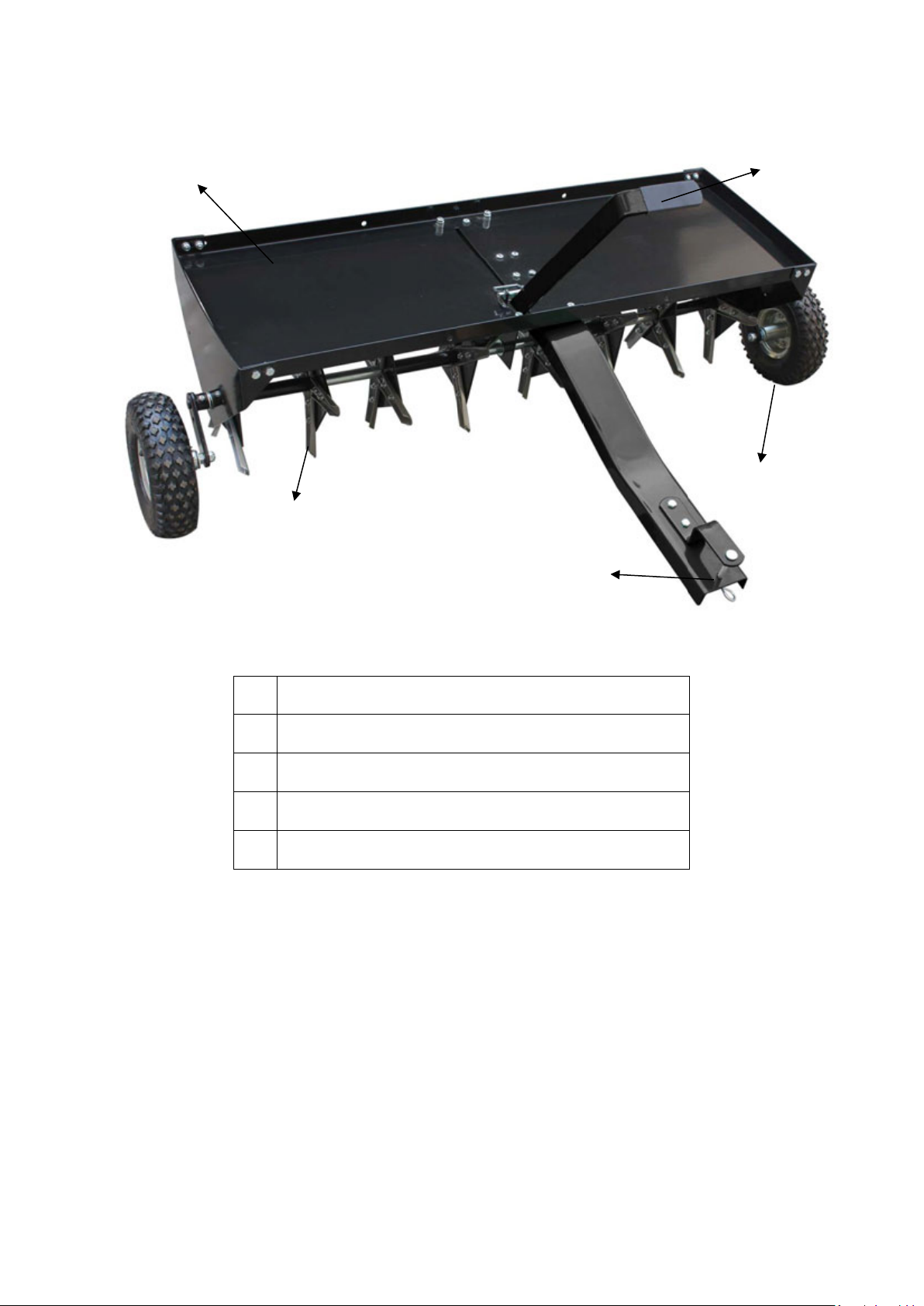

KNOW YOUR MACHINE
1
2
5
3
4
1.
2.
3.
4.
Pin-type design for use with only approved ride on machinery
5.
Positions plug spikes up or down.
Do not exceed recommended 25 PSI pressure
Pulls small soil plugs from ground.
Steel Load Bay
Do not exceed 63.5kg (140lb)
Lift Handle
Wheel & Tyre Assembly
Hitch
Plug Spikes
Page 8
COMPONENTS
This product must be assembled correctly before use. Carefully remove the product and any accessories from
the carton. Inspect the product carefully to make sure there are no breakages or damage occurred during
shipping. Do not discard the packing material and carton until you have carefully inspected and satisfactorily
operated the product.
Take all parts out of the carton and inspect components to ensure there are no missing pieces before starting to
assemble the aerator.
TOOLS REQUIRED
• Rubber or Wooden Hammer
• 7 /16”, 1/2” & 3 /4” Wrenches
• Adjustable Wrench
• Pliers
If you require assistance with regards to the contents or operation of the machine, please contact us:
TEL: 01793 333212
EMAIL: [email protected]
(MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed
this warning could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this product. Any
such alteration or modification is misuse and could result in a hazardous condition leading to possible
serious personal injury.
Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment
could result in serious injury to the user or bystanders, or cause equipment damage.
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
A Hex Bolt M12x110 2 M
B
C
D
E
F
G
H
I
K
L
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
1 Tray
2 Wheel Bracket
3 Middle Brace
4 Hitch Bracket
5 Tongu e
Hex Bolt 1/4”x 1-9/16”
Hex Bolt M8x30
Hex Bolt M8x25
Hex Bolt M8x20
Lock Pin
Cotter Pin
Hitch Pin
Hex Lock Nut M12
Hex Lock Nut M8
Hex Lock Nut 1/4”
3 N
6 O
6 P
8 Q
1 R
1 S
1 T
2 U
20 V Shoulder Spacer 1
3
1
3
1
1
1
6
7
8
9
10
Flat Washer Ø8
Big Flat Washer Ø12
Hex Nut M12
Flat Washer Ø20
Spacer 0.27” Long
Spacer Tube 2.95” Long
Spacer Tube 1.00” Long
Spacer Tube 2.36” Long
Spacer Tube 5.31” Long
End Plate
Lift Handle
Shaft
Double Spool Assembly
Wheel
8
4
2
6
8
1
2
1
2
2
1
1
4
2
Page 9
Note: you may have extra nuts & bolts when finished.
Page 10
ASSEMBLY
CAUTION
When assembling or using the aerator exercise caution at all times, the plug spikes are sharp and may result
in serious injury to the user or bystanders.
STEP 1
1. Slide the wheel bracket over the axle shaft and position over the center axle hole using 1/4”x1-9/16” hex
bolt and the 1/4” lock nut. (Tighten).
2. Pre-assemble a M8x30 hex bolt and M8 hex lock nut to the smaller hole in the wheel bracket. Insert the
bolt from the hub side of the bracket. Do not tighten yet.
Wheel Bracket
ring needs to
face the short
end of the axle.
STEP 2
Assemble a double spool assembly (knives facing in), a 5.31” long spacer, another double spool assembly
(knives facing out), a 1.00” long spacer and a Ø20 flat washer onto the short end of the shaft.
Page 11

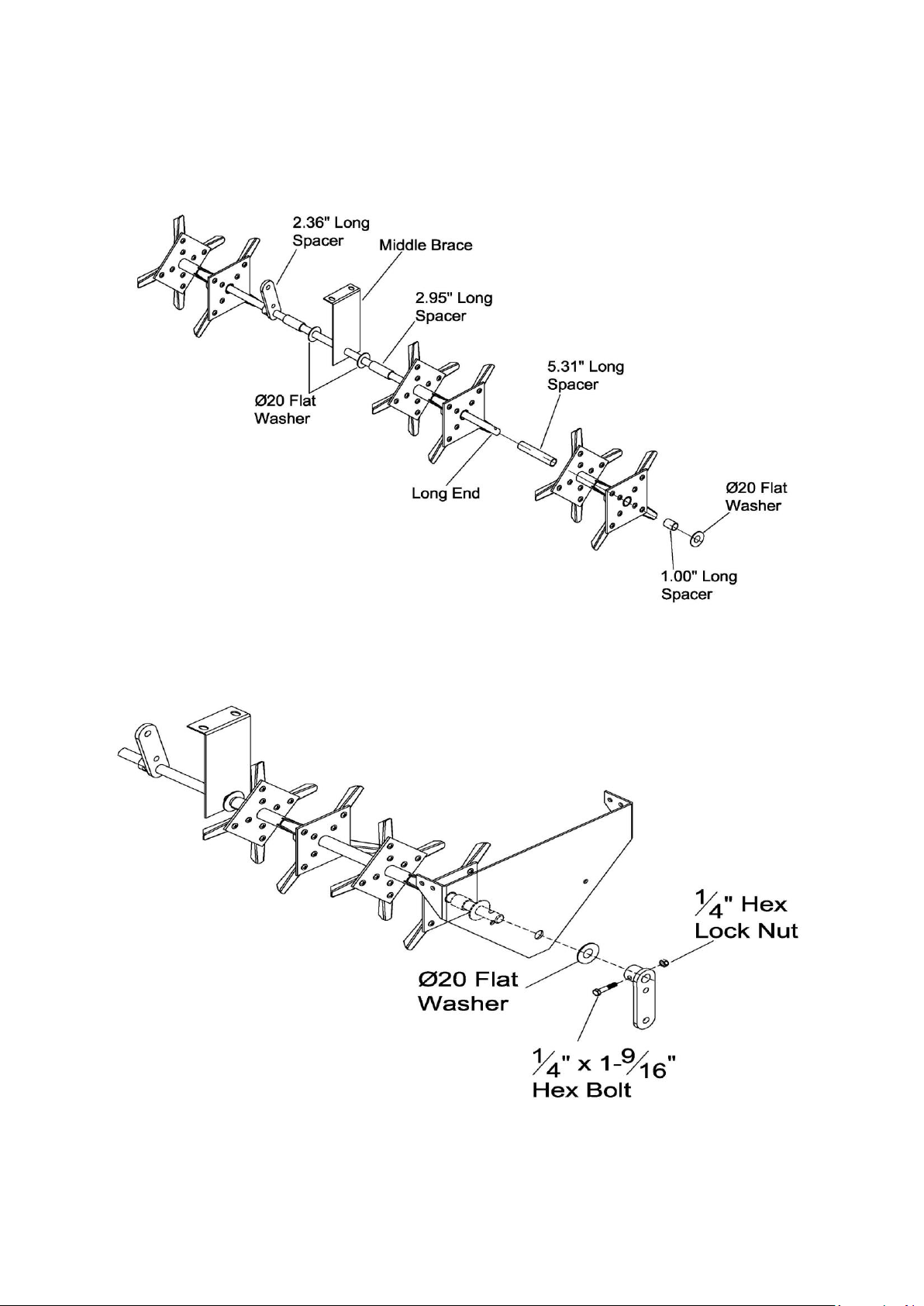

STEP 3
Assemble a 2.36” long spacer, a Ø20 flat washer, the middle brace, a Ø20 flat washer, a 2.95” long spacer, a
double spool assembly (knives facing in), a 5.31” long spacer, a double spool assembly (knives facing out). a
1.00” long spacer and a Ø20 flat washer onto the long end of the shaft, the bent lip of the middle brace must
face the short end of the shaft.
STEP 4
Rotate the wheel bracket fastened to the middle of the shaft so that it is pointing up. Assemble an end plate, a
Ø20 flat washer and a wheel bracket onto the long end of the shaft. Point the wheel bracket as shown in
Fig.4.Fasten to the shaft using a 1/4”x1-9/16” hex bolt and 1/4” hex lock nut. Tighten. Repeat for the other end
of shaft.
Page 12

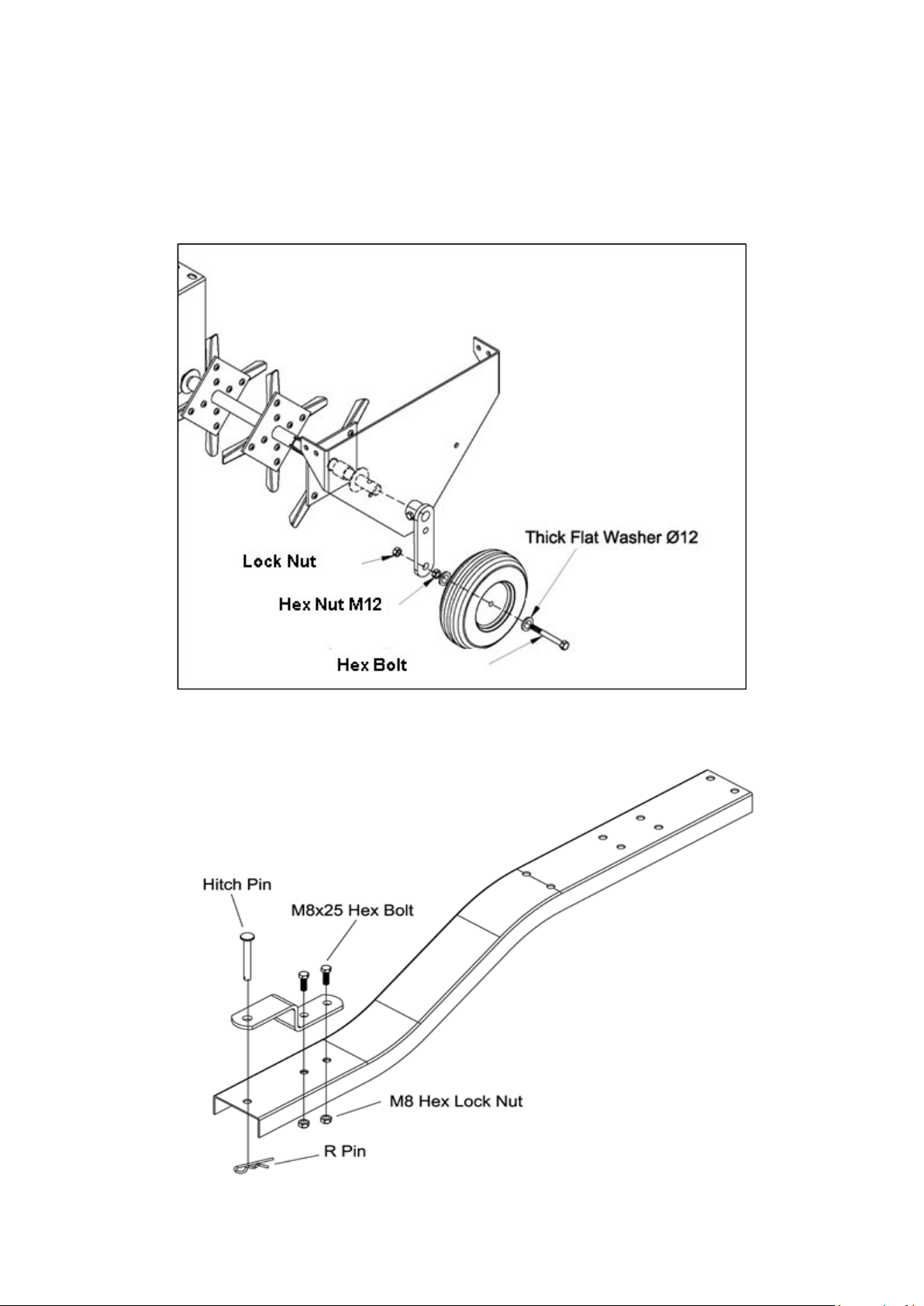

STEP 5
1. Add a thick flat washer ø12 to M12x110 hex bolt, then Insert the bolts through the wheel, add a thick flat
washer ø12 onto the bolt, to the inside of the wheel.
2. Put the M12 hex nut (I) on the end and tight, then loosen the hex nut (I) a 1 /2 turn.
3. Slide assembled wheel through wheel bracket and fasten with 1/2” lock nut.
4. Repeat steps 1-3 for the other side and tighten all hardware.
NOTE: Make sure the both wheels spin freely after assembly.
STEP 6
1. Assemble the hitch bracket to the tongue using two M8x25 hex bolts and M8 hex lock nuts. Tighten.
2. Assemble the hitch pin through the hitch bracket and the tongue. Secure it with the hair cotter pin.
Page 13

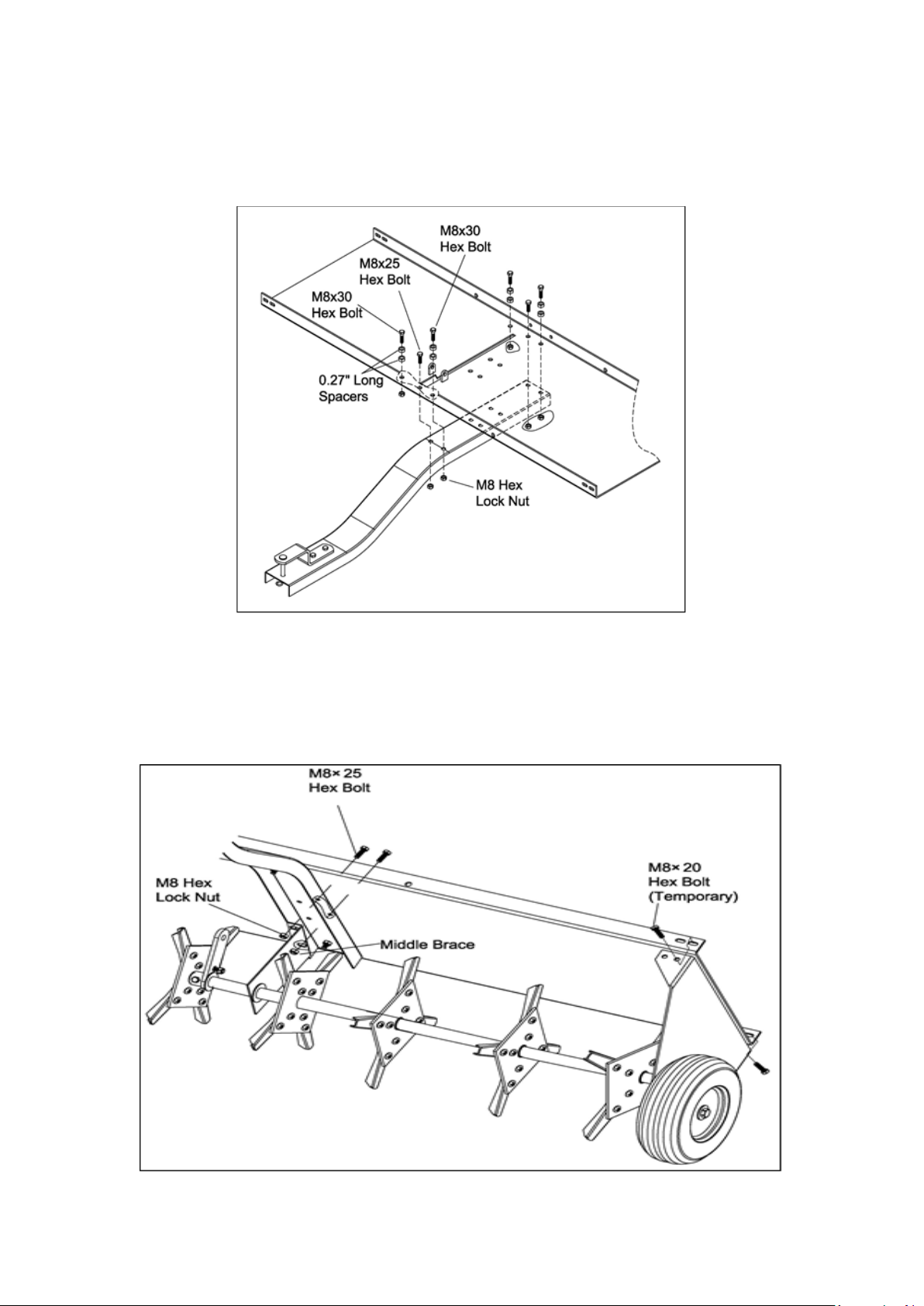

STEP 7
1. Assemble the tongue to the tray, placing the wide end of the tray slot to the front. Use two M8x25 hex
bolts, two M8x30 hex bolts, four 0.27” long spacers, four M8 hex lock nuts. Tighten.
2. Assemble two M8x30 hex bolts, four 0.27” long spacers, two M8 hex lock nuts to the holes on the right
side of the slot in the tray. Tighten.

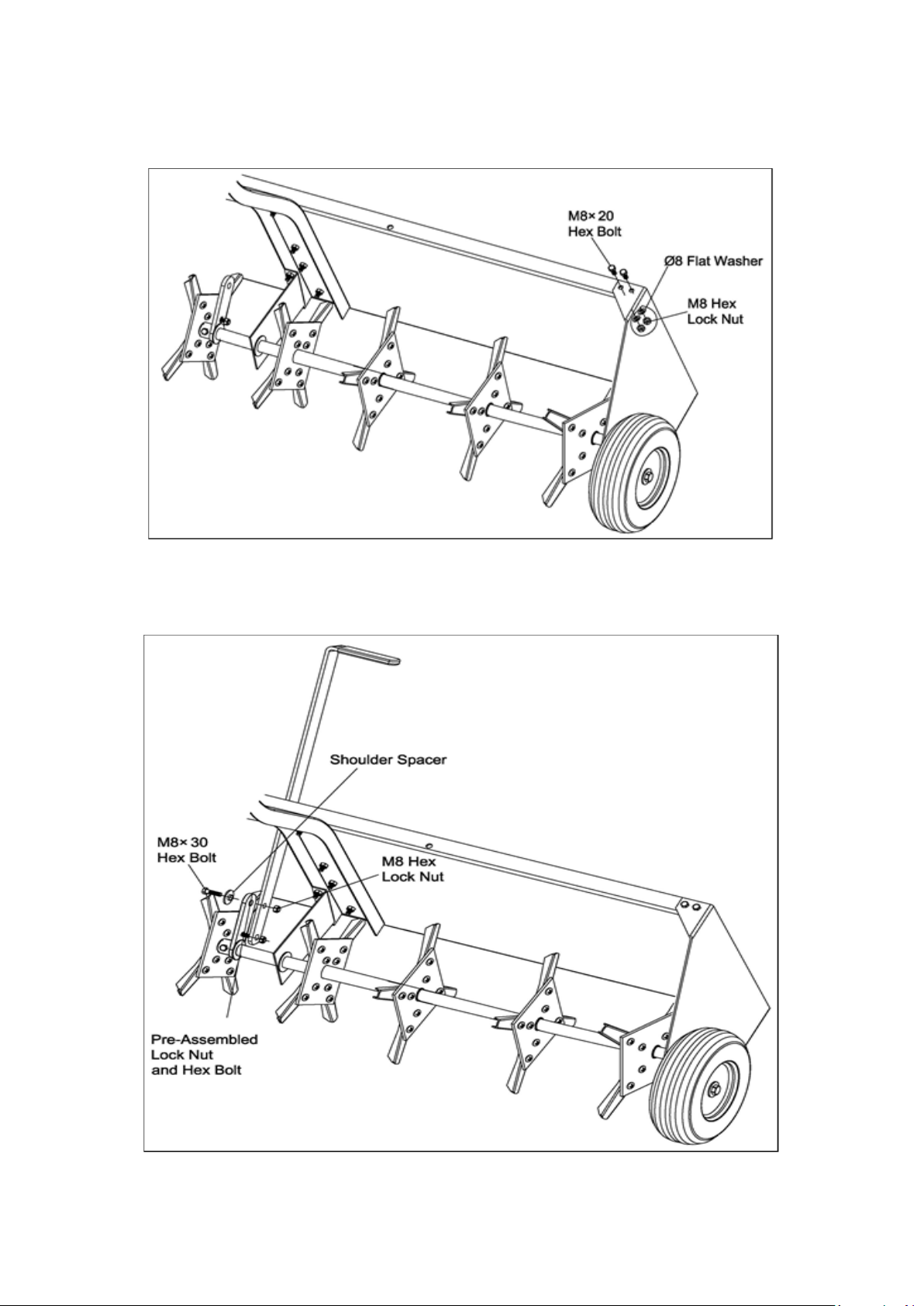

STEP 8
1. Align the tray between the end plates. Use three M8x20 hex bolts to temporarily secure three corners of
the tray to the end plates. Leave one upper corner empty. Attach both end plates (3) to the tray (1) using
5/16” x 7/8” hex bolt (D), Ø8” flat washer (M) and secure with 5/16” lock nut (K) each corner. Each corner
has two 2 connections.
2. Rotate the middle brace up against the tongue, aligning it with the holes that are closest to slot in the tray,
fasten the brace to the tongue using two M8x25 hex bots, M8 hex lock nuts. Do not tighten until final
step.
Page 14
STEP 9
1. Assemble both of the end plates to the tray using eight M8x20 hex bolts, Ø8 Flat washers, M8 hex lock
nuts. Do not tighten until final step.
STEP 10
Place the lift handle through the slot in the tray. Fasten the lift handle to the smaller hole in the middle wheel
bracket using the bolt and hex lock nut which you pre-assembled earlier (Fig.1). Fasten the lift handle to the
larger hole in the wheel bracket using a M8x30 hex bolt, the shoulder spacer, a M8 hex lock nut. Tighten.
Page 15

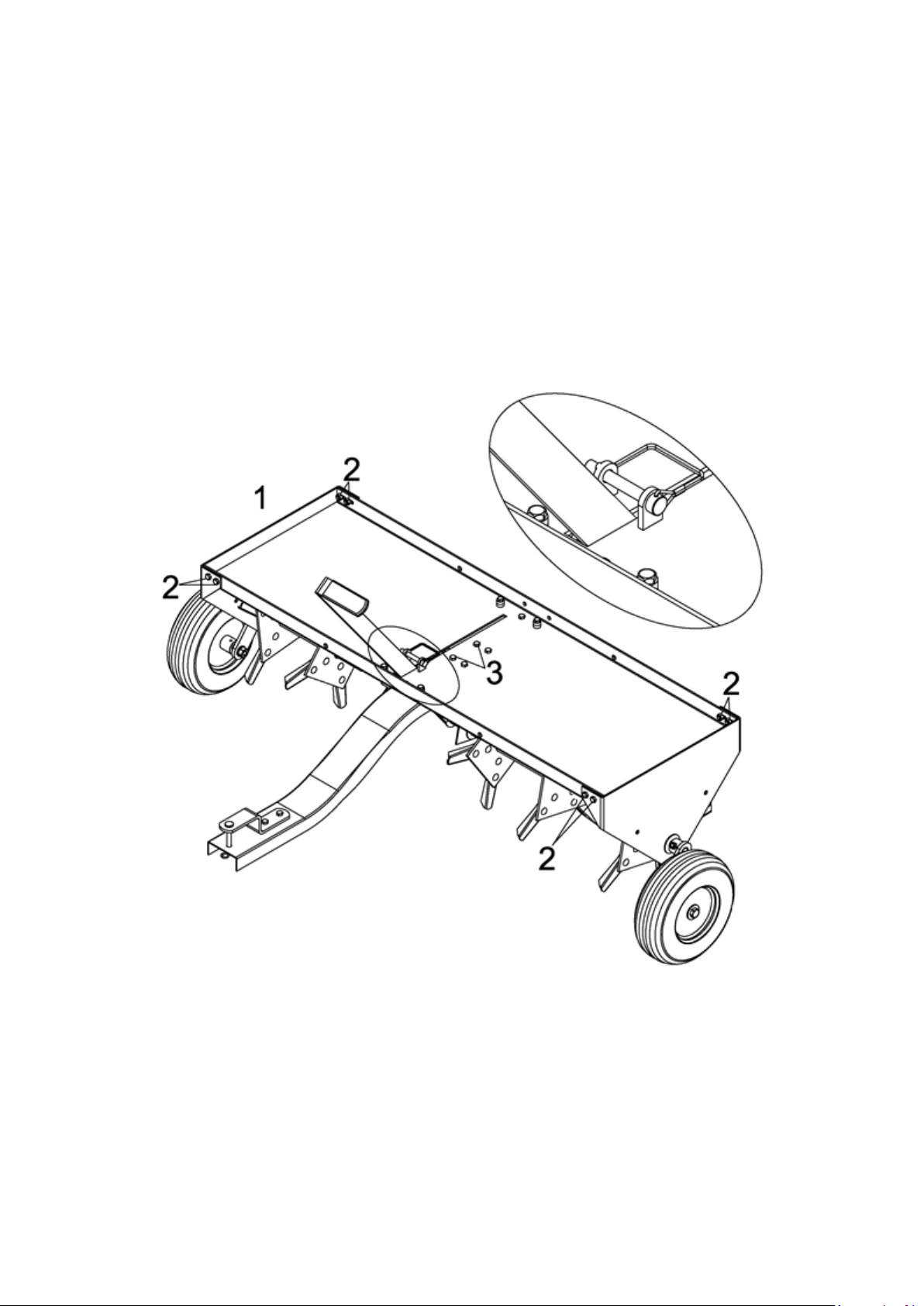

STEP 11
1. Place the aerator right side up, lock the lift handle in the offset position at the front of the tray slot.
2. Perform the following to correct lift handle alignment with the tray slot opening
• Adjust the tray (1) from side to side until the lift handle (4) rests against the front right side (viewed
from rear) of the tray slot (offset).
• Straighten the end plates (3) and then tighten the eight bolts on each corner of the tray, making sure
the lift handle (4) still rests against the right side of the tray slot (offset).
• Straighten the middle brace (2) and tighten the two bolts which fasten it to the tongue.
3. You will need some force to position the lift handle (4) into position when lowering the aerator.
4. Make sure all hardware is tight before operating the aera tor.
NOTE: BEHIND THE LIFT ARM on the top tray is a place for a locking pin. Slide the locking pin through the holes
with the aerator in the upright position. The safety lock keeps the aerator from dropping down while it is being
towing and not in use. This will prevent damage to plug spikes.
Page 16
OPERATION
WARNING
Before using the aerator, review the instructions below and safety information. Failure to follow these
instructions may result in property damage or injury to the operator or bystanders.
IMPORTANT:
Aerating is pulling small soil plugs up to three inches in length from the soil to create small reservoirs that will
bring oxygen, fertilizer and water down to the roots. For best aerating results follow the soil/lawn preparation
and operating aerator procedures.
SOIL AND LAWN PREPARATION
1. Remove all debris from the work area.
2. If the ground is hard and dry, it is recommended the ground is watered for one or two hours prior to aerating.
3. If the ground is wet or muddy, DO NOT attempt to aerate.
4. Mow lawn and remove loose clippings before aerating.
USING YOUR AERATOR
1. DO NOT exceed rated load capacity of 63.5kg (140lb).
2. ALWAYS secure and lock the aerator to the ride on machinery hitch before operating.
3. ONLY use approved vehicles when towing the aerator (Lawn/Garden Tractors and ATVs).
4. DO NOT at any time carry passengers on the aerator.
5. Start vehicle engine with the controls in neutral position, put throttle at the slowest engine speed. Put
transmission in low gear first and lower the aerator, allowing plug spikes to enter the ground. Increase the
speed as work conditions permit.
6. Vehicle braking and stability may be affected with the attachment of this equipment.
7. NEVER EXCEED 5MPH when towing the aerator.
8. Aerate in the straightest line as possible, making overlapping passes to increase the plug spike point
pattern.
9. DO NOT make sharp turns that may cause the vehicles tyres to rub against the aerator.
10. Avoid extremely sharp turns with plug spikes engaged to prevent damage to lawn.
11. DO NOT cross over paths or driveways, without raising the aerator to the transport position.
12. On sloped lawns, always aerate in an up and down direction. DO NOT attempt to aerate across the slope,
always go in an up and down direction.
13. Always use caution when backing the aerator to avoid “jack-knifing”. Always back up in a straight line.
14. To increase the depth of plug spike penetration extra weight may be add to the tray (Max. 140lb) use
either bags of sand or concrete blocks. Always secured the weight to tray with ties or straps fastened to
the front and rear of the tray. The ties or straps cannot become entangled on rotating parts.
ATTACHING THE AERATOR TO THE TOW VEHICLE
• Park the tow vehicle and aerator on level ground.
• Set the height adjustment handle to middle of its adjustment.
• Insert the hitch pin through the hitch brackets and towing eye of the tow vehicle and secure with the
cotter pin.
CAUTION
To avoid and prevent injury always dismount from approved vehicle to raise or lower aerator when extra
weight has been added to the tray.
Page 17
MAINTENANCE
WARNING
Improper maintenance and storage of the aerator may void your warranty.
• Rinse/dry inside and outside of the aerator after each use.
• Before operating make sure the tyres have the recommended 25 PSI tyre pressure (DO NOT EXCEED).
• Regularly grease the axle and the wheel bearing area or when needed.
• Periodically check all fasteners for tightness.
• Annually clean and lightly lubricate parts.
• Use a glossy enamel spray paint to touch up scratched or worn painted metal surfaces.
• Plug spikes periodically need to be sharpened with a small grinder to maintain good penetration. Spools
should be removed to sharpen the points. Always follow the original angle and contour of the points when
grinding. Ideally, this should be undertaken by an approved service dealer of your local garden machinery
specialist.
• Never exceed load capacity rating of 63.5kg (140lb).
IMPORTANT:
If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts
that do not meet specifications may result in a safety hazard or poor operation. Please contact our Parts Team
for availability, who can be contacted Tel: 01793 333212, option 1 for assistance.
STORAGE
• Never allow material to remain on the aerator for extended periods of time.
• Before storing, make sure the aerator is clean and dry for years of trouble-free service.
• Store indoors or in a protected area during severe weather and winter months.
• When storing outside, always keep the tongue a little higher than the back of the aerator to allow the
moisture to easily run out the back and will not accumulate on the aerator.
Page 18
NOTE: Parts Lists are supplied for information
purposes only, not all parts are stocked
individually & we recommend you contact
our Spares Team on 01793 333212 for expert
advice.

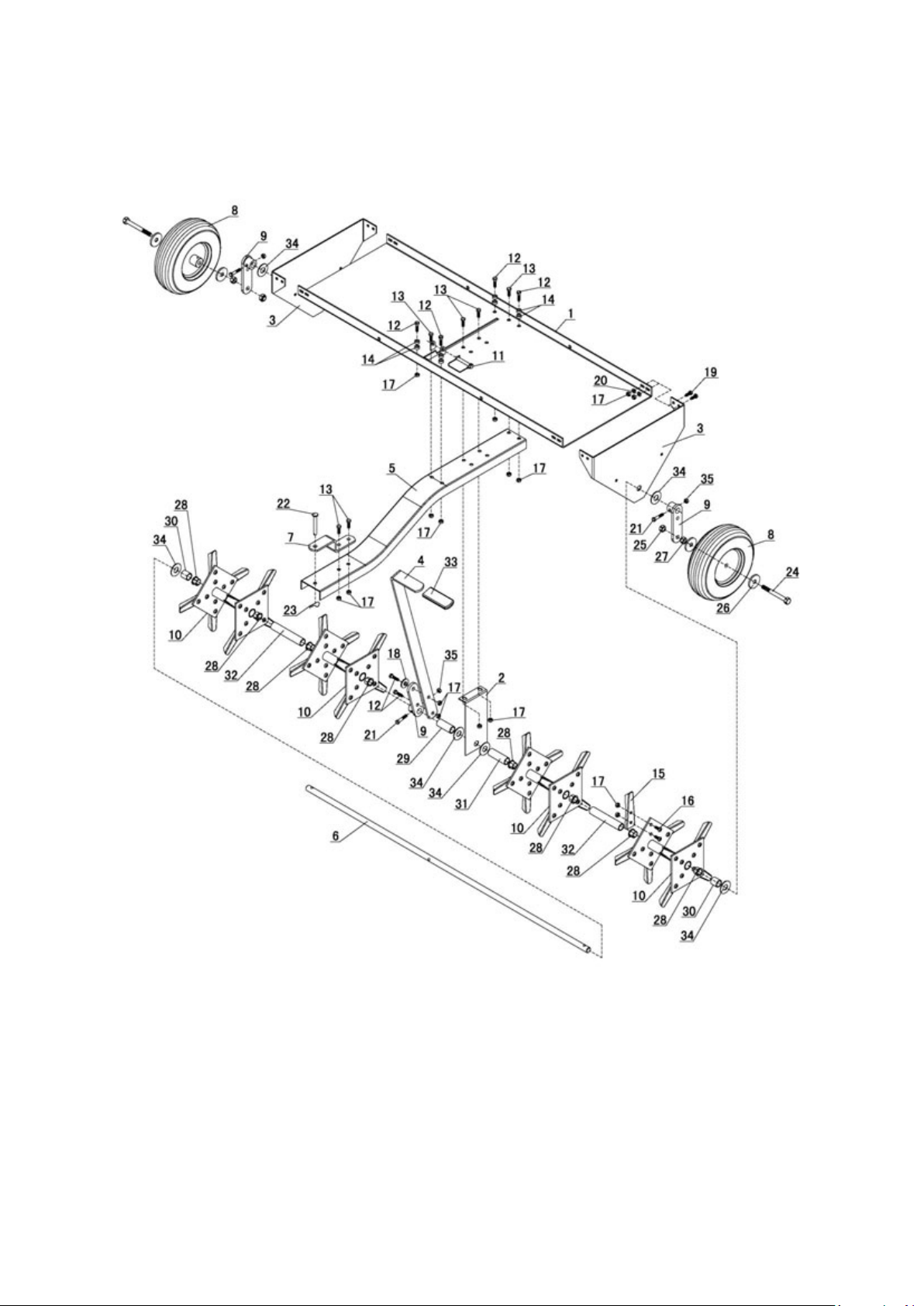

PARTS DIAGRAM – THTPA48 (1938214001)
Page 19
PARTS LIST – THTPA48 (1938214001)
ITEM NO.
HANDY PART NO.
DESCRIPTION
QTY
1 TH256-1 Tray
1
2 TH256-2
Middle Brace
1 3 TH256-3
End Plate
2 4 TH255-4
Lift Handle
1
5 TH256-5
Hitch Tongue
1
6 TH256-6 Shaft
1 7 TH255-7
Hitch Bracket
1 8 TH255-8 Wheel
2
9 TH255-9
Wheel Bracket
3
10 TH255-10
Double Plug Spool
4 11 TH256-11
Lock Pin
1 12 TH256-12
Hex Bolt M8x30
6
13 TH256-13
Hex Bolt M8x25
6
14 TH256-14
0.27” Long Spacer
8 15 TH255-15
Knife Tool
32 16 TH256-16
Carriage Bolt M8x20
64
17 TH256-17
Lock Nut M8
84
18 TH256-18
Shoulder Spacer
1 19 TH256-19
Hex Bolt M8x20
8 20 TH256-20
Flat Washer Ø8
8
21 TH256-21
Hex Bolt 1/4” X 1-9/16”
3
22 TH256-22
Hitch Pin
1 23 TH256-23 R Pin
1 24 TH256-24
Hex Bolt M12x110
2
25 TH256-25
Lock Nut M12
2
26 TH255-36
Washer Ø32
4 27 TH256-27
Hex Nut M12
2 28 TH255-28
Split Plastic Bearing
8
29 TH256-29
2.36” Long Spacer
1
30 TH256-30
1.00” Long Spacer
2
31
TH256-31
2.95” Long Spacer
1 32 TH256-32
5.31” Long Spacer
2
33 TH255-33
Handle Grip
1
34 TH256-34
Flat Washer Ø20
6 35 TH256-35
Lock Nut 1/4”
3
Page 20
GJ HANDY & CO LTD USER WARRANTY POLICY
Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and
repairing those parts, which are of original manufacture.
Period of Warranty
Webb (excludes Electric Handheld, Dynamic, Heritage, Legacy), Webb Pro, Sanli Engine
a) 2 years from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. but not limited to wheels, tyres, cutter bars, cylinders, cutting blades, blade boss, belts, cables,
nylon line & spool, collection bags, spark plugs).
e) Engines are supplied with a separate warranty to the machine. The engine manufacturers warranty
statement which will be supplied within the engine instruction manual. All enquiries and warranty
repairs should be discussed with the engine manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear & tear
component, which are covered for 30 days).
g) All machines’ must be serviced within the first 12 months from the original date of purchase to comply
with the warranty, failure to do so will invalidate the 2nd year of the warranty.
Webb Electric Handheld, Webb Dynamic, Heritage & Legacy, Handy, Mowerland, Q-Garden
a) 1 year from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. but not limited to wheels, tyres, cutter bars, cylinders, cutting blades, blade boss, belts, cables,
nylon line & spool, collection bags, spark plugs).
e) Engines are supplied with a separate warranty to the machine. The engine manufacturers warranty
statement which will be supplied within the engine instruction manual. All enquiries and warranty
repairs should be discussed with the engine manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear & tear
component, which are covered for 30 days).
All warranty repairs must be undertaken by an authorised service dealer. These dealers have been accredited by
GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair procedures.
Not covered by this warranty
a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or
corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres,
belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has
evidence of faulty manufacture.
c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being
modified without the written approval of GJ Handy & Co Ltd.
d) The warranty policy will not cover the unit if non-genuine parts have been fitted and as a result damage
has occurred to the unit.
e) The warranty policy is non-transferable and is only applicable to the original purchaser.
Page 21
Disclaimer
a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms
of the merchantability or the fitness for a particular purpose.
b) No person is authorised to make any warranties, representations or promises, expressed or implied, on
behalf of GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in
any way.
c) Neither GJ Handy & Co Ltd nor any company affiliated with GJ Handy & Co Ltd shall be liable in any event
or manner whatsoever for incidental or consequential damages or injuries, including, but not limited
to, loss of crops, loss of profit, out of pocket expenses or profits, rental of substitute equipment or other
commercial losses.
General
a) Most warrantable failures show up within the first few weeks of use. These failures are usually
straightforward and warranty assessment is relatively easy.
b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be
straightforward. Look for damage to blades and pulleys especially when the cutter belt or blade boss
have snapped or cracked as this could be due to impact damage.
c) Customers should always refer to the operator/instruction manual when any disputed problem arises,
you will find most areas covered within the manual.
Page 22
EC DECLARATION OF CONFORMITY
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product:
Designation: 48” (122cm) Towed Steel Garden Aerator
Model(s): THTPA48
Product Number: 1938214001
Type/Serial No: As per rating label on machine
Max Load Capacity: 63.5kg (140lb)
Complies with the following directives:
2006/42/EC – Machinery Directive
The conformity assessment procedure followed was in accordance with
EN ISO 12100:2010,
EN 349:1993+A1:2008,
EN ISO 1420:2015,
EN ISO 13857:2008
Notified Bodies:
ENTE CERTIFICAZIONE MACCHINE
Address(es):
Via Ca’ Bella, 243 - Loc. Castello id Serravalle - 40053 Valsamoggia (BO) - ITALY
Authorised signatory & technical file holder
Date:
23/05/2019
Signature:
Name:
Mr. Simon Belcher
Position:
Chairman
Company:
Handy Distribution Ltd
Address:
Murdock Rd, Dorcan, Swindon, Wiltshire, SN3 5HY.
Page 23
Page 24
For spares or support of your handy product,
please contact us:
Tel: 01793 333212
Email: [email protected]
(Mon – Fri 8.00am to 5.30pm excl. Bank Holidays)
To see our range of garden machinery & equipment visit:
www.thehandy.co.uk
Making gardening easier & affordable since 1938
Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY
Loading...
