Handy Thlgt User Manual
03/02/2018 v4
LARGE GARDEN
TROLLEY
Model No: THLGT -- Product No: 193857001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying attention to the safety instructions, before use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Images used are for illustration purposes only and may differ from the actual product.
INSTRUCTION MANUAL
CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
SET UP & PREPARATION FOR OPERATION
ASSEMBLY
MAINTENANCE & STORAGE
TROUBLE SHOOTING
PARTS DIAGRAM & LIST

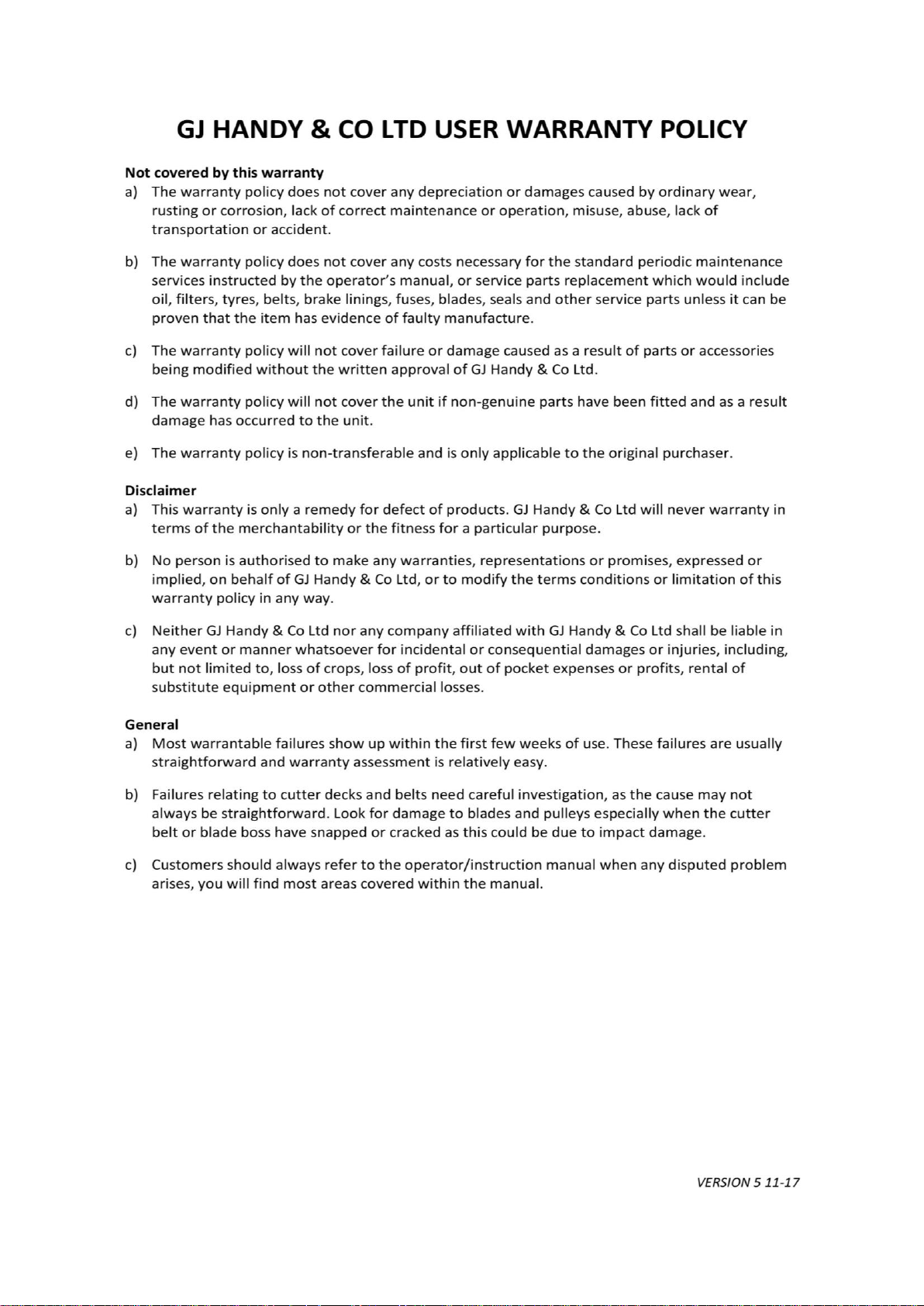

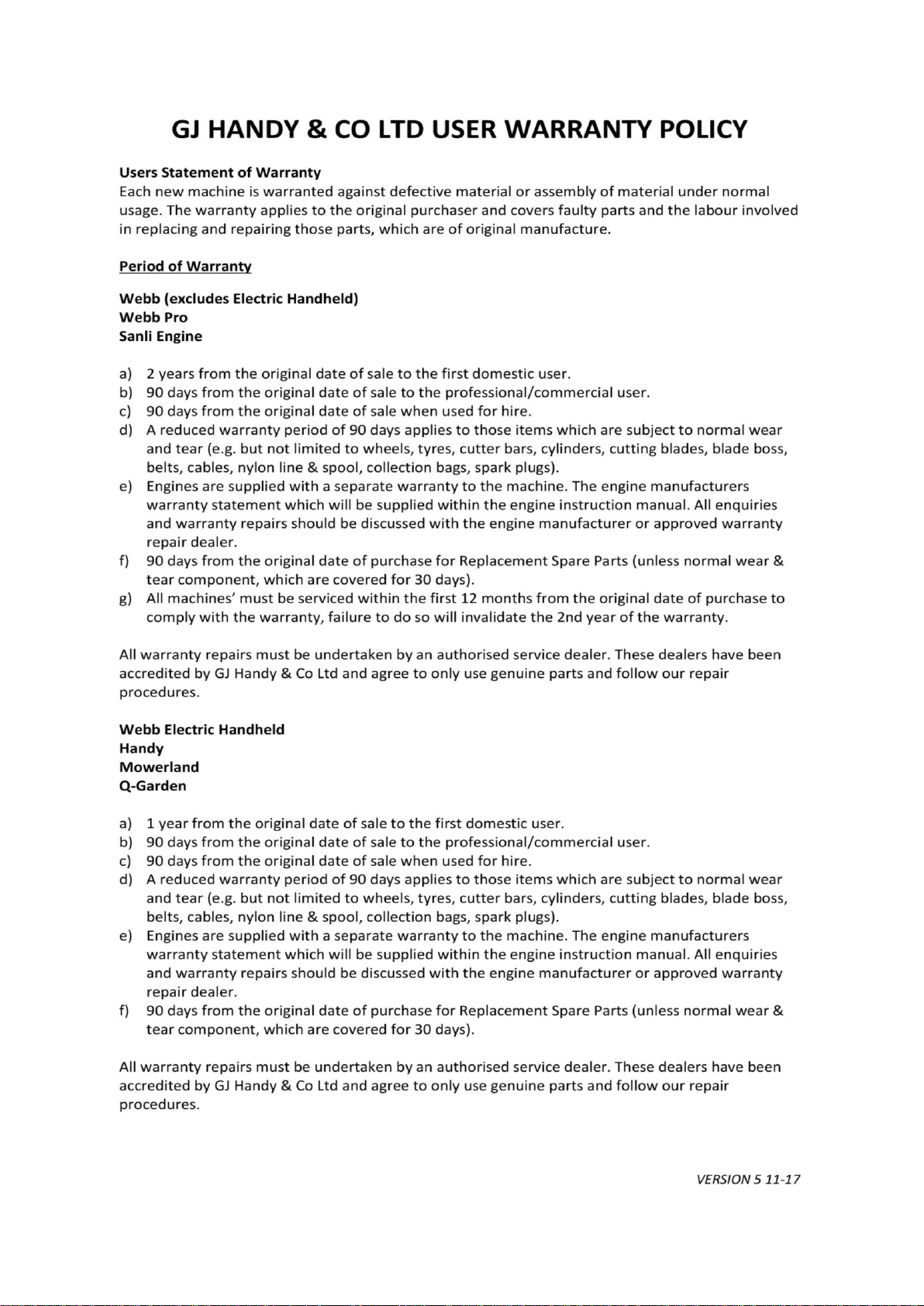

WARRANTY
ASSEMBLY IS REQUIRED – TWO PERSON’S
This product requires assembly before use. See the “Assembly” section for instructions.
Because of the weight and size of the Trolley, it is recommended that a minimum of TWO
adults be present to assist with the assembly.
If you require any assistance with regards to the contents or operation of
your machine, please contact us:
TEL: 01793 333212
EMAIL: customerservice@handydistribution.co.uk
(MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)
SPECIFICATION
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Model
THLGT
Product No.
193857001
Load Capacity (kgs)
350
Overall Dimensions (cm)
140(L) 64(W) 65(H) (exc. draw bar handle)
Internal Bed Dimensions (cm)
119(L) 58(W) 30(H)
Wheel Diameter (mm)
107.5
Tyre Size
13 x 5.00-6
Tyre
Puncture-less
IMPORTANT INFORMATION
INTENDED USE
The Large Garden Trolley is designed for use in private gardens and primarily used around
GRASS OR LAWN AREAS, but not in public facilities, parks or sports grounds and not for agricultural
or forestry use. Never exceed the rated load capacity of 350kg.
This is a garden trolley, therefore extended use over abrasive surfaces (e.g. concrete, tarmac etc.)
could cause premature wear on the trolley tyres. Commercial or industrial environments are not
recommended.
When operating with a tractor, do not exceed 10mph.
Generally acknowledged accident prevention regulations and enclosed safety instructions must be
observed. Only perform work described in these instructions for use, any other use is incorrect. The
manufacturer will not assume responsibility for damage resulting from such use.
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are
familiar with the controls and properly operate the machine. Following these instructions can
reduce the risk of personal injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety
instructions must be followed to ensure reasonable safety and efficiency in using this product. The
operator is responsible for following the warning and safety instructions in this manual and on the
machine. Never use the product unless the components are correctly positioned and operational.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the equipment.
Never allow children or people unfamiliar with these instructions to use the product.
Local regulations can restrict the age of the operator.
Keep in mind that the operator or user is responsible for accidents or hazards involving the machine
that occur to other people or their property.
GENERAL SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the product. Learn its application
and limitations as well as the specific potential hazards. Retain these instructions for future
reference. The operator is responsible for following the warnings & instructions in this manual and
on the product.
Read & understand the
operator’s manual before
using the machine. Failure
to follow instructions could
result in death or serious
injury.
DANGER
Pinch points can cause personal
injury.
Wear gloves to protect
your hands during
assembly.
Check your machine before using.
Keep guards in place and in working
order. Frequently check to see that
foreign objects are removed before
using. Replace damaged, missing or
failed parts before using it.
Be careful when using on
slopes. Do not operate on
inclines greater than 15°.
It is advised to manually or
with your tractor, pull up or
down the incline.
Safety alert symbol. Used to alert
you to potential personal injury
hazards. Obey all safety messages
that follow this symbol to avoid
possible injury.
DANGER
Indicates an imminently
hazardous situation which,
if not avoided, will result in
serious injury.
WARNING
Indicates a potentially hazardous
situation which, if not avoided,
could result in serious injury.
CAUTION
Indicates a potentially
hazardous situation which,
if not avoided, may result in
minor or moderate injury.
CAUTION
Used without the safety alert
symbol, indicates a potentially
hazardous situation which, if not
avoided, may result in property
damage.
STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medication that
could affect your ability to use it properly. Do not use this machine when you are tired or distracted
from the job at hand. Be aware of what you are doing at all times. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluttered areas invite injuries.
Keep your work area clean with sufficient light. Keep the area around the machine clear of
obstructions, grease, oil, rubbish & other debris which could cause persons to fall onto moving parts.
INSPECT YOUR MACHINE
Check all bolts, nuts & screws for tightness before each use, especially those securing guards & drive
mechanisms. Vibration during use, may cause these to loosen. Replace damaged, missing or failed
parts before using. Warning labels carry important information. Replace any missing or damaged
warning labels.
CRUSH AND CUT HAZARDS
Always keep your hands and feet clear from moving parts while operating the equipment.
Always keep the work area clean and clear when operating.
DRESS PROPERLY
Do not wear loose clothing or jewellery (rings, wrist watches), which can be caught in moving parts.
CONDITIONS
We recommend the machine is not used during winds. This may affect the spreading pattern.
DO NOT OVERREACH
Keep proper footing and balance. Never stand on the machine. Serious injury could occur if the
machine is tipped or if the moving parts are unintentionally contacted. Do not store anything above
or near the machine, where anyone might stand on the machine to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands & feet out of the way of all moving parts. Do not place any part of your body or any tool
e.g. in moving parts of the machine during operation.
DO NOT FORCE TOOL
Always work within the rated capacity. Do not operate for a purpose for which it was not intended.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use. Keep the machine clean to ensure it operates to its full &
safest performance. When maintaining this machine, only the manufacturer’s original replacement
parts should be used. The use of non-original manufacturer parts may invalidate your warranty.
PROTECT THE ENVIRONMENT
Take left over materials to an authorised collection point or follow the stipulations in the country
where the machine is used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry location. Keep the machine away from
children and others not qualified to use it.
TOWING
Do not exceed the equipment maximum load capacity of 350kg.
Do not try to carry loads that make the Trolley unstable.
Avoid large holes and ditches when using the Trolley.
Be careful when operating on steep gradients (hills) the Trolley may tip over.
Only tow with recommended vehicles (Lawn/Garden Tractors and ATVs).
Always operate at a reduced speed in rough terrain, along creeks, ditches and on hillsides.
Do not operate close to creeks, ditches and public roads.
To avoid personal injury and/or equipment damage DO NOT EXCEED 10 MPH.
Always use caution when loading and unloading the Trolley.
Always secure and lock the Trolley to the vehicle hitch before operating
SET UP & PREPARATION FOR OPERATION
Follow the operating instructions step-by-step and use the pictures provided as a visual guide to
easily assemble the machine.

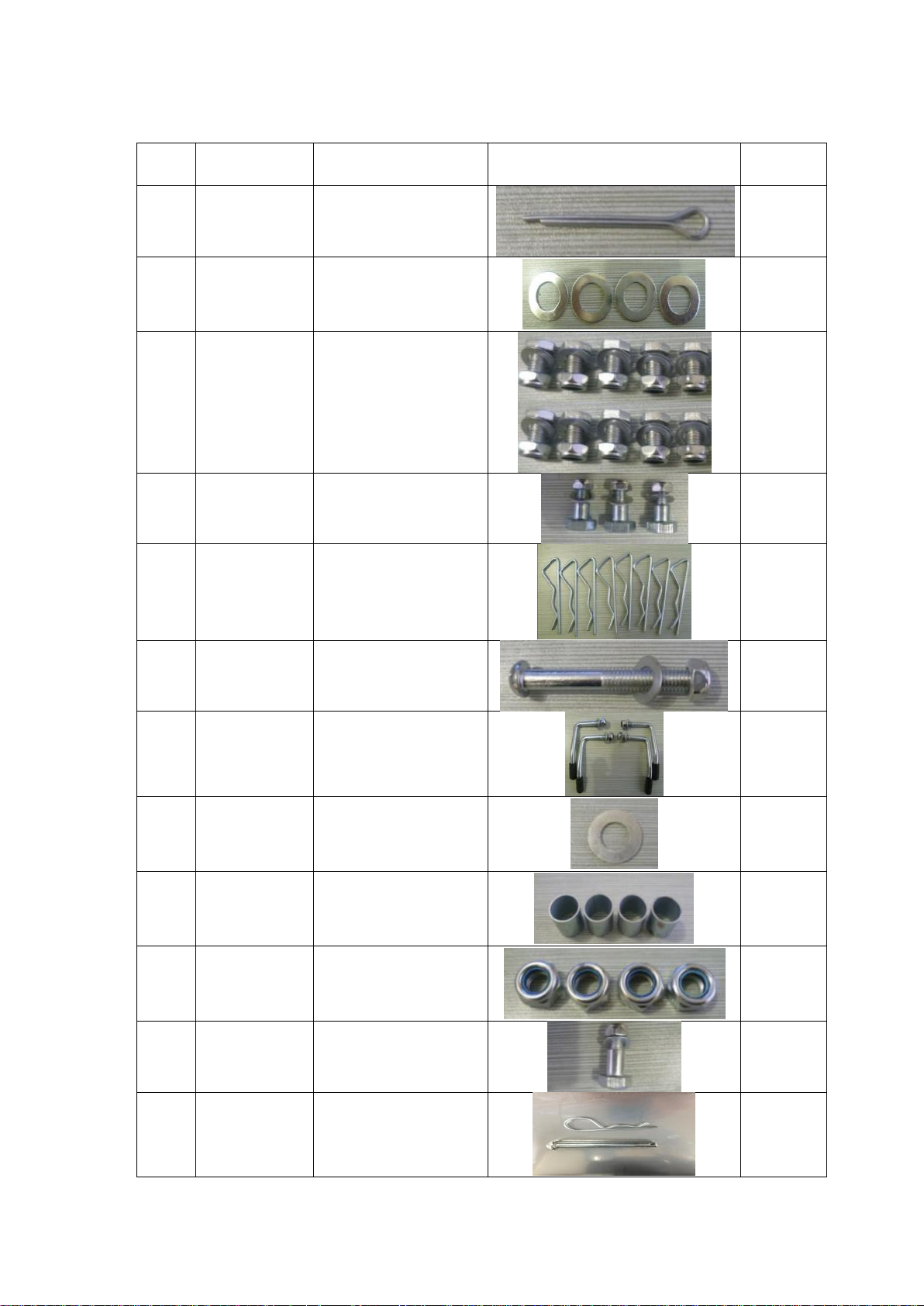

Please ensure that you have all the necessary parts, before commencing with the assembly. Parts
lists are supplied towards the back of this manual.
In the unlikely event that you are missing a component, please do contact us Tel: 01793 333212 or
Email: customerservice@handydistribution.co.uk for assistance.
ASSEMBLY
STEP 1
Turn the trolley Bed (1) upside down so that the underside is facing up.
STEP 2
Attach the Rear Axle Support to the Bed using two Carriage Support Bolts, Washers & Nuts (18) x2.
