TABLE OF CONTENTS

General 76 Installation distance to walls and ceiling 77 Supply of combustion air 79 Removing the loose parts 80 Connection to chimney 82 Installing the surround 34T 84 Installing the surround 35T 88 Installing accessor ies · heat tank 94

DEAR HANDÖL OWNER

We welcome you to the Handöl family and hope that you will get a great deal of pleasure from your stove. We understand that you place high demands on both quality and design. As the new owner of a Handöl stove you have secured a product with timeless design and long service life.

The stove combustion is also environmentally friendly and efficient for the best heat production.

Read the installation instructions carefully before you begin installation and the separate lighting and user instructions before you light the fire.

General

This manual contains instructions about how the Handöl 30 ser ies must be assembled and installed. To ensure the function and safety of the stove, we recommend that the installation is carr ied out by an authorised technician. Our Handöl dealers can recommend suitable technicians,

information about our dealers can be found at

www.handol.eu

Instructions for light ing are also supplied with the stove. Read them carefully and keep them safe for future use.

The stove is type approved and must be connected to a chimney dimensioned for at least 350°C, the external connection diameter is Ø150 mm. Supply air from the open air should be used as combust ion air.

Building application

Before installing a stove or erect ing a chimney it is necessar y for you to make a building application permission to your local authority. Ask your local authority for advice regarding building regulations and the application.

Structural support

Check that the wood joists are strong enough to bear the weight of the stove and chimney. The stove and chimney can usually be placed on a normal wooden joist in a single occupancy house if the total weight does not exceed 400 kg.

Hearth plate

To protect the floor from any ember s the stove must be placed on a hearth plate. If the floor under the stove is flammable, it must be protected by a non-flammable material which covers at least 300 mm to the front and 100 mm on each side. The hearth plate can consist of natural stone, concrete or 0.7 mm metal. A painted metal or glass hear th plate is available as an accessory.

Chimney

The stove requires a draft in the chimney of at least –12 Pa. The draft is affected both by the length and area of the chimney, and by how well sealed it is. Minimum recommended chimney length is 3,5 m and a suitable cross sect ion area is 150-200 cm² (140-160 mm in diameter). Carefully check that the chimney is sealed and that there is no leakage around soot hatches and flue connections.

Note that a flue with sharp bends and horizontal routing reduces the draught in the chimney. Maximum hor izontal flue is 1 m, on the condit ion that the vertical flue length is at least 5 m. It must be possible to sweep the full length of the flue and the soot hatches must be easily accessible.

Eldstadsbeklädnad

Rosterreglage

Asklåda

Förbränningsluftsreglage

Brasbegränsare

HANDÖL

In accordance with standards below marking was affixed: European Standard: SE Quality Certification, P-marked: NO Standard NS 3059: DE and AT Standard DIN 18.891 and Art 15a B-VG: Type: Nominal Output: Fuel: Minimun draught: Flue gas temerature: Energy efficiency: Emission of CO in cumbustion products: Distance to cumbustible wall (mm):

Follow the user’s instructions and use only recomended fuel

NIBE AB Box 134 SE-285 23 MARKARYD SWEDEN

2007 EN 13240 Cert no 0112/07 SINTEF 110-0275

RRF-40 07 13 90

Handöl 31/31A/32/32A

5 kW Wood 12 Pa 280°C 78% 0,14% Behind 150 Beside 450 Corner 150

Technical specifications

Output 3-7 kW Nominal output 5 kW Eff iciency up to 80%

Model 34T 35T Weight (kg) 320 250 Width (mm) 550 550 Depth (mm) 430 430 Height (mm) 1600 1600 Tank stone (kg) 70 70

Connector diameter Ø150 mm ex t. Type approved in accordance with:

European standard EN-13240 Swedish env ironmental and quality marking, P-marking cer t. no. 0112/07 Norwegian standard NS 3059, SINTEF 110-0275 German standard DIN 18.891, RRF-40 07 13 90

Rating plate

Fire bars

Hear th cladd ing

Grate control

Combustion air control

Ash-pan

Installation distance to walls and ceiling

550

1600

min 2300

Combustible roof

Air inlet Ø64

120

430

1050

1140

167

Hole in foot plate Ø120

Place the stove on the hearth plate and check that the installation distances given in the figures below are followed. The minimum distance in front of the stove opening to combustible par ts of the building or interior decoration must be at least 1 m.

368

150

729

781

Combustible wall

267

100

415

400

300

100

300

200

100

690

Combustible wall

Permitted area for combustible material

H34T

*To prevent discolouration of painted fire wall s, we recommended the same side distance as to combus tible walls.

268

629

640

Fire-retardant wall of brick or concrete

217

50*

325*

Fire-retardant wall of brick or concrete

When top connecting a steel flue please refer to the relevant manufacturer’s installation instructions. Obser ve the safety distances to combustible material that steel flues require.

Installation distance to walls and ceiling

550

1600

min 2300

Air inlet Ø64

Combustible roof

430

1050

1140

167

120

Hole in foot plate Ø120

368

150

729

781

Combustible wall

267

100

415

400

300

100

300

200

100

690

Combustible wall

Permitted area for combustible material

H35T

217

50*

325*

Fire-retardant wall of brick or concrete

268

629

640

Fire-retardant wall of brick or concrete

When top connecting a steel flue please refer to the relevant manufacturer’s installation instructions. Obser ve the safety distances to combustible material that steel flues require.

*To prevent discolouration of painted fire wall s, we recommended the same side distance as to combus tible walls.

** 1640 with soapstone top

Supply of combustion air

Combustion air can be provided directly via a duct from outside, or indirectly v ia a vent in the outer wall of the room where the stove is to be placed. The amount of combustion air that is used for combustion is approx. 25 m

/h.

Some installation alternatives are shown to the right. The air duct connect ion on the stove has an external diameter of Ø64 mm.

In hot areas the duct should be insulated w ith 30 mm mineral wool covered with a moisture inhibitor (plast ic). It is important that the lead-in between the pipe and the wall (or floor) is sealed using jointing compound. When duct routing for fur ther than 1 m the pipe diameter must be increased to 100 mm and a correspondingly larger wall vent must be selected.

A 1 m length of condensat ion insulated ducting for combustion air is available as an accessory.

40 mm

Knockout

To insert the combustion air hose, tap out the knockout from the floor panel or leg using a hammer, remember to protect the floor.

Unpacking

The insert is secured by four packaging ring angles. Loosen the screws and remove the angles.

Before the stove is used, it must be inspected by an authorised chimney sweep.

Read the Instructions for Lighting the Handöl 30 series before lighting the fire for the first time.

Removing the loose parts

Sweeping

When sweeping, the smoke baffle must be lifted out, on the Handöl 30 series this can be done by lifting the smoke baffle and removing the side piece. Lift the smoke baffle out and remove the remaining sect ions. Handle the parts with care.

Self-closing hatch

The stove has a spring to close the hatch automat ically. The spring is above the heat deflector. The closing force of the hatch can be adjusted by moving the spring between the three notches on the lever. The angle of the stove also affects the closing force of the spr ing.

If the spring force seems weak despite the spring being mounted at the end of the lever, the angle of the stove should be checked.

Type plates

Two type plates are supplied with the stove. One for the insert and one for the surround kit.

Refer to the chimney installation instructions. The following describes how the chimney system is connected to the stove.

The stove body is prepared for top connection on delivery. When connecting from the rear, the cover and connection must be swapped around.

Top connection to the chimney

When connect ing to the top, the whole stove surround must be installed before installation of the chimney can begin. Installat ion of the surrounds for the respective models is described later on in these installat ion instructions.

The start pipe is placed over the connection on the insert. Make sure that the gasket on the connection is intact and in position. The stop washer is posit ioned over the collar on the star t pipe. The cuff must rest against the top of the stove. Then install the remaining par ts of the chimney. The cuff covers the lower sect ion of the start pipe and facilitates any serv ice work.

Connection to chimney

Chimney mantle

Cuff

Stop washer

Star t pipe

Rear connection to a masonry chimney

Mark out the centre for making a hole in the wall to the flue. Check that the connection height in the chimney breast corresponds to the height of the connect ion pipe from the stove.

Make a 180 mm diameter hole. Then cement in the wall connector with

fireproof mortar (not supplied).

Let the mortar dry before the stove is connected to the chimney.

Tap out the knock out in the rear panel using a hammer and cut the heat deflector on the rear side of the back panel.

Mount the back plate and install the connection pipe on the connection. Make sure that the gasket does not work loose from its position. Installation of the surrounds for the respective models is described later on in these installation instructions.

Seal between the connection pipe and the connector in the wall using fire rope. If further sealing mater ial is required, heat-resistant sealant may be used.

Connection to chimney

Installing the surround

Handöl 34T

• Unpack the surround kit, grate and top from the packaging.

• Read through the entire section regarding installation of the surround. Satisfy yourself that no components are missing or were defective on delivery. Handle the parts with care.

• Place the stove on the hearth plate and check the installation distances.

426 mm

Position the insert on the bottom plate so that the plastic feet are in the cut-outs.

Adjust so that there is a gap of 426 mm bet ween the top of the bottom plate and lower edge of the door, check that the insert is vert ical.

1 2

Place the bottom plate on the floor according to the installation dimensions. Ensure that it is horizontal, add steel shims or washers if necessary.

(403961)

(403959)

(403962)

(403960)

(403963)

(403959)

(403962)

(403961)

(403976)

603499

603497

603500

603498

603501

603497

603500

603499

603502

The stones are numbered as illustrated above. We recommend that the stones are installed in the order described on the following pages. Important! Handle soapstone with care. The tiles scratch easily and may be marked by oil and grease.

Align the rear side profile lugs in the bottom plate and hook into the top frame.

Tighten 4 x M6x20 screws a few turns in the top frame and position it so that the screws locate in the grooves.

Align the front side profile lugs in the bottom plate and hook into the top frame. Tighten the screws to the top frame.

IAttach the supplied type plates to the outside of the back plate according to the figure. Install the back plate by hanging it from the holes on the side profiles. If the stove is to be rear connected, connect it now.

3 mm

Install the middle stone casing by hanging it from the side profiles.

Install the upper side stones in the same way as the lower side stones.

Screw 2 concrete screws in the front side stones. Leave 3 mm between the stone and the screw flanges. Hook the front side stone in the key holes and tighten the concrete screws.

3 mm

Hang the rear side stone in position using the key holes in the side profiles.

3 mm

419 mm

Install the 4 screws in the upper front stone. Leave 3 mm between the stone and the screw flanges. Hang the front stone in the key holes.

Install the adjustment angle pieces on the upper concrete screws. Adjust the stone so that it is line with the side stones at the upper edge. Tighten the 4 concrete screws IMPORTANT! Check that the distance between the door and upper front stone is 4 mm. If necessar y, the insert feet can be adjusted to achieve an even gap between both front stones and the door.

Install the mounting plate at the top edge on the lower front stone. Position the front stone and secure it using 2 x M5 screws in the body.

Mount the upper rib piece on the silicone cones, the screws must be pointing downwards. Then position the top stone, grate and cover.

See page 94 for installing the heat tank.

Important

If the fan is to be installed, this must be performed

before installing the lower front stone.

Installing the surround

Handöl 35T

• Unpack the surround kit, grate and top from the packaging.

• Read through the entire section regarding installat ion of the surround. Sat isfy yourself that no components are missing or were defective on delivery. Handle the parts with care.

• On the Handöl 35T, the glass on both the insert and the surround must be cleaned before installation.

• Place the stove on the hearth plate and check the installation distances.

423 mm

Position the insert on the bottom plate so that the plastic feet are in the cut-outs.

Adjust so that there is a gap of 423 mm between the top of the bottom plate and lower edge of the door, check that the insert is vert ical.

1 2

Place the bottom plate on the floor according to the installation dimensions. Ensure that it is horizontal, add steel shims or washers if necessary.

(403957)

(403967)

(403970)

(403966)

(403969)

(403965)

(403968)

(403958)

(403956)

603488

603492

603495

603491

603494

603490

603493

603436

603487

Align the rear side profile lugs in the bottom plate and hook into the top frame.

Tighten 4 x M6x20 screws a few turns in the top frame and position it so that the screws locate in the grooves.

Align the front side profile lugs in the bottom plate and hook into the top frame. Tighten the screws to the top frame.

Attach the supplied t ype plates to the outside of the back plate according to the figure. Install the back plate by hanging it from the holes on the side profiles. If the stove is to be rear connected, connect it now.

Install 2 x M6x8 screws in the front insert threads of the side stones. Hang the front side stones in position using the key holes in the side profiles.

3 mm

Screw the lower front stone using 4 x concrete screws.

Tighten the screws carefully.

Place the upper front stone on top of the front side stones. Secure using the 4 concrete screws. IMPORTANT! Check that the distance between the door and upper front stone is 4 mm. If necessar y, the insert feet can be adjusted to achieve an even gap between both front stones and the door.

Important

If the fan is to be installed, this must be performed

before installing the lower front stone.

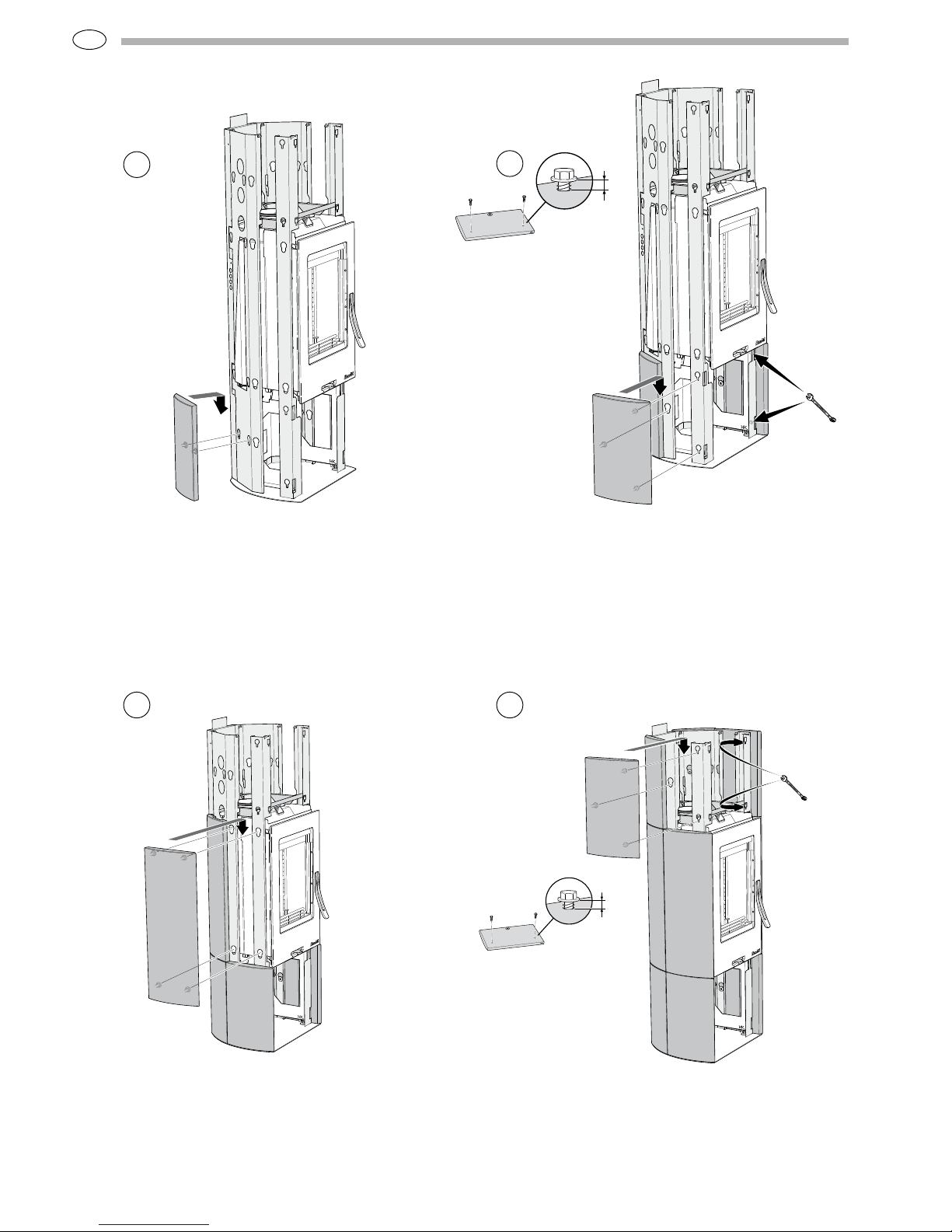

Hang the side stone in place.

Hang the rear stone in position using the key holes in the side profiles.

Lift up the valence above the lower stone casing. Insert the valence flange into the soapstone groove, the vent ilation grooves must now be facing the front stones. Insert the valence in the grooves towards the bottom plate.

Install the glass panels in the same way as the valence.

Slide the side stone over the glass and the valence. Then hook the lugs into the key holes.

Hang the rear stone in place.

Slide the front middle stone over the glass and the valence. Then hook the lugs into the key holes.

Slide the rear middle stone’s lugs into the key holes.

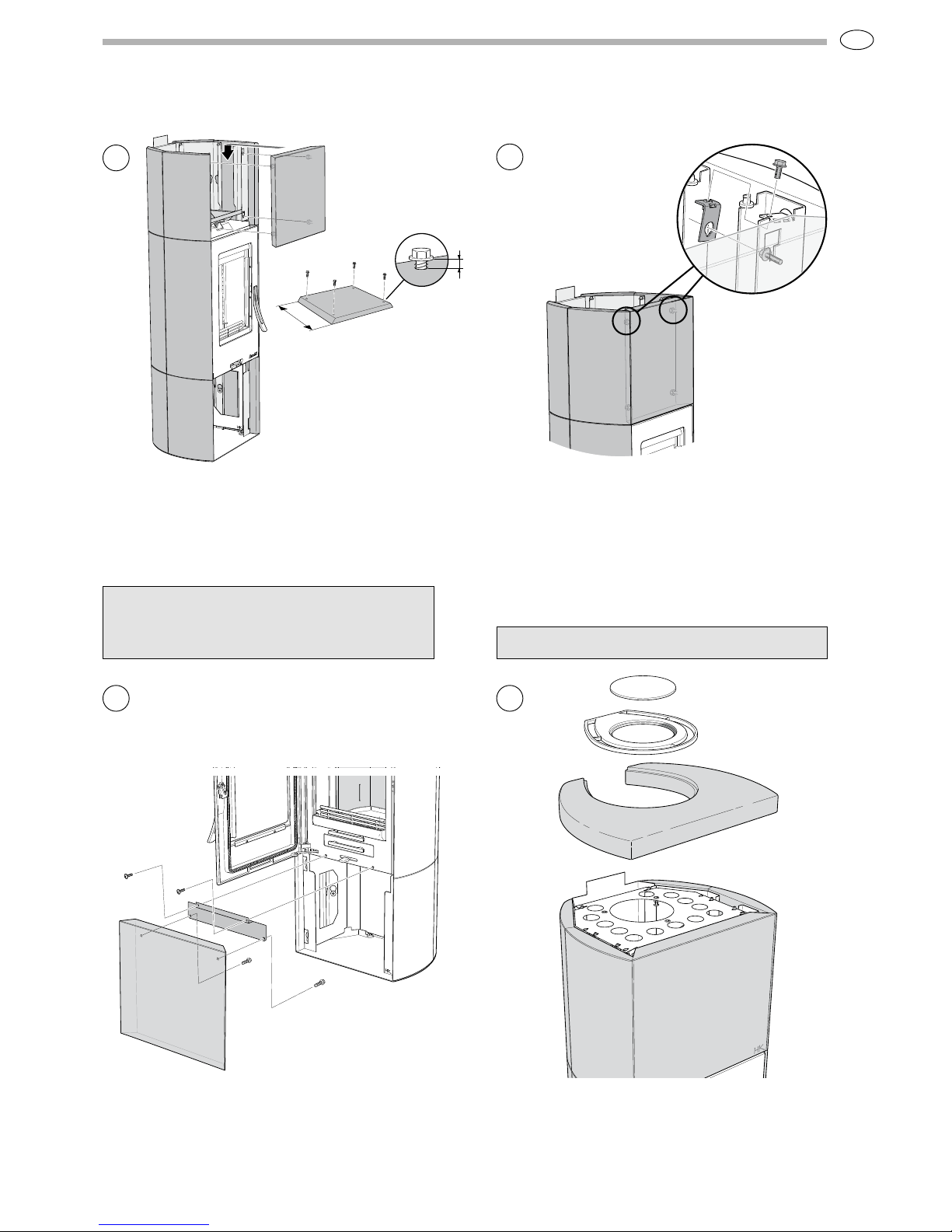

Install the upper rib on the silicone cones. Then position the glass top/soapstone top, grate and cover.

Installing accessories · Heat tank

Heat tank to glass top

Place the support plate for the stones on top of the lower rib piece.

Place the hot air damper on the silicone cones. Then position the glass panel, grate and cover.

Place the olivine stones on the support plate.

Heat tank to soapstone top

Place the support plate for the stones on top of the lower rib piece.

Cut off the damper at the rear edge using cutting pliers. Then break off the damper from the rib at the front edge.

Mount the rib on to the silicone cones. Position the soapstone top and place the damper in the stone’s groove. Place the grate and cover in position.

Place the olivine stones on the support plate.
