Dolphin® 9900 Mobile Computer

with Windows Mobile® 6

User’s Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

Trademarks

Dolphin, Dolphin RF, HomeBase, Mobile Base, and QuadCharger are trademarks or registered trademarks of Hand Held Products, Inc. or Honeywell International Inc.

Microsoft, Windows, Windows Mobile, Windows CE, Windows NT, Windows 2000, Windows ME, Windows XP, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.

Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners.

Hand Held Products/Dolphin/Metrologics products have no affiliation with Honeywell branded batteries/ chargers, which are exclusively distributed by Global Technology Systems pursuant to a license agreement.

Patents

Please refer to the product packaging for a list of patents.

Other Trademarks

The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell.

Chapter 1 - Agency Information

Label Locations ...................................................................................................................1-1

Approvals by Country ..........................................................................................................1-1

R&TTE Compliance Statement—802.11b/g, Bluetooth, and/or GSM ................................. 1-1

Laser Safety Label...............................................................................................................1-2

LED Safety Statement .........................................................................................................1-2

Infrared LED Safety Statement............................................................................................ 1-2

UL and cUL Statement ........................................................................................................1-2

Dolphin RF Terminal—802.11b/g, Bluetooth, and/or GSM ................................................. 1-3

For European Community Users .........................................................................................1-3

Waste Electrical and Electronic Equipment Information...................................................... 1-3

Chapter 2 - Getting Started

Out of the Box......................................................................................................................2-1

Today Screen ......................................................................................................................2-3

Navigation Bar .....................................................................................................................2-3

Command Bar .....................................................................................................................2-3

Icons in the Navigation Bar.................................................................................................. 2-4

Pop-Up Menus..................................................................................................................... 2-6

Chapter 3 - Hardware Overview

Standard Configurations......................................................................................................3-1

Peripherals ..........................................................................................................................3-2

Accessories .........................................................................................................................3-3

Front Panel Features...........................................................................................................3-4

Back Panel Features ...........................................................................................................3-6

Side Panels .........................................................................................................................3-8

Left Side Features .........................................................................................................3-8

Right Panel Features..................................................................................................... 3-8

Installing a Memory Card..................................................................................................... 3-9

Bottom Panel Features......................................................................................................3-10

I/O Connector ..............................................................................................................3-10

ActiveSync Communication...............................................................................................3-11

Using the Touch Panel ......................................................................................................3-13

Installing a Screen Protector........................................................................................3-13

Batteries ............................................................................................................................3-14

Main Battery Pack........................................................................................................3-14

Internal Backup Battery ...............................................................................................3-15

Managing Battery Power .............................................................................................3-15

Checking Battery Power .............................................................................................. 3-16

Resetting the Terminal ...................................................................................................... 3-17

Soft Reset (Warm Boot)...............................................................................................3-17

Hard Reset (Cold Boot) ...............................................................................................3-17

Suspend Mode .................................................................................................................. 3-17

Chapter 4 - Using Scan Image Engine

Overview..............................................................................................................................4-1

Angled Imaging.............................................................................................................. 4-1

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

iii

Image Engine Specifications ..............................................................................................4-1

Supported Bar Code Symbologies .....................................................................................4-2

Decoding .............................................................................................................................4-3

To Decode a Bar Code.................................................................................................. 4-3

Scanning Position Options.............................................................................................4-4

Capturing Images ................................................................................................................4-5

Taking an Image............................................................................................................ 4-5

Uploading Images.......................................................................................................... 4-6

Chapter 5 - Using Dolphin Keyboards

Keyboard Options................................................................................................................5-1

Common Buttons........................................................................................................... 5-1

Keyboard Combinations ................................................................................................5-1

Using the Function Keys......................................................................................................5-2

Using the Modifier Keys ...................................................................................................... 5-2

Using the Navigation Keys .................................................................................................. 5-3

Sticky Key Functionality....................................................................................................... 5-4

43-Key Alpha/Numeric Keyboard ........................................................................................5-5

43-Key Keyboard Combinations.................................................................................... 5-6

56-Key Full Alpha/Numeric Keyboard ............................................................................. 5-8

56-Key Keyboard Combinations.................................................................................... 5-9

General Windows Keyboard Shortcuts .............................................................................5-11

Chapter 6 - System Settings

Overview..............................................................................................................................6-1

Personal Tab .......................................................................................................................6-2

Buttons........................................................................................................................... 6-3

Input............................................................................................................................... 6-4

Menus............................................................................................................................6-5

System Tab .........................................................................................................................6-7

About .............................................................................................................................6-8

Backlight ........................................................................................................................ 6-8

Certificates..................................................................................................................... 6-9

ClearType Tuner............................................................................................................ 6-9

Clock & Alarms .............................................................................................................. 6-9

Encryption.................................................................................................................... 6-10

Error Reporting ............................................................................................................ 6-10

External GPS............................................................................................................... 6-10

Memory........................................................................................................................ 6-11

Power...........................................................................................................................6-12

Regional Settings.........................................................................................................6-13

Remove Programs.......................................................................................................6-13

Screen .........................................................................................................................6-14

WAN Info .....................................................................................................................6-15

Chapter 7 - Communication

Connections Tab .................................................................................................................7-1

iv Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Using Infrared ......................................................................................................................7-2

IrDA Port Location .........................................................................................................7-2

Sending Data................................................................................................................. 7-2

Receiving Data ..............................................................................................................7-3

Connections Manager ......................................................................................................... 7-4

To Access the Connections Manager............................................................................ 7-4

Task Tab........................................................................................................................7-4

Advanced Tab................................................................................................................7-5

Dolphin Wireless Manager .................................................................................................. 7-6

Dolphin Wireless Manager Window............................................................................... 7-6

Enabling the Radios.......................................................................................................7-6

Accessing Radio Configuration Utilities ......................................................................... 7-7

Installing Additional Software .............................................................................................. 7-8

Adding Programs to the Terminal Using ActiveSync ..................................................... 7-8

Adding Programs Directly from the Internet...................................................................7-9

9900 COM Port Assignment Table....................................................................................7-10

Chapter 8 - Working with GSM

Overview..............................................................................................................................8-1

Quad Band Antenna ...................................................................................................... 8-1

SIM Card Installation ...........................................................................................................8-2

Enabling the GSM Radio .....................................................................................................8-4

Voice Communication.......................................................................................................... 8-5

Audio Modes.................................................................................................................. 8-5

Volume Control.............................................................................................................. 8-5

Accessing the Dialer Window ........................................................................................8-5

Dialing............................................................................................................................ 8-5

Sending Calls.................................................................................................................8-6

Ending Calls...................................................................................................................8-6

Keyboard Combinations for Calls .................................................................................. 8-6

View Options..................................................................................................................8-6

Setup Options......................................................................................................................8-7

Data Communication ...........................................................................................................8-8

Establishing Data Communication.................................................................................8-8

Ending the Data Connection........................................................................................ 8-10

Roaming ............................................................................................................................8-11

Chapter 9 - Working with the Bluetooth Radio

Enabling the Bluetooth Radio ..............................................................................................9-1

Connecting to Other Bluetooth Devices ..............................................................................9-2

Pairing and Trusted Devices ............................................................................................... 9-4

Types of Devices and Services ...........................................................................................9-5

Connecting to Bluetooth Printers.........................................................................................9-6

Connecting to Bluetooth Headsets ...................................................................................... 9-6

Transferring Files.................................................................................................................9-7

Making the Terminal Discoverable ......................................................................................9-8

Chapter 10 - Working with GPS

Overview............................................................................................................................ 10-1

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

Assisted GPS Support.......................................................................................................10-1

Powering the GPS Module ................................................................................................10-1

Communication Ports ........................................................................................................10-1

Selecting the Port ........................................................................................................10-1

COM7 ..........................................................................................................................10-2

GPS Intermediate Driver..............................................................................................10-2

GPS Demo ........................................................................................................................10-2

Chapter 11 - Dolphin HomeBase Device

Overview............................................................................................................................ 11-1

Parts and Functions........................................................................................................... 11-2

Power ................................................................................................................................11-4

Serial Connector................................................................................................................11-5

Charging the Main Battery.................................................................................................11-6

To Power a Terminal and Charge its Main Battery...................................................... 11-6

Charging a Spare Battery in the Auxiliary Battery Well ............................................... 11-6

Communication..................................................................................................................11-7

Connecting the Communication Cables ...................................................................... 11-7

Establishing Communication .......................................................................................11-7

Communicating with the Dolphin Terminal ........................................................................ 11-7

Verifying Data Transfer................................................................................................ 11-8

RS-232 Communications Cables ...................................................................................... 11-9

RS-232 Pin Configuration............................................................................................ 11-9

Mounting..........................................................................................................................11-10

Desk Mounting........................................................................................................... 11-10

Wall Mounting............................................................................................................ 11-11

Chapter 12 - Dolphin Mobile Base Device

Overview............................................................................................................................ 12-1

Front Panel ........................................................................................................................12-2

Bottom Panel .....................................................................................................................12-3

Powering the Dolphin Terminal ......................................................................................... 12-4

Charging the Dolphin Terminal..........................................................................................12-4

Mounting............................................................................................................................12-5

Power ................................................................................................................................12-6

Establishing Communication .............................................................................................12-7

Connecting the Communication Cables ...................................................................... 12-7

Establishing ActiveSync Communication.....................................................................12-7

Chapter 13 - Dolphin ChargeBase Device

Overview............................................................................................................................ 13-1

Parts and Functions...........................................................................................................13-2

Supplying Power................................................................................................................13-3

Inserting and Removing Terminals.................................................................................... 13-4

Charging Terminals ...........................................................................................................13-4

Mounting............................................................................................................................13-5

Chapter 14 - Dolphin QuadCharger Device

vi Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Overview............................................................................................................................ 14-1

Parts and Functions...........................................................................................................14-2

Supplying Power................................................................................................................14-3

Inserting and Removing Battery Packs ............................................................................. 14-4

Charging Batteries.............................................................................................................14-4

Using the Battery Analyzer ................................................................................................14-5

Mounting............................................................................................................................14-6

Desk Mounting............................................................................................................. 14-6

Troubleshooting................................................................................................................. 14-8

Chapter 15 - Customer Support

Product Service and Repair...............................................................................................15-1

Technical Assistance.........................................................................................................15-2

Limited Warranty ............................................................................................................... 15-3

How to Extend Your Warranty .....................................................................................15-4

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

vii

viii Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Compliance Label

Agency Information

Label Locations

Dolphin 9900 terminals meet or exceed the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Please read these guidelines carefully before using your Dolphin terminal.

Approvals by Country

Country EMC, Radio, & SAR Safety

U.S.A. FCC Part 15, Subpart C, 15.247

FCC Part 15, Subpart B FCC Part 22H FCC Part 24H FCC SAR OET 65 Supplement C

Canada ICES-003 (Class B)

RSS 132 RSS 133 RSS 210

European Community/CE EN300328-1/2

EN55022:1998+A1:2000+A2:2003 EN55024:1998+A1:2001+A2:2003 EN301489-1 EN301489-7 EN301489-17 EN300328 3GPPTS 51.010-1 ETSI EN301511 EN301511 EN60360 June 2001 EN50361 June 2001 EN50371 June 2001

UL60950-1

cUL60950

EN60950-1:2000 EN60825-1:1994+A11+A2 EN60950-1:2001+A11:2004 EN60825-1:1994+A1:2002+A2:2001

R&TTE Compliance Statement—802.11b/g, Bluetooth, and/or GSM

Dolphin RF terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/ EC).

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

1 - 1

This product is marked with in accordance with the Class II product requirements specified in

LASER LIGHT. DO NOT STARE INTO BEAM

1.0 mW MAX OUTPUT: 650nM IEC60825-1:1993+A1+A2

CLASS 2 LASER PRODUCT

Complies with 21 CFR 1040.10 and 1040.1 1 except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.

the R&TTE Directive. In addition, this product complies to 2006/95/EC Low Voltage Directive when supplied with the recommended power supply. Honeywell shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.

The equipment is intended for use throughout the European Community; PAN European Frequency Range: 2.402–2.480 GHz. Restrictions for use in France are as follows:

• Indoor use: Maximum power (EIRP*) of 100 mW for the entire 2.400–2.4835 GHz

• Outdoor use: Maximum power (EIRP*) of 100 mW for the 2.400–2.454 GHz band & maximum power (EIRP*) of 10 mW for the 2.454–2.483 MGHz band.

For further information, please contact:

Honeywell Imaging & Mobility Europe BV Nijverheidsweg 9 5627 BT Eindhoven The Netherlands

Laser Safety Label

If the following label is attached to your product, it indicates the product contains a laser engine or laser aimer:

Laser Eye Safety Statement: This device has been tested in accordance with and complies with IEC60825-1: 1993+A1+A2 and 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001. LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PRODUCT, 1.0 mW MAX OUTPUT: 650nM. Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

LED Safety Statement

The LED output on this device has been tested in accordance with IEC60825-1 LED safety and certified to be a Class 1 LED device.

The maximum power outputs for each diode are as follows:

• Illumination LED: 194.0 uW, wavelength: 626nm+/-30nm

• Aimer laser (5300 engine): 360.1 uW, wavelength: 655nm

• Aimer LED (5100 engine): 81.6 uW, wavelength: 526nm+/-30nm

Infrared LED Safety Statement

Caution - Do not view directly with optical instruments. The maximum power outputs for the IR LED is

145.1 uW. LEDs are pulsed at a frequency of 115,200 Hz with a duty cycle of 18.75% where the “ON”

time of a single pulse is 1.6275 x 10

UL and cUL Statement

UL and cUL listed: UL60950-1 and CSA C22.2 No. 60950-1-03.

1 - 2 Rev C

-6

seconds.

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Dolphin RF Terminal—802.11b/g, Bluetooth, and/or GSM

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction is the responsibility of the user. Use only shielded data cables with this system.

In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION! Any changes or modifications not expressly approved by the grantee of this device could

void the user's authority to operate the equipment.

Canadian Compliance

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) installed outdoors is subject to licensing.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

For European Community Users

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE).

Waste Electrical and Electronic Equipment Information

This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems will reuse or recycle most of the materials of the product you are disposing in a sound way.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

1 - 3

The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration.

You may also contact your supplier for more information on the environmental performances of this product.

Pacemakers, Hearing Aids and Other Electrically Powered Devices

Most manufacturers of medical devices adhere to the IEC 601-1-2 standard. This standard requires devices to operate properly in an EM Field with a strength of 3V/m over a frequency range of 26 to 1000MHz. The maximum allowable field strength emitted by the Dolphin terminal is 0.3V/m according to Subpart B of Part 1 of the FCC rules. Therefore, the RF from the Dolphin terminal has no effect on medical devices that meet the IEC specification.

Microwaves

The radio in the Dolphin RF terminal operates on the same frequency band as a microwave oven. Therefore, if you use a microwave within range of the Dolphin RF terminal you may notice performance degradation in your wireless network. However, both your microwave and your wireless network will continue to function. The Dolphin Batch terminal does not contain a radio, and therefore, is not affected by microwave ovens.

1 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Getting Started

Out of the Box

Verify that the carton contains the following items:

• Dolphin 9900 mobile computer (the terminal)

• Main battery pack (7.4v Li-ion)

• Microsoft Getting Started CD

• Q u i c k S t a r t G u i d e

Note: If you ordered accessories for your terminals, verify that they are also included with the order.

Be sure to keep the original packaging in the event that the Dolphin terminal should need to be returned for service. For details, see Product Service and Repair on page 15-1.

Step 1. Install the Main Battery Pack

We recommend use of Hand Held Products Li-Ion battery packs. Use of any non-Hand Held Products battery may result in damage not covered by the warranty.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

2 - 1

Step 2. Charge the Main and Backup Batteries

The power supply for Dolphin terminals consists of two types of battery power: the main battery pack installed on the back panel and the backup battery that resides inside the terminal.

The main battery powers the terminal. The internal backup battery charges off the main battery and maintains the application data stored in RAM memory for up to 30 minutes when the terminal’s main battery pack is completely discharged or removed.

Before Initial Use

Terminals are shipped with both batteries discharged of all power. Charge the main battery pack for a minimum of 4.5 hours before initial use.

Time to Charge

4.5 hours for the main battery pack, 8 hours for the internal backup battery the first time. Connect the terminal to one of the 9000 series charging peripherals to charge; see Peripherals on page 3-2.

We recommend use of Hand Held Products peripherals, power cables, and power adapters. Use of any nonHand Held Products peripherals, cables, or power adapters may cause damage not covered by the warranty.

Step 3. Boot the Terminal

The terminal begins booting as soon as power is applied and runs by itself. Do NOT press any keys or interrupt the boot process. Only tap the screen when prompted.

When the boot process is complete, the Today screen appears and the terminal is ready for use.

Note: Because, the Today screen appears a number of times during the boot process, wait a few seconds before

tapping anything on the Today screen.

Step 4. Set the Time and Date

You need to re-set the time and date after every hard reset of the terminal. It is a good idea to set the time and date now before you begin using the device.

On the Today screen, tap the line that displays the time and date,

The Clock Settings screen appears.

The time zone defaults to GMT-5 Eastern US; tap the arrow to the right of GMT-5 Eastern US to select another time zone. Set the correct time and date in the remaining fields and tap

OK to save.

2 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Today Screen

Start menu: Grants access to system functions.

Icons here indicate the status of various system functioning.

Menus change according to the open application.

The Task tray displays icons for programs running in the background.

After the Dolphin terminal initializes the first time, you see the Today screen.

You can also display the Today screen anytime by tapping

Start and then Today.

Navigation Bar

The Navigation bar is located at the top of the screen that displays the active program and current time. It also provides access to the Start menu, which allows you to open programs and access the system settings.

Command Bar

The Command bar is located at the bottom of application windows.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

2 - 3

Icons in the Navigation Bar

Indicator Meaning

The terminal could not synchronize data with the workstation via ActiveSync

New e-mail or text message (SMS)

New voicemail

New instant message

Ringer off

Voice call

Voice call in progress

Calls are forwarded

Call on hold

Missed call

Data call in progress

Battery levels (1–4). Tap this icon to open the Power system setting and see the charge percentage (see page 3-16).

Critical battery. The charge percentage is at the critical battery point set in the registry (the default is 10%). For details about the critical battery point, (see page 3-15).

Tap this icon to open the Power system setting and see the charge percentage (see page 3-16).

Terminal is running on external power (If a battery pack is installed, that battery is charging.)

The terminal is not connected to external power. A battery is installed but is defective; specifically, its charge level cannot be measured.

No SIM card is installed

GPRS available

GPRS connected

EDGE available

2 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Icons in the Navigation Bar

Indicator Meaning

EDGE connected

Roaming

Radio is disabled

The radio is not connected to a network

Radio connected

No radio signal

The terminal is searching for a signal

Radio signal strength

Wi-Fi on

Wi-Fi data call

Pending alarm

Bluetooth

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

2 - 5

Pop-Up Menus

With pop-up menus, you can quickly choose an action for a selected item. To access a pop-up menu, tap and hold the stylus on the item name of the action you want to perform the action. When the menu appears, lift the stylus, and tap the action you want to perform.

Tap anywhere outside the menu to close the menu without performing an action.

Selecting Programs

To see additional programs loaded on your terminal, tap Start > Programs. The Programs screen displays the programs that are not listed on the Start menu. To open a program, tap once on the icon.

Note: Some programs have abbreviated labels underneath the icon. To see the full spelling of an abbreviated label, tap and hold

the stylus on the label. Drag the stylus off the label so that the command is not carried out.

File Explorer

You can also use the File Explorer to find files and organize these files into folders. Tap Start > Programs > File Explorer.

Tap the Up button at the bottom of the screen to move up one level in the directory.

You can move files in File Explorer by tapping and holding on the item you want to move, and then tapping Cut or Copy and Paste on popup menus.

Search

The Search feature helps you quickly locate information. Tap Start > Programs > Search . Enter the text you want to find, select a data type, and then tap Go to start the search. To quickly find

information that is taking up storage space, select Larger than 64 KB in the Type drop-down field.

2 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Hardware Overview

Standard Configurations

Dolphin 9900 come in several standard configurations.

WLAN & WPAN

• Microsoft Windows Mobile 6.0 Classic

• Intel XScale PXA27x 624 MHz

• 2 5 6 M B R A M X 1 G B F l a s h

• Two in-mold, hard-top keyboard options

• 2500mAh extended life main battery

• Adaptus Imaging Technology: 5100SR/SF or 5300SR/SF image engines

• 802.11b/g and Bluetooth

WLAN, WPAN, & WWAN

• Microsoft Windows Mobile 6.0 Professional

• Intel XScale PXA27x 624 MHz

• 2 5 6 M B R A M X 1 G B F l a s h

• Two in-mold, hard-top keyboard options

• 2500mAh extended life main battery

• Adaptus Imaging Technology: 5100SR/SF or 5300SR/SF image engines

• 802.11b/g, Bluetooth, and GSM/GPRS

WLAN, WPAN, & WWAN with GPS

• Microsoft Windows Mobile 6.0 Professional

• Intel XScale PXA27x 624 MHz

• 2 5 6 M B R A M X 1 G B F l a s h

• Two in-mold, hard-top keyboard options

• 2500mAh extended life main battery

• Adaptus Imaging Technology: 5100SR/SF or 5300SR/SF image engines

• 802.11b/g, Bluetooth, and GSM/GPRS

• G P S

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 1

Peripherals

The following items are sold separately and enhance the capabilities of your Dolphin terminal.

Dolphin HomeBase™ Device

The Dolphin HomeBase device is a charging and communication cradle supports both RS-232 and USB communications, which enable it to interface with the majority of PC-based enterprise systems. This device also contains an auxiliary battery well that charges a spare Li-ion battery.

For more information, see Dolphin HomeBase Device on page 11-1.

Dolphin Mobile Base™ Device

The Dolphin Mobile Base device is a charging and communication cradle is designed specifically for inpremise and in-transit data collection applications. It features a flexible mounting bracket, a cigarette lighter adapter or power cable to adapt it to your environment.

The serial connector supports RS-232 communication and power out to peripheral devices, such as handheld scanners.

For more information, see Dolphin Mobile Base Device on page 12-1.

Dolphin ChargeBase

The Dolphin ChargeBase is a 4-slot charging cradle that holds, powers, and charges terminals. For more information, see Dolphin ChargeBase Device on page 13-1.

Dolphin Net Base

The Dolphin Net Base is a 4-slot charging/communication cradle that holds, powers, charges, and communicates with terminals. Ethernet communication occurs via statically and dynamically-assigned IP addresses.

For more information about the Dolphin Net Base, please consult the Dolphin Net Base Quick Start Guide.

Dolphin QuadCharger™ Device

The Dolphin QuadCharger device is a 4-slot charging station for Dolphin 9900 li-ion battery packs. The 4th slot features a battery analyzer that completely resets and re-calibrates a battery and displays its resulting capacity.

For more information, see Dolphin QuadCharger Device on page 14-1.

3 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Accessories

The following items are sold separately and enhance the capabilities of your Dolphin terminal.

Note: When using accessories where the terminal is worn on the body, the terminal’s touch panel must face away

from the body.

Dolphin Mobile Charger

The Dolphin Mobile Charger is a charging cable that connects the terminal directly to a 12 Volt DC power source, such as a cigarette lighter port inside a vehicle, eliminating the need for a cradle. Intelligent battery technology on-board the terminal ensures proper charging. The Dolphin Mobile Charger is an ideal lowcost charging solution for in-transit mobile applications.

Dolphin Mobile Mount

The Dolphin Mobile Mount, which holds a Dolphin terminal securely in place inside a vehicle, is an ideal, low-cost alternative to the Dolphin Mobile Base when communications are not required. When used in conjunction with the Dolphin Mobile Charger, the Dolphin Mobile Mount creates a complete mounting and charging solution for in-transit applications. The entire kit includes an adjustable vehicle mounting bracket.

Charging/Communication Cables

Dolphin charging/communication cable kits are an all-in-one solution for mobile applications. Each cable kit powers the terminal, charges its main battery, and communicates with host or peripheral devices without the need for a cradle. Cable kits can support RS-232 or USB communications and are available with U.K. or European power cords.

Protective Holster

Holsters provide convenient storage for terminals and protect them from damage in mobile environments. Both holsters feature a front pocket that holds an extra battery, a side pocket to hold an extra stylus, and a belt loop to secure the holster to a belt.

Protective Enclosure

Protective enclosures help seal and protect terminals from damage while providing full access to all terminal parts and features. These enclosures feature a swivel clip on the back that enables you to secure the enclosure to a belt. Enclosures also come with an adjustable shoulder strap for added convenience.

Stylus Kits

There are two stylus kits: one contains three styli and the other includes additional coiled tethers to secure the stylus to the terminal, which helps prevent loss.

Li-ion Battery Pack

The 7.4v, 18.5 watt hour Li-ion rechargeable battery pack provides the main power for the terminal.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 3

Front Panel Features

LED

Touch Panel Display

Navigation Keys

SCAN Key

Recessed

Keyboard

Front Speaker

I/O Connector

3 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Front Speaker

The integrated speaker that sounds audio signals as you scan bar code labels and enter data. The operating frequency range is 500Hz at 71 dB up to 80 dB.

I/O Connector

See I/O Connector on page 3-10.

LED

The light emitting diode (LED) located at the top of the LCD display flashes and illuminates during resets and scanning/imaging. This LED can be programmed by various software applications.

Navigation Keys

The centrally-located navigation keys enable you to move and position the cursor through software programs. The up and down arrows are programmed to perform specific functions when pressed in combination with the Blue and Red modifier keys.

For more details, see Using the Navigation Keys on page 5-3.

Recessed Keyboard

There are three keyboard options: 35-key numeric/alpha keyboard, 43-key numeric/alpha keyboard, and 56-key full alpha/numeric keyboard.

For a complete overview of each keyboard, see Using Dolphin Keyboards on page 5-1.

SCAN Key

The SCAN key is centrally located for easy access with the right or left hand. When pressed, the SCAN key activates the scanner/imager. The SCAN key also functions as an on or system wake-up control for the terminal.

Touch Panel Display

The color 3.5 inch liquid crystal display (LCD) touch panel is covered with an industrial, protective lens for greater durability. The video graphic array (VGA) resolution is 1/4 (240 X 320 pixel).

The color LCD is 16 bits/pixel and uses thin film transistor (TFT) technology. The backlight for the touch panel lights when the screen is touched, but not when the Backlight key is pressed. For more information, see Backlight on page 6-8.

The touch panel can be activated by the stylus (included with the terminal) or a finger. For more information, see Using the Touch Panel on page 3-13.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 5

Back Panel Features

Battery Well

Image Engine Window

Stylus Slot

Rear Speaker

Microphone

Fastener for the

Stylus Tether

IrDA Port

Fastener for the Stylus Tether

3 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Battery Well

The Battery Well is a recessed area on the back panel that holds the Li-ion battery pack. For more information, see Batteries on page 3-14.

Fastener for the Stylus Tether

Stylus tethers can be purchased separately to help you keep the stylus attached to the terminal when not in the slot to prevent loss. A stylus tether is a coiled elastic cord with one end to attach to the stylus and another to attach fasten to the back panel.

Image Engine Window

The available image engines that reads and decodes linear, stacked linear (e.g., PDF417), and 2D matrix bar code symbologies. With the latest CMOS-based technology, the engine works like a digital camera and enables digital image capture, signature capture, and reading of OCR characters.

Digital images have a maximum image size of 640 x 480 pixels and may have up to a 256 grayscale image definition. Files formats supported for image storage include Bitmap (BMP), JPEG (JPG) and Portable Network Graphics (PNG).

For more details, see Using Scan Image Engine on page 4-1.

Microphone

The integrated microphone that provides audio input to the terminal when a headset is not plugged into the Audio Jack, page 3-8. When a headset is plugged in, the terminal defaults to the microphone on the headset.

Rear Speaker

The integrated speaker that sounds audio signals as you scan bar code labels and enter data. The operating frequency range is 500Hz at 71 dB up to 80 dB.

Stylus Slot

The stylus is used to operate the touch panel. The back panel features this storage slot to hold the stylus when not in use.

The stylus features a special tip for added accuracy and ease of use.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 7

Side Panels

Audio Jack (2.5mm)

Memory Card Door

IrDA Port

The left and the right side panels contain different features.

Left Side Features

Memory Card Door

This door provides user access to the industry-standard SD memory interface. You can open this door to insert SD memory cards to expand the terminal’s memory capacity.

When this door is fastened securely and properly, the memory interface is sealed against moisture and particle intrusion, read/write data is stored securely, and the terminal’s environmental rating is preserved; see Memory on page 6-11.

Audio Jack

The 2.5mm audio jack supports both speaker (stereo) and microphone (mono) headsets.

Right Panel Features

IrDA Port

The IrDA port enables infrared communication; see Using Infrared on page 7-2. The maximum data transfer speed is 115kbps.

3 - 8 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Installing a Memory Card

1. Press Blue + Backlight key to put the terminal in suspend mode; see Suspend Mode on page 2-11.

2. Remove the battery.

3. Place the terminal on a flat, secure surface with the keyboard face-down.

4. Unscrew both screws and remove the door.

5. Slide the mini-SD card into the appropriate slot until it clicks into place.

a. To remove an installed mini-SD card, tap on the edge lightly to unlock the card; the card will pop

out just enough for you to grab its edge and pull it out.

6. Replace the access door and tighten the screws.

There is a rubber gasket on the inside of access door that must be in place when you seal the door. This gasket performs the sealing action for the door.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 9

Bottom Panel Features

I/O Connector

Note: Signals referenced are for a DTE device.

I/O Connector

The I/O connector powers the terminal, charges the main battery, and facilitates communication. All Dolphin peripherals are designed to work exclusively with this connector.

The I/O connector supports RS-232 or USB. For RS-232, the maximum communication speed is 115 Kbps with seven baud rate settings. For USB, the communication speed is up to 12 Mbps.

Powering Out

The mechanical connector also provides power out (to peripheral devices) 5V at 500mA. This means that, with the proper Honeywell cable, the terminal can power another device. By default, power out is disabled. To enable power out, alter the registry as follows:

[HKEY_LOCAL_MACHINE\Drivers\BuiltIn\Serial4]

Conn5Venable=1

3 - 10 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

ActiveSync Communication

To synchronize, ActiveSync 4.5 or higher must be installed and configured for the appropriate communication type on the host workstation and the Dolphin terminal. Dolphin terminals ship with ActiveSync already installed. Therefore, if ActiveSync is already installed on the host workstation, you just need to connect the Dolphin terminal to the host workstation (via Dolphin peripheral) to initiate communication.

If ActiveSync 4.5 or higher is not installed on the host workstation, install it from the Microsoft Companion CD that came with the Dolphin terminal. Insert the CD into the CD-ROM drive of the host workstation and follow the directions on your screen.

Note: You can also download the most current version of ActiveSync from www.microsoft.com and install.

When communicating via ActiveSync, your terminal is designed to be connected to the host workstation with a Hand Held Products communication peripheral. We recommend use of Hand Held Products peripherals, power cables, and power adapters. Use of any non-Hand Held Products peripherals, cables, or power adapters may cause damage not covered by the warranty.

Capabilities

• Back up and restore your device data.

• Copy (rather than synchronize) files between your terminal and workstation.

• Control when synchronization occurs by selecting a synchronization mode. For example, you can synchronize continually while connected to your workstation or only when you choose the synchronize command.

• Select which information types are synchronized and control how much data is synchronized. For example, you can choose how many weeks of past appointments you want synchronized.

Communication Types

The Dolphin terminal supports the following types of communication via ActiveSync through its I/O

Connector (see page 3-10) on the bottom panel:

USB The USB cable and hardware peripherals allow the terminal to communicate with a workstation or

to networked through a USB hub. The Dolphin terminal supports full-speed USB communication (USB 1.1); maximum data transfer rate is 12 Mbps. The Dolphin terminal defaults to USB communication out of the box.

RS-232 The RS-232 cable allows the terminal to communicate with a workstation, modem, or any RS-232

device. Maximum data transfer rate is 115 Kbps.

Hardware Requirements for Setup

• Dolphin communication peripheral or cable

• Dolphin power cable from Hand Held Products

• USB cable (for USB communication)

• Serial cable (for RS-232 communication)

Software Requirements for Communication

• To sync successfully, ActiveSync v4.5 or higher must be configured for same communication type on both the host workstation and the Dolphin terminal. ActiveSync must be setup on your workstation before you initiate synchronization from the terminal for the first time.

• Windows 98 Second Edition, Windows Me, Windows 2000, Windows NT (4.0 SP6 or higher), Windows XP, or Windows Vista operating systems.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 11

Setting Up the Host Workstation

For USB communication, check Allow USB connections.

For RS-232 communication, connect to COM1.

Verify that ActiveSync is configured to use the appropriate communication type by clicking File > Connection Settings.

Note: You can have both USB and RS-232 selected in the software without affecting processing. However, your

hardware setup should use only RS-232 or USB, not both.

Communicating with the Dolphin Terminal

After setting up both the workstation and the terminal, ActiveSync connection should be automatic.

1. Connect the Dolphin terminal to a Dolphin communication peripheral.

2. The Dolphin terminal automatically opens ActiveSync to establish a connection.

Synchronizing with the Host Workstation

After setup, synchronization begins automatically whenever the terminal’s mechanical connector connects to a Dolphin peripheral that is connected to a host workstation with ActiveSync installed.

Exploring the Terminal from the Workstation

When the Dolphin terminal and workstation are connected, open the main ActiveSync window (on the desktop), and click Explore.

The Mobile Device folder opens in Windows Explorer.

The Dolphin terminal is now treated as a mass storage device, and transferring files is as simple as dragging and dropping or copying and pasting.

3 - 12 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Using the Touch Panel

Honeywell defines proper use of the terminal touch panel as using a screen protector and proper stylus. Screen protectors maintain the ongoing integrity (i.e., prevent scratching) of the touch panel, which is why their use is recommended for applications that require a high to medium level of interface with the touch panel, such as signature capture for proof of delivery.

Honeywell continues to advocate the use of screen protectors on all Dolphin devices. We recommend implementing a screen protector replacement program to ensure that screen protectors are replaced periodically when signs of damage/wear are noticeable. For general use, we recommend replacing the screen protector every thirty (30) days. However, replacement cycles vary according to the average level of touch panel use in your application.

Replacement screen protectors can be purchased directly from Honeywell. Please contact a Honeywell sales associate for details.

Honeywell also mandates use of a proper stylus, which is one that has a stylus tip radius of no less than

0.8mm. Use of the Honeywell stylus included with the terminal is recommended at all times.

Honeywell warranty policy covers wear on the touch panel for the first 12 months provided that a screen protector is applied and an approved stylus is used for the 12 month duration covered by the warranty.

Installing a Screen Protector

Dolphin 9900 terminals ship with a screen protector already installed. You will need to replace the screen protector at regular intervals.

1. After the current screen protector has been removed from the touch panel, clean the touch panel

thoroughly with a clean, non-abrasive, lint-free cloth. Make sure nothing else is still attached to the touch panel.

2. Align the exposed section of the protector with the bottom edge of the touch panel.

Make sure that the screen protector is flush with each side of the touch panel. To reposition, lift up gently and reapply.

3. Press the screen protector firmly and carefully across the surface of the touch panel as you peel

away the backing.

4. If necessary, smooth out any air pockets or bumps.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 13

Batteries

There are two types of battery power: the main battery pack installed in the back panel and the backup battery located inside the terminal. They are designed to work together to prevent data loss when the terminal is in use over long periods.

Both batteries must be completely charged before using a Dolphin terminal for the first time!

Main Battery Pack

We recommend use of Hand Held Products Li-Ion battery packs. Use of any non-Hand Held Products battery may result in damage not covered by the warranty.

The 7.4V, 18.5 watt hour Li-ion battery pack is the primary power source for the terminal. The Li-ion battery is designed to operate in a temperature range of -10° to 50°C (14° to 122°F).

Charging Options

When the Li-ion battery is installed in the terminal, use one of the following peripherals:

• Dolphin HomeBase Device (see page 11-1)

• Dolphin Mobile Base Device (see page 12-1)

• Dolphin ChargeBase Device (see page 13-1)

• Dolphin Net Base (Please see the Dolphin Net Base Quick Start Guide on www.honeywell.com/aidc.)

• Dolphin Mobile Charger

When the Li-ion battery is not installed in the terminal:

• Place the battery pack in the Dolphin QuadCharger device (see page 14-4)

• Place the battery pack in the Auxiliary Battery Well of the Dolphin HomeBase (see page 11-6).

Charging Time

The Li-ion battery pack requires 4.5 hours to charge completely before initial use.

Storing Batteries

To maintain optimal battery performance, follow these storage guidelines:

• Avoid storing batteries outside the specified range of -4° to 104° F (-20° to 40°C) or in extremely high humidity.

• For prolonged storage, do not keep batteries stored in a charger that is connected to a power source.

Guidelines for Battery Pack Use and Disposal

The following are general guidelines for the safe use and disposal of batteries:

• We recommend use of Hand Held Products Li-Ion battery packs. Use of any non-Hand Held Products battery may pose a personal hazard to the user.

• Replace defective batteries immediately; using a defective battery could damage the Dolphin terminal.

• Never throw a used battery in the trash. It contains heavy metals and should be recycled according to local guidelines.

• Don’t use a battery in any other manner outside its intended use in Dolphin terminals and peripherals.

• Don’t short-circuit a battery or throw it into a fire; it can explode and cause severe personal injury.

• Excessive discharge damages a battery. Recharge the battery when your terminal indicates low battery power.

3 - 14 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

• If you observe that the Hand Held Products battery supplied is physically damaged in some way, please send it to Honeywell International Inc. or an authorized service center for inspection. Refer to the Product Service and Repair section of this guide.

• Although your battery can be recharged many times, it will eventually be depleted. Replace it after the battery is unable to hold an adequate charge.

• If you are not sure the battery or charger is working properly, please send it to Honeywell International or an authorized service center for inspection.

Internal Backup Battery

Located inside the terminal, the backup battery is a 3.6 Volt nickel metal hydride (NiMH) battery. The internal backup battery prevents the terminal from being reset if you need to remove and replace the

main battery pack. It retains RAM data and allows the real-time clock to remain operational for up to 30 minutes when the main battery pack is removed. If the terminal is left without the main battery pack for more than 30 minutes, the internal backup battery needs to be recharged to function according to its specifications.

Note: Data and programs stored in Flash memory are not lost even if the internal backup battery fails. However, you

must reset the real-time clock; see Set the Time and Date on page 2-2.

Charging

The internal backup battery is powered by the main battery pack. Therefore, charging the internal backup battery requires that the main battery pack be installed in the terminal and the terminal be connected to a charging device.

The internal backup battery must be fully charged before using the terminal for the first time. The initial charge cycle takes approximately 8 hours. After that, if the internal backup battery becomes fully discharged of power, it requires a minimum of 10 hours of charging time to function normally.

Guidelines for Use

Follow these guidelines to maximize the life of the internal backup battery:

• Keep a charged Li-ion battery pack in the terminal; the backup battery prematurely discharges if there is not at least a partially charged battery in the terminal.

• Keep the terminal connected to power when the terminal is not in use.

Managing Battery Power

Data and files saved on Dolphin terminals may be stored in RAM memory, which does not persist through a hard reset. Therefore, to help prevent data loss, maintain a continuous power supply to the terminal.

Letting the backup battery become fully discharged causes the terminal to lose all data in RAM. Therefore, you should keep a charged battery pack in the terminal at all times. The internal battery discharges prematurely if there is not at least a partially charged battery in the terminal. When you remove a battery pack, insert another charged battery pack in the terminal immediately.

Default Critical and Low Battery Points

When the terminal is running on battery power (as opposed to external power), warnings are displayed when the battery reaches critical and low battery points. The warning points are determined by the following registry entry:

[HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Power]

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 15

There are two DWORD values in this registry entry: LowBatt and CriticalBatt. The default values for these entries are as follows:

LowBatt=19 (25%)

This sets the Low Battery point to 25% (19 hex=25 decimal). When the battery hits the

percentage charge specified here, the user is notified by this icon in the Navigation bar .

If the main battery is low and the terminal is in suspend mode, pressing the SCAN or Power button won’t wake the Dolphin terminal; you must replace the discharged battery with a battery charged over 25% mark before you can resume terminal operation.

CriticalBatt=a (10%)

This sets the Critical Battery point to 10% (a hex= 0 decimal). When the battery hits the

percentage charge specified here, the user is notified by this icon in the Navigation bar .

Note: Warnings do not appear when the terminal is on external power.

Setting Critical and Low Battery Points

Developers can reset these parameters in the registry from 0 (no warning) to 99 (would nearly always warn). You can review and set these battery points in the RegEdit Power Tool.

1. Tap Start > Power Tools > RegEdit.

2. Drill-down to HKEY_LOCAL_MACHINE > System > CurrentControlSet > Control > Power.

3. Tap the Value Name to change the Value Data.

You can reset the Value Data from 0 (no warning) to 99 (would nearly always warn).

4. Tap OK to save changes.

For more information about the RegEdit Power Tool, refer to the Dolphin Power Tools User’s Guide available for download at www.honeywell.com/aidc.

Checking Battery Power

Tap Start > Settings > System tab > Power.

For more information, see Power on page 6-12.

3 - 16 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Resetting the Terminal

CTRL

SFT

CTRL

NUM

CTRL

SFT

SCAN

There are two types of system resets: a soft and a hard reset.

Soft Reset (Warm Boot)

A soft reset re-boots the device without losing RAM data. You would perform a soft reset when

• the terminal fails to respond.

• after installing some software applications.

• after making changes to certain system settings, such as network cards.

1. On the 56-key keyboard, press and hold the CTRL + SFT keys for approximately 5

seconds.

On the 43-key keyboard, press and hold the CTRL + NUM keys for approximately 5 seconds.

2. The decode and scan LEDs flash for approximately three seconds as the terminal resets.

3. When the reset is complete, the Today screen displays.

Hard Reset (Cold Boot)

A hard reset resets the operating system, restores the terminal back to factory defaults, and resets the terminal after a bootloader, keyboard, and kernel upgrade.

A hard reset erases all of the data stored in RAM memory and all RAM installed applications!

1. Press and hold the CTRL + ESC keys for approximately 5 seconds.

2. The decode and scan LEDs light for approximately 3 seconds.

3. The terminal re-initializes; see Initialize the Mobile Computer on page 2-8.

Suspend Mode

The terminal goes into suspend mode automatically when the terminal is inactive for a programmed period of time. You can program this time on the Advance tab of the Power system setting; see Power on page 6-12.

To put the terminal into suspend mode manually, press the Power key and the screen goes blank.

To wake the terminal from suspend mode, press the Power or SCAN keys .

Hardware Maintenance

When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint-free cloth. The terminal can be cleaned with a damp cloth.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

3 - 17

3 - 18 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Using Scan Image Engine

Overview

The Dolphin terminal houses a compact image engine that instantly reads popular 1D and 2D bar codes and supports omni-directional aiming and decoding for greater flexibility in real-world settings. The image engine can also capture digital images, such as signatures and pictures of damaged inventory.

Engine Options 1D 2D

5100SR/SF Y Y Y Green aiming beam or Y

5300SR Y Y Y Red High-Vis aiming pattern Y

Image Capture

Aiming Omni-Directional

Aiming

Angled Imaging

All imager are installed at a 33 degree downward-facing angle for enhanced comfort and maneuverability while scanning.

Image Engine Specifications

5100 Standard Range (5100SR) 5300 Standard Range (5300SR)

8.3 mil Linear

Working Range:

Near 3.5 in.

Far 7.6 in.

(.020 cm) (.025 cm) (.033 cm) (.038 cm) (.038 cm) (.089 cm)

(8.9 cm)

(19.3 cm)

10 mil PDF417

3.1 in. (7.9 cm)

9 in. (22.9 cm)

13 mil UPC

2.1 in. (5.3 cm)

13.2 in. (33.5 cm)

15 mil Data Matrix

2.3 in.

5.8 cm)

10.2 in. (25.9 cm)

15 mil QR

3.1 in. (7.9 cm)

8.8 in. (22.4 cm)

35 mil MaxiCode

2.0 in. (5.1 cm)

13.0 in. (33 cm)

5100 Smart Focus (5100SF)

Working Range:

Near

Far

6.6 mil PDF417

(.017 cm) (.019 cm) (.025 cm) (.025 cm) (.033 cm) (.038 cm)

2.7 in. (6.8 cm)

5.9 in. (14.9 cm)

7.5 mil Linear

2.4 in. (6.1 cm)

6.4 in. (16.2 cm)

10 mil Linear

2.1 in. (5.3 cm)

7.5 in. (19 cm)

10 mil PDF417

2.1 in. (5.3 cm)

7.5 in. (19 cm)

13 mil UPC

1.9 in. (4.8 cm)

8.8 in. (22.3 cm)

15 mil Data Matrix

1.7 in. (4.3 cm)

7.4 in. (18.8 cm)

The 5300 image engines contains a high-visibility aimer that projects aiming brackets around the bar code or image preview for maximum viewability and aiming. For details, see 5300 Red High-Vis Aiming Pattern on page 4-4 and page 4-6.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

4 - 1

Supported Bar Code Symbologies

Symbology Type Symbology Name

1D Symbologies Codabar

Code 3 of 9 Code 11 Code 32 Pharmaceutical (PARAF) Code 93 Code 128 EAN with Add-On EAN with Extended Coupon Code EAN-8 EAN-13 GS1-128 GS1 Databar Interleaved 2 or 5

2D Symbologies Aztec

Codablock Code 16K Code 49 Composite Data Matrix GS1 Databar MaxiCode Micro PDF OCR PDF417 QR Code

Composite Codes Aztec Mesa

Codablock F EAN·UCC GS1 Databar-14

ISBT 128 Matrix 2 of 5 MSI Plessey PosiCode Straight 2 of 5 IATA Straight 2 of 5 Industrial Telepen Trioptic Code UPC UPC-A UPC-E

OCR OCR US Money Font

MICR (E 13 B) and SEMI Font OCR-A OCR-B

Postal Codes Postnet and most international 4-state codes

Australian Post British Post Canadian Post China Post Japanese Post KIX (Netherlands) Post Korea Post Planet Code

4 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Decoding

The terminal supports two types of image decoding for use in various bar code reading and imaging applications: full-area imaging and Advanced Linear Decoding (ALD).

Full-Area Imaging

Full-area imaging provides omni-directional reading of linear and non-linear 1D and 2D bar codes, OCR, signature capture, and picture taking. When reading all bar code types using full-area imaging, a positive read can be obtained from many positions; see Scanning Position Options on page 4-4. To achieve the best read, the aiming beam should be centered horizontally across the bar code.

ALD

ALD provides fast reading of linear and stacked linear bar codes. To achieve a positive read when reading linear 1D and PDF417 bar codes, the green aiming beam should be centered horizontally across the bar code. When ALD is enabled, the reader does not read matrix or postal codes.

To Decode a Bar Code

The imager faces straight out the top panel. The aiming beam should be oriented in line with the bar code to achieve optimal decoding. A range of 4-10 inches (10-25 cm) from the bar code is recommended.

1. Point the Dolphin terminal directly at the bar code.

2. Project the aiming beam or pattern by pressing and holding the SCAN key.

3. The scan LED lights red.

4. Center the aiming beam over the bar code; see Scanning Position Options on page 4-4.

5. When the bar code is successfully decoded, the decode LED lights green and the terminal beeps.

6. The bar code information is entered into the application in use.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

4 - 3

Scanning Position Options

The aiming beams are smaller when the terminal is held closer to the code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit whereas symbologies with larger bars or elements (mil size) should be read farther from the unit.

5100 Green Aiming Beam

Linear Bar Code

2D Matrix Symbol

5300 Red High-Vis Aiming Pattern

If your Dolphin terminal is configured with a 5300 imager, high-vis aimers frame the bar code for more intuitive aiming.

4 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Capturing Images

The image-capture process is an intuitive, split-second operation for experienced users. By following the basic guidelines, new users can easily develop their own technique and, with practice, quickly learn to adapt it to different application environments.

Image Preview

When the imaging process is initiated, the touch screen displays a preview of the object. This is a live video image of what the imager is currently viewing. The live video image has a slightly degraded appearance compared to the captured image. This is normal.

Scan Key

The SCAN key captures images.

Image Files

The terminal is capable of saving images in a number of industry-standard file formats such as BMP, JPG, and PNG. The default file format for images is a grayscale JPG.

Compression

The image quality and related file size are determined by the data compression method used by the software application used to take images. The average size of the image file is approximately 4–8K. However, the size of the image depends on the content of the image - the more complex the content, the larger the file size. For the highest quality image, take grayscale images.

Taking an Image

The following steps are basic guidelines for taking images:

1. Point the Dolphin terminal directly at the object. The imager points straight out the top panel.

2. To preview the image, press and hold the SCAN key.

3. The touch screen displays a preview of the object, and the decode and scan LEDs light red.

4. Adjust the terminal’s position until the object appears on the screen the way you want it to appear in

the image.

5. Hold the terminal still and release the SCAN key or Scan Trigger. The scan and decode LEDs flash

red, the screen flashes, and the captured image appears on the screen.

6. Unless otherwise specified by the application in use, the image is saved to the \My Device\My

Documents folder (Start > Programs > File Explorer > My Device > My Documents).

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

4 - 5

5300 High-Vis Aiming Pattern

If your Dolphin terminal is configured with the 5300 imager, you can enable the aiming pattern for imaging in the Imaging Demo.

1. Tap Start > Demos > Imaging Demo > Setup menu > Aimer.

2. The aiming pattern is now enabled for imaging.

Uploading Images

Image files can be uploaded to a host workstation via Microsoft ActiveSync and a Dolphin communication peripheral or your wireless radio connection.

4 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

CTRL

SCAN

SFT

ESC

TAB

ENT

ABCD

EFG

MNOP

VWX

SP BKSP

VOL

NUM

DE L

END

SEND

START

F3F2F1 F4

START

‘

IN S

SCAN

SFT

ESC

TAB

ENT

CTRL

BKSP

DEL

INS

789

ABCDE

FGH I

MNO

VWX Y

VOL

END

SEND

F6F6

F7F7

F8F8F9F9 F10

F10

F11F11

F12F12 F13F13 F14F14 F15

F15

F16F16 F17F17 F18F18 F19F19 F20

F20

F21F21 F22F22 F23F23 F24F24 F25

F25

;

F1F1 F2F2 F3F3 F4F4

START

Using Dolphin Keyboards

Keyboard Options

There are two available keyboards:

43-Key Alpha/Numeric Keyboard 56-Key Full Alpha/Numeric Keyboard

All Keyboards Contain the Following:

• Backlit for easy viewing in various lighting conditions.

• Centrally-located keys for both right- and left-hand operation.

• Color-coding so you can clearly see the most common keyboard combinations.

• A silver background to enhance readability.

• Function, navigation, and modifier keys.

Common Buttons

See Using the Function Keys on page 5-2. See Using the Modifier Keys on page 5-2. See Using the Navigation Keys on page 5-3.

Keyboard Combinations

See 43-Key Alpha/Numeric Keyboard on page 5-5. See 56-Key Full Alpha/Numeric Keyboard on page 5-8.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

5 - 1

10/30/08

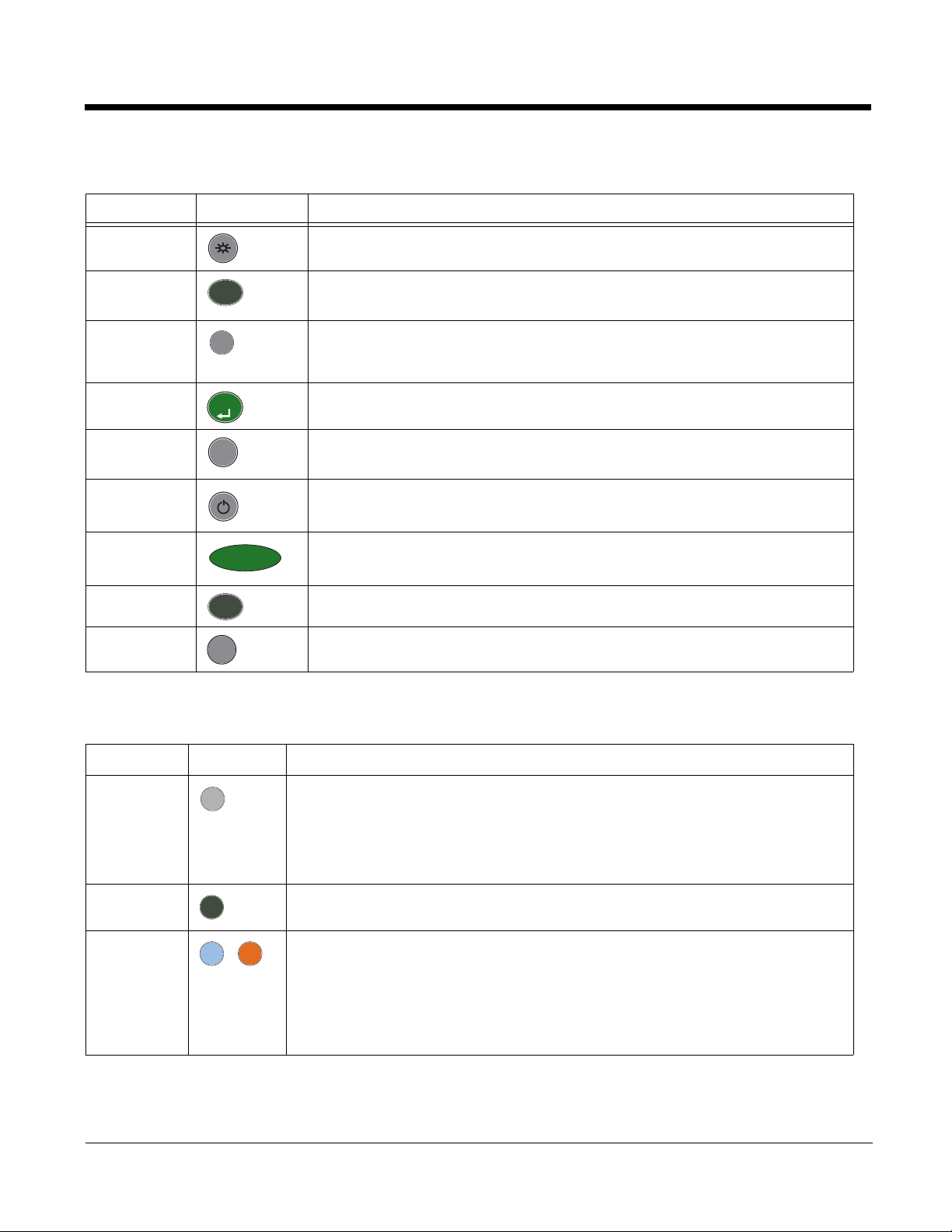

Using the Function Keys

BKSP

DEL

ENT

ESC

SCAN

TAB

SFT

CTRL

Name Key Function

Backlight Turns the keyboard backlight on and off.

Backspace (BKSP)

Delete (DEL)

Moves the cursor back one space each time the key is pressed. If you are typing text, it deletes the previous character each time it is pressed.

Deletes the next character forward each time the key is pressed. This key appears on the 56-key keyboard only. 43-key keyboard= Red + BKSP.

Enter (ENT) Confirms data entry.

Escape

Cancels the current action.

(ESC)

Power Key Puts the terminal in and wakes the terminal from suspend mode; see

Suspend Mode on page 3-17.

SCAN Key Activates the scan and “wakes” the terminals from sleep mode. Its position

allows convenient one-handed image-taking and/or bar code decoding.

Space (SP) Moves the cursor one space.

Tab Moves the cursor to the next tab stop or the next control (on a form).

Using the Modifier Keys

Name Key Function

Shift The SFT key modifies only the next key pressed; it must be pressed before each

key you wish to modify. SFT toggles the keyboard between uppercase alphabet mode and lowercase alphabet mode.

Double-tap SFT to toggle Caps Lock on and off. When Caps Lock is toggled on, characters are uppercase; when toggled off, characters are lowercase.

CTRL The function of the CTRL key depends on the software application in use and

the key combination.

Blue and Red

The blue and red keys are used in combination with other keys to type special characters and perform system functions. Each key modifies only the next key pressed.

The overlay of each keyboard is color-coded to indicate the character typed or function performed when specific keys are pressed immediately after the blue or red modifier key.

5 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Using the Navigation Keys

VOL

Located in the center of each keyboard for easy access with either hand, the navigation keys navigate the cursor through application screens.

Button Function

Moves the cursor up one row or line.

Note: Additional functionality varies according to the application in use.

OR Moves the cursor down one row or line.

Raises the volume. OR Lowers the volume.

Moves the cursor one character to the right.

Moves the cursor one character to the left.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

5 - 3

Sticky Key Functionality

Dolphin 9900 terminals support sticky key functionality for the CTRL key, which means that you don’t have to press and hold the CTRL key when you press the next key. Instead, just tap CTRL and then the next key.

You need to open RegEdit and enable the \HKEY_LOCAL_MACHINE\HARDWARE\DEVICEMAP\KEYBD key.

1. Tap Start > Power Tools > RegEdit .

2. Tap the + sign.

3. Tap HKEY_LOCAL_MACHINE > HARDWARE > DEVICEMAP > KEYBD.

4. In the bottom half of the window, double-tap the StickyCtrlAlt key and change the Value Data from

“0” to “1.”

5. Tap OK, then OK in the upper right corner to save the change to the registry.

6. Press the CTRL key combination with other keys to verify that you do not need to hold them down

while you press the next key. For an example of CTRL key combinations, see General Windows

Keyboard Shortcuts on page 5-11.

5 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

43-Key Alpha/Numeric Keyboard

CTRL

SCAN

SFT

ESC

TAB

ENT

ABCD

EFG

MNOP

VWX

SP BKSP

VOL

NUM

DE L

END

SEND

START

F3F2F1 F4

START

‘

IN S

Backlight key

SCAN key

Space key

CTRL Blue Red SFT Modifier keys

Enter key

Tab k ey

Escape key

NUM Lock key

Navigation keys

Power key

NUM Lock

Indicators

NUM Lock Pad

Backspace key

NUM

Number Lock (NUM)

The Number Lock key enables you to toggle between the alpha and numeric modes. Alpha mode is when you type letters with the letter keys. Numeric mode is when you type numbers with the letter keys. On the 43-key keyboard, alpha mode is the default.

Press the NUM key only once to switch to NUM lock mode.

The NUM Lock Indicators above the letter keys in the NUM Lock Pad specify the number or character that will be typed when you press that letter key in numeric mode.

Note: The NUM key is also used to perform a soft reset in combination with the CTRL key.

Dolphin® 9900 Mobile Computer User’s Guide

10/30/08

Rev C

5 - 5

43-Key Keyboard Combinations

Alpha Alpha Shift NUM Lock NUM Shift BLUE RED

aA 1!

bB 2@

cC3#

d D d D - (minus)

eE 4$

fF5%

gG6^

h H h H _ (underscore)

iI 7&

jJ8*

kK 9(

l L l L = (equals)

m M . (period) >

nN 0)

o O , (comma) <

pP pP+ (plus)

q Q q Q ; (semi-colon) F1

rRrR: (colon)F2

s S s S ‘ (apostrophe) F3

t T t T / (forward slash) F4

uU uU@ F5

v V v V * (asterisk) F6

w W w W # (pound) F7

x X x X \ (backslash) F8

yY yYStart menu

zZ zZ

SP SP SP SP INS

BKSP BKSP BKSP BKSP DEL

Up arrow up up up Volume up Page up

5 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

43-Key Keyboard Combinations

Alpha Alpha Shift NUM Lock NUM Shift BLUE RED

Down arrow down down down Volume down Page down

SFT Shift Shift Shift Send (a phone call)

ENT ENT ENT ENT End (a phone call)

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

5 - 7

56-Key Full Alpha/Numeric Keyboard

SCAN

SFT

ESC

TAB

ENT

CTRL

BKSP

DEL

INS

789

ABCDE

FGH I

MNO

VWX Y

VOL

END

SEND

F6F6

F7F7

F8 F9F9 F10F10

F11F11

F12F12 F13F13 F14F14 F15F15

F16F16 F17F17 F18F18 F19F19 F20F20

F21F21 F22F22 F23F23 F24F24 F25F25

;

F1F1 F2F2 F3F3 F4F4

START

Shift key

Navigation keys

SCAN key

Power key

Backspace key

Space key

Delete key

Backlight key

Insert key

CTRL Blue Red Modifier keys

Enter key

Tab key

Escape key

5 - 8 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

56-Key Keyboard Combinations

Key SHIFT BLUE RED

1 !

2 @

3 #

4 $

5 %

6 ^

7 &

8 *

9 (

0 )

, (comma) < # (pound)

. (period) > * (asterisk)

A + (plus) F1

B ; (semi-colon) F2

C [ (left bracket) F3

D ] (right bracket) F4

E " (quotes) F5

F - (minus) F6

G : (colon) F7

H ‘ (apostrophe) F8

I ? (question mark) F9

J ` (accent) F10

K @F11

L / (forward slash) F12

M = (equal sign) F13

N ~ (tilde) F14

O F15

P _ (underscore) F16

Q \ (backslash) F17

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

5 - 9

56-Key Keyboard Combinations

Key SHIFT BLUE RED

R F18

S F19

T F20

U Start menu F21

V F22

W F23

X F24

Y F25

Up arrow Volume up Page up

Down arrow Volume down Page down

SFT Send (a phone call)

ENT End (a phone call)

Blue Toggle

CAPSLOCK

5 - 10 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

General Windows Keyboard Shortcuts

Press these keys, To…

CTRL + C Copy

CTRL + X Cut

CTRL + V Paste

CTRL + Z Undo

DELETE Delete

CTRL + Right Arrow Move the insertion point to the beginning of the next word.

CTRL + Left Arrow Move the insertion point to the beginning of the previous word.

CTRL + Down Arrow Move the insertion point to the beginning of the next paragraph.

CTRL + Up Arrow Move the insertion point to the beginning of the previous

paragraph.

SHIFT + any of the arrow keys Select more than one item in a window or on the desktop, or

select text within a document.

CTRL+ A Select all

CTRL + ESC Display the Start menu.

Underlined letter in a

Carry out the corresponding command.

command name on an open menu

Backspace View the folder one level up in My Computer or File Explorer.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

5 - 11

5 - 12 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Personal Tab System Tab Connections Tab

System Settings

Overview

Customized settings are available on the Start menu. Tap Start > Settings and settings screen opens displaying the Personal tab. Settings consists of three tabs: Personal, System, and Connections.

Tab Description See Page

Personal

System

Connections

Customizes buttons, set SIP options, and adjust headset settings.

Adjusts system settings. See System Tab on page 6-7.

Establishes network connections settings. See Connections Tab on page 7-1.

See Personal Tab on page 6-2.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 1

Personal Tab

To access the Personal tab, go to Start > Settings. The screen opens displaying the Personal tab.

Icon Description

Buttons Program the side buttons to perform specific

Input Customizes the SIP (soft input panel). See Input on page 6-4.

Lock Password protect the terminal to limit access to the terminal.

Menus Customizes what appears on the Start menu. See Menus on page 6-5.

Owner Information Enter your contact information.

Phone When the GSM radio is enabled, tap this icon

Sounds & Notifications

Today

Note: Personal settings are stored in RAM memory. They are replaced by system defaults after each hard reset.

For more information about resets, see Soft Reset (Warm Boot) on page 3-17.

tasks.

This information will appear on the Today screen.

to set up user parameters.

Set the sound volume, enables and disables sounds for specific actions, and sets sound parameters for system notifications.

Customize the look and the information displayed on the Today screen.

See Page

See Buttons on page 6-3.

See Setup Options on page 8-7.

6 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Buttons

The Buttons setting programs certain keyboard buttons to launch applications or execute commands.

Enable HotKeys

Default Buttons setting assignments inactive until you enable the HotKeys Power Tool. Tap Start >

Power Tools and tap the HotKeys icon once . HotKeys is enabled and the button assignments in

the Buttons setting are active. For more information about the HotKeys Power Tool, refer to the Dolphin Power Tools User’s Guide,

which is available for download from the web at www.honeywell.com/aidc.

Changing Buttons’ Assignments

1. After HotKeys is enabled, tap Start > Settings > Personal tab > Buttons .

Note: The buttons that appear on this window are the only buttons that can be programmed via the Buttons setting.

You cannot add buttons to this window.

2. To change button assignment, tap on the name of the application in the Assignment column and

select a program or command in the Assign a program drop down list.

3. Tap OK to save.

4. Press the button to verify that the program is launched or action performed.

Available Applications

The Assign a program list contains the applications installed on the terminal. If there is a program installed that you would like to see in this list, paste a Shortcut to the program in the \\Windows\Start Menu\Programs folder. For instructions about creating shortcuts, see Using File Explorer on page 6-5.

Additional Functions

The Assign a program list also contains the following commands:

Command Description

<Input Panel> Opens the soft input panel.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 3

Command Description

Input Method Options Word Completion

<None> Nothing happens when the button is pressed.

<OK/Close> Performs the same function as tapping OK on the screen.

<Scroll Down> Scrolls down in the open application.

<Scroll Left> Scrolls left in the open application.

<Scroll Right> Scrolls right in the open application.

<Scroll Up> Scrolls up in the open application.

<Start Menu> Opens the Start menu.

<Today> Opens the Today screen.

Input

The Input settings enables you to customize input from the SIP, adjust word completion settings in Microsoft applications.

6 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Menus

You can add existing programs you use often, such as File Explorer, to the Start menu for faster access. You are not installing the program, just allowing access to it from the Start menu.

To add programs to the Start menu, you can use

• The Menus setting on the Personal tab (see page 6-5),

• File Explorer (see page 6-5), or

• ActiveSync (see page 6-6).

Note: The Start menu can hold only seven applications at a time.

Using System Settings

1. Tap Start > Settings > Personal tab > Menus .

2. Tap the check box for the program you want to add and tap OK to save.

Note: If you try to go over seven applications, a warning message appears and you will have to delete

applications as necessary.

3. Tap the Start menu to verify that the program appears on it.

Using File Explorer

If you do not see the program listed, you can either use File Explorer to move the program or ActiveSync on the workstation to create a shortcut to the program and place the shortcut in the Start Menu folder.

Note: We recommend that you Copy and Paste Shortcut so that you do not alter your program configurations by

accident. Using Copy and Paste Shortcut (as opposed to Cut and Paste) ensures that the program files remain where they need to be for the system to find them to perform system functions.

1. Tap Start > Programs > File Explorer, and navigate to the program.

File Explorer opens to My Documents by default; to see a list of all folders, tap the folder name and then My Device.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 5

2. Tap and hold on the program, then tap Copy on the pop-up menu.

3. Navigate to the Windows folder and open the Start Menu (My Device > Windows > Start Menu), tap

and hold a blank area of the window, and tap Paste Shortcut on the pop-up menu.

4. Tap the Start menu to verify that the program now appears on it.

Using ActiveSync on the Workstation

Here, you are performing the same basic process as on the terminal, except that you are using the Explore utility (Windows Explorer) to copy and paste the shortcut.

1. Open ActiveSync > Explore and navigate to the program.

2. Right-click on the program and select Create Shortcut.

3. Select the shortcut, right-click, and select Cut.

4. Navigate to the Start Menu folder (Windows > Start Menu).

5. Right-click on an empty area and select Paste Shortcut.

6. On the terminal, tap the Start menu.

7. Verify that program appears.

6 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

System Tab

The System tab enables you to verify and sometimes alter system parameters. To access the System tab, go to Start > Settings > System tab. Tap the appropriate icon to open that system setting.

Icon See Page

About See About on page 6-8.

Backlight See Backlight on page 6-8.

Certificates See Certificates on page 6-9.

ClearType Tuner See ClearType Tuner on page 6-9.

Clocks & Alarms See Clock & Alarms on page 6-9.

Encryption See Encryption on page 6-10.

Error Reporting See Error Reporting on page 6-10.

External GPS See External GPS on page 6-10.

Memory See Memory on page 6-11.

Power See Power on page 6-12.

Regional Settings See Regional Settings on page 6-13.

Remove Programs See Remove Programs on page 6-13.

Screen See Screen on page 6-14.

WAN Info See WAN Info on page 6-15.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 7

About

The About system setting displays specific information about the terminal. It contains three tabs:

Version Tab Displays the information about the software, operating system, and processor. Device ID Tab Displays the information the terminal uses to identify itself to other devices. It can be important to

know this information if the Dolphin terminal is going to be part of a networked system of devices.

Device name: Displays the system’s default name. (This is the name used by ActiveSync.) Description: Displays the description of the device ID.

Copyrights TabDisplays important copyright information.

Backlight

The Backlight system setting enables you to customize backlight functionality for the display. The backlight for the color display is user-defined. Tap Start > Settings > System tab > Backlight.

There are two tabs: The Battery tab determines the backlight timeout when the terminal is running on battery power. The External tab determines the backlight timeout when the terminal is running on external power.

The options on each tab are the same.

Turn off backlight: Select how many minutes you want to elapse before the backlight automatically turns off. Turn on backlight:Select this option if you want the backlight to turn on when the a button is pressed or the touch

screen is tapped.

Backlight Intensity

Tap the Backlight tab and move the slider to set the intensity of the backlight. The default is 8.

6 - 8 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Certificates

Certificates shows you which certificates are recognized by the operating system.

ClearType Tuner

This system setting enables you to adjust the level ClearType font rendering by moving a slider. The sample text displays the setting results immediately. Of course, you must first enable ClearType font rendering to change the appearance of fonts on the screen; see ClearType Tab on page 6-14.

Clock & Alarms

This setting sets the system clock, which means that all scheduled items run according to this setting. The time and date need to be reset after every hard reset of the terminal so that the system clock is accurate.

On the Today screen, tap the line that displays the time and date,

The Clock Settings screen appears. The selected time sets the system clock.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 9

Encryption

Encryption gives you the option of encrypting files placed on storage cards to that those files cannot be read by any other device.

Error Reporting

Error Reporting gives you the option of enabling or disabling the error reporting function of Windows Mobile 6.

External GPS

External GPS determines which port a third-party GPS software application can use to access the GPS receiver.

Note: You need the installation parameters from the GPS manufacturer to configure the connection.

6 - 10 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Memory

The Memory system setting displays capacity and usage statistics for both RAM (volatile) and IPSM/ Storage Card (non-volatile) memory. Access this setting whenever you receive system messages about memory.

You cannot change the terminal’s memory allocation in the Memory system setting. To change the memory allocation, you need to use the SetRAM Power Tool (Start > Power Tools > SetRAM). For more details, please refer to the Honeywell Power Tools User’s Guide, which is available for download from

www.honeywell.com/aidc.

There are three tabs: Main, Storage Card, and Running Programs.

Main Tab

This tab displays the usage statistics of the on-board, volatile RAM memory.

Columns:

Storage= Program=RAM memory used to run programs.

Rows:

Total= Displays the current MB of memory allocated for use. In use Free=Displays the total MB of memory available.

Storage Card Tab

This tab displays the current capacity and usage statistics of the selected memory type; IPSM or Storage Card.

Select the memory type from the drop-down list. IPSM is selected by default.

Total storage card memory= The total MB of memory capacity of IPSM or Storage Card.

In use Free=The MB that is still available for use.

RAM memory used to store programs and program data.

=Displays the total MB of that allocated memory being used.

=The MB currently being used.

IPSM—Short for Internal Persistent Storage Manager, this is the on-board Flash memory that is non-volatile. Because this memory is non-volatile, data or programs stored in IPSM are not affected when power is removed. Autoinstall programs, for example, are stored in IPSM so that they are always installed at cold-boot startup.

Storage Card—You can install one memory card in Dolphin terminals (see Memory

Card Door on page 3-8). If a storage card is installed in the terminal, you can select

it in the drop-down list and see capacity and usage statistics for the card.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 11

Running Programs Tab

Displays the software programs currently using Storage memory.

Check this tab when you are receiving out of memory errors or when the terminal is running slowly.

You can

• Select a program in the list and tap Stop to stop it from running (and therefore from using memory), or

• T a p Stop All to automatically stop all running programs.

Anytime you stop a running program, it frees up RAM memory. Be advised that, when you stop a program here, any unsaved data in that program is lost. To free up memory without risking data loss, return to the running program, save your data, and close the application.

Power

Power system settings contains three tabs: Battery and Advanced.

Battery Tab

For more information, see Batteries on page 3-14.

Advanced Tab

Determines power time-outs.

For On battery power, select from the drop-down list, the number of minutes of inactivity you want to pass before the terminal powers off when running on battery power.

For On external power, select from the drop-down list, the number of minutes of inactivity you want to pass before the terminal powers off when running on external power.

Note: You can also set automatic turn-off times for the terminal to conserve power. When the terminal is “turned

off,” that means that it goes into suspend mode; see Suspend Mode on page 3-17.

6 - 12 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Regional Settings

Regional Settings enables you to customize the appearance and formatting to your geographic region. Specifically, you can customize numbers (i.e., number of decimal places allowed), currency (i.e.,using the

$ or € symbol), time, and date. These specifications apply to all screens, including the Today screen. The

Region tab displays an overview of the region selected in the drop-down list at the top. The terminal is loaded with a number of pre-programmed regional settings. Select one from the list and

the results appear on the screen. To see specific settings or change a specific setting, tap on one of the tabs, make the change and tap OK to save it.

Remove Programs

Remove Programs enables you to remove programs installed on the terminal. Use this setting to troubleshoot when you receive messages that the terminal is out of memory. The programs removed are removed from RAM memory. Any program (usually CAB or DLL files) stored in the Autoinstall folder (My Device > IPSM > Autoinstall) will re-install after the next hard reset.

For information about the hard reset process, see Hard Reset (Cold Boot) on page 3-17.

1. Tap Remove Programs. In the list, select the program you want to remove.

2. Tap Remove. The following message appears:

3. Tap Yes. Wait while the program is removed.

4. Verify that the program no longer appears in the list.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 13

Screen

The Screen system setting contains three tabs: Alignment, Clear Type, and Text Size.

Alignment Tab

You need to re-align the screen if tapping buttons or icons with the stylus no longer seems to work appropriately.

Tapping Align Screen brings up the align screen window where you are guided to tap a target several times. This recalibrates how the touch screen receives input.

• Alignment should always be performed with a stylus designed for touch panel applications. The small point is required for accurate calibration.

• Press the stylus firmly into the center of the cross-hair target once and release. Do not “double-tap” the target.

Note: By default, dynamic screen rotation (i.e., the ability to switch between landscape and

portrait orientation) is disabled on Dolphin 9900 terminals. Please consult the Dolphin SDK Add-on to find out how to enable dynamic screen rotation.

ClearType Tab

The display supports ClearType font rendering, which is a Microsoft technology that dramatically increases the readability of text on LCD displays.

Text Size Tab

To enable ClearType font rendering, select Enable ClearType and tap OK. To adjust the level of ClearType font rendering, use the ClearType Tuner; see ClearType Tuner on page 6-9.

For more information about ClearType font rendering, visit: www.microsoft.com/typography/cleartype/ what.htm?fname=%20&fsize=

The Text Size tab enables you to perform font scaling within certain views of the

• T o d a y s c r e e n ,

• C o n t a c t s ,

• C a l e n d a r ,

• M e s s a g i n g , a n d

• T a s k s .

Font scaling means that you can increase or decrease the point size of the font on application windows.

To change the font size, move the slider toward Smallest or Largest. The Example text changes to reflect the font change. Ta p OK to save the new font size setting.

6 - 14 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

WAN Info

When the GSM radio is active, WAN Info displays useful statistics for the radio.

To verify whether or not the GSM radio is enabled, check the Dolphin Wireless Manager (see page 7-6).

Windows Update

Windows Update is designed to download Microsoft updates to the operating system directly from Microsoft.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

6 - 15

6 - 16 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Communication

Connections Tab

The Connections system setting provides access to the terminal’s various wireless communication options.

Icon Setting Tapping this icon… See Page

Beam Enables infrared communication.

Bluetooth Configures the Bluetooth radio.

This icon appears only if a Bluetooth radio and driver is installed on the terminal.

Connections Opens Microsoft’s connections manager.

Dolphin Wireless Manager

USB to PC Enables advanced USB communication via ActiveSync, which

Wi-Fi Enables you to configure Wireless Zero Config.

Manages the wireless radios installed in the terminal.

is wired communication.

This icon appears only if the 802.11b/g driver is loaded on the terminal and the Honeywell WLAN Security Supplicant is not loaded.

By default, the Wireless Zero Config is disabled and the supplicant is loaded. This icon will appear only if you removed the supplicant and cold boot the terminal.

7-9

9-1

7-4

7-6

3-11

Note: All server-assigned IP addresses use Dynamic Host Configuration Protocol (DHCP).

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

7 - 1

Using Infrared

IrDA Port

Using the IrDA port, you can send and receive data between the terminal and other devices equipped with infrared. This can include, but is not limited to, Windows Mobile information such as Contacts and Tasks, as well as software upgrades.

The maximum data transfer speed is 115 Kbps.

IrDA Port Location

To send or receive, the IrDA ports of both devices - whether it’s two terminals, or a terminal and a host device - must be aligned with each other and within a close range. The maximum data-transfer speed is 115 Kbps.

Sending Data

1. Align the IrDA ports.

2. Open the program where you created the item you want to send and locate the item in the list. You can also beam files, but not folders, from File Explorer.

3. Tap and hold the item and select Beam File.

4. The IrDA port searching for a receiving IrDA port in the vicinity. The selected device reads “Pending.”

7 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

5. When the IrDA port finds the aligned IrDA port, it immediately starts sending the selected file. The selected device reads “Sending.”

6. When the file transfer is complete, the selected device reads “Done.”

Receiving Data

The Beam Setting must be set to receive for the terminal to receive data from other infrared devices.

1. Verify that beam settings are set to receive. Tap Start > Settings > Connections tab > Beam. The Beam Settings window should appear as follows:

2. Align the IrDA ports.

3. Have the owner of the other device send the information to you.

4. Your terminal automatically begins receiving it.

5. A popup message appears asking if you want to receive the incoming file.

6. Tap Yes to receive the file.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

7 - 3

Connections Manager

Microsoft’s connection manager sets up multiple network connections to Internet Service Providers (ISPs) via external modem.

Do NOT enter connection parameters in the connections manager if:

• You are using one of the on-board wireless radios to connect to a network.

The Dolphin terminal uses the settings from each radio’s configuration utility to connect.

• You are using Wireless Zero Config (WZC). By default, WZC is disabled on Dolphin terminals.

To Access the Connections Manager

Tap Start > Settings > Connections tab > Connections icon .

Task Tab

The Task tab enables you to initially configure, then manage network settings when using a modem. Select an item in this list and then complete the setup screens that follow with the appropriate information for your network.

My ISP

The links under this heading enables you to add and manage modem connections to an ISP. To complete the setup screens, obtain the following information from your ISP:

• ISP dial-up access telephone number

• U s e r n a m e

• P a s s w o r d

• T C P / I P s e t t i n g s

My Work Network

These links enable you to establish the following connections types:

• M o d e m

• Virtual Private Network (VPN)

• *Proxy server connection

To complete the setup screens, obtain the network parameters from your system administrator.

7 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

*Proxy Server Connections

If you are connected to your ISP or private network during synchronization, the terminal should download the proper proxy settings during synchronization with the workstation. If these settings are not on your workstation or need to be changed, ask your ISP or network administrator for the proxy sever name, server type, port, type of Socks protocol used, and your user name and password.

Modify an Existing Connection

Manage Existing Connections appears on the Connections tab after at least one network connection has been established.

Tap Manage Existing Connections on the Tasks tab and follow the setup screens.

You will usually be walked through the same setup screens used to establish the connection.

Advanced Tab

The Advanced tab enables you to select the default network, dialing rules, and IP address exceptions for modem connections.

Note: You should not need to change Advanced settings because most ISPs now use DHCP addresses.

Online Help

For more information about modem connection setup, consult the online help on the setup screens by tapping the Help icon .

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

7 - 5

Dolphin Wireless Manager

If a rectangle is grayed-out, then the radio is not installed on the terminal.

If applicable, information about the radio appears when the radio is activated.

These buttons show you the state of the radio.

The Dolphin Wireless Manager provides a centralized interface that enables and disables all the on-board radios. Each radio has its own configuration program and the Dolphin Wireless Manager also provides shortcuts to the configuration utilities for each radio.

Dolphin Wireless Manager Window

Tap Start > Settings > Connections tab > Dolphin Wireless Manager .

Enabling the Radios

1. Tap Start > Settings > Connections tab > Dolphin Wireless Manager.

2. Tap anywhere inside the rectangle or the OFF button inside the rectangle. A message appears asking if you want to turn on the radio.

3. Tap OK and the radio begins activating.

7 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

4. When the radio is activated (i.e., transmitting a signal), the OFF button changes to ON.

Note: If applicable, information about the radio appears in the rectangle.

Accessing Radio Configuration Utilities

Each of the three radios have their own configuration utilities that you can access through the Menu.

There are three radio configuration utilities:

For 802.11b/g: Tap WLAN Settings and the Honeywell WLAN Security Supplicant opens.

The Honeywell WLAN Security Supplicant User’s Guide is available for download from the Dolphin 9900 product page at www.honeywell.com/aidc.

For Bluetooth: Tap Bluetooth Settings and the Bluetooth Settings open.

For details, see Working with the Bluetooth Radio on page 9-1.

For GSM: Tap Phone Settings and the Phone opens.

For details, see Working with GSM on page 8-1.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

7 - 7

Installing Additional Software

In addition to the default programs installed on your terminal when it is first booted up, you can install any program (created for a Windows Mobile-based device), as long as the terminal has enough memory to store the program and the program has an EXE, CAB, or DLL extension.

The most popular place to find software on the Windows Mobile website: www.microsoft.com/

windowsmobile/products/pocketpc/

When selecting programs, verify that the program and version of the program are designed for the Windows Mobile and your processor. You can verify your processor by tapping Start > Settings > System tab > About > Version tab. Make a note of the information in the Processor field.

You can install additional software via:

• ActiveSync - see page 7-8.

• Infrared - see page 7-2.

• Network connection (via wireless radio) - see page 7-9.

• Connect to your ISP.

Adding Programs to the Terminal Using ActiveSync

When selecting programs, verify that the program and version of the program are designed for Windows Mobile and your processor. You can verify your processor by tapping Start > Settings > System tab > About > Version tab. Make a note of the information in the Processor field.

Depending on the application, the software must be stored or installed on the host workstation.

1. Download the program to your workstation from either the Internet or the CD or disk that contains the program. You may see a single EXE or setup.exe file, a CAB file, or DLL. There may also be several versions of files for different device types and processors.

2. Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions.

3. Connect the terminal to the workstation via a Honeywell communication peripheral.

If the File is an Installer:

An installer program is one that installs on the workstation and the terminal simultaneously; one process installs to both devices.

1. On the workstation, double-click the EXE or *.setup.exe file. The installation wizard begins.

2. Follow the directions on the workstation screen. The installation process includes transferring the software to the terminal.

If the File is Not an Installer:

Some programs cannot be installed on workstations because they are designed for terminals. In these cases, the appropriate files must be stored on the host workstation, transferred via ActiveSync, and installed on the terminal. You will know the program cannot be installed on the workstation if an error message appears when you try to install it stating that the program is valid but designed for a different type of workstation.

1. If you cannot find any installation instructions for the program in the Read Me file or documentation, open ActiveSync and click Explore.*

2. Navigate to the My Pocket PC folder and copy the program file or files to the Program Files folder on the terminal.

7 - 8 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

• If you want the program to be part of the Autoinstall that occurs after every hard reset, place the

program file in the Autoinstall folder (My Pocket PC > IPSM > Autoinstall).

3. Depending on the program, you may need to open File Explorer on the terminal, navigate to the folder where the program is located, and tap on the program file to install it.

• If you copied the file to the Autoinstall folder, you can either tap on the program inside the Autoinstall folder or perform a hard reset and the program will install as part of the Autoinstall process that occurs during each hard reset. Remember, a hard reset erases RAM data! For more information, see Hard Reset (Cold Boot) on page 3-17.

After installation on the terminal is complete, tap Start > Programs and the program and its icon appears on the Programs screen. Tap it to open the program.

Adding Programs Directly from the Internet

1. Determine your device and processor type so that you know which version of the software to install. Tap Start > Settings > System tab > About. On the Version tab, make a note of the information in the Processor field.

2. Download the program to your device straight from the Internet using Pocket Internet Explorer. You may see a single EXE or setup.exe file, or several versions of files for different device types and processors.

3. Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions.

4. Tap the file, such as an EXE file. The installation wizard begins. Follow the directions on the screen.

Select the radio or radio combination and tap Apply. The Radio Manager begins enabling your radio or radio combination.

When enabled, the Status field reads “Success.”

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

7 - 9

9900 COM Port Assignment Table

COM Port Description

COM0 Unused

COM1 Serial Port: RS-232 Connector on the bottom panel

COM2 Not accessible

COM3 IrDA: Serial Infrared (SIR) up to 115 Kbps

COM4 Not accessible

COM5 Bluetooth DUN

COM6 IrCOMM

COM7 GPS: COM Port for the GPS receiver

COM8 USB Serial: Virtual USB Serial port for ActiveSync

COM9 Bluetooth BTHATCI server

7 - 10 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Working with GSM

Overview

The Dolphin 9900 can be configured with an integrated, embedded GSM/GPRS quad-band radio module for WWAN communication.

GSM Short for Global System for Mobile communications, GSM is an open, non-proprietary wireless

WAN system that is constantly evolving and growing.

GPRS Short for General Packet Radio Service, GPRS is a non-voice value added service that allows

packet-switched data to be instantly sent and received across mobile telephone networks.

Requirements

Using GSM/GPRS requires a:

• Network subscription to a GSM/GPRS network (you need to know what service providers are in your geographic area), and

• An installed SIM card that has been activated by the network service provider (see SIM Card

Installation on page 8-2).

Quad Band Antenna

Dolphin terminals configured with a GSM radio feature an external antenna that is optimized for power output and receiver sensitivity. This is an omni-directional antenna with zero dBm gain.

For the MC-75 radio, there are two different antennas based on geographical location; each supports two bandwidths:

Europe: Supports 900 MHz and 1800 MHz bands. North America: Supports 850 MHz and 1900 MHz bands.

Signal Strength

The signal strength of the GSM connection is indicated by the number of bars that appear in the signal strength icon in the Navigation bar at the top of the window.

Icon Indicates…

The signal strength of the radio connection.

The signal strength of the phone (voice) connection; see page 8-5.

The signal strength of the data connection; see page 8-8.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

8 - 1

Voice and Data Communication

Battery Well

SIM Card Door

Battery Interface

Dolphin terminals with integrated GSM/GPRS radios are optimized for the following two-way voice and data communications:

Voice: GSM voice data ("dial-up") Data: GPRS Class 10: Data transmissions average 40-60 Kbps (available speed depends on the

wireless network carrier).

You can use the GSM radio for voice communication and data communication but not at the same time. If you want to communicate over the phone (voice), you cannot send data. If you want to send data, you cannot use the phone.

SIM Card Installation

Short for Subscriber Information Module, a SIM card stores the subscriber's personal information, GSM/ GPRS radio settings, security keys, contacts, etc. SIM cards are installed in compatible mobile devices, enabling you to switch devices without losing personal and setup information.

SIM Card Requirements

Before installing the SIM card:

• T h e S I M c a r d must be activated by the service provider.

• T h e t e r m i n a l must be powered down.

Note: If no SIM card is installed, you can still make emergency phone calls such as 9-1-1, for example.

To Install a SIM Card

On the Dolphin 9900 terminal, access to the SIM card is located under the battery well, which enables easy access to the SIM card while securing it under an installed battery.

1. Put the terminal in suspend mode and lay it face-down on a flat surface.

2. Remove the battery pack.

3. Unscrew the faceplate of the SIM card door. You must use a Torx T6 wrench. You can purchase this wrench from Honeywell, part number 100001700.

4. Insert your SIM card. Make sure the interface on the card is connected to the SIM Card interface in the slot; the beveled corner is in the upper right corner.

8 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

5. Place the SIM card door over the secured SIM card and fasten the screws.

SIM C ard Interface

Screws

SIM C ard Door

SIM C ard

6. Install the battery pack and turn on the terminal.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

8 - 3

Enabling the GSM Radio

Be default, the GSM radio should be enabled after each hard reset. Verify the status of the radio in the Dolphin Wireless Manager.

Tap Start > Settings > Connections tab > Dolphin Wireless Manager .

If the Phone is set to OFF, tap the Phone rectangle and the GSM radio enables.

8 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Voice Communication

VOL

Displays the network carrier from the SIM card.

Displays the most recent calls.

You can use the Dolphin terminal as a phone over the GSM radio.

Audio Modes

The back panel of the Dolphin 9900 contains both a speaker and a microphone that you can use to send and receive audio signals over the GSM network; see Back Panel Features on page 3-6.

There are two audio modes:

Headset Headset mode is when you plug a headset into the audio jack and speak into the microphone. You

Hands-Free Hands-free mode is when you use the back panel as a speakerphone. To switch the back panel to

Volume Control

Use the Dolphin keyboard to manually adjust the volume. To raise the volume, press the Blue modifier key + up arrow. To lower the volume, press the Blue modifier key + down arrow.

Accessing the Dialer Window

must use a 2.5mm plug; no other audio plug will fit.

speakerphone, in the Dialler, tap Settings > Speakerphone. The audio levels adjust appropriately for speakerphone use.

When the GSM radio is active, tap Start > Settings > Connections tab > Dolphin Wireless Manager, then tap Menu > Phone Settings. The Phone dialer opens.

Dialing

Once the dialer window is open you can dial out two ways:

• Tap the buttons on the dialer window.

• Use the physical keyboard (when it’s in numeric mode).

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

8 - 5

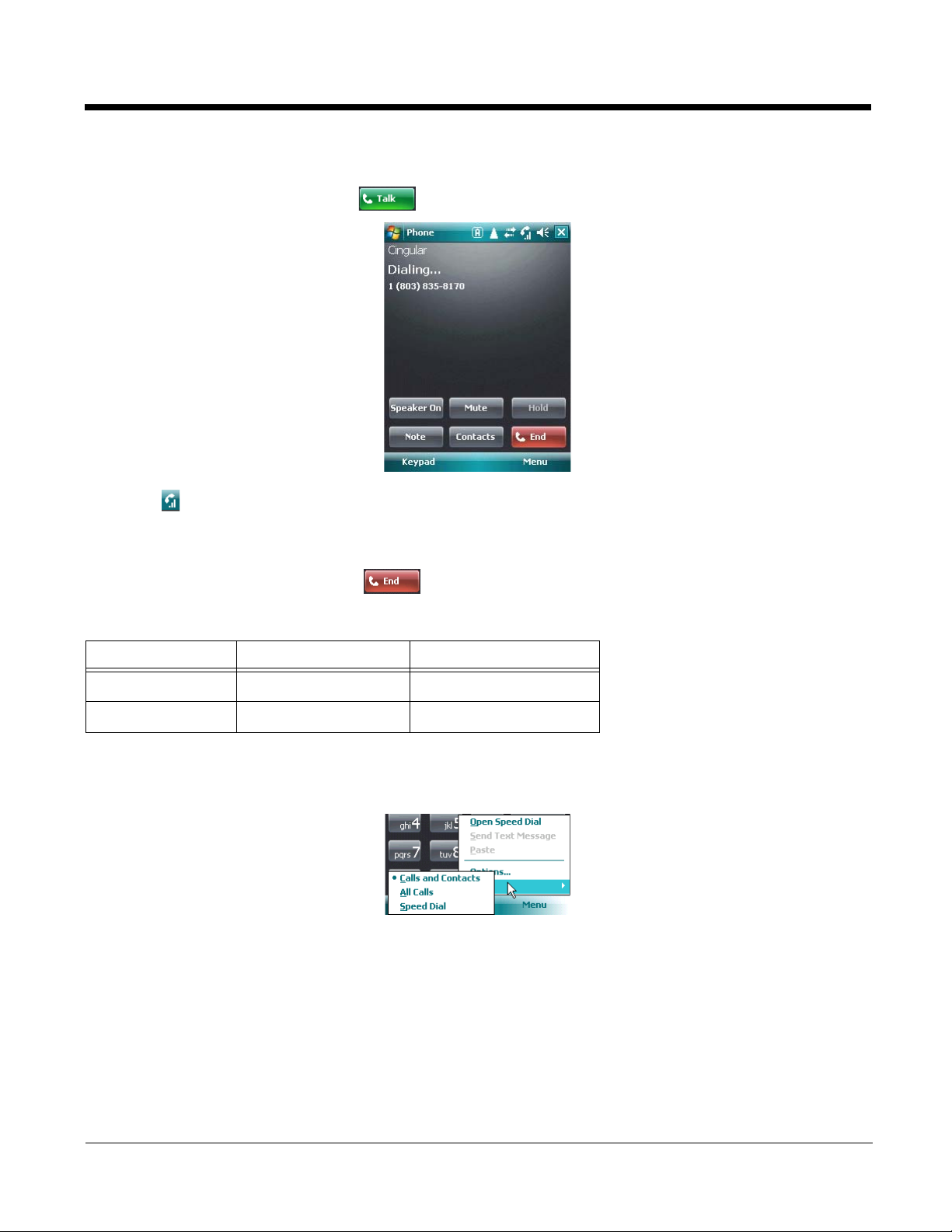

Sending Calls

After the number is dialed, tap Talk or use the keyboard.

Note: The icon indicated that the phone is in use.

Ending Calls

While the phone call is live, tap End or use the physical keyboard.

Keyboard Combinations for Calls

Keyboard To Send a Call, Press… To End a Call, Press…

43-key keyboard

56-key keyboard

Blue + NUM Blue + ENT

Blue + SFT Blue + ENT

View Options

Tap Menu > View.

8 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Setup Options

Tap Menu > Options.

The Phone Settings tab windows appear.

Phone Tab Services Tab Network Tab

Establish or change a PIN on the Phone tab.

For each service, the phone will read settings from the network on the SIM and display the available options from the carrier.

You can set networks on the Network tab.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

8 - 7

Data Communication

You set up data communication via the connections manager. The carrier on the SIM card is the ISP.

System Requirements

• The GSM radio must be enabled; see Enabling the GSM Radio on page 8-4.

• You must have an active SIM card installed; see SIM Card Installation on page 8-2.

• The Phone must not be in use. The in the navigation bar indicates that the GSM phone is active but

the phone is not in use.

Information Requirements

You must have from the SIM card carrier:

• The APN (access point name) number.

• The username and password of the account.

Establishing Data Communication

1. Tap Start > Settings > Connection tab > Connections .

2. Under My ISP, tap Add a new modem connection.

3. Enter a name for the connection, Select Cellular Line (GPRS) as the modem, and Tap Next.

8 - 8 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

4. Enter the APN and tap Next.

5. Enter the username and password from the account and tap Finish.

6. On the Connections window, tap Manage existing connections. The connection you just created should appear in the list on the modem tab.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

8 - 9

7. Tap and hold on the connection and select Connect on the popup menu.

8. The network icon in the navigation bar indicates the GSM radio is attempting to connect .

9. When the connection is complete, the network icon changes to: .

10. You can now send data over GSM.

Ending the Data Connection

You need to end the data connection to use the phone. By default, the data connection will disconnect after a certain amount of time passes without use. This period of time is determined by ISP.

To end the data connection manually, tap the network icon in the navigation bar and select Disconnect on the popup bubble.

8 - 10 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Roaming

You can select automatic or manual roaming. The Phone defaults to automatic roaming.

1. When an active SIM card is inserted in the terminal, tap Start > Settings > Personal tab > Phone

. The Phone Settings window appears.

2. Select the Network tab.

3. Under Network selection, select Automatic (the default selection) or Manual.

a.If you select Manual, the Phone searches for available networks.

b.The found networks appear.

c.Select a new network and tap OK. The Phone registers on the new network and the Network tabs

appears.

d.To switch to another network, tap the now active Select button and the process repeats.

4. To switch back to automatic roaming, select Automatic under Select networks and tap OK.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

8 - 11

8 - 12 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Working with the Bluetooth Radio

Enabling the Bluetooth Radio

You enable the Bluetooth radio in the Dolphin Wireless Manager (see page 7-6).

1. Tap Start > Settings > Connections tab > Dolphin Wireless Manager .

2. Tap anywhere inside the Bluetooth rectangle and Bluetooth begins activating.

3. When the radio is activated (i.e., transmitting a signal), the OFF button changes to ON.

Now, the Bluetooth radio is transmitting a signal. Additional text in the Bluetooth section tells information about the Bluetooth radio. “Visible” and “Not visible” indicates whether the Bluetooth radio is discoverable or not discoverable by other Bluetooth devices.

Now, you can connect to other transmitting and discoverable Bluetooth devices (see page 9-2). To make the terminal discoverable for other Bluetooth devices to find, you need to make the Bluetooth

radio discoverable (see page 9-8).

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

9 - 1

Connecting to Other Bluetooth Devices

You need to perform a device discovery and then select a discovered device and connect to it. Pairing happens as part of the connection process.

1. In the Dolphin Wireless Manager, tap Menu > Bluetooth Settings.

Tap Start > Settings > Connections tab > Bluetooth .

2. Tap Add new device. The terminal begins searching for discoverable Bluetooth devices.

3. Select a device in the list and tap Next.

9 - 2 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

4. You are prompted to enter a passcode.

If the device has a specific passcode, enter it in the Passcode field and tap Next. If the device does not have a specific passcode, enter one in the Passcode field and tap Next.

The Bluetooth radio tries to connect with the device.

5. If you created a passcode, you will be prompted by the other device to enter the same passcode. Enter the created passcode to establish a paired connection. (If you entered a the passcode from the device, you shouldn’t have to do anything on the other device.)

6. When the connection is complete, a list of matching and supported services on the device appears.

7. Select the services you want to use and tap Finish. The services on the new devices have to be selected or else the pairing won’t include those services, even though the devices are paired. If services are not selected, you will be continually reprompted for the passcode from the device.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

9 - 3

8. The device appears in the list on the main window.

9. After the passcodes have been accepted on both sides, you have a trusted (“paired”) connection.

Pairing and Trusted Devices

The terminal does support pairing. Pairing happens during general connection setup. Paired devices are "trusted" devices. This means that there is unrestricted access to all services (including services that require authorization and authentication).

A connection can exclude pairing. A device that is connected to the terminal but not paired with it is considered an untrusted device. Content can still be passed to untrusted devices by requiring authorization with each attempt (for example, with the initialization of a file exchange). The Beam File method of file transfer on the can be used to pass a file as an untrusted device; see Transferring Files on page 9-7.

9 - 4 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Types of Devices and Services

The types of devices in the vicinity of the radio appear in the list of discovered devices.

When you tap Add new device on the Devices tab, the Bluetooth radio scans for discoverable Bluetooth devices in range, which are Bluetooth devices that have been made discoverable.

Device Types

Supported Services

Only the services that are mutually supported on both devices appear on the Partnership Settings window.

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

9 - 5

Connecting to Bluetooth Printers

1. Make sure the Bluetooth printer is in range and set to be discoverable by other Bluetooth devices.

2. Look up the Bluetooth printer’s broadcasted ID.

3. Perform a device discovery (Tap Settings > Connections > Bluetooth > Add new device.)

4. Look for the Bluetooth printer’s broadcasted ID in the list of discovered devices.

5. Click on the Bluetooth printer’s ID and wait for the prompt to enter a Passcode.

6. Enter the Passcode and tap Next. The passcode may default to either "1111" or "0000." If there is no default, consult the printer literature for the number.

7. Select a printing-related service in the list of services.

8. Tap Finish to establish the connection on the terminal.

9. Complete any additional steps required by the printer.

Connecting to Bluetooth Headsets

1. Make sure the Bluetooth headset is in range and set to be discoverable by other Bluetooth devices.

2. Look up the headset’s broadcasted ID.

3. Perform a device discovery (Tap Settings > Connections > Bluetooth > Add new device.)

4. Look for the headset’s broadcasted ID in the list of discovered devices.

5. Click on the headset’s ID and wait for prompt to enter a passcode.

6. Enter the Passcode and tap Next. The passcode may default to either "1111" or "0000." If there is no default, consult the printer literature for the number.

7. Select Headset in the list of services.

8. Tap Finish to establish the connection on the terminal.

9. Complete any additional steps required by the headset.

9 - 6 Rev C

10/30/08

Dolphin® 9900 Mobile Computer

User’s Guide

Transferring Files

When a Bluetooth device is first found, it appears as an Unknown device; the

icon indicates that the device is a Bluetooth device.

As data is retrieved, the device IDs appear in the list.

1. Tap Start > Programs > File Explorer.

2. Navigate to the file you want to transfer.

3. Tap and hold on the file and select Beam File on the popup menu.

4. The Bluetooth radio begins searching for devices.

5. Tap the device to begin sending the selected file.

6. While trying to connect, the selected device reads “Pending.”

7. When the file is being transferred, the selected device reads “Sending.”

Dolphin® 9900 Mobile Computer User’s Guide

Rev C

10/30/08

9 - 7

Making the Terminal Discoverable
