Hand Held Products 3800, 3800g, 3800r, 3800i Users Manual

3800 Linear Series
QS
For localized language versions of this document, go to www.handheld.com.
Getting Started
Turn off computer’s power before connecting the scanner, then power up the computer once the scanner is fully connected.
USB Connection
1
Keyboard Wedge Connection
Serial (RS-232) Connection
2
Reading Techniques
The view finder projects a red aiming beam that should be centered over the bar code.
Hold the scanner over the bar code, pull the trigger, and center the aiming beam on the bar code.
The aiming beam is smaller when the scanner is closer to the code and larger when it is farther from the code. Hold the scanner close to smaller bar codes, and farther away from large bar codes to get a proper read.
If the bar code is highly reflective (e.g., laminated), you may need to tilt the scanner at an angle so the bar code can be scanned.
3
To read PDF417 bar codes with a PDF-enabled 3800, hold the trigger down and move the scanner up and down so the aiming line sweeps from the top of the bar code to the bottom, and back up.
This ensures that the entire code is scanned.
Note: This only applies to a PDF enabled 3800.
Standard Product Defaults
The following bar code resets all standard product default settings.
Standard Product Defaults
4
Interface
Scan the bar code that describes the PC or interface you are using.
USB Keyboard (PC)
RS-232
Japan DOS/V
AT/PS2 Keyboard Wedge
(Default)
Emulate External Keyboard
5
Keyboard Country
Scan the Program Keyboard Country bar code below, then scan the numeric bar code(s) from page 10, then the Save bar code to program the keyboard for your country. As a general rule, the following characters are not supported by the scanner for countries other than the United States: @ | $ # { } [ ] = / ‘ \ < > ~.
Program Keyboard Country
Country Code Scan Country Code Scan
Belgium 1 Italy 5 Denmark 8 Norway 9 Finland 2 Spain 10 France 3 Switzerland 6 Germany/Austria 4 USA (Default) 0 Great Britain 7
Save
Note: For complete list of country codes, see the
User’s Guide for your product at our website,
www.handheld.com.
6
Trigger
The following bar codes will allow you to use the reader in Manual Trigger mode (need to press the trigger to read), Automatic Trigger mode (the beam is always on), or Presentation mode (the reader is activated when it “sees” a bar code).
Manual Trigger
(Default)
Automatic Trigger
Presentation Mode
Reread Delay
This sets the time period before the scanner can read the
same
reread delay protects against accidental rereads of the same bar code.
Medium Reread Delay
bar code a second time. Setting a
for 3800 only
Medium Reread Delay
for 3800g, 3800r and 3800i
7
Suffix
If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code to remove the suffixes.
Add CR Suffix
Add Tab Suffix
Remove Suffix
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to all symbologies at once.
Add Code ID Prefix To All Symbologies
(Temporary)
Note: For complete list of Code IDs, see the User’s
Guide for your product at our website,
www.handheld.com.
8
Data Format Editor Instructions
The following are abbreviated instructions for entering a data format. For complete instructions refer to your User’s Guide, available at our website,
www.handheld.com.
1. Scan the Enter Data Format symbol.
2. Primary/Alternate Format: scan 0 for Primary Format
3. Terminal Type: scan 99 for any terminal type
4. Code I.D.: scan 99 for any bar code type
5. Length: scan 9999 for any length bar code.
6. Editor commands: use the Programming Chart that follows.
7. Scan Save to save your entries.
Enter Data Format
Clear All Data Formats
Save
9

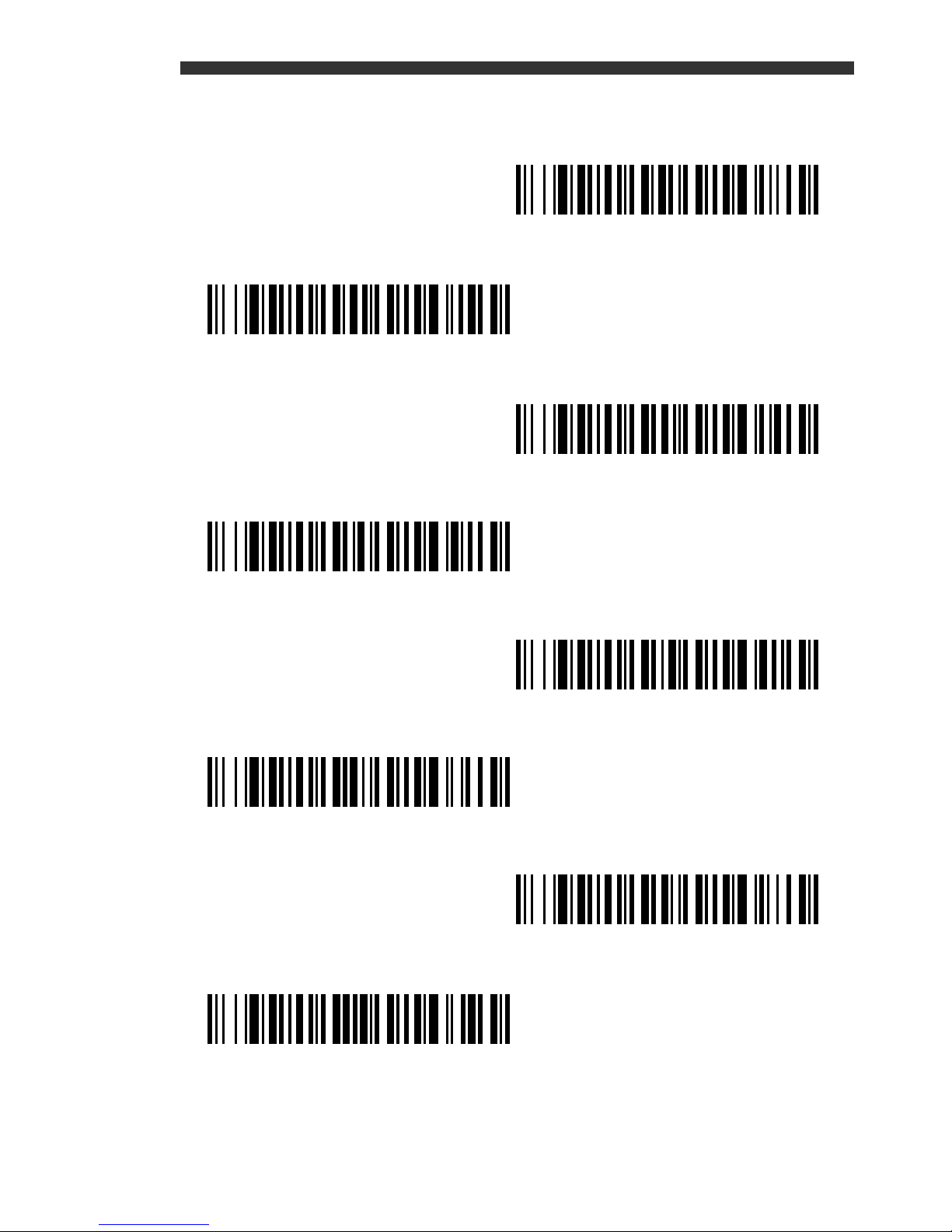

Programming Chart
1
3
0
2
5
7
4
6
10
8
A
C
9
B
11
D
E
F
Save
Visual Menu
To obtain access to additional features for the 3800, use Visual Menu, available from our website at
www.handheld.com. For complete download
instructions and descriptions of Visual Menu’s features, refer to your User’s Guide.
Visual Menu
Visual Xpress™
To obtain access to additional features for the 3800g, 3800i, or 3800r, use Visual Xpress, available from our website at www.handheld.com. For complete download instructions and descriptions of Visual Xpress features, refer to your User’s Guide.
Technical Assistance
If you need assistance installing or troubleshooting your imager, please call your Distributor or the nearest Hand Held Products technical support office:
North America/Canada:
Telephone: (800) 782-4263, option 4
(8 a.m. to 6 p.m. EST)
Fax number: (315) 685-4960 E-mail:
natechsupport@handheld.com
12
Europe, Middle East, and Africa:
Telephone­European Ofc: +31 (0) 40 79 99 393
U.K. Ofc: +44 (0) 1925 24 00 55 E-mail:
Asia Pacific:
Telephone: +852-3188-3485 E-mail:
America Latina:
Teléfono: (704) 998-3998, opción 8 E-mail:
eutechsupport@handheld.com
or
2511-3050
aptechsupport@handheld.com
latechsupport@handheld.com
Online Technical Assistance
You can also access technical assistance online at
www.handheld.com
For Further Information
.
To download the full User’s Guide for these products, visit our website at www.handheld.com
Product Service and Repair
Hand Held Products provides service for all its products through service centers throughout the world. To obtain warranty or non-warranty service, return the unit to Hand Held Products (postage
13
.
paid) with a copy of the dated purchase record attached. Contact the appropriate location below to obtain a Return Material Authorization number (RMA #) before returning the product.
North America
Hand Held Products Corporate Offices Telephone: (800) 782-4263, Option 3 Fax: (704) 566-6015 E-mail:
naservice@handheld.com
America Latina
Hand Held Products America Latina Teléfono: (239) 263-7600 Fax: (239) 263-9689 E-mail:
laservice@handheld.com
Brazil
Hand Held Products Brazil Telephone: +55 (21) 2176-0250 Fax: +55 (21) 2176-0249 E-mail:
suporte@handheld.com
Europe, Middle East, and Africa
Hand Held Products Europe Telephone: + 31 (0) 40 29 01 633 Fax: + 31 (0) 40 29 01 631 E-mail:
euservice@handheld.com
Asia Pacific
Hand Held Products Asia/Pacific Telephone: +852-2511-3050 Fax: +852-2511-3557 E-mail:
apservice@handheld.com
14
Japan
Hand Held Products Japan Telephone: +81-3-5770-6312 Fax: +81-3-5770-6313 E-mail:
apservice@handheld.com
Online Product Service and Repair Assistance
You can also access product service and repair assistance online at www.handheld.com.
