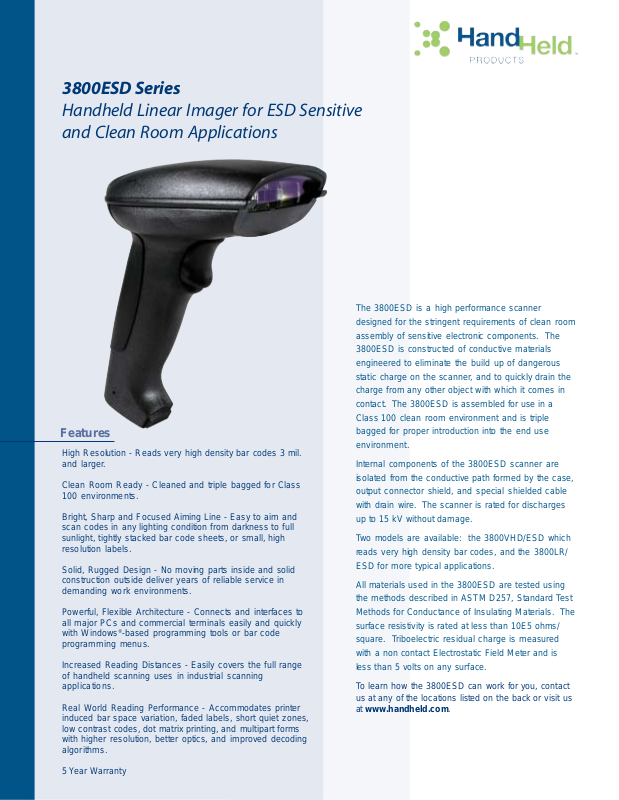

3800ESD Series
Handheld Linear Imager for ESD Sensitive
and Clean Room Applications
Features
High Resolution - Reads very high density bar codes 3 mil.
and larger.
Clean Room Ready - Cleaned and triple bagged for Class
100 environments.
Bright, Sharp and Focused Aiming Line - Easy to aim and
scan codes in any lighting condition from darkness to full
sunlight, tightly stacked bar code sheets, or small, high
resolution labels.
Solid, Rugged Design - No moving parts inside and solid
construction outside deliver years of reliable service in
demanding work environments.
Powerful, Flexible Architecture - Connects and interfaces to
all major PCs and commercial terminals easily and quickly
with Windows
programming menus.
Increased Reading Distances - Easily covers the full range
of handheld scanning uses in industrial scanning
applications.
Real World Reading Performance - Accommodates printer
induced bar space variation, faded labels, short quiet zones,
low contrast codes, dot matrix printing, and multipart forms
with higher resolution, better optics, and improved decoding
algorithms.
®
-based programming tools or bar code
The 3800ESD is a high performance scanner
designed for the stringent requirements of clean room
assembly of sensitive electronic components. The
3800ESD is constructed of conductive materials
engineered to eliminate the build up of dangerous
static charge on the scanner, and to quickly drain the
charge from any other object with which it comes in
contact. The 3800ESD is assembled for use in a
Class 100 clean room environment and is triple
bagged for proper introduction into the end use
environment.
Internal components of the 3800ESD scanner are
isolated from the conductive path formed by the case,
output connector shield, and special shielded cable
with drain wire. The scanner is rated for discharges
up to 15 kV without damage.
Two models are available: the 3800VHD/ESD which
reads very high density bar codes, and the 3800LR/
ESD for more typical applications.
All materials used in the 3800ESD are tested using
the methods described in ASTM D257, Standard Test
Methods for Conductance of Insulating Materials. The
surface resistivity is rated at less than 10E5 ohms/
square. Triboelectric residual charge is measured
with a non contact Electrostatic Field Meter and is
less than 5 volts on any surface.
To learn how the 3800ESD can work for you, contact
us at any of the locations listed on the back or visit us
at www.handheld.com.
5 Year Warranty
W orldw ide Offices
O
S
T
o
n
C
T
o
n
O
ffices Serving Eu rope,
Offices Serving Asia and the
Offices Serving Latin America
W
H
Due to Hand H
eld Products’ continuing product improvement programs, specifications and features herein are subject to change without notice.
3800ESD Series Specifications
Performance
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
Reading Distance: 1 in. (2.5 cm) to 8 in. (20.3 cm) on medium density codes
Reading Width: 5 in. (12.7 cm) code width at
Resolution:
VHD: 3 mil. at 3.5 in. (8.8 cm) distance
LR: 5 mil. at 3.5 in. (8.8 cm) distance
Skew Angle:
Pitch Angle: +55
Horizontal Velocity: 5 in. (12.7 cm) per second
Minimum Reflectance
Difference: 30%
Scan Rate: Programmable to 270 scans per second
Decode Rate: 270 decodes per second
Mechanical/Electrical
Dimensions
Length: 5.3 in. (13.5 cm)
Height 6 in. (15.2 cm)
Width: 3.1 in. (7.9 cm)
Weight: 6.3 oz. (179.2 g)
Housing: Polycarbonate
Power Requirements: 5Vdc
Current Draw:
@270 s/s 275mA 125mA
@67 s/s 150mA 125mA
Power Supply
Noise Rejection: Maximum 100mV peak to peak, 10 to 100 kHz
Environmental
Temperature
Operating: +32
Storage: -4
Humidity: 0 to 95%
Mechanical Shock: Operational after 25 drops from 5 ft. (1.53 m) to concrete
Ambient Illumination: 0 - 70,000 lux
ESD Protection: Functional after 15kV discharge
Vibration: Withstands 5G peak from 20 to 300 Hz
Agency: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1, UL, cUL listed, TÜV
MTBF: per MIL-HDBK-217F Ground Benign exceeds 50,000 hours
Symbologies: Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/
Interfaces: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, Apple ADB, USB, TTL level serial wedge,
Warranty: Five year factory warranty.
7 in. (17.8 cm) distance
o
+55
o
+ 10% at scanner
Scanning Standby
o
F to +122oF (0oC to +50oC)
o
F to 140oF (-40oC to +60oC)
JAN, China Postal Code, RSS.
TTL level RS-232, wand emulation mode, and includes (HHLC) non decoded laser compatible output.
