Farmington by Hampton Bay
Page 3
15-Year Motor Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material present
at time of shipment from the factory for a period of fifteen years after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of shipment
from the factory for a period of one year after the date of purchase by the original purchaser. We
agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned to the retailer. To obtain warranty service, you must
present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. Because of varying
climatic conditions in the United States this warranty does not cover any changes in brass finish,
including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of wobble is
normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. The retailer hereby
disclaims any and all warranties, including but not limited to. Those of merchantability and
fitness for a particular purpose to the extent permitted by law. The duration of any implied
warranty which cannot be disclaimed is limited to the time period as specified in the express
warranty. Some states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may not
apply to you. This warranty gives specific legal rights, and you may also have other rights which
vary from state to state. This warranty supersedes all prior warranties.
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
792145352952 (170-721)
792145352969 (172-503)
792145352976 (171-348)
792145352983 (171-889)
792145352990 (176-925)
UPC.
170-721
172-503
171-348
171-889
176-925
11289
Page 4
Safety Rules.......................................................................................................................................
Unpacking Your Fan ..........................................................................................................................
Installing Your Fan ............................................................................................................................
Operating Your Fan............................................................................................................................
Care of Your Fan .............................................................................................................................
Troubleshooting ..............................................................................................................................
Specifications .................................................................................................................................
10.
11.
12.
Table of Contents
1.
2.
3.
9.
Page 5
1. To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two steel
screws (and lock washers) provided with the outlet box for mounting to
the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be
replaced, consult a qualified electrician if in doubt.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only
UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
7. Do not operate the reverse switch while the fan blades are in motion.
The fan must be turned off and the blades stopped before reversing
the blades direction.
WARNING
1. Safety Rules
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into the outlet box. The wires should
be spread apart with the grounded conductor and the equipmentgrounding conductor on one side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
13. WARNING: To reduce the risk of fire or electric shock, do not use this
with any solid-state speed control device.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
READ AND SAVE ALL INSTRUCTIONS!
WARNING
THE PATH OF THE BLADES.
NOTE
Page 6
2
4
6
1
a
b
3

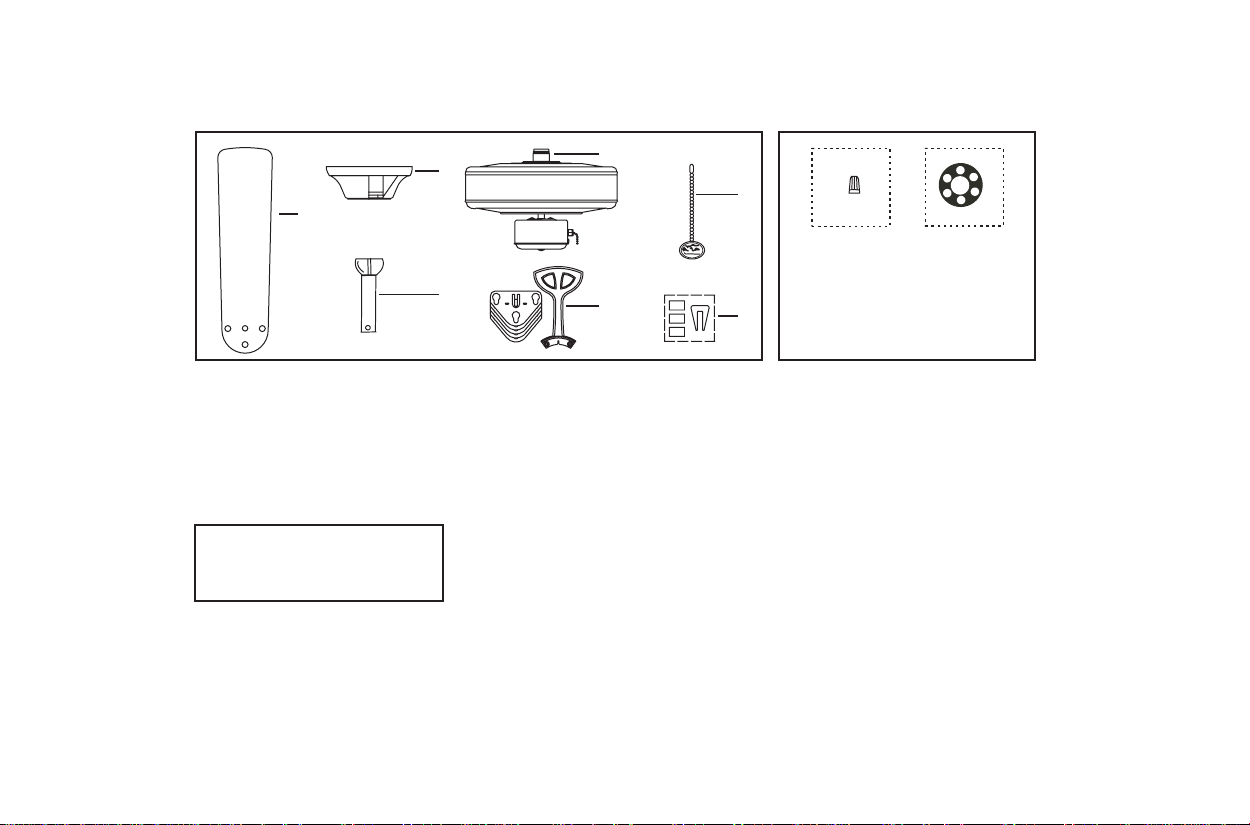

Unpack your fan and check the contents. You should have the following items:
1. Set of blades (5)
2. Canopy assembly
3, Ball/downrod assembly
4. Fan motor assembly
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588
5. Blade arms assembly (5)
6. Pull chain and fob
7. Balancing kit
5
Unpacking Your Fan 2.
7
8
8. Loose parts bag containing:
a. Electrical hardware
( 3 plastic wire connectors)
b. Rubber gasket
Page 7
Tools Required
Phillips screwdriver, straight slot screwdriver,
step ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.

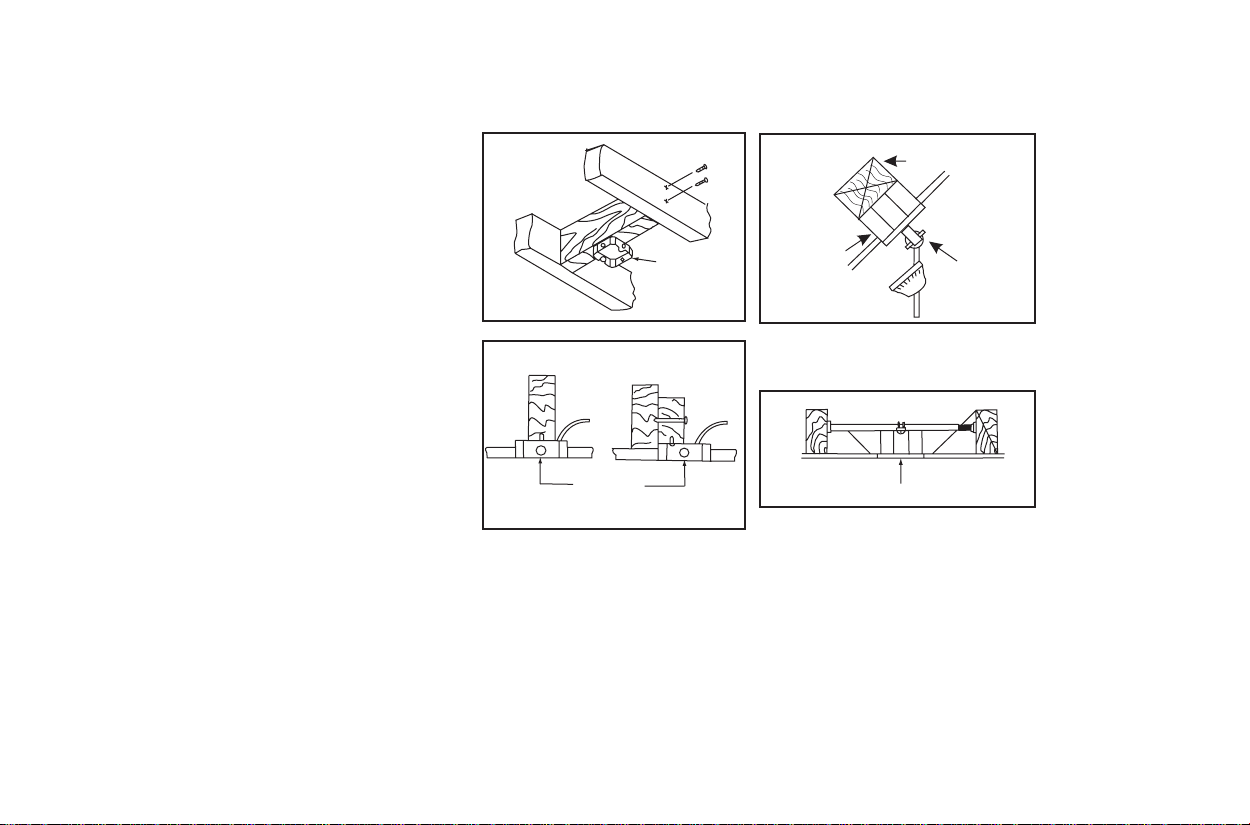

Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Figure 1
Outlet box
Figure 2
3. Installing Your Fan
Outlet box
Angled ceiling
maximum
18° angle
Recessed
outlet box
Figure 3
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
Figure 4
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay Retailer).
Provide strong
support
Outlet box
Hanger
opening must
be facing up-side
Page 8
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly. NOTE:
This ceiling fan is supplied with two types of
hanging assemblies; the standard ceiling
installation using the downrod with ball and
socket mounting and the "flushmount"
installation. The "flushmount" installation is
recommended in rooms with less than 8-foot
ceilings or in areas where additional space is
desired from the floor to the fan blades. When
using the standard 4 1/2" downrod, the
distance from the ceiling to the bottom of the
fan blades will be approximately 12 1/2
inches. The "flushmount" installation reduce
this distance to 8-inches. Once you have
selected which mounting system you will use,
proceed with the following instructions. Where
necessary, each section of the instructions will
note the different procedures to follow for the
two types of mounting.
STANDARD CEILING INSTALLATION
1. Remove the canopy ring from the canopy.
(Fig. 5)
2. Remove the hanger bracket from the
canopy by loosening the four screws on the
top of the canopy. Remove the two nonslotted screws and loosen the slotted
screws. This will enable you to remove the
hanger bracket. (Fig. 5)
3. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig. 6.
4. Secure the hanger bracket to the ceiling
outlet box using screws and lock washers
included with your outlet box. (Fig. 6)
5. Remove the hanger pin, lock pin and set
screws from the top of the motor assembly.
6. Route wires exiting from the top of the fan
motor through the canopy ring. Make sure the
widest edge of the canopy ring are on top.
Route the wires through the canopy and then
through the ball/downrod assembly (Fig. 7).
7. Align the holes at the bottom of the downrod
with the holes in the collar on top of the motor
housing (Fig. 7). Carefully insert the hanger pin
through the holes in the collar and downrod. Be
careful not to jam the pin against the wiring
inside the downrod. Insert the locking pin
through the hole in locked position, as noted in
the circle inset of Figure 7.
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 7
COULD RESULT IN FAN LOOSENING
8. Tighten two set screws on top of the fan
motor firmly. (Fig. 7)
9. Place the downrod ball into the hanger
bracket socket. (Fig. 8)
WARNING
AND POSSIBLY FALLING.

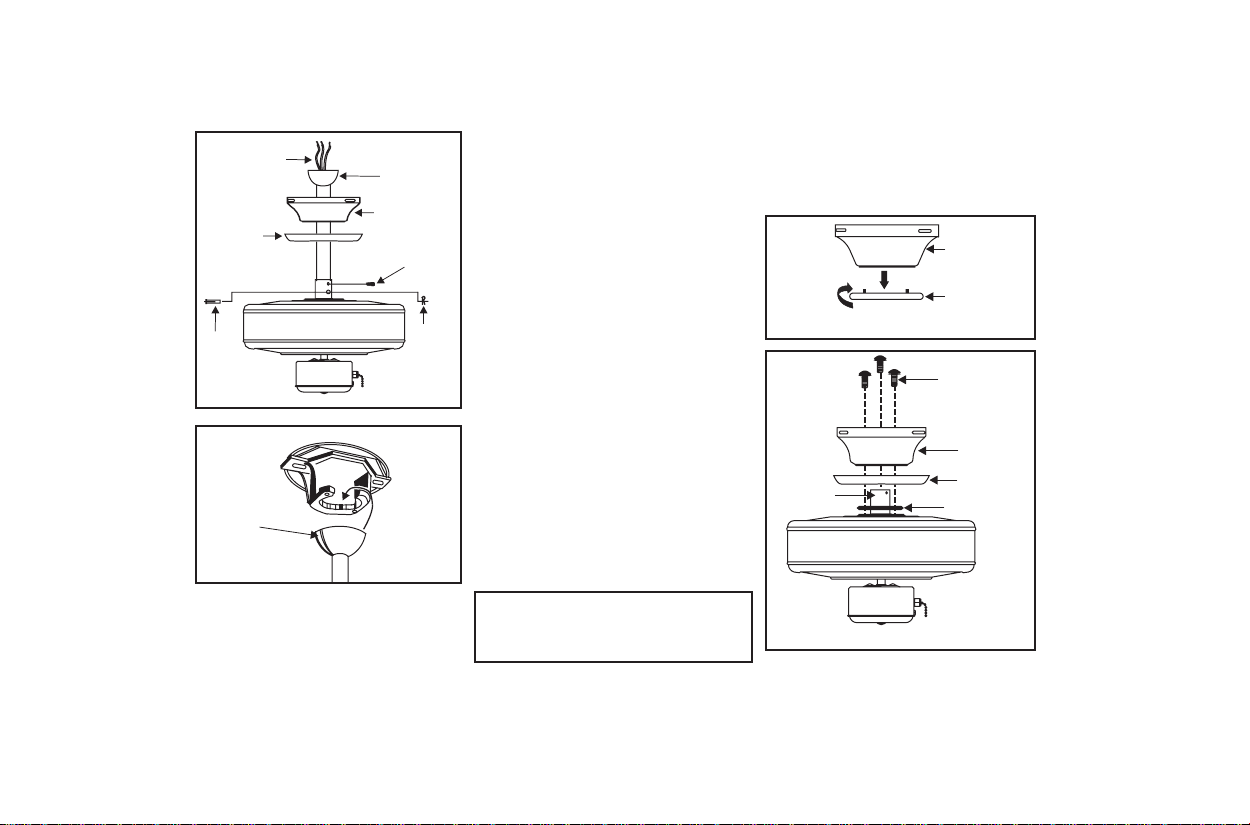

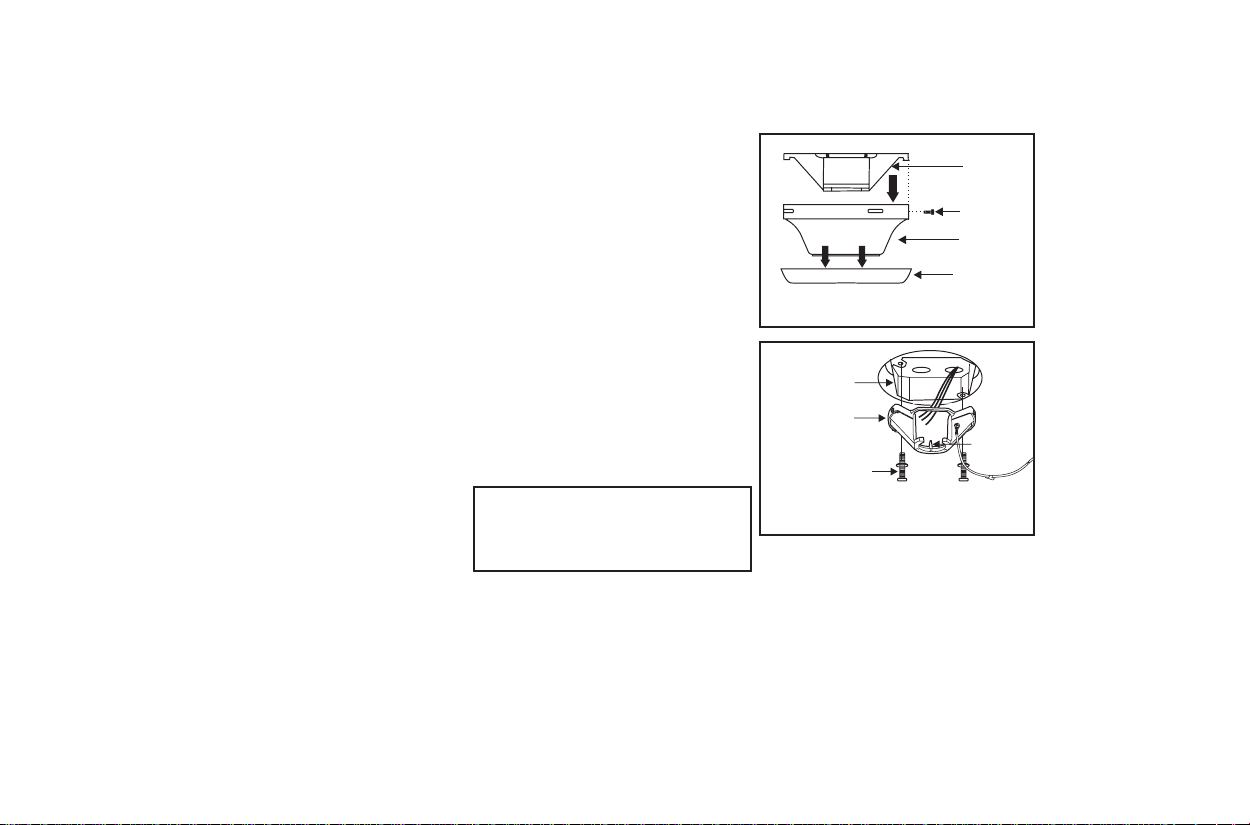

Figure 5
UL Listed
electrical box
Hanger
bracket
Mounting screws
(supplied with
electrical box)
Figure 6
Ceiling
mounting
bracket
Screws
Ceiling
canopy
Canopy
ring
Tab
4.
Page 9
Motor wires
Canopy ring
Hanger
pin
Figure 7
Registration slot
Figure 8
5.
Ball/downrod
assembly
Ceiling canopy
Tighten screws
firmly
Locking
pin
FLUSHMOUNT INSTALLATION
1. Remove the decorative canopy cover from
the canopy. (Fig. 9)
2. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig. 6.
3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Fig. 6)
4. Tighten the two screws on the outlet box
securely.

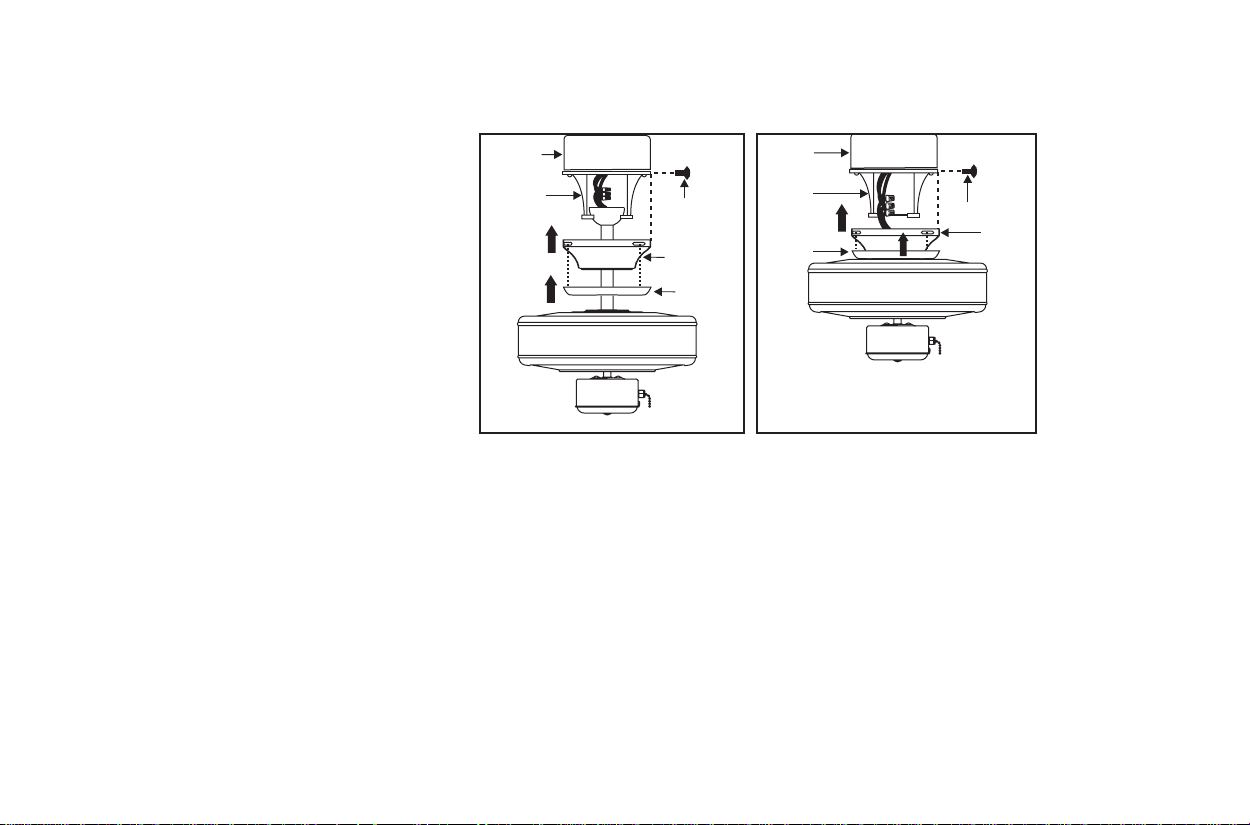

5. Remove three of the six screws and lock
washers (every other one) from the collar of
top motor (Fig. 10)
6. Place the rubber gasket over the remaining
three screws, route the wires exiting the top of
the fan motor through the canopy ring (make
sure the slot openings of the ring are on top).
then proceed to place the ceiling canopy over
the collar at the top of the motor. Align the
mounting holes with the holes in the motor
and fasten using the screws and lock washers
provided. (Fig. 10).
7. Tighten the mounting screws securely. (Fig.
10)
Failure to completely tighten the three
screws in step 6 could result in fan
WARNING
loosening and possibly falling.
8. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is fully
locked into hook as shown in Fig. 11. This
will allow you to make the electrical
connections.
Canopy
Canopy cover
Figure 9
Screw and
Lockwasher
(3 of 6 places)
Canopy
Collar
Canopy ring
Rubber gasket
Figure 10
Page 10
Hook
Figure 11
Making the Electrical
Connections
REMEMBER to disconnect the power. If you
feel that you do not have enough electrical
wiring knowledge or experience, have your
fan installed by a licensed electrician.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1 Connect the fan supply (black) wire
and light supply (blue) wire to the black
household supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to
the white neutral household wire.
Step 3 Connect the two green fan ground
wires, located on the mounting plate and
motor, to the household ground wire.
Step 4 After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and the black
wire is on the other side.
Step 5 Turn the connecting nuts upward and
push the wiring into the outlet box.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT USE A WALL MOUNTED
SOLID STATE SPEED CONTROL WITH THIS
FAN. IT WILL PERMANENTLY DAMAGE THE
WARNING
ELECTRONIC CIRCUITRY.

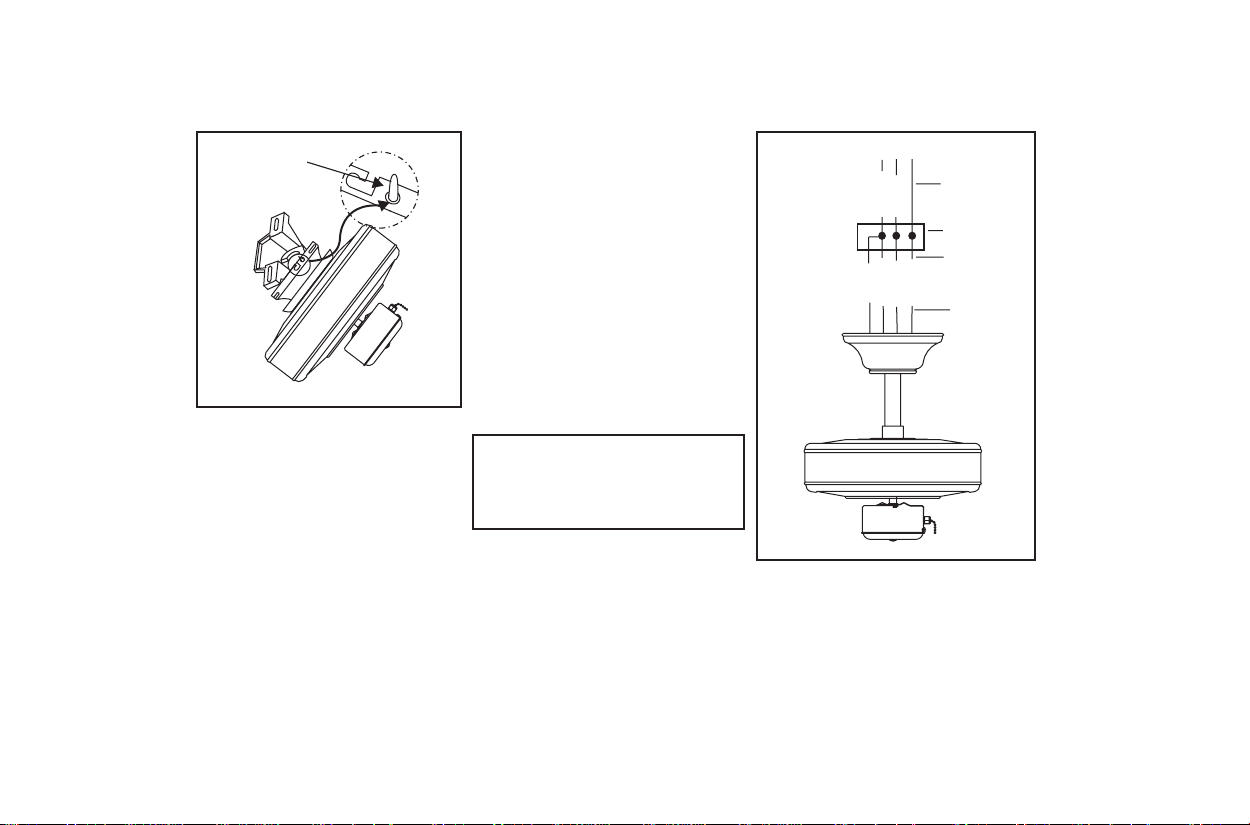

Figure 12
SUPPLY CIRCUIT
BLACK
WHITE
BLUE
BLACK
WHITE
GREEN
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
6.
Page 11
Finishing the
Installation
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 13. Make sure you place the wires
safely into the outlet box. Secure the canopy to
the hanger bracket with the four screws with
your fan. Raise canopy ring up against canopy
and secure it to canopy until snug.
FLUSHMOUNT INSTALLATION
Remove the fan from the hook on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Figure 14 with four screws
included with your fan. Secure the canopy to
the hanger bracket with the four screws with
your fan. Raise canopy ring up against canopy
and secure it to canopy until snug.
7.
Outlet
box
Hanger
bracket
Figure 13
Screws
Ceiling
canopy
Canopy
ring
Outlet
box
Hanger
bracket
Canopy
ring
Figure 14
Screws
Canopy
Page 12
Attaching the Fan
Blades
Remove 5 rubber packing mounts from
fan motor assembly and discard before
NOTE: Your fan blades are reversible. Select
the blade side finish which best accentuates
your decor.
Your fan features revolutionary advancements
for quick and easy blade installation.
The screws are already installed on the
blade arms, attach the blade arm support
plate and blades to the blade arms using the
screws already installed on the blade arms.
Be sure the screws on the blade arms slide
to the narrow portion of the key hole slot on
the blade arm support plate, by pushing the
tab back until the rectangle plastic band falls
into the hole on the blade (this locks the
blade assembly). To remove the blade from
the blade arm, pull the rectangle plastic
band up and slide the screws toward the
wide portion of the key hole slot on the
blade support plate. This will loosen the
blade and blade arm support plate and this
will allow you to remove the blade from the
blade arm. (Fig. 16)
Fasten blade assembly to motor using the
screws supplied. (Fig. 17)
CAUTION
installation. (Fig. 15)
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
HOLDERS WHILE INSTALLING, BALANCING
THE BLADES, OR CLEANING THE FAN. DO
NOT INSERT FOREIGN OBJECTS BETWEEN

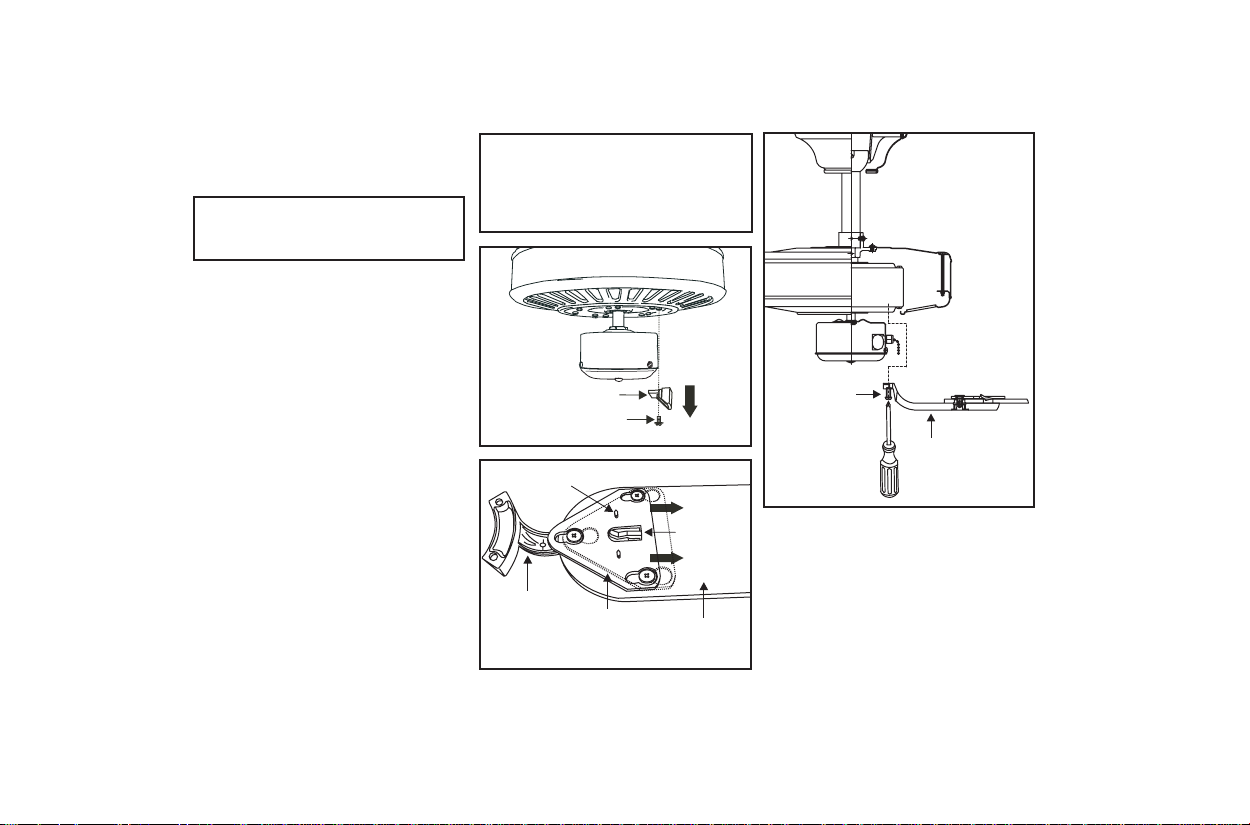

Figure 15
Blade arm
Figure 16
WARNING
ROTATING FAN BLADES.
Rubber packing
mounts
Screws
Tab
Blade arm
support plate
Rectangle
plastic band
Blade
Screws
Blade arm
Figure 17
8.
Page 13
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE SLIDE
Turn on the power and check the operation of
your fan. There are two pull chains available
in your fan:
1. 3-speed pull chain- it controls the fan
speed as follows:
1-Pull = High Speed
2-Pulls = Medium Speed
3-Pulls = Low Speed
4-Pulls = Fan Off
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.
NOTE
SWITCH.
The slide switch controls directions: forward
(switch down ) or reverse (switch up ).

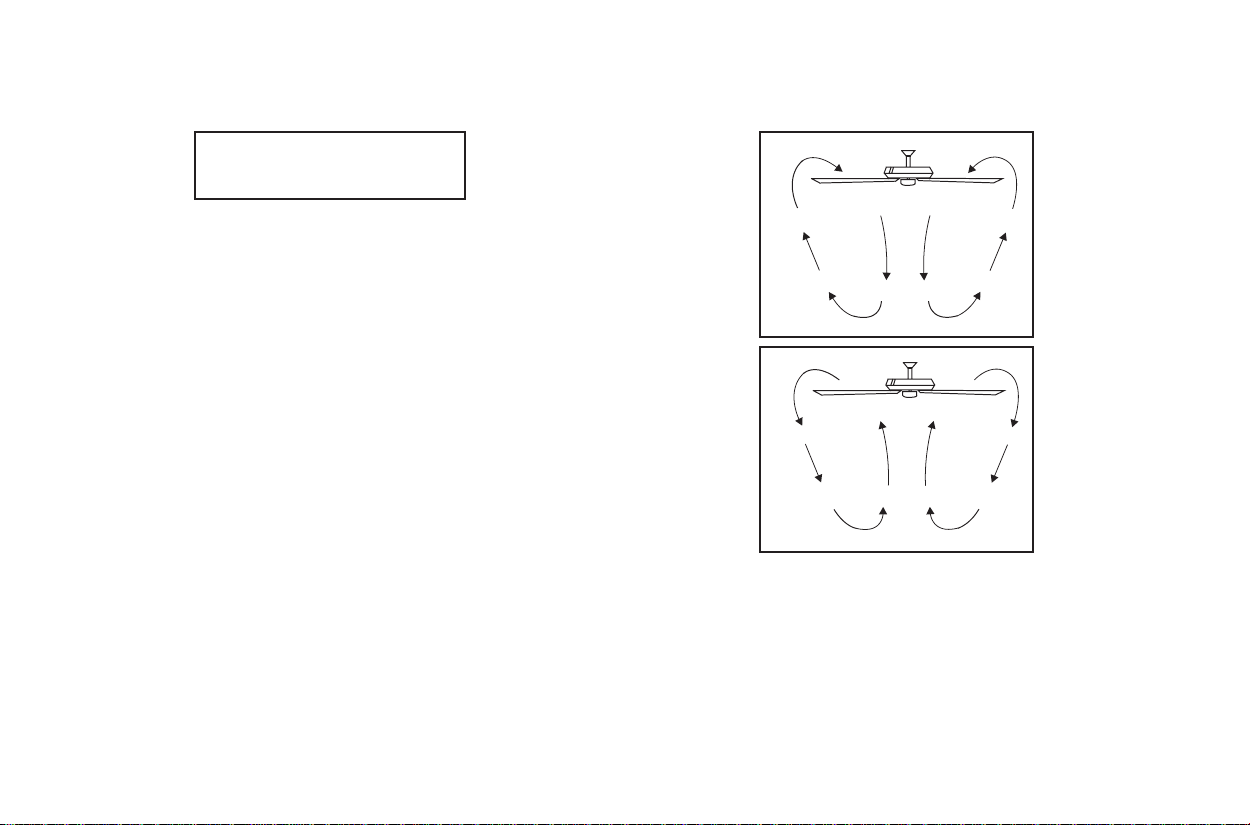

Warm weather - (Forward) A downward air
flow creates a cooling effect as shown in
Figure 18. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 19. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
9. Operating Your Fan
Figure 18
Figure 19
Page 14
Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they
are secure. (It is not necessary to remove
fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Use only
a soft brush or lint-free cloth to avoid
scratching the finish. The plating is sealed
with a lacquer to minimize discoloration or
tarnishing. Do not use water when cleaning.
This could damage the motor, or the wood,
or possibly cause an electrical shock.
3. You can apply a light coat of furniture
polish to the wood blades for additional
protection and enhanced beauty. Cover
small scratches with a light application of
shoe polish.
4. There is no need to oil your fan. The
motor has permanently lubricated
bearings.
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
IMPORTANT
SECTION "MAKING ELECTRICAL
CONNECTIONS".
Care of Your Fan 10.

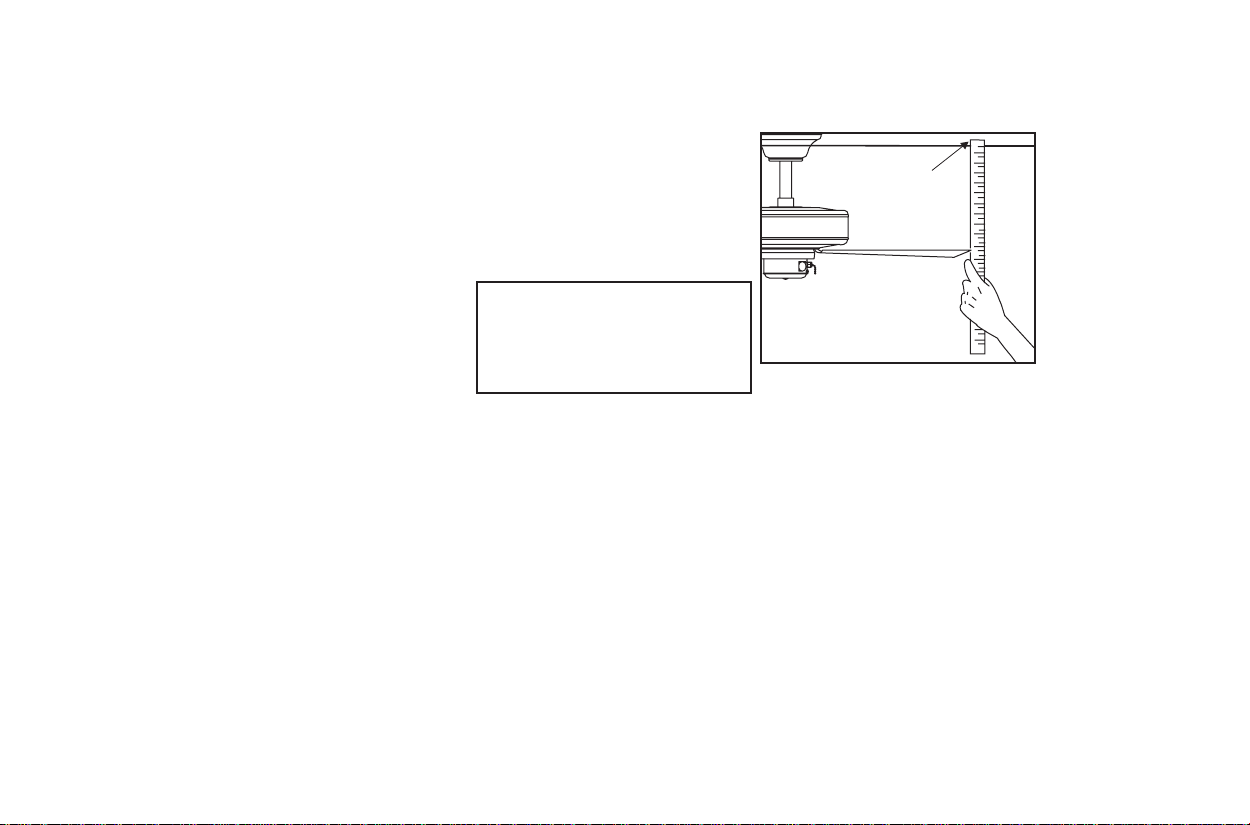

Figure 20
Touching
ceiling
Page 15
Problem Solution
Fan will not start.
Fan sounds noisy.
Fan wobble.
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light
bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this
type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point
on the ceiling above the tip of one of the blades. Measure this distance.(Fig. 20) Rotate the fan until the
next blade is positioned for measurement. Repeat for each blade. The distance deviation should be equal
within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE
INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
11. Troubleshooting
Page 16
Fan Size
Speed
Volts
Amps
Watts
RPM
CFM
N.W. G.W. C.F.
52"
(1.32 m)
These are approximate measures.
Low
Medium
High
120
120
120
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W.
Atlanta, Georgia 30339
0.19
0.34
0.48
9
27
58
60
120
183
1822
3534
5311
6.85 kgs
(15.08 lbs)
7.66 kgs
(16.87 lbs)
1.57'
Specifications 12.
Loading...
