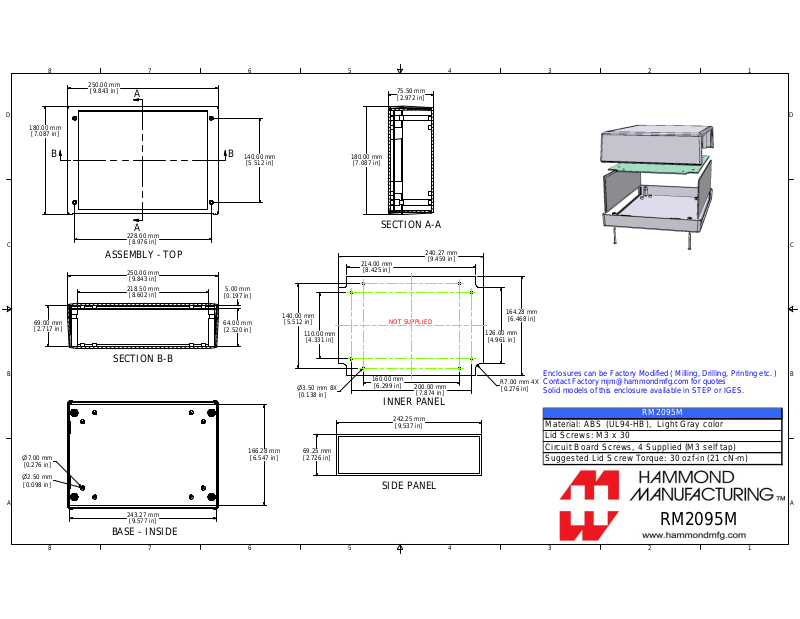

Hammond Manufacturing RM2095M technical drawings
8
250.00 mm
[9.843 in]
D D
180.00 mm
[7.087 in]
7
A
6
5
75.50 mm
[2.972 in]
4
3
2
1
BB
140.00 mm
[5.512 in]
A
228.00 mm
C C
[8.976 in]
ASSEMBLY - TOP
250.00 mm
[9.843 in]
69.00 mm
[2.717 in]
218.50 mm
[8.602 in]
5.00 mm
[0.197 in]
64.00 mm
[2.520 in]
140.00 mm
[5.512 in]
110.00 mm
[4.331 in]
180.00 mm
[7.087 in]
214.00 mm
[8.425 in]
SECTION A-A
240.27 mm
[9.459 in]
NOT SUPPLIED
164.28 mm
[6.468 in]
126.00 mm
[4.961 in]
SECTION B-B
B B
n7.00 mm
[0.276 in]
n2.50 mm
[0.098 in]
A A
243.27 mm
[9.577 in]
166.28 mm
[6.547 in]
n3.50 mm
[0.138 in]
69.25 mm
[2.726 in]
8X
160.00 mm
[6.299 in]
INNER PANEL
242.25 mm
[9.537 in]
SIDE PANEL
200.00 mm
[7.874 in]
R7.00 mm
[0.276 in]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact Factory mjm@hammondmfg.com for quot es
4X
Solid models of this enclosure available in STEP or IGES.
RM2095M
Material: A B S (UL94-HB), Light G ray c olor
Lid S c rews : M 3 x 30
Circuit B oard S c rews, 4 S upplied (M3 s elf tap)
Sugges ted Lid S c rew Torque: 30 ozf-in (21 cN-m)
RM2095M
BASE - INSIDE
8
7
6
5
4
3
2
1
