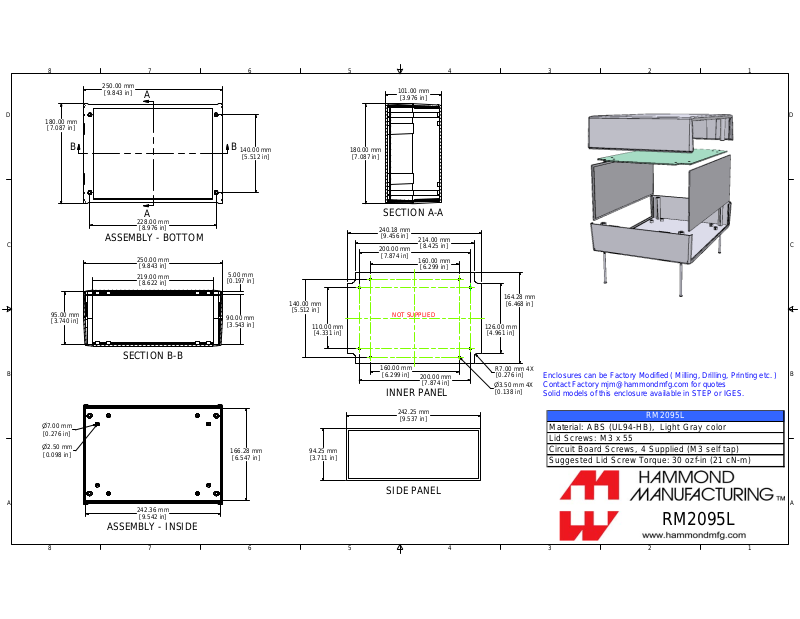

Hammond Manufacturing RM2095L technical drawings
8
250.00 mm
[9.843 in]
7
A
6
5
101.00 mm
[3.976 in]
4
3
2
1
D D
C C
180.00 mm
[7.087 in]
95.00 mm
[3.740 in]
A
228.00 mm
[8.976 in]
ASSEMBLY - BOTTOM
250.00 mm
[9.843 in]
219.00 mm
[8.622 in]
BB
140.00 mm
[5.512 in]
5.00 mm
[0.197 in]
90.00 mm
[3.543 in]
140.00 mm
[5.512 in]
110.00 mm
[4.331 in]
180.00 mm
[7.087 in]
SECTION A-A
240.18 mm
[9.456 in]
200.00 mm
[7.874 in]
214.00 mm
[8.425 in]
160.00 mm
[6.299 in]
NOT SUPPLIED
164.28 mm
[6.468 in]
126.00 mm
[4.961 in]
SECTION B-B
B B
160.00 mm
[6.299 in]
200.00 mm
[7.874 in]
INNER PANEL
242.25 mm
n7.00 mm
[0.276 in]
n2.50 mm
[0.098 in]
166.28 mm
[6.547 in]
94.25 mm
[3.711 in]
[9.537 in]
R7.00 mm
[0.276 in]
n3.50 mm
[0.138 in]
4X
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
4X
Contact Factory mjm@hammondmfg.com for quot es
Solid models of this enclosure available in STEP or IGES.
RM2095L
Mat erial: A B S (UL94-HB), Light G ray c olor
Lid Sc rews : M 3 x 55
Circuit B oard S c rews, 4 S upplied (M3 s elf tap)
Sugges t ed Lid S c rew Torque: 30 ozf-in (21 cN-m )
SIDE PANEL
A A
242.36 mm
[9.542 in]
ASSEMBLY - INSIDE
RM2095L
8
7
6
5
4
3
2
1
