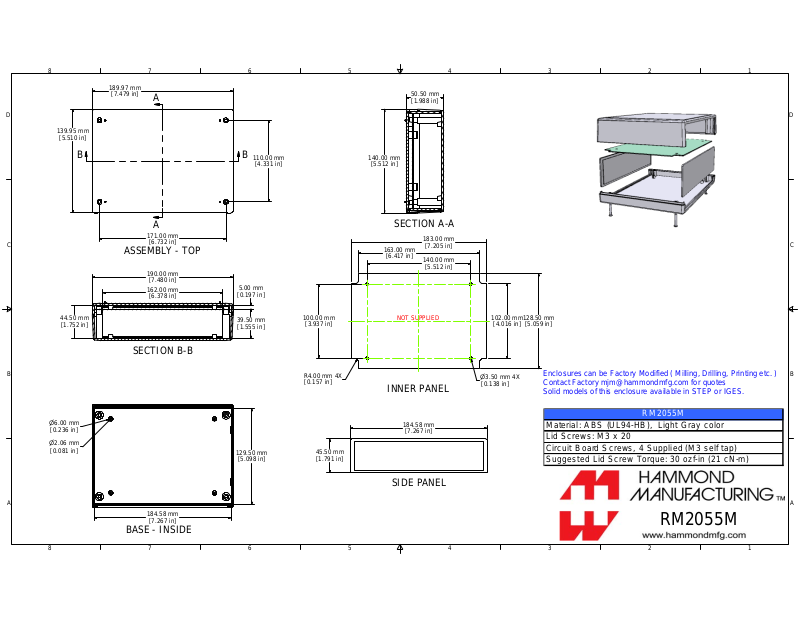

Hammond Manufacturing RM2055M technical drawings

8

189.97 mm
[7.479 in]

D D

139.95 mm
[5.510 in]

7

A

6

5

50.50 mm
[1.988 in]

4

3

2

1

BB

110.00 mm
[4.331 in]

A

171.00 mm

C C

[6.732 in]

ASSEMBLY - TOP

190.00 mm

44.50 mm
[1.752 in]

[7.480 in]

162.00 mm
[6.378 in]

5.00 mm

[0.197 in]

39.50 mm
[1.555 in]

100.00 mm
[3.937 in]

140.00 mm
[5.512 in]

SECTION A-A

163.00 mm
[6.417 in]

183.00 mm
[7.205 in]

140.00 mm
[5.512 in]

NOT SUPPLIED

102.00 mm
[4.016 in]

128.50 mm
[5.059 in]

SECTION B-B

B B

R4.00 mm
[0.157 in]

4X

INNER PANEL

n3.50 mm

[0.138 in]

4X

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact Factory [e-mail] for quot es
Solid models of this enclosure available in STEP or IGES.

n6.00 mm

[0.236 in]

n2.06 mm

[0.081 in]

129.50 mm
[5.098 in]

45.50 mm
[1.791 in]

184.58 mm
[7.267 in]

Material: A B S (UL94-HB), Light Gray c olor
Lid Sc rews: M 3 x 20
Circuit B oard S c rews, 4 S upplied (M3 s elf tap)
Sugges ted Lid Screw Torque: 30 ozf-in (21 cN-m )

RM2055M

SIDE PANEL

A A

184.58 mm
[7.267 in]

RM2055M

BASE - INSIDE

8

7

6

5

4

3

2

1
