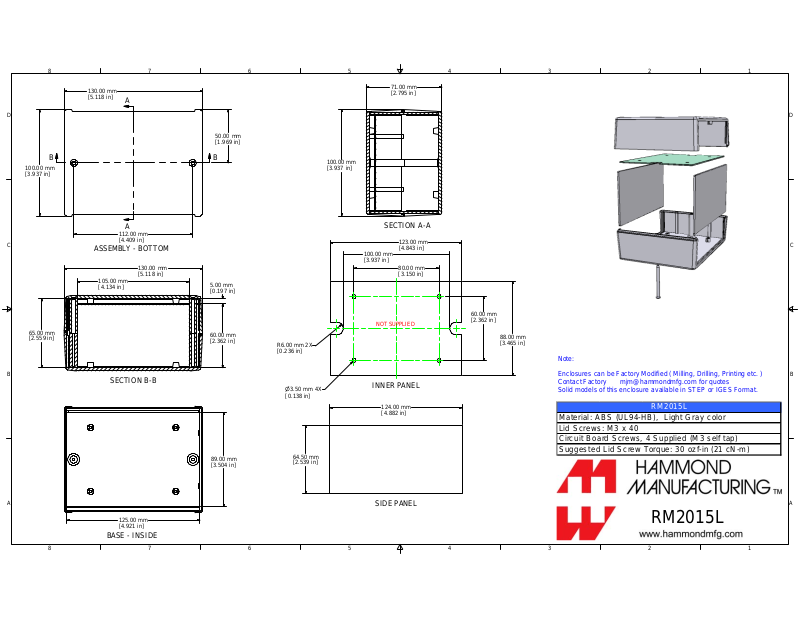

Hammond Manufacturing RM2015L technical drawings

4

100.00 mm
[3.937 in]

5

71.00 mm
[2.795 in]

8

130.00 mm
[5.118 in]

D D

7

A

50.00 mm
[1.969 in]

6

BB

100.00 mm
[3.937 in]

3

2

1

A

112.00 mm

C C

[4.409 in]

ASSEMBLY - BOTTOM

130.00 mm

105.00 mm
[4.134 in]

65.00 mm
[2.559 in]

B B

[5.118 in]

SECTION B-B

5.00 mm
[0.197 in]

60.00 mm
[2.362 in]

R6.00 mm
[0.236 in]

n3.50 mm

[0.138 in]

2X

4X

SECTION A-A

100.00 mm
[3.937 in]

NOT SUPPLIED

INNER PANEL

124.00 mm
[4.882 in]

123.00 mm
[4.843 in]

80.00 mm
[3.150 in]

60.00 mm
[2.362 in]

88.00 mm
[3.465 in]

Note:
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )

Contact Factory [e-mail] fo r quo tes
Solid models of this enc l os ure available in STEP or IGES For m at.

RM2015L

Material: ABS (UL94-HB), Light Gray color
Lid Sc rews: M 3 x 40
Circuit B oard Sc rews , 4 S upplied (M3 s elf tap)

89.00 mm
[3.504 in]

A A

125.00 mm
[4.921 in]

64.50 mm
[2.539 in]

SIDE PANEL

Sugges ted Lid S c rew Torque: 30 ozf-in (21 cN-m)

RM2015L

BASE - INSIDE
