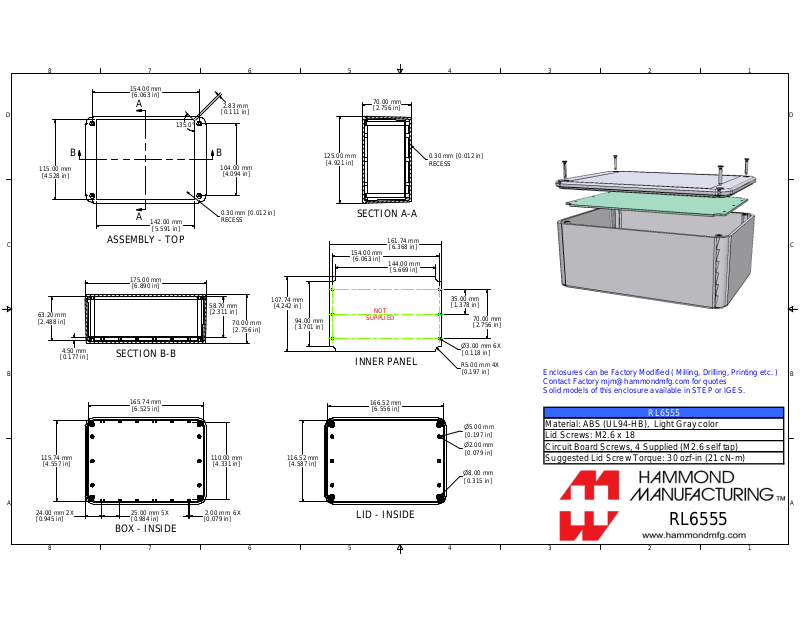

Hammond Manufacturing RL6555 technical drawings
5
70.00 mm
[2.756 in]
2.83 mm
[0.111 in]
6
8
7
154.00 mm
[6.063 in]
A
D D
135.0°
4
3
2
1
BB
115.00 mm
[4.528 in]
A
142.00 mm
[5.591 in]
C C
63.20 mm
[2.488 in]
4.50 mm
[0.177 in]
B B
ASSEMBLY - TOP
175.00 mm
[6.890 in]
SECTION B-B
104.00 mm
[4.094 in]
0.30 mm [0.012 in]
RECESS
58.70 mm
[2.311 in]
70.00 mm
[2.756 in]
107.74 mm
[4.242 in]
94.00 mm
[3.701 in]
125.00 mm
[4.921 in]
SECTION A-A
161.74 mm
NOT
SUPPLIED
[6.368 in]
144.00 mm
[5.669 in]
154.00 mm
[6.063 in]
INNER PANEL
0.30 mm [0.012 in]
RECESS
35.00 mm
[1.378 in]
70.00 mm
[2.756 in]
n3.00 mm
[0.118 in]
R5.00 mm
[0.197 in]
4X
6X
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact Factory mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
115.74 mm
[4.557 in]
165.74 mm
[6.525 in]
110.00 mm
[4.331 in]
116.52 mm
[4.587 in]
166.52 mm
[6.556 in]
n5.00 mm
[0.197 in]
n2.00 mm
[0.079 in]
n8.00 mm
[0.315 in]
RL6555
Material: ABS (UL94-HB), Light Gray color
Lid Screws: M2.6 x 18
Circuit Board Screws, 4 Supplied (M2.6 self tap)
Suggested Lid Screw Torque: 30 ozf-in (21 cN-m)
A A
2X 25.00 mm
[0.945 in]
[0.984 in]
5X
BOX - INSIDE
8
7
2.00 mm
[0.079 in]
6X24.00 mm
6
LID - INSIDE
5
RL6555
4
3
2
1
