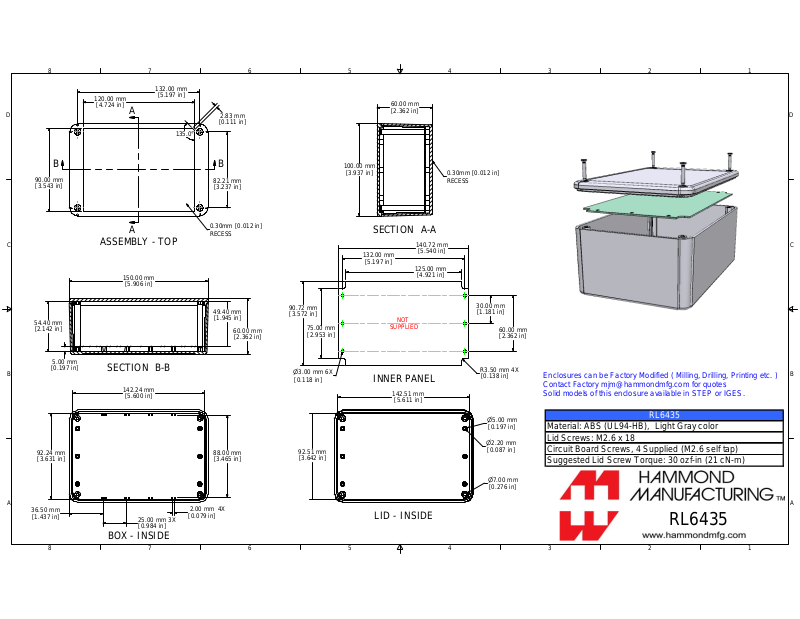

Hammond Manufacturing RL6435 technical drawings
5
60.00 mm
[2.362 in]
2.83 mm
[0.111 in]
6
8
120.00 mm
D D
[4.724 in]
7
132.00 mm
[5.197 in]
A
135.0°
4
3
2
1
BB
90.00 mm
[3.543 in]
A
C C
ASSEMBLY - TOP
82.21 mm
[3.237 in]
0.30mm [0.012 in]
RECESS
150.00 mm
[5.906 in]
49.40 mm
54.40 mm
[2.142 in]
5.00 mm
B B
[0.197 in]
92.24 mm
[3.631 in]
SECTION B-B
142.24 mm
[5.600 in]
[1.945 in]
60.00 mm
[2.362 in]
88.00 mm
[3.465 in]
90.72 mm
[3.572 in]
75.00 mm
[2.953 in]
n3.00 mm
[0.118 in]
92.51 mm
[3.642 in]
6X
100.00 mm
[3.937 in]
132.00 mm
[5.197 in]
SECTION A-A
140.72 mm
[5.540 in]
125.00 mm
[4.921 in]
NOT
SUPPLIED
INNER PANEL
142.51 mm
[5.611 in]
0.30mm [0.012 in]
RECESS
30.00 mm
[1.181 in]
R3.50 mm
[0.138 in]
n5.00 mm
[0.197 in]
n2.20 mm
[0.087 in]
60.00 mm
[2.362 in]
4X
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact Factory mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
RL6435
Material: ABS (UL94-HB), Light Gray color
Lid Screws: M2.6 x 18
Circuit Board Screws, 4 Supplied (M2.6 self tap)
Suggested Lid Screw Torque: 30 ozf-in (21 cN-m)
n7.00 mm
[0.276 in]
A A
36.50 mm
[1.437 in]
25.00 mm
[0.984 in]
BOX - INSIDE
8
7
3X
2.00 mm
[0.079 in]
4X
LID - INSIDE
6
5
4
3
RL6435
2
1
