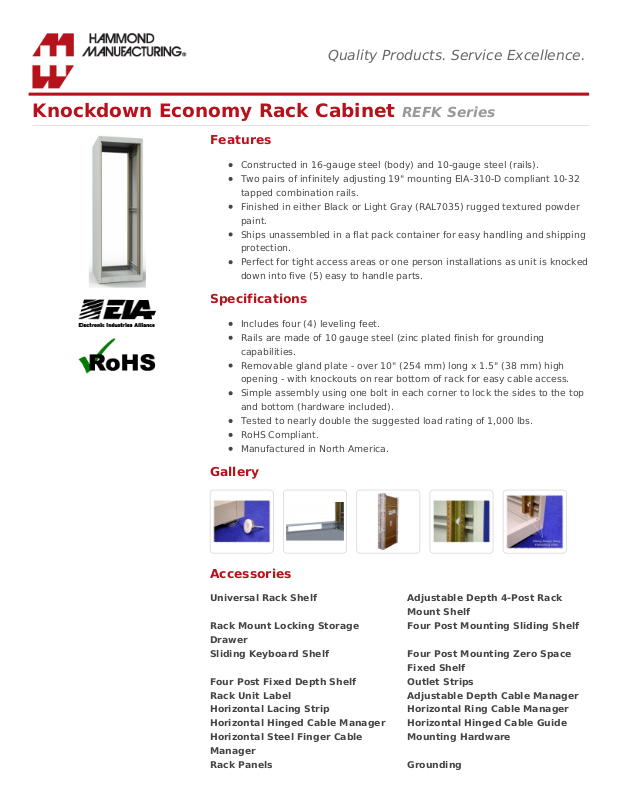

Knockdown Economy Rack Cabinet REFK Series

Features

Constructed in 16-gauge steel (body) and 10-gauge steel (rails). Two pairs of infinitely adjusting 19" mounting EIA-310-D compliant 10-32 tapped combination rails. Finished in either Black or Light Gray (RAL7035) rugged textured powder paint. Ships unassembled in a flat pack container for easy handling and shipping protection. Perfect for tight access areas or one person installations as unit is knocked down into five (5) easy to handle parts.

Specifications

Includes four (4) leveling feet. Rails are made of 10 gauge steel (zinc plated finish for grounding capabilities. Removable gland plate - over 10" (254 mm) long x 1.5" (38 mm) high opening - with knockouts on rear bottom of rack for easy cable access. Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included). Tested to nearly double the suggested load rating of 1,000 lbs. RoHS Compliant. Manufactured in North America.

Gallery

Accessories

Quality Products. Service Excellence.

Lite Duty Caster Set Medium Duty Caster Set

Part No. Part No.

Overall Dimensions Usable Mounting Dimensions

ShippingHeight Width Depth Rack Height

Depth

Black Light Gray A C Units H (With Doors) Weight

REFK1903517BK1 REFK1903517LG1 40.19 21.34 17.50 20U 35.19 16.50 16.00 90 lb

REFK1904217BK1 REFK1904217LG1 47.19 21.34 17.50 24U 42.19 16.50 16.00 104 lb

REFK1904917BK1 REFK1904917LG1 54.19 21.34 17.50 28U 49.19 16.50 16.00 112 lb

REFK1905617BK1 REFK1905617LG1 61.19 21.34 17.50 32U 56.19 16.50 16.00 123 lb

REFK1906317BK1 REFK1906317LG1 68.19 21.34 17.50 36U 63.19 16.50 16.00 134 lb

REFK1907017BK1 REFK1907017LG1 75.19 21.34 17.50 40U 70.19 16.50 16.00 144 lb

REFK1907717BK1 REFK1907717LG1 82.19 21.34 17.50 44U 77.19 16.50 16.00 154 lb

REFK1903524BK1 REFK1903524LG1 40.19 21.34 24.50 20U 35.19 23.50 23.00 116 lb

REFK1904224BK1 REFK1904224LG1 47.19 21.34 24.50 24U 42.19 23.50 23.00 124 lb

REFK1904924BK1 REFK1904924LG1 54.19 21.34 24.50 28U 49.19 23.50 23.00 140 lb

REFK1905624BK1 REFK1905624LG1 61.19 21.34 24.50 32U 56.19 23.50 23.00 146 lb

REFK1906324BK1 REFK1906324LG1 68.19 21.34 24.50 36U 63.19 23.50 23.00 162 lb

REFK1907024BK1 REFK1907024LG1 75.19 21.34 24.50 40U 70.19 23.50 23.00 178 lb

REFK1907724BK1 REFK1907724LG1 82.19 21.34 24.50 44U 77.19 23.50 23.00 190 lb

REFK1903531BK1 REFK1903531LG1 40.19 21.34 31.50 20U 35.19 30.50 30.00 136 lb

REFK1904231BK1 REFK1904231LG1 47.19 21.34 31.50 24U 42.19 30.50 30.00 154 lb

REFK1904931BK1 REFK1904931LG1 54.19 21.34 31.50 28U 49.19 30.50 30.00 170 lb

REFK1905631BK1 REFK1905631LG1 61.19 21.34 31.50 32U 56.19 30.50 30.00 180 lb

REFK1906331BK1 REFK1906331LG1 68.19 21.34 31.50 36U 63.19 30.50 30.00 190 lb

REFK1907031BK1 REFK1907031LG1 75.19 21.34 31.50 40U 70.19 30.50 30.00 198 lb

REFK1907731BK1 REFK1907731LG1 82.19 21.34 31.50 44U 77.19 30.50 30.00 226 lb

REFK Doors

Solid Door Solid Door Louvered Door Louvered Door Acrylic Door

Use With REFK FramePart No. Part No. Part No. Part No. Part No.

Black Light Gray Black Light Gray Black Height Rack Units Part No.

RSDF19035BK1 RSDF19035LG1 RSDL19035BK1 RSDL19035LG1 REDFP19035BK1 35.00 20U REFK1903524

RSDF19042BK1 RSDF19042LG1 RSDL19042BK1 RSDL19042LG1 REDFP19042BK1 42.00 24U REFK1904224
