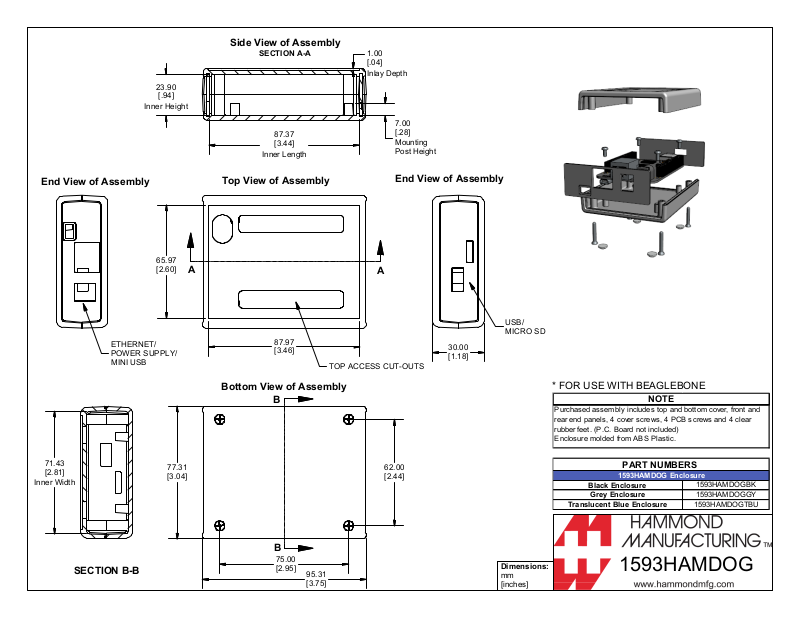

Hammond Manufacturing 1593HAMDOGBK Schematic

23.90
[.94]

Inner Height

Side View of Assembly

SECTION A-A

87.37
[3.44]

Inner Length

1.00
[.04]

Inlay Depth

7.00
[.28]

Mounting
Post Height

End View of Assembly

ETHERNET/
POWER SUPPLY/
MINI USB

71.43
[2.81]

Inner Width

65.97

[2.60]

77.31
[3.04]

Top View of Assembly

A

87.97
[3.46]

TOP ACCESS CUT-OUTS

Bottom View of Assembly

B

End View of Assembly

A

30.00
[1.18]

62.00
[2.44]

USB/
MICRO SD

* FOR USE WITH BEAGLEBONE

Purchased ass embly includes t op and bottom cover, front and
rear end panels , 4 c over screws, 4 PCB sc rews and 4 clear
rubber feet. (P.C. Board not included)
Enclosure molded from AB S Plastic.

1593HAMDOG Enclosure

Black Enclosure

Grey Enclosure

Translucent Blue Enclosure

NOTE

PART NUMBERS

1593HAMDOGBK
1593HAMDOGGY

1593HAMDOGTBU

SECTION B-B

B

75.00
[2.95]

95.31
[3.75]

Dimensions:

mm
[inches]

1593HAMDOG
