HAMMOND MANUFACTURING 1455B802 Datasheet
8
D D
7
6
5
4
3
2
1
EXTRUSION
1.60
TYP.
[0.063]
[0.079]
C C
B B
+
0.50
81.00
-
0.50
+
0.020
3.189
-
0.020
[]
2.85
[0.112]
2.00
TYP.

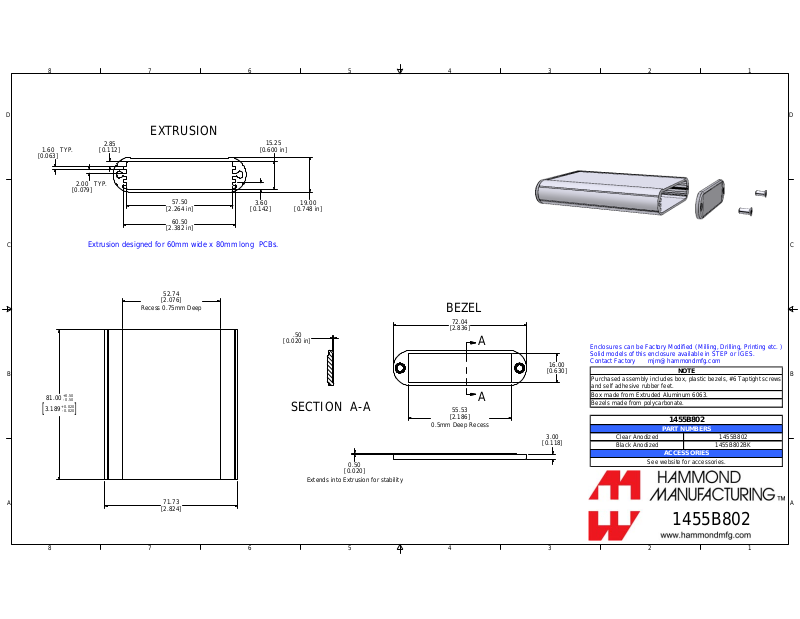

Extrusion designed for 60mm wide x 80mm long PCBs.
Recess 0.75mm Deep
57.50
[2.264 in]
60.50
[2.382 in]
52.74
[2.076]
[0.600 in]
3.60
[0.142]
15.25
19.00
[0.748 in]
.50
[0.020 in]
SECTION A-A
Extends into Extrusion for stability
BEZEL
72.04
[2.836]
A
16.00
[0.630]
A
55.53
0.50
[0.020]
[2.186]
0.5mm Deep Recess
3.00
[0.118]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Solid models of this enclosure available in STEP or IGES.
Contact Factory mjm@hammondmfg.com
Purchased assembly includes box, plastic bezels, #6 Taptight screws
and self adhesive rubber feet.
Box made from Extruded Aluminum 6063.
Bezels made from polycarbonate.
NOTE
1455B802
Clear Anodized
Black Anodized
PART NUMBERS
ACCESSORIES
See website for accessories.
1455B802BK
1455B802
